Low Profile 3D Printed Cabinet Door Latch

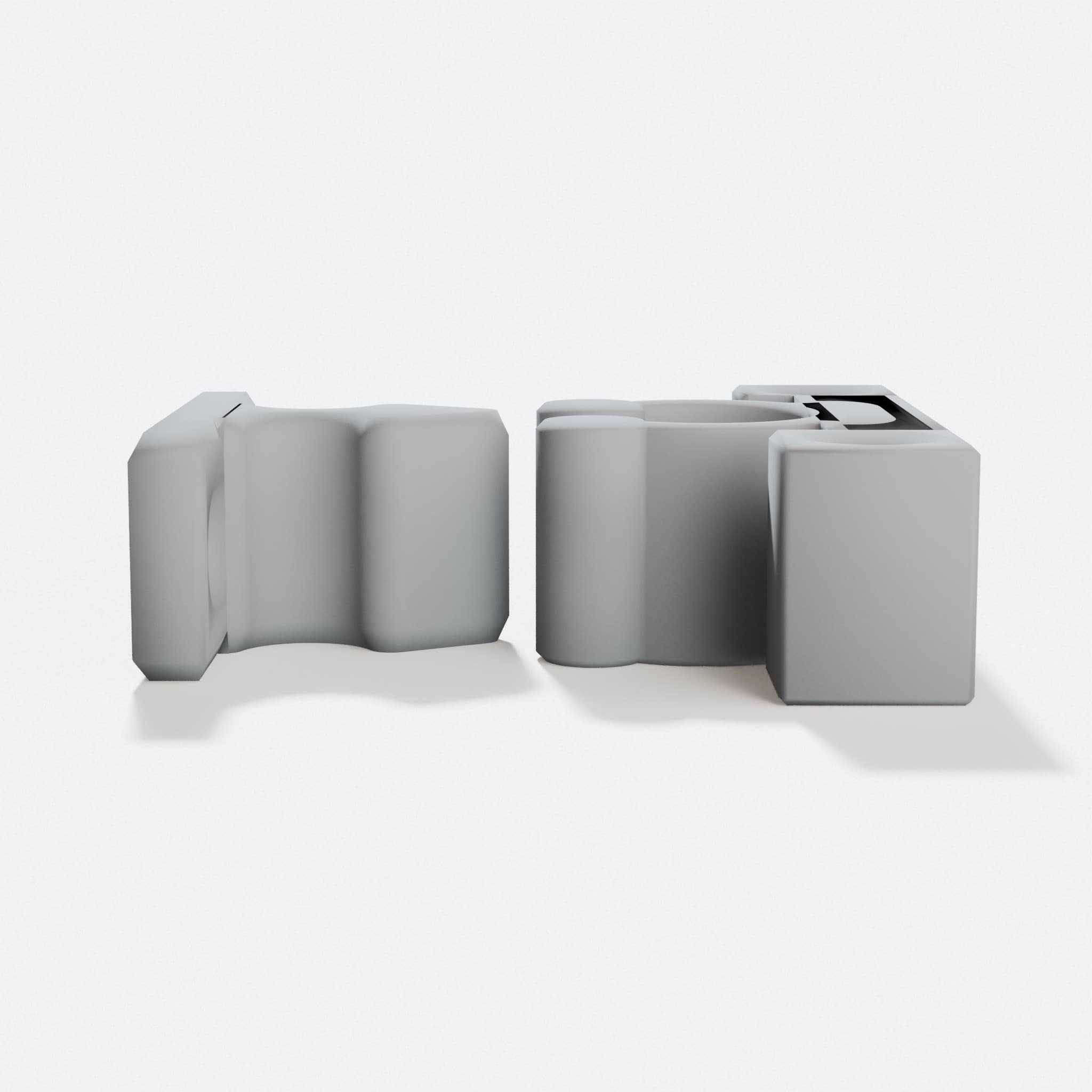

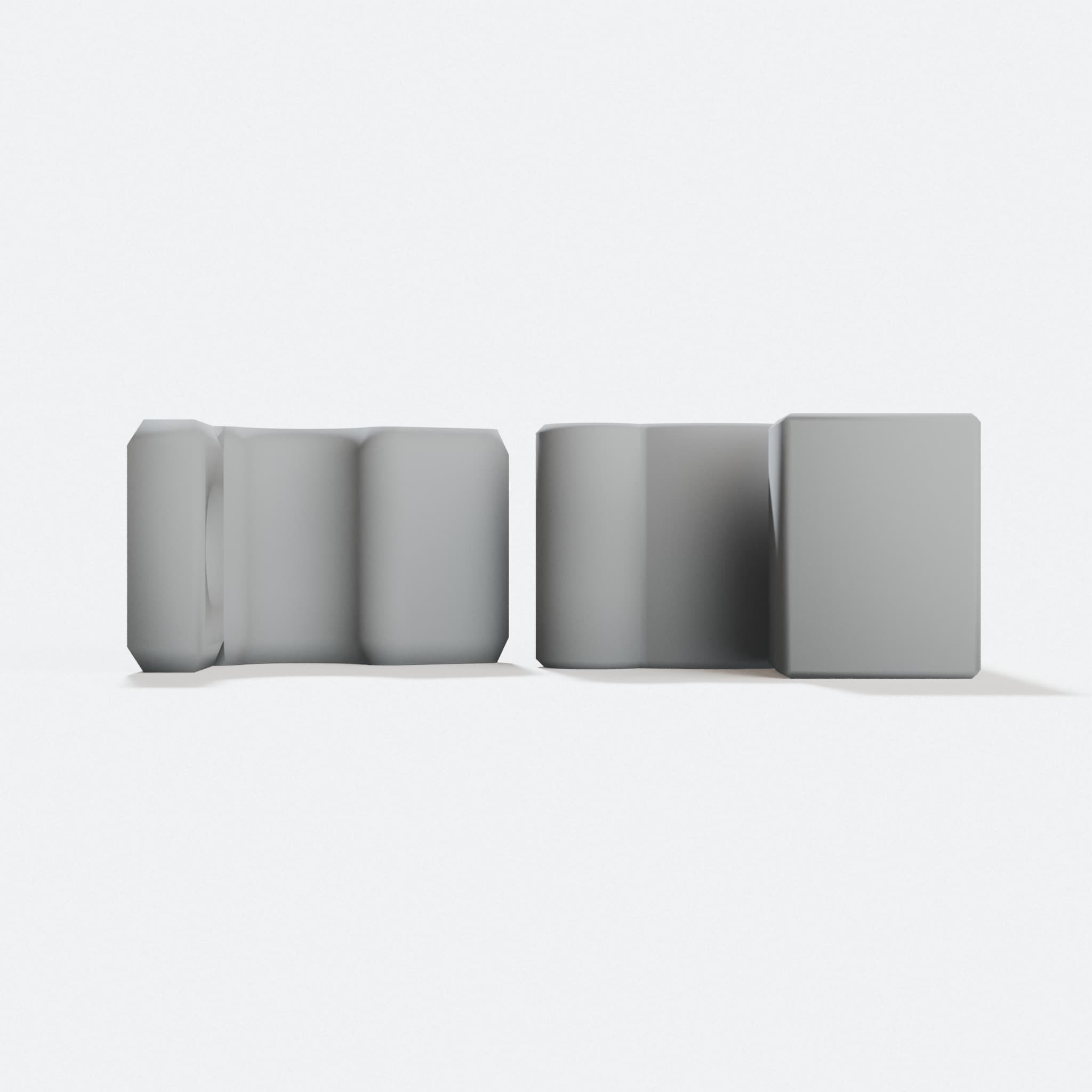

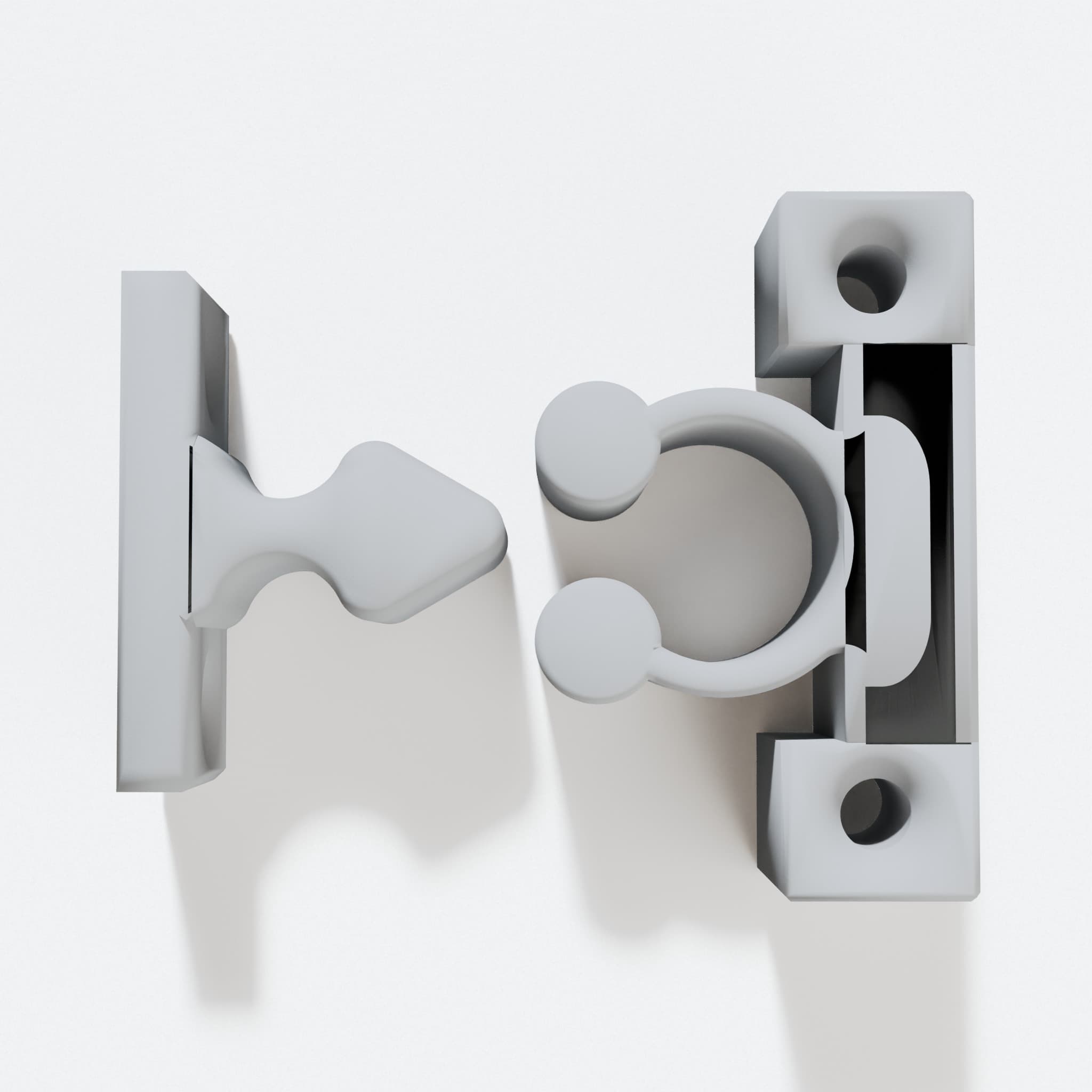

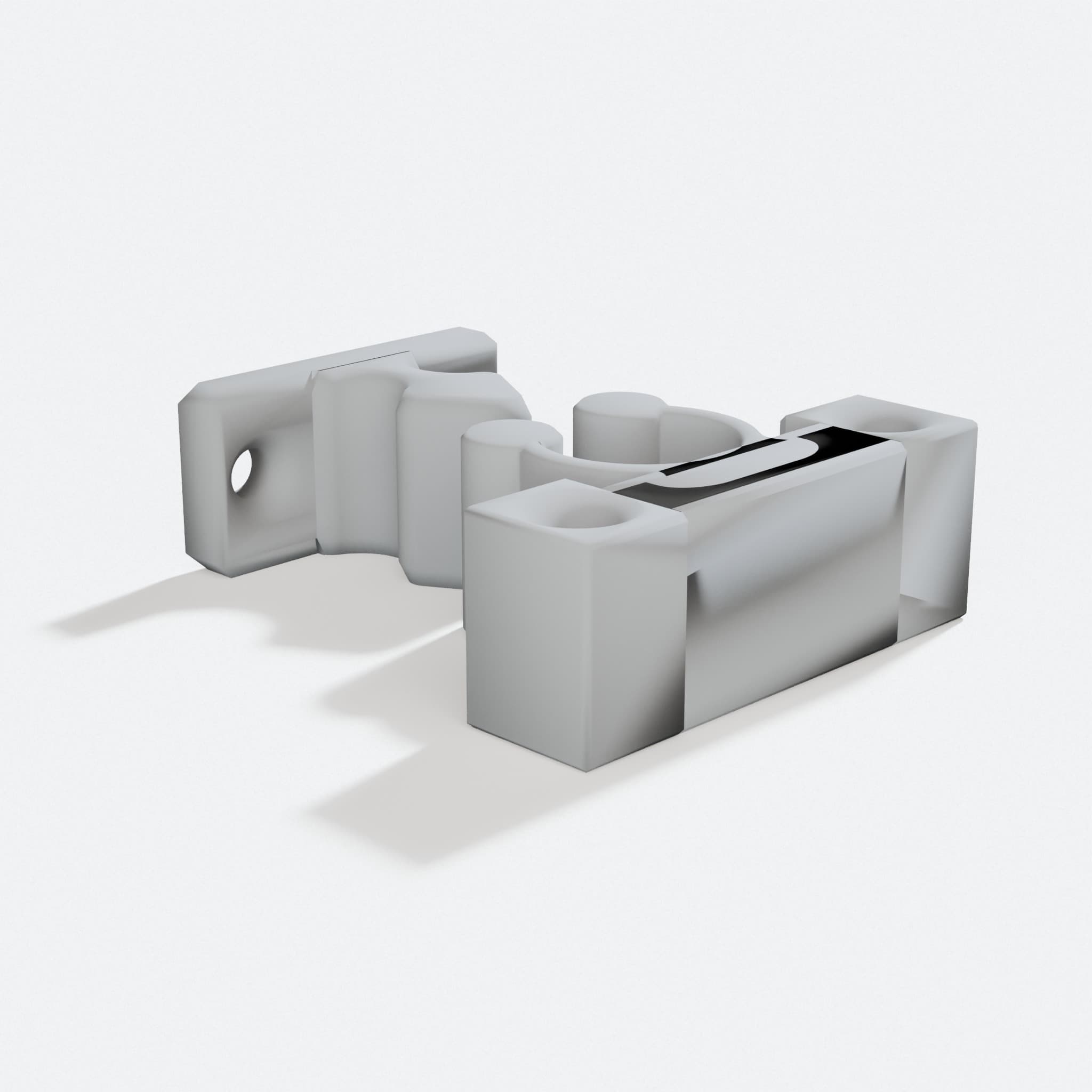

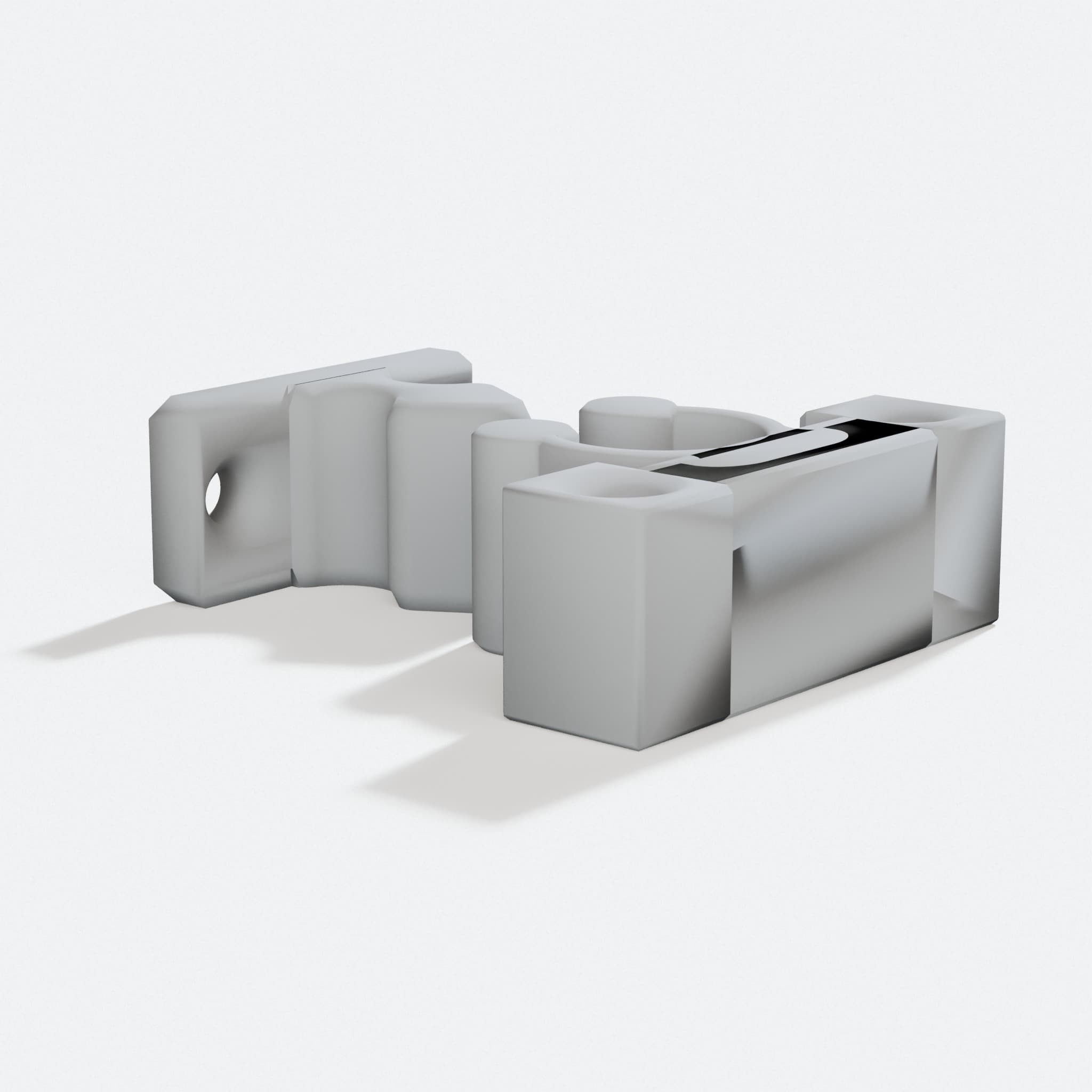

Low Profile 3D Printed Cabinet Door Latch, design preview, turn three quarter

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Fits tight spaces where standard latches won't work so your cabinet doors stay closed in small mounting areas
  • Same strength as full-size retaining catches; lower profile means you get security without bulk
  • Print on demand and customize to your exact needs so you only pay for what you use

Your cabinet doors stay shut tight even in tight spots. This low profile retaining latch gives you the strength you need when space is short. Perfect for small cabinets, wall-mounted storage, or tight built-in spaces where a regular latch sticks out too far.

The design matches the durability of standard retaining catches but takes up less room. You get a snap clip that holds firm without requiring extra clearance.

No bulk orders, no waste. Just print what your project needs.

2.5k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by lukefantastic. We did not draw it.

Shared under Creative Commons, credit and share alike. See the original design
