Sliding Door Bolt with Ball Handle for Sheds and Doors

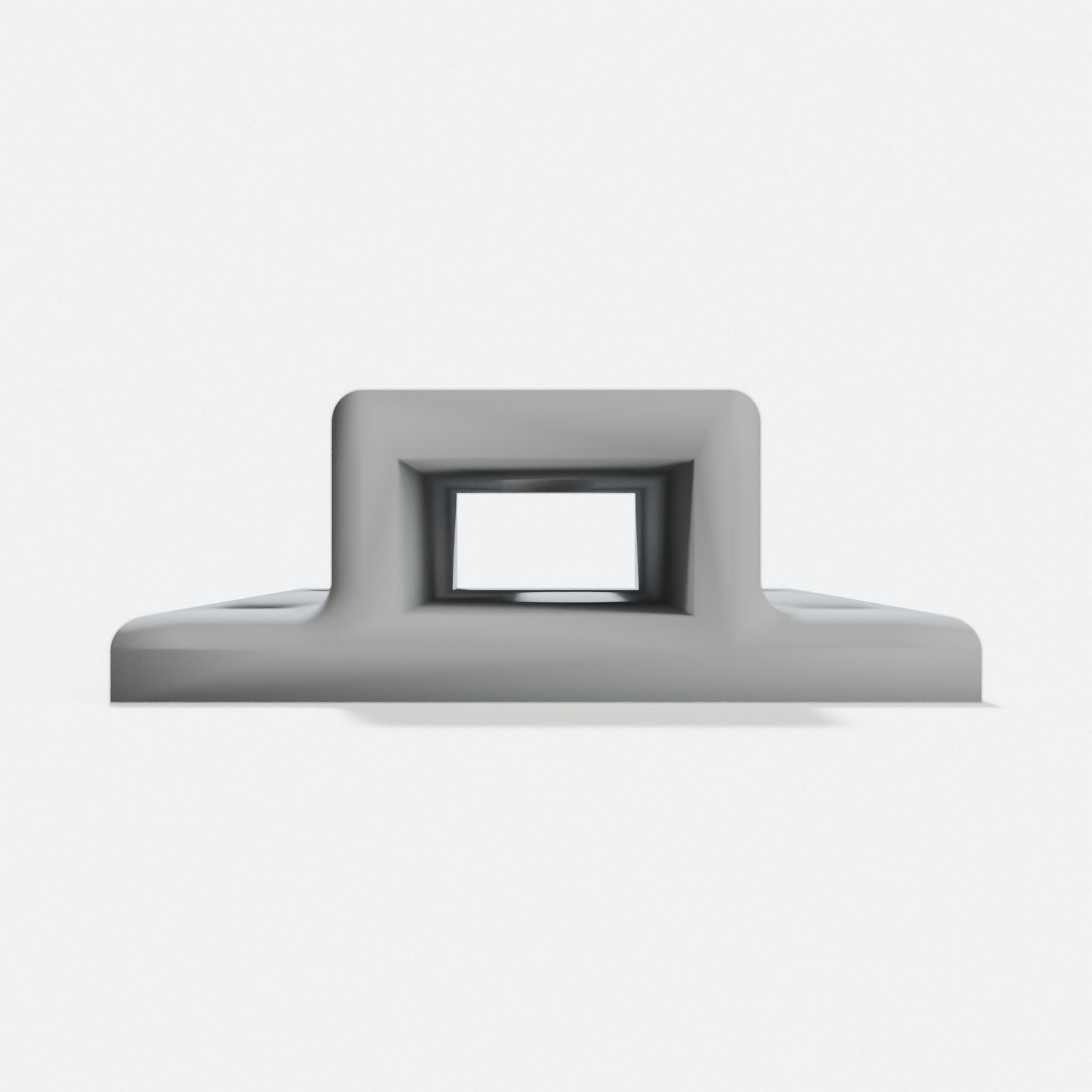

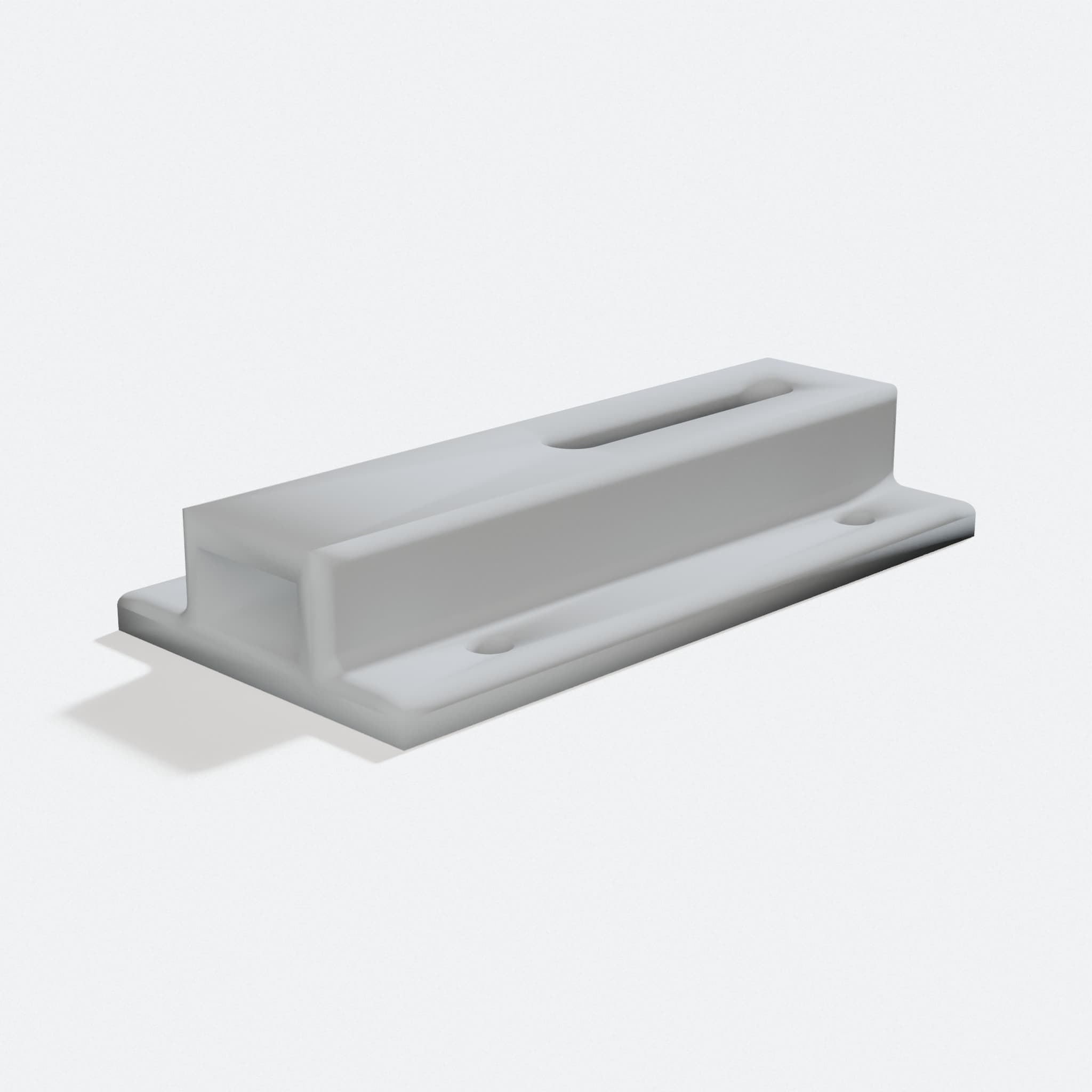

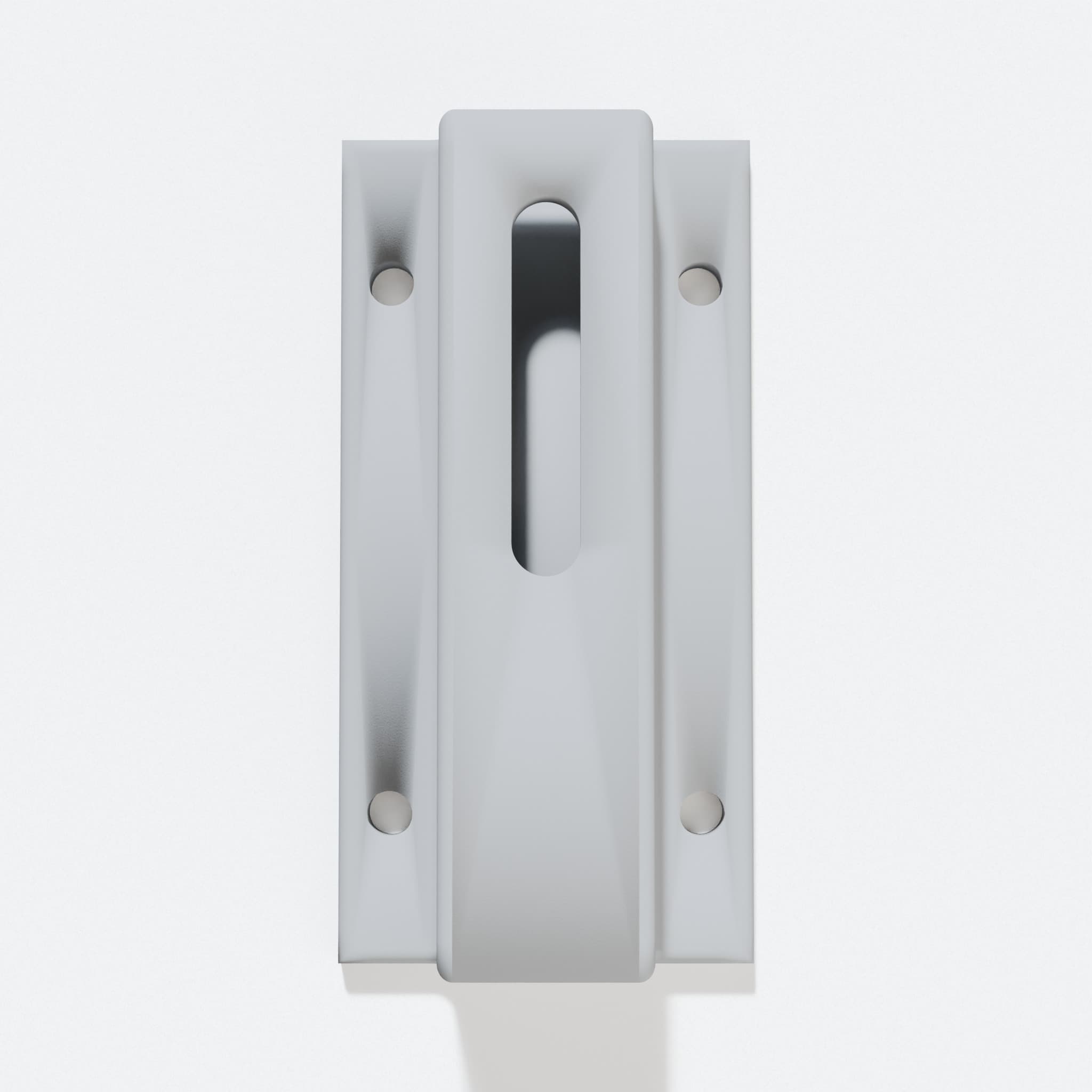

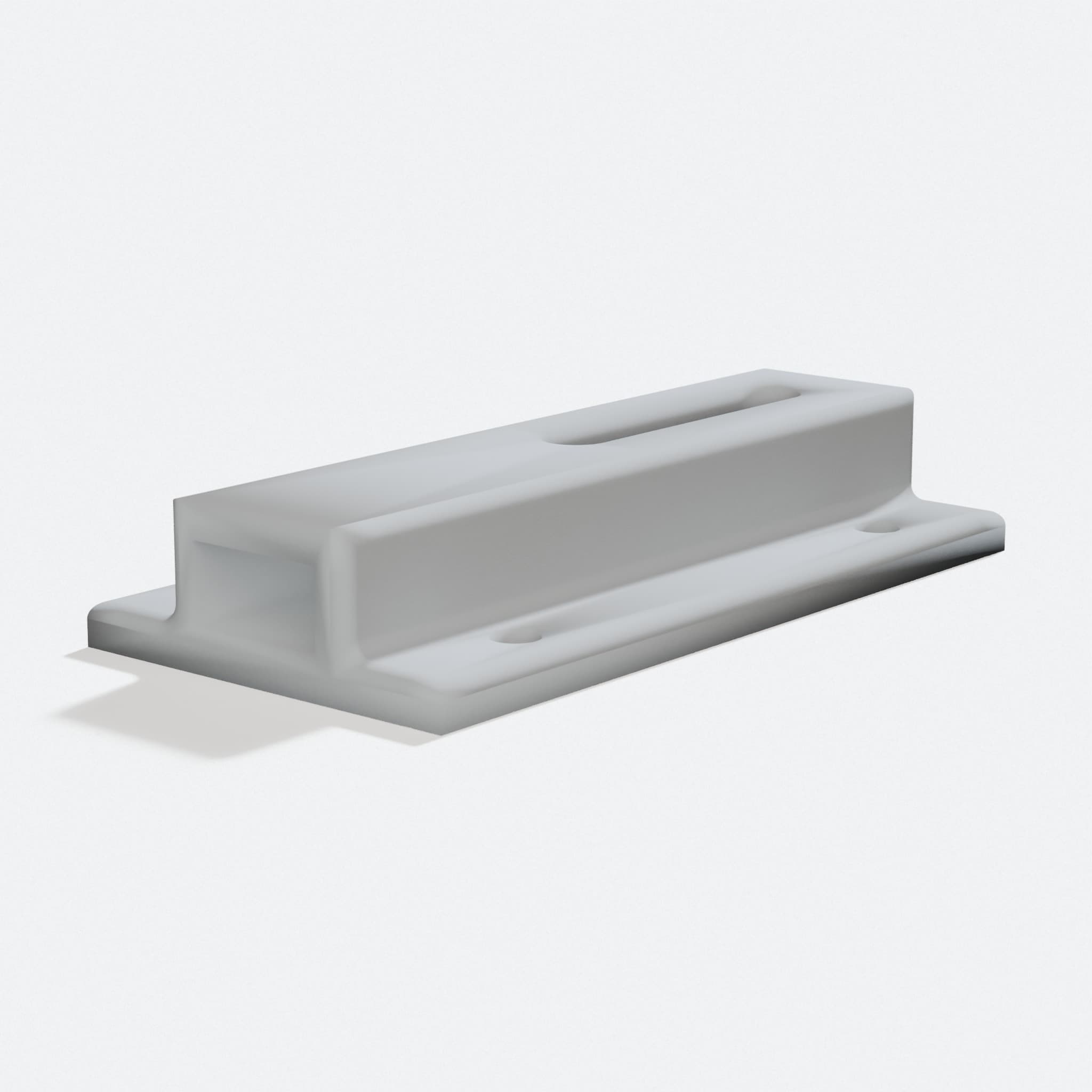

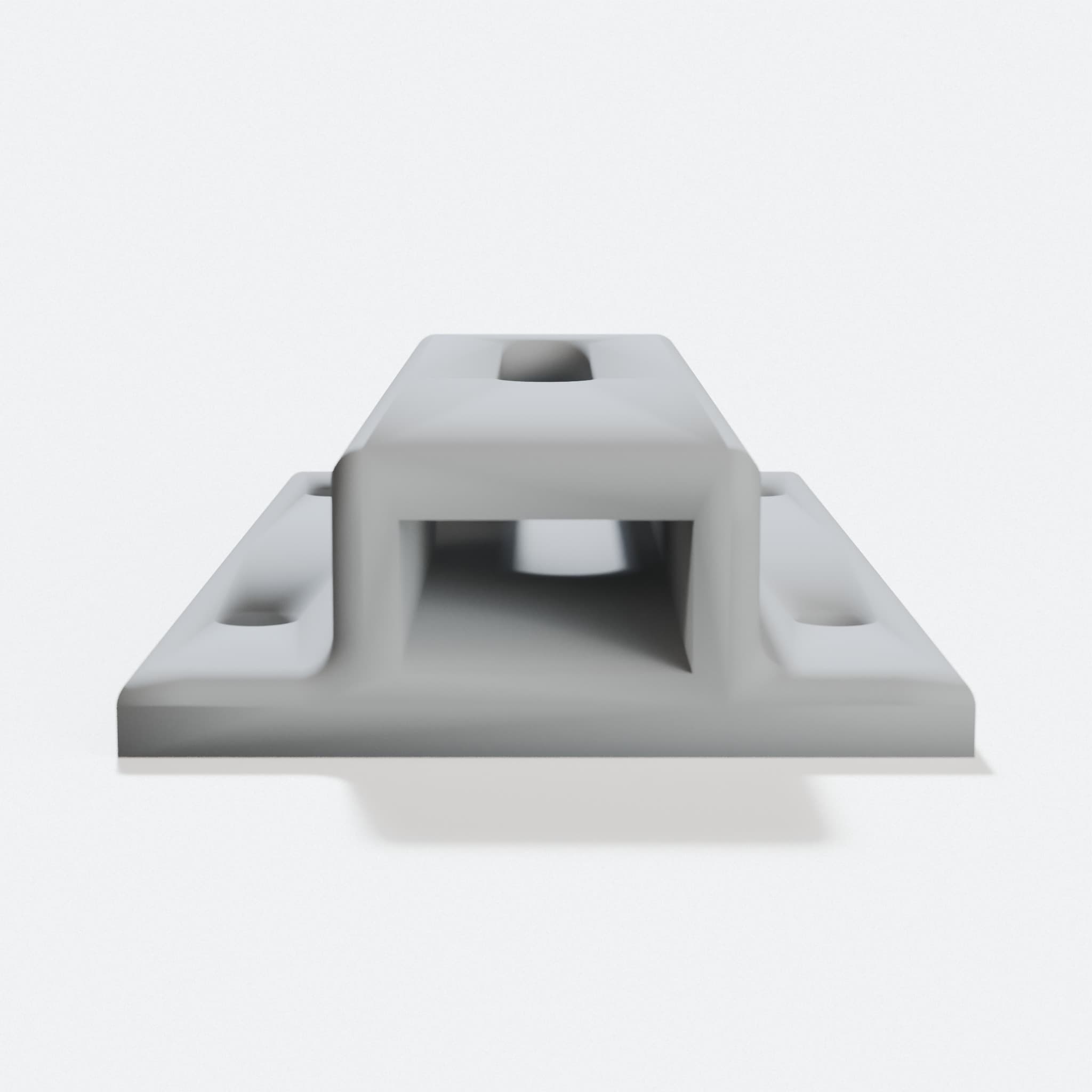

Sliding Door Bolt with Ball Handle for Sheds and Doors, design preview, turn three quarter

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Ball handle shape gives you a rounded grip point on the slide
  • Sliding bolt design shaped to fit shed doors and similar frames
  • Moving bolt piece slides across a fixed base for a latch shape
  • Simple slide lock shape works as a visible door catch
  • Compact latch shape suited to sheds, gates, and small doors

Curved ball handle tops this sliding door bolt, made as a latch for sheds, gates, and doors around your home. The bolt piece slides across a fixed base, giving you a simple way to close off a door from the inside.

This version has an improved shape around the ball handle area, built for a cleaner look where the handle meets the slide. The base mounts to your door frame while the bolt piece moves across it into a receiver, giving your space a visible, hands-on latch.

Use it on a shed door, a gate, or any spot where you want an extra latch you can see and reach. It has a plain, practical look that fits into a garage, workshop, or backyard setting.

92k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PETG. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by Sagittario. We did not draw it.

Shared under Creative Commons, credit and share alike. See the original design
