Door Retaining Catch, Print-in-Place Cabinet Latch

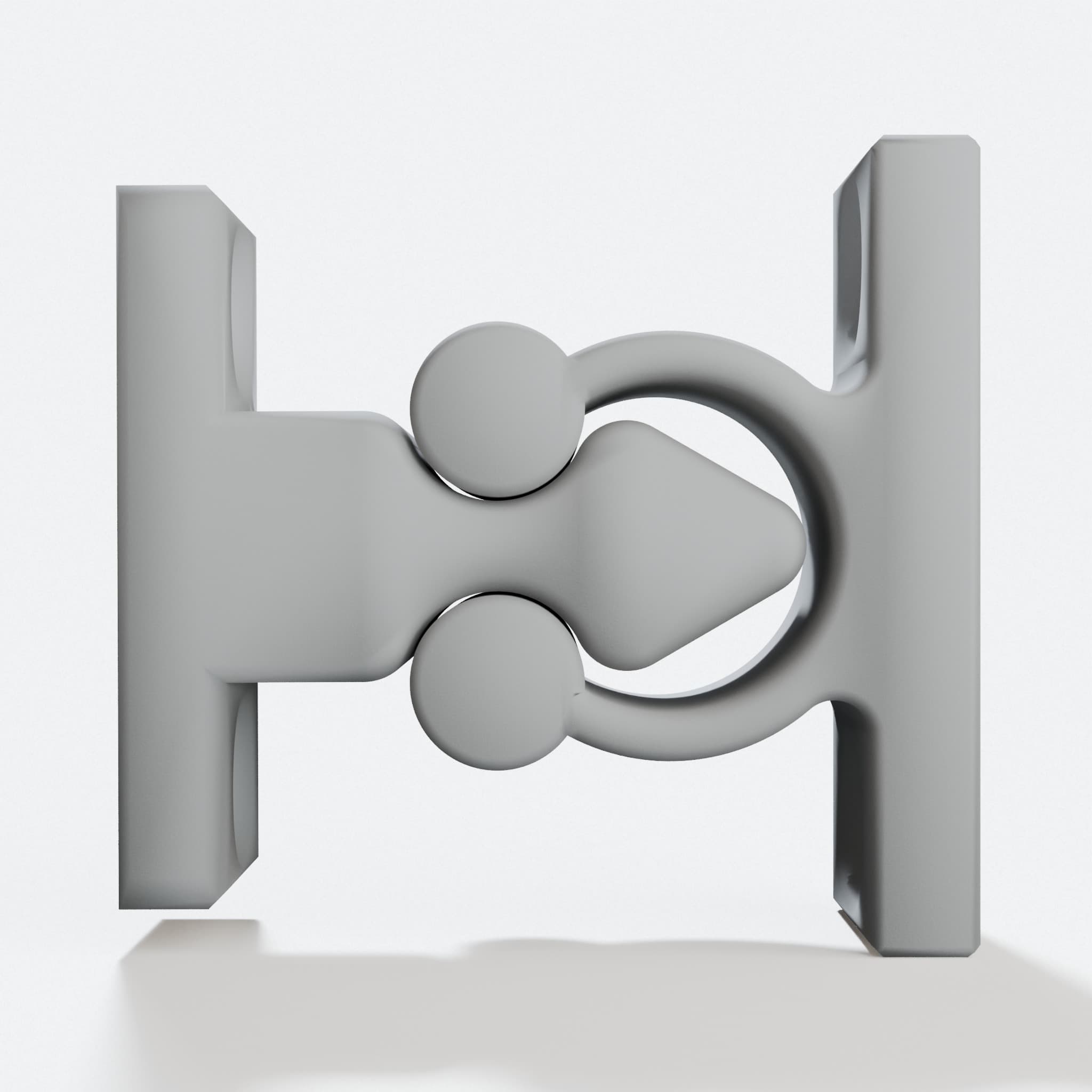

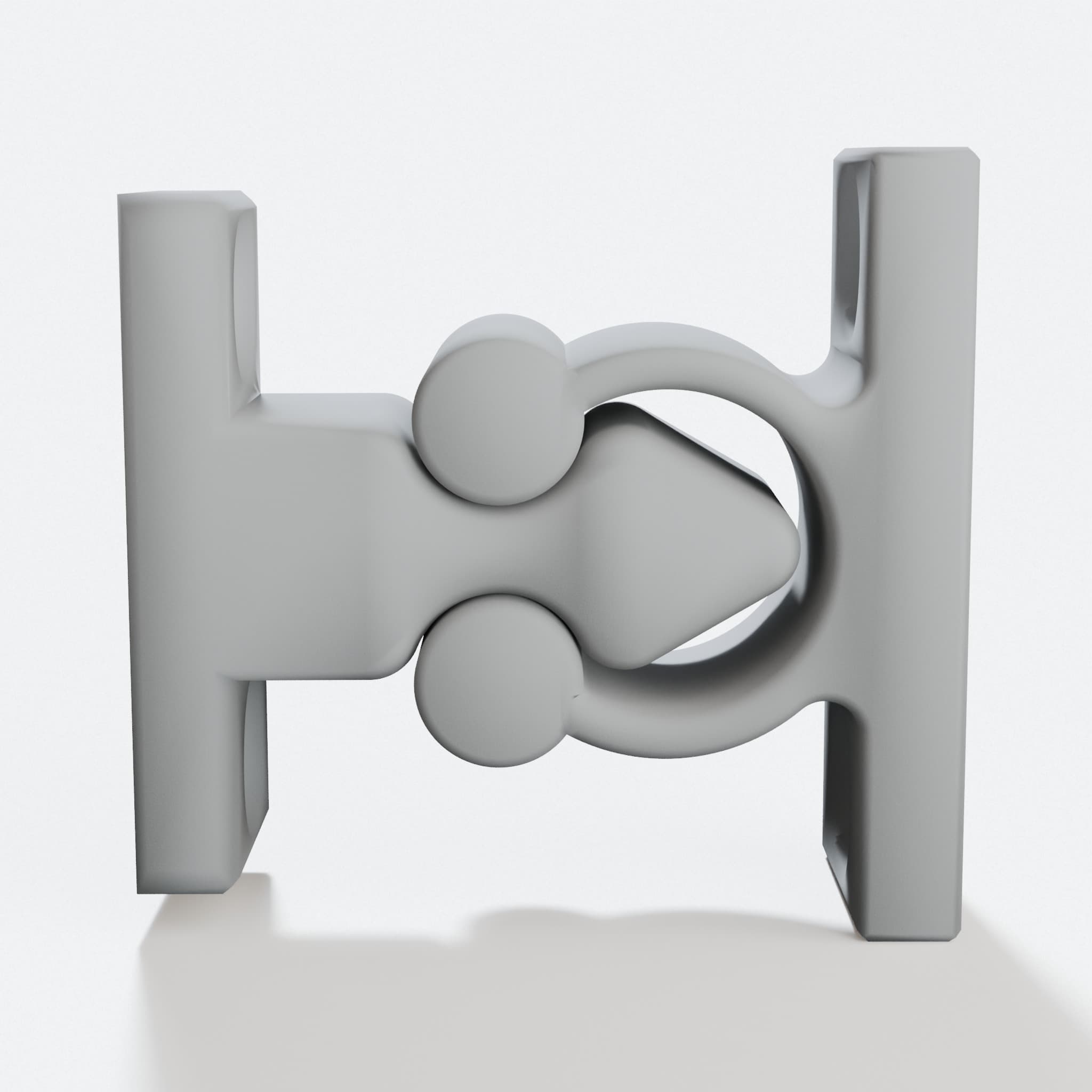

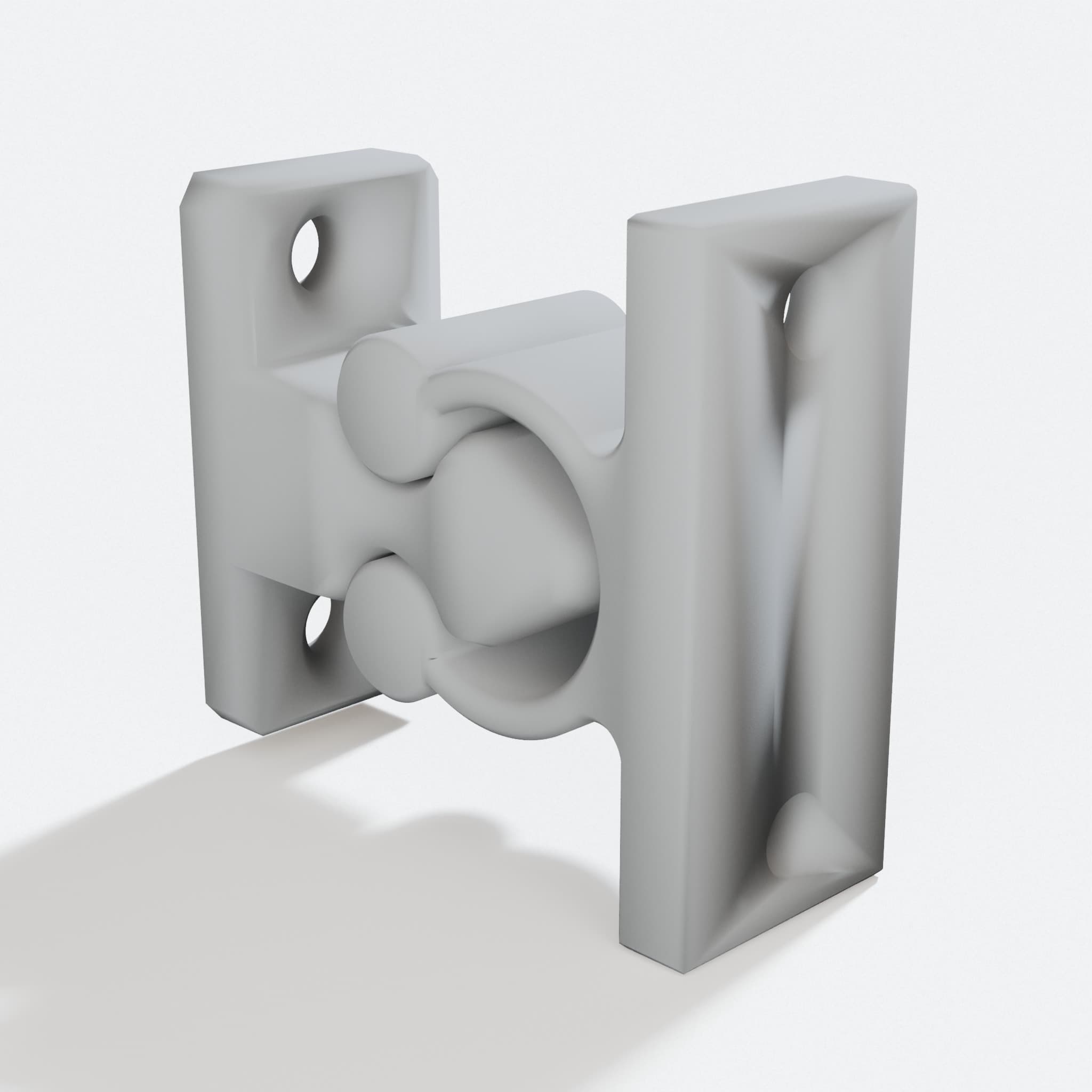

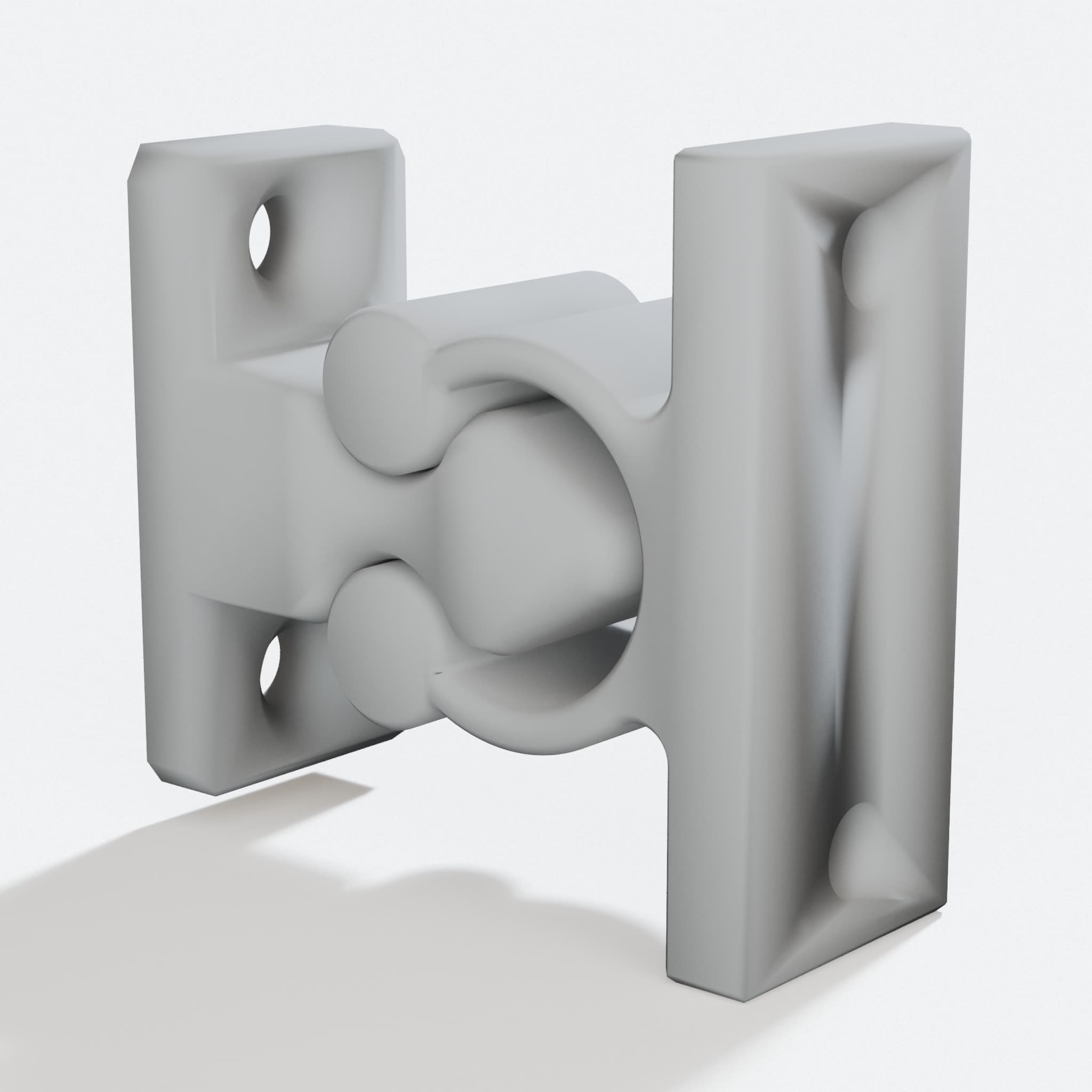

Door Retaining Catch, Print-in-Place Cabinet Latch, design preview, hero tilt

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Print-in-place design, no assembly or supports required
  • Compact size with soft snap action for cabinets, doors, and gates
  • Optimized clip design for reliable hold without excessive force
  • Must print flat on bed to align with layer strength
  • Perfect for DIY projects and custom storage solutions

This Door Retaining Catch is a compact, functional latch designed for cabinets, small doors, and gates. The print-in-place design means it comes off your printer ready to use, no supports, no assembly, just a working latch with a satisfying snap action.

The catch features a refined female clip that delivers reliable retention without being overly stiff, making it easy to open and close repeatedly. Its smaller footprint makes it ideal for lighter-duty applications where a full-size latch would be overkill.

For best results, orient the part flat on your print bed. This ensures the layer lines work with the mechanical stress rather than against it, giving you a durable, long-lasting latch that won't split under use.

44k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by ZacSimmo. We did not draw it.

Shared under Creative Commons, credit required. See the original design
