Latch Toggle Lock - 3D Printed Workshop Tool

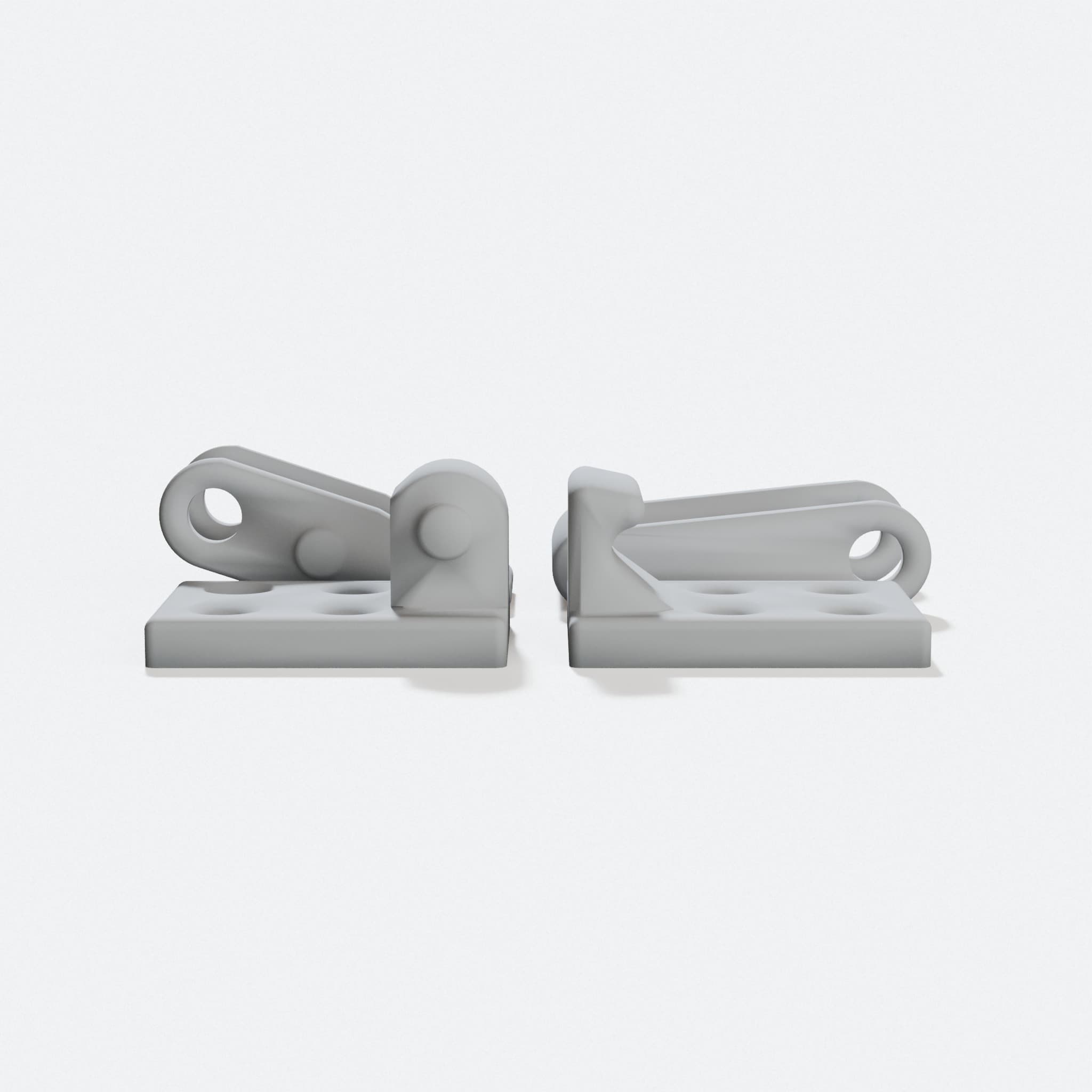

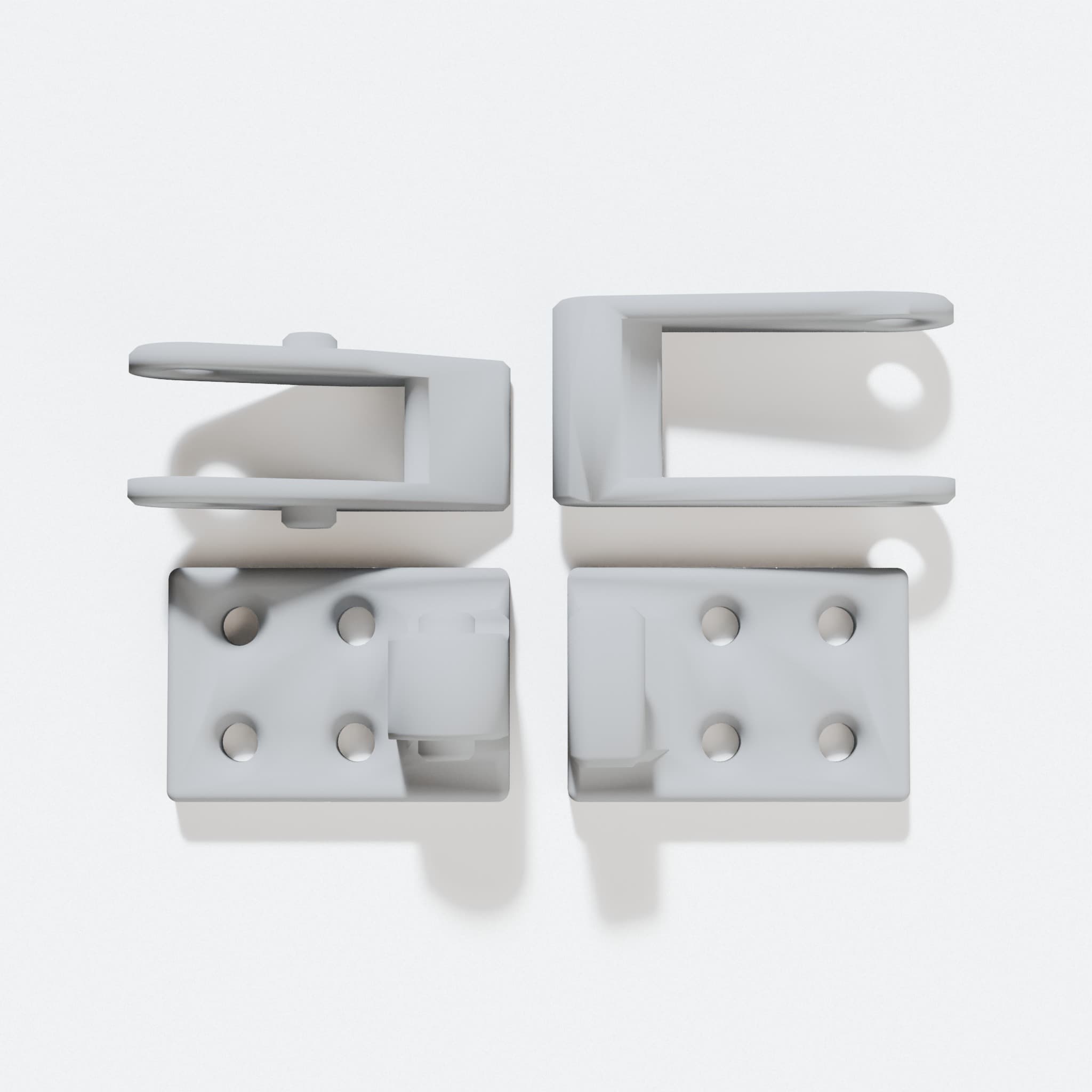

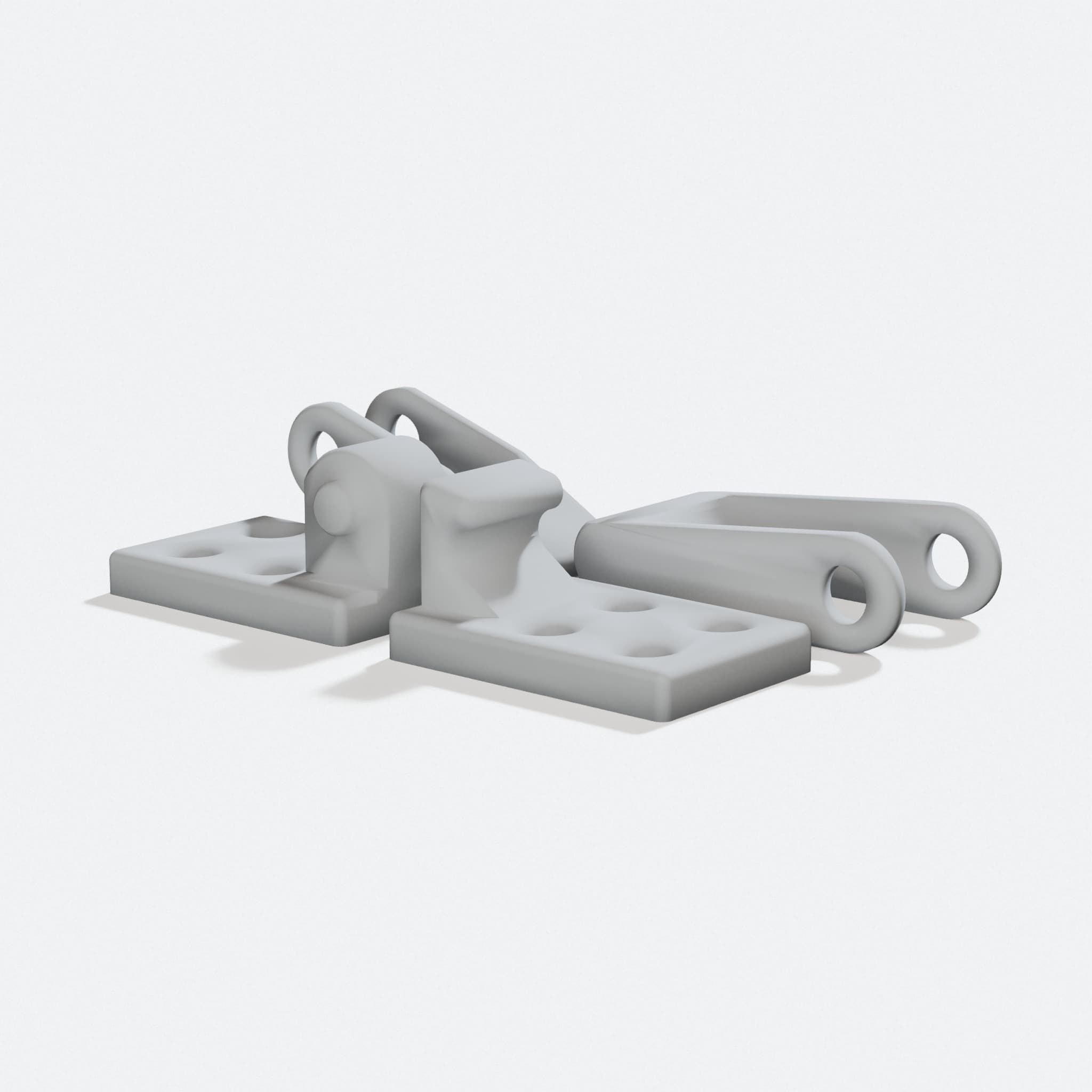

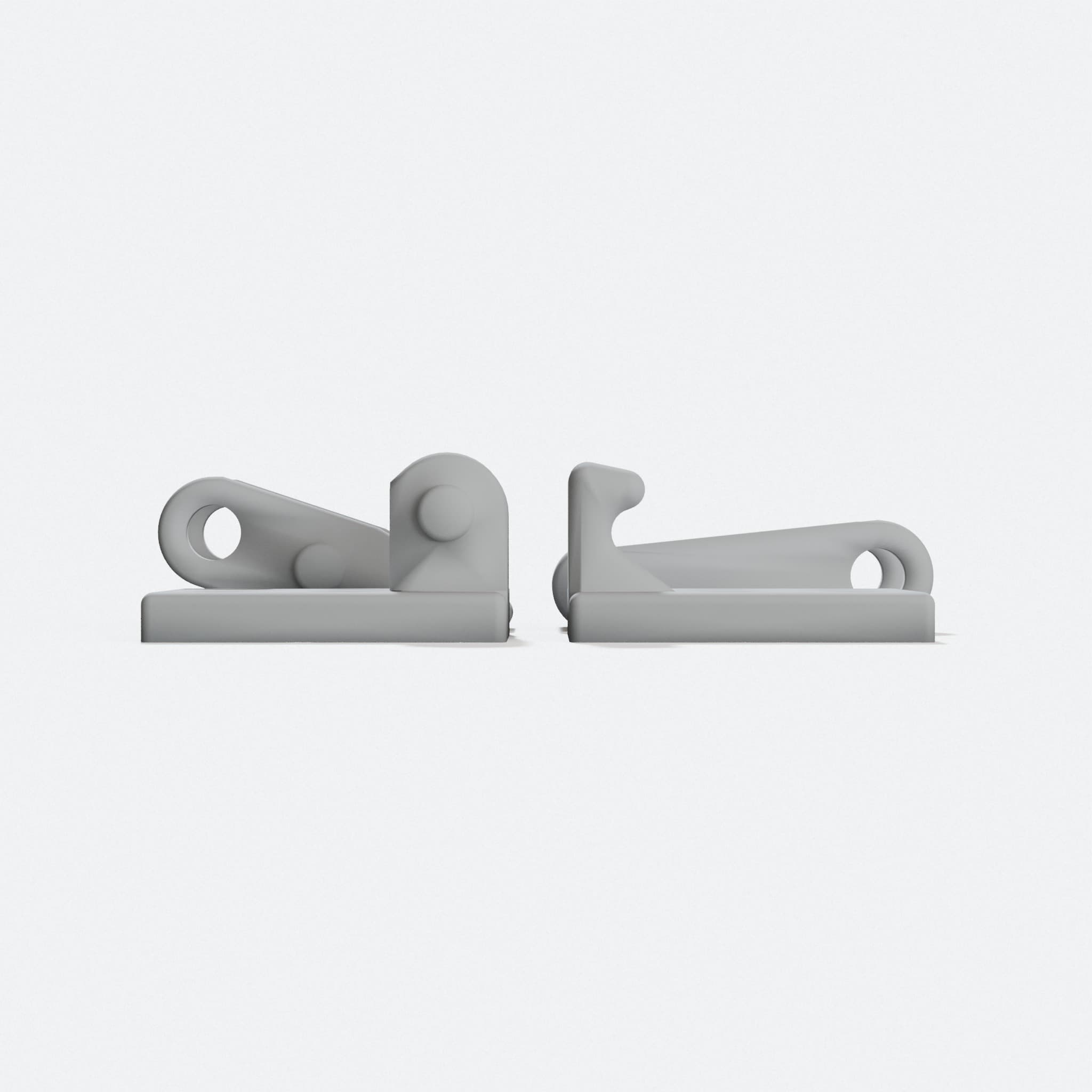

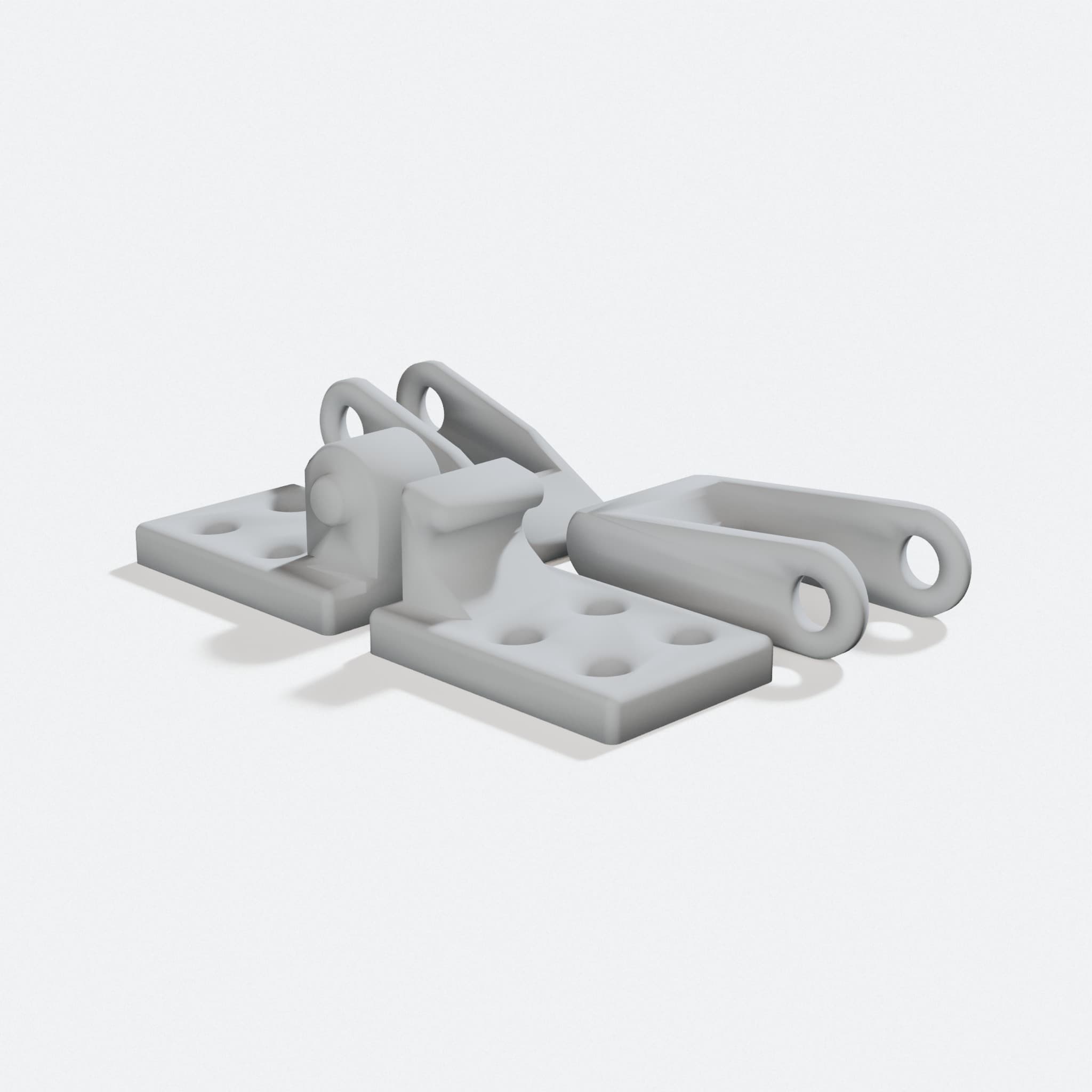

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Functional latch and toggle lock mechanism for your projects
- Perfect for workshop jigs, enclosures, and custom tooling
- Snap-together design prints easily without supports
- Durable mechanical action for repeated use
- Compact footprint fits tight spaces
This latch toggle lock brings secure, repeatable fastening to your 3D printed workshop tools and projects. Whether you're building custom enclosures, jigs, or organizational solutions, this mechanical latch provides reliable hold with a satisfying toggle action.
The design features a same-size configuration that keeps the footprint compact while delivering full locking functionality. It's ideal for toolboxes, storage bins, panel closures, and anywhere you need a quick-release latch that stays put under pressure.
Print the components, snap them together, and you're ready to integrate this latch into your next build. The mechanical design has been proven in real-world workshop use.
29k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
