Gridfinity Bin 1×1 × 3u (Magnet Holes)

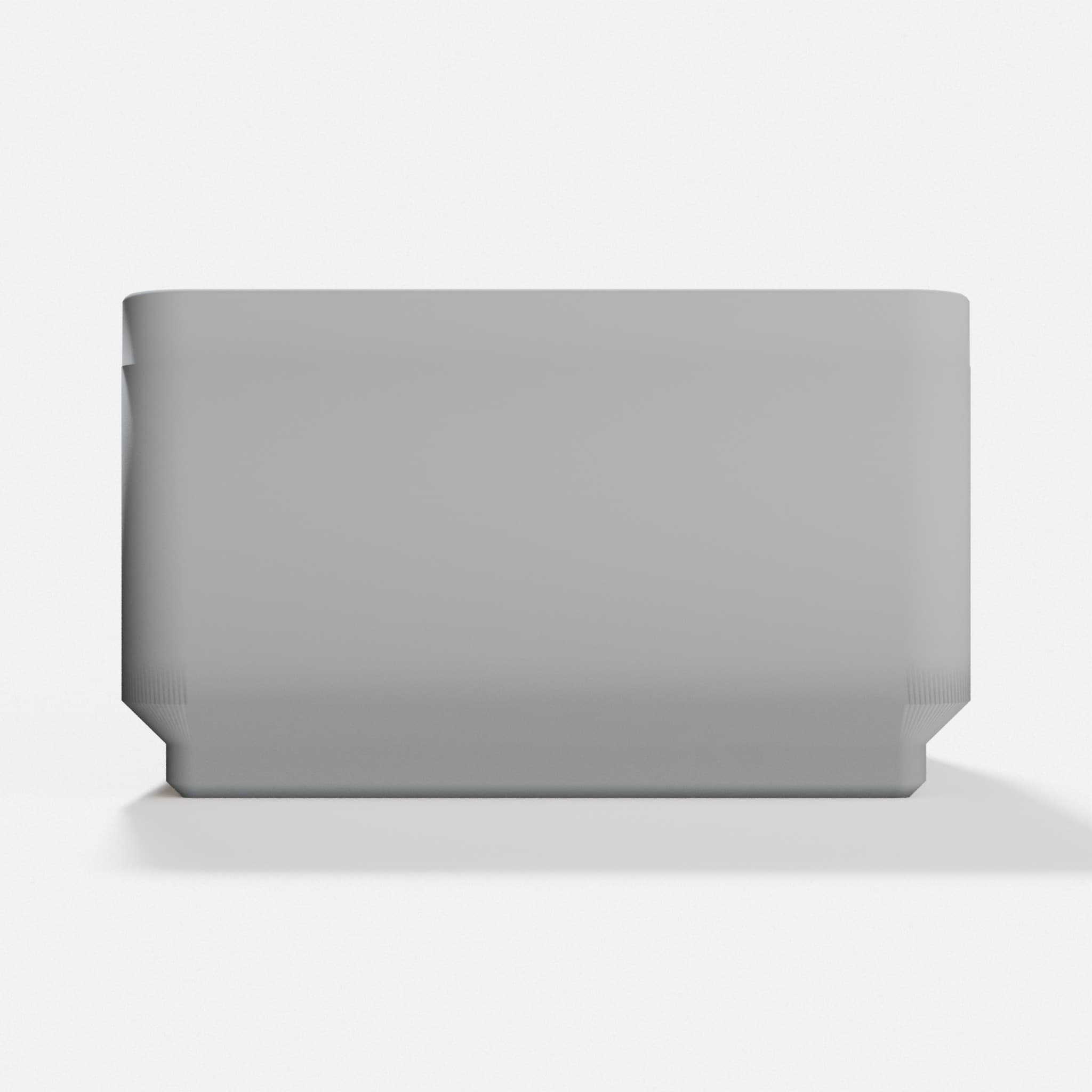

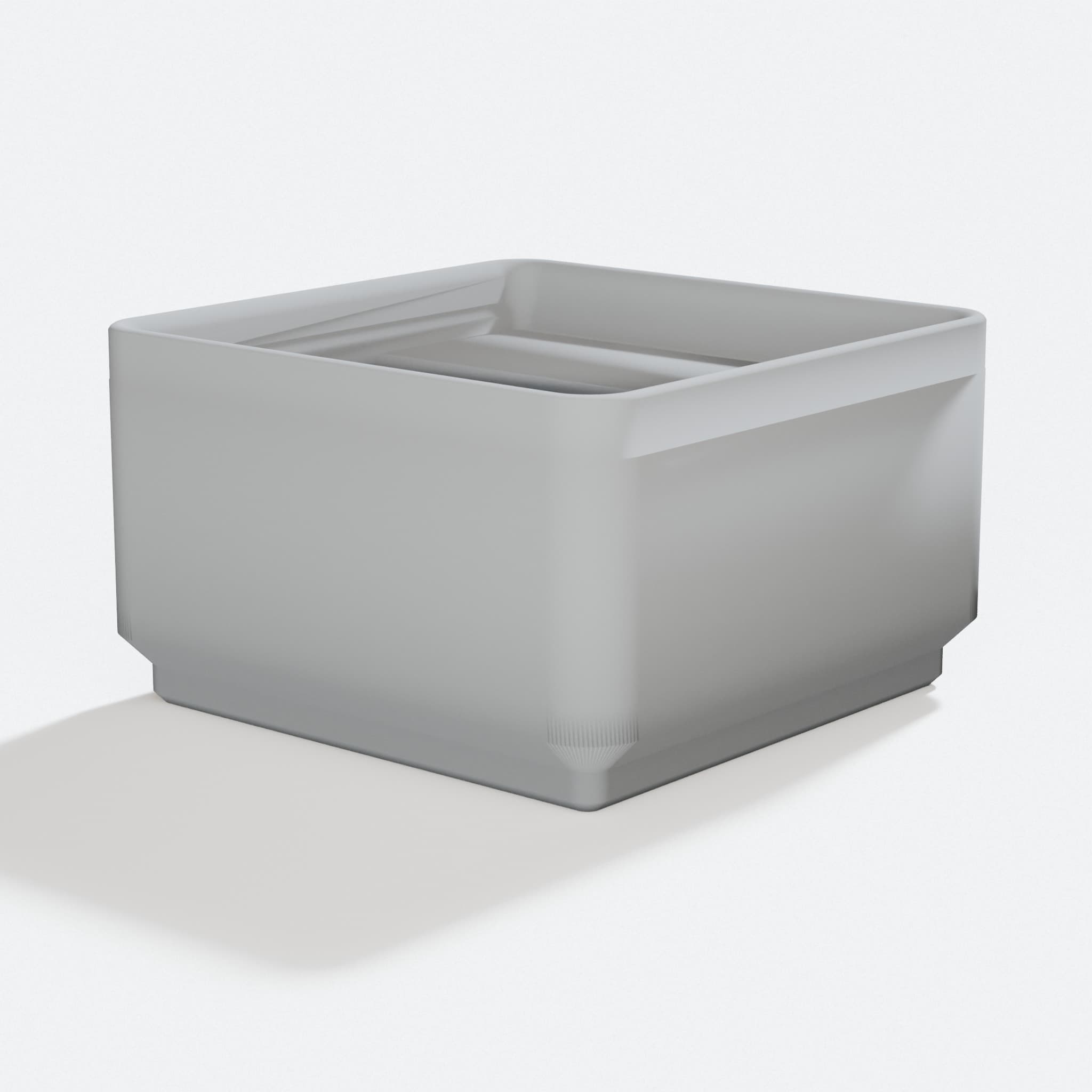

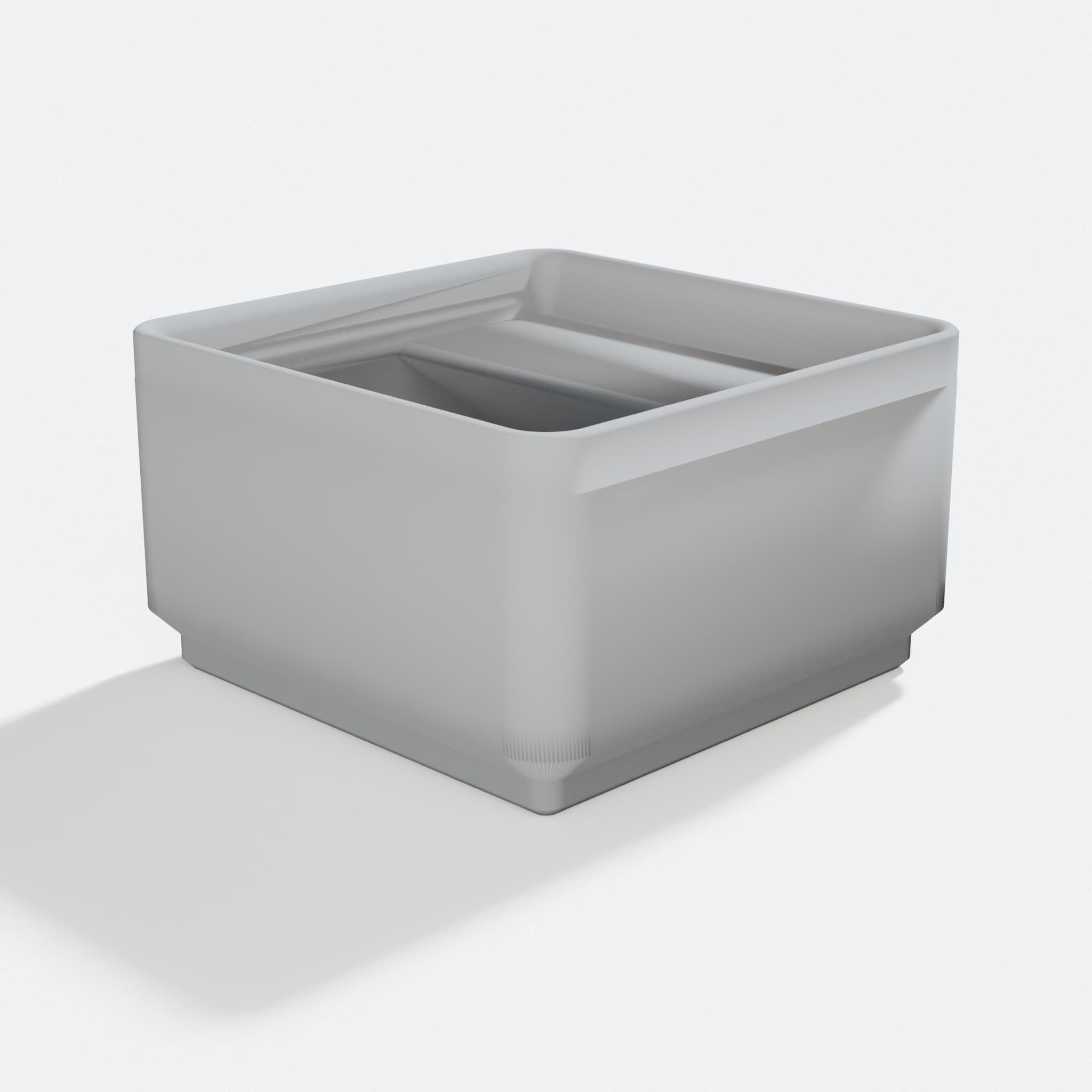

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

Same Gridfinity bin you know. Now with magnet holes in the base.
Drop in a 6x2mm magnet. Your bin stays put when the drawer slides open.
Works with any Gridfinity baseplate. Mix it with regular bins.
Size: 42x42mm (1.65x1.65 in), 25.4mm tall (1.00 in)
Pick PLA for indoor use. Pick PETG if it gets hot or sits outside.

This is a Gridfinity bin with magnet holes in the base. Drop in a 6x2mm magnet. The bin stays put when the drawer slides open. Snaps right into any Gridfinity baseplate. Size: 42x42mm (1.65x1.65 in), 25.4mm tall, 1.00 in.

Specs

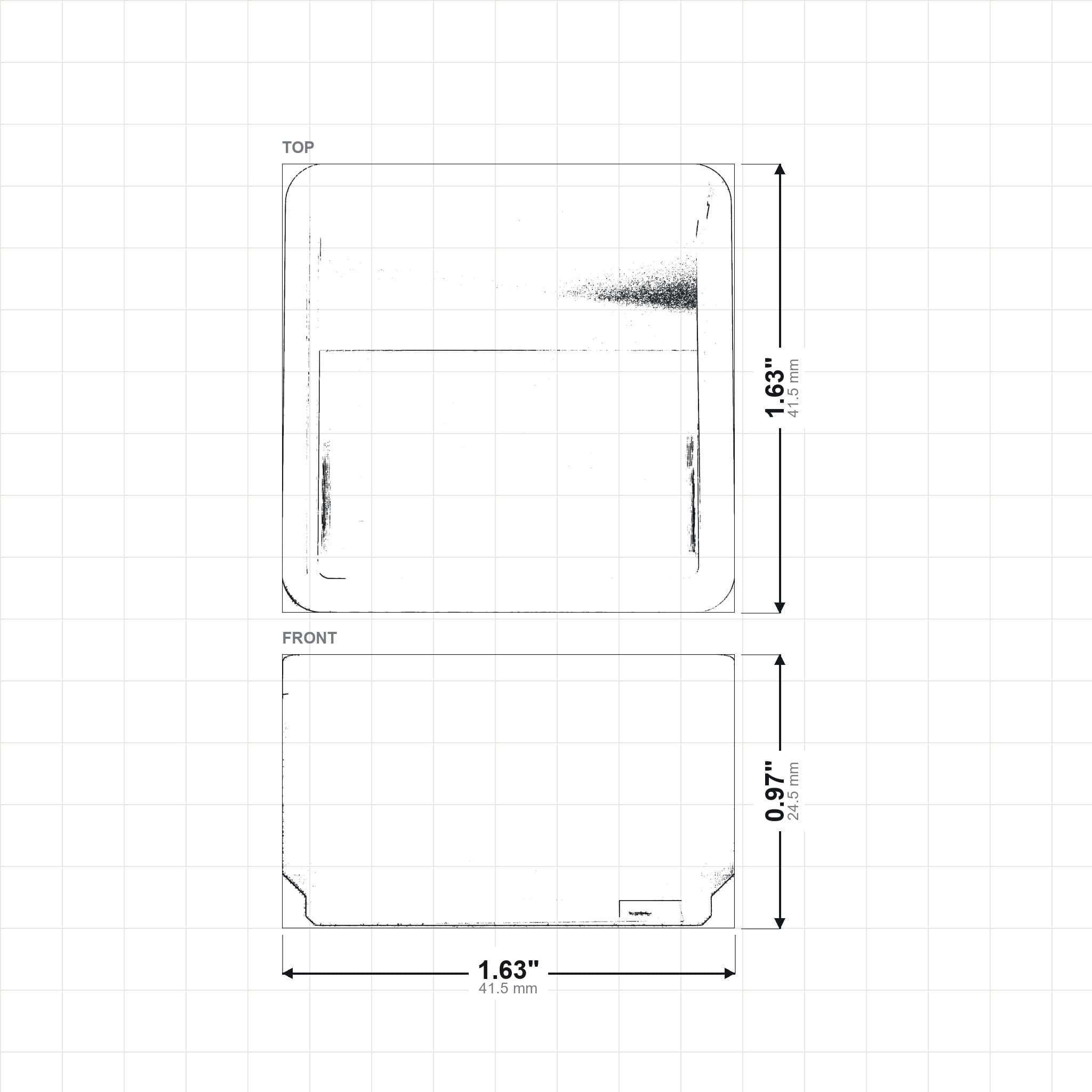

Size: 42x42mm (1.65x1.65 in)
Height: 25.4mm (1.00 in)
Weight: about 18g in PLA
Materials: PLA, PETG. Other materials on request.
System: Standard Gridfinity 42mm grid. Works with any Gridfinity bin or baseplate.

Credit

Gridfinity is a system for organizing your bench and drawers. Zack Freedman made it. If our bins help you work better, you can thank him on his Patreon. Or watch the original Gridfinity videos on his YouTube channel.

Our bins and baseplates are made using kennetek's gridfinity-rebuilt-openscad. It is free under the MIT license.

Part of the Gridfinity system.

Gridfinity was created by Zack Freedman. Explore the system

Build it to your exact size Plan a whole drawer

This listing is one fixed size. The builder makes any rows and columns you need.

What you get

This design prints as one piece.
The design notes say you also need: 6×2mm magnets (optional, for magnetic mounting), Steel washers (optional, for screw mounting). Those do not come with the print.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
