Try Square Ruler with Cut-Out Guide, Workshop Tool

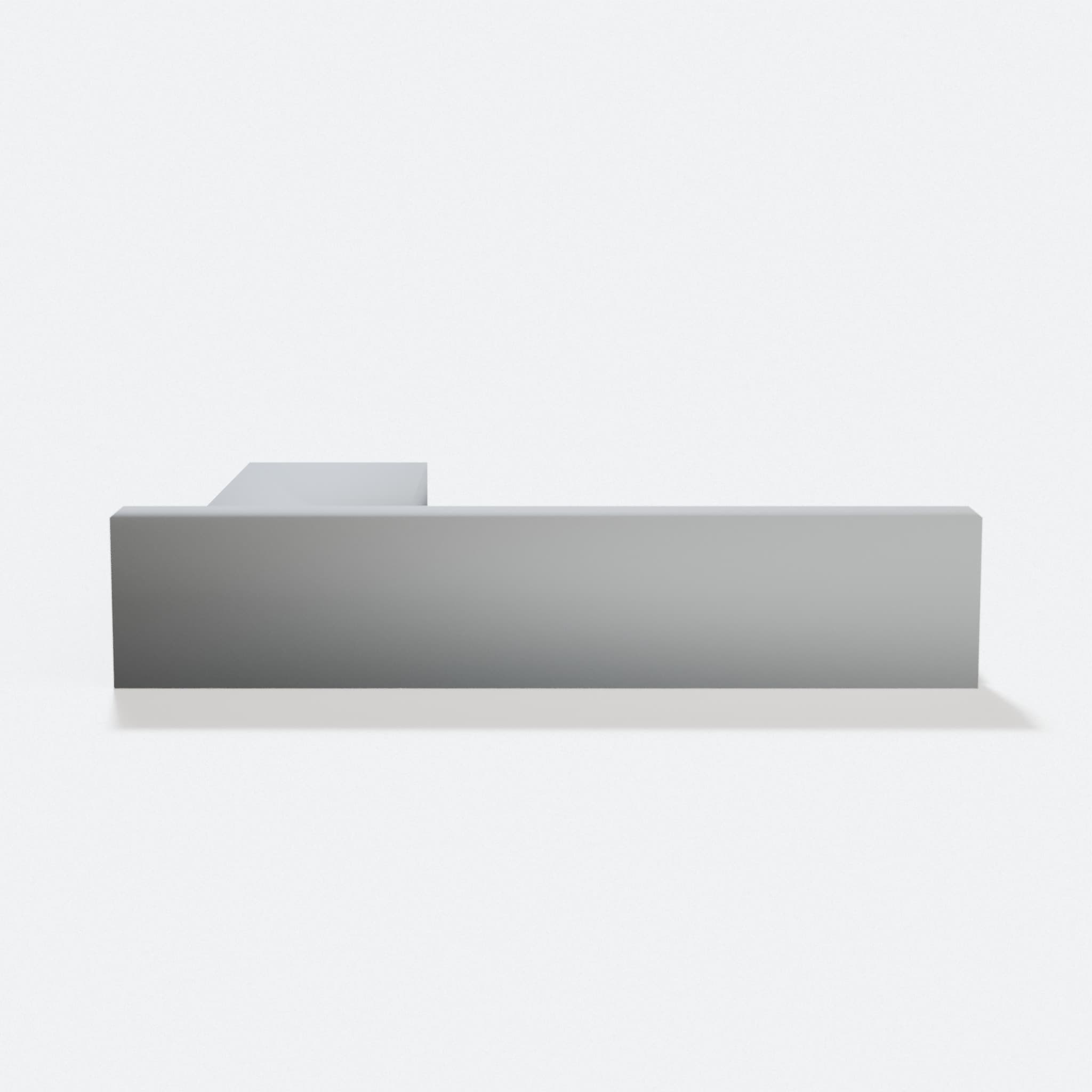

Try Square Ruler with Cut-Out Guide, Workshop Tool, design preview, hero tilt

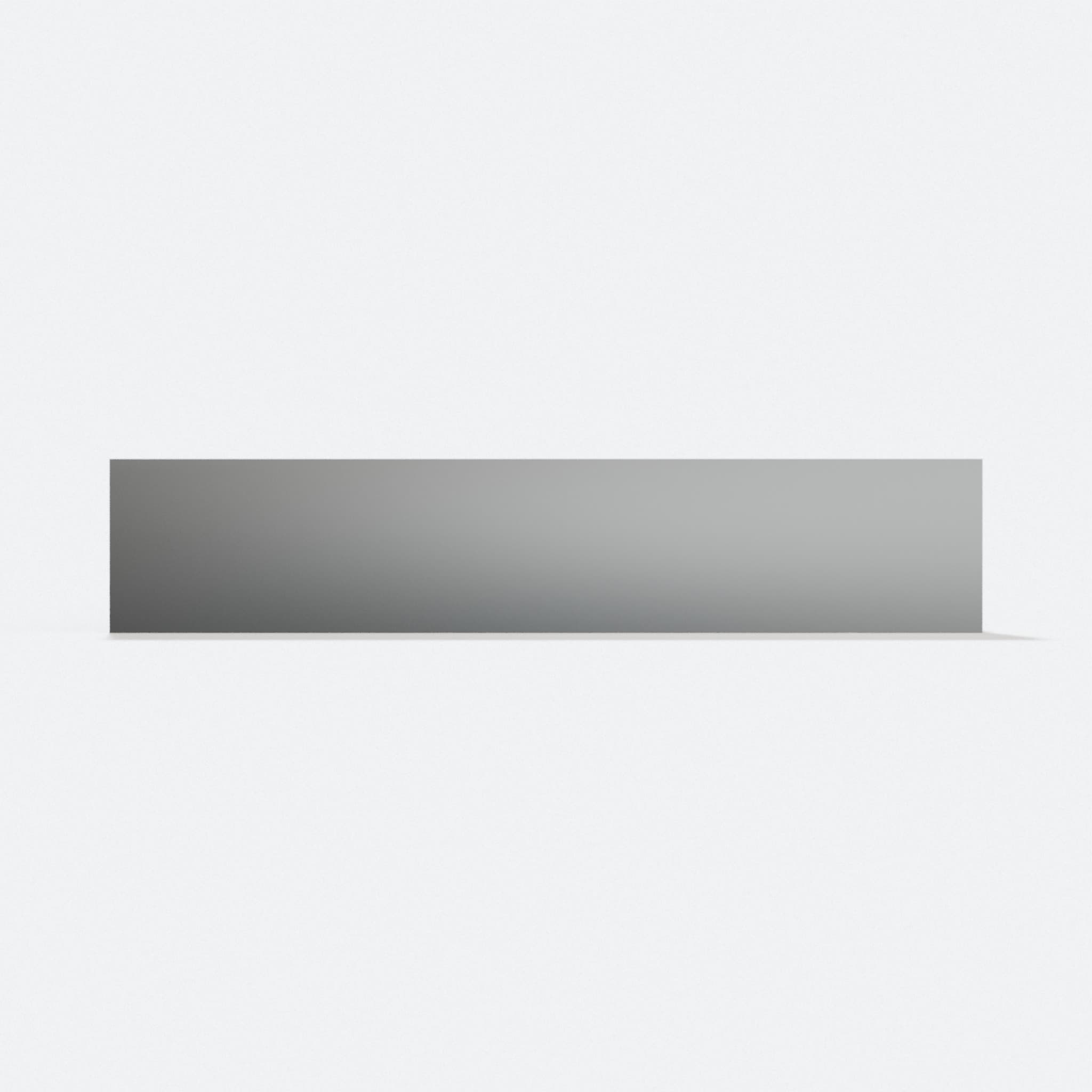

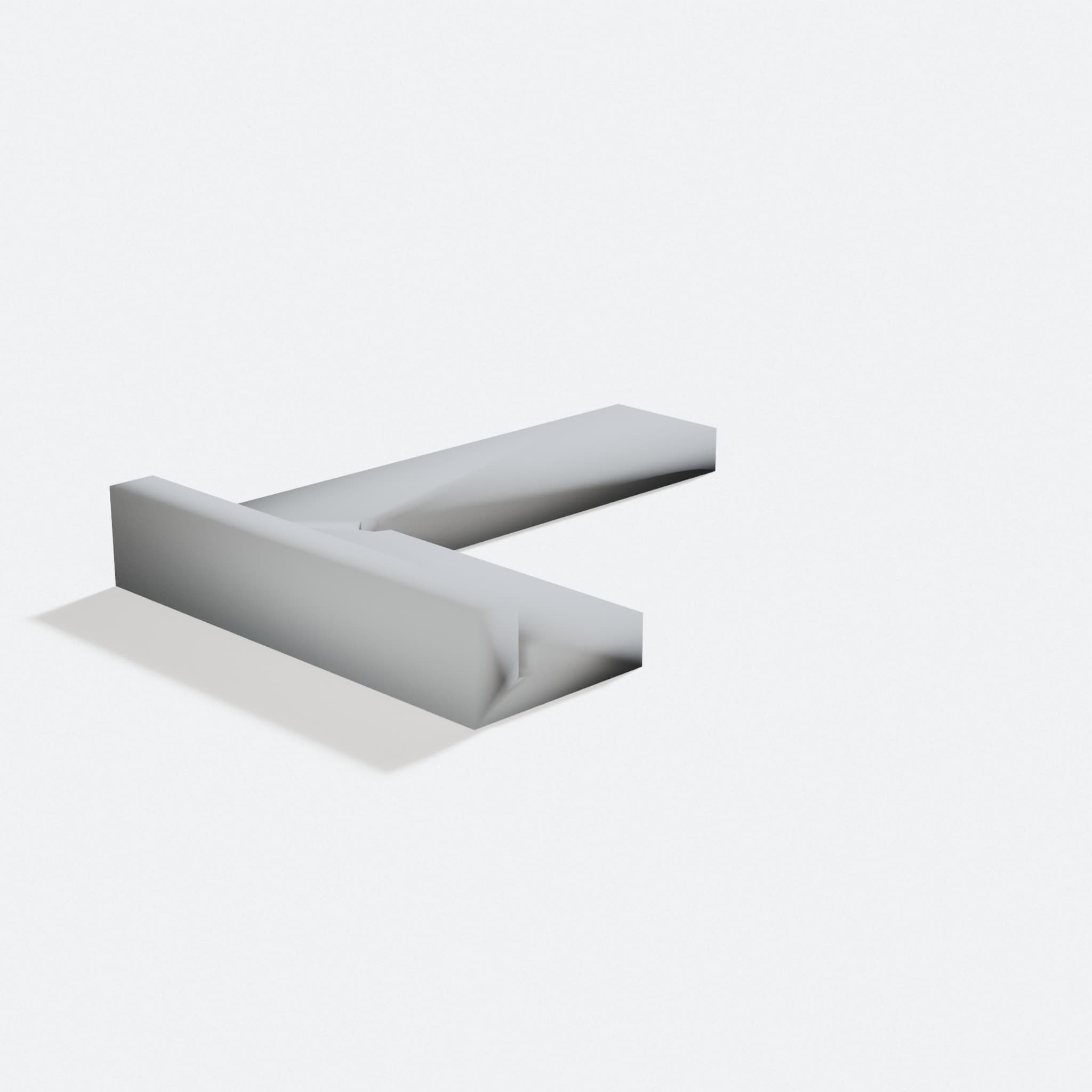

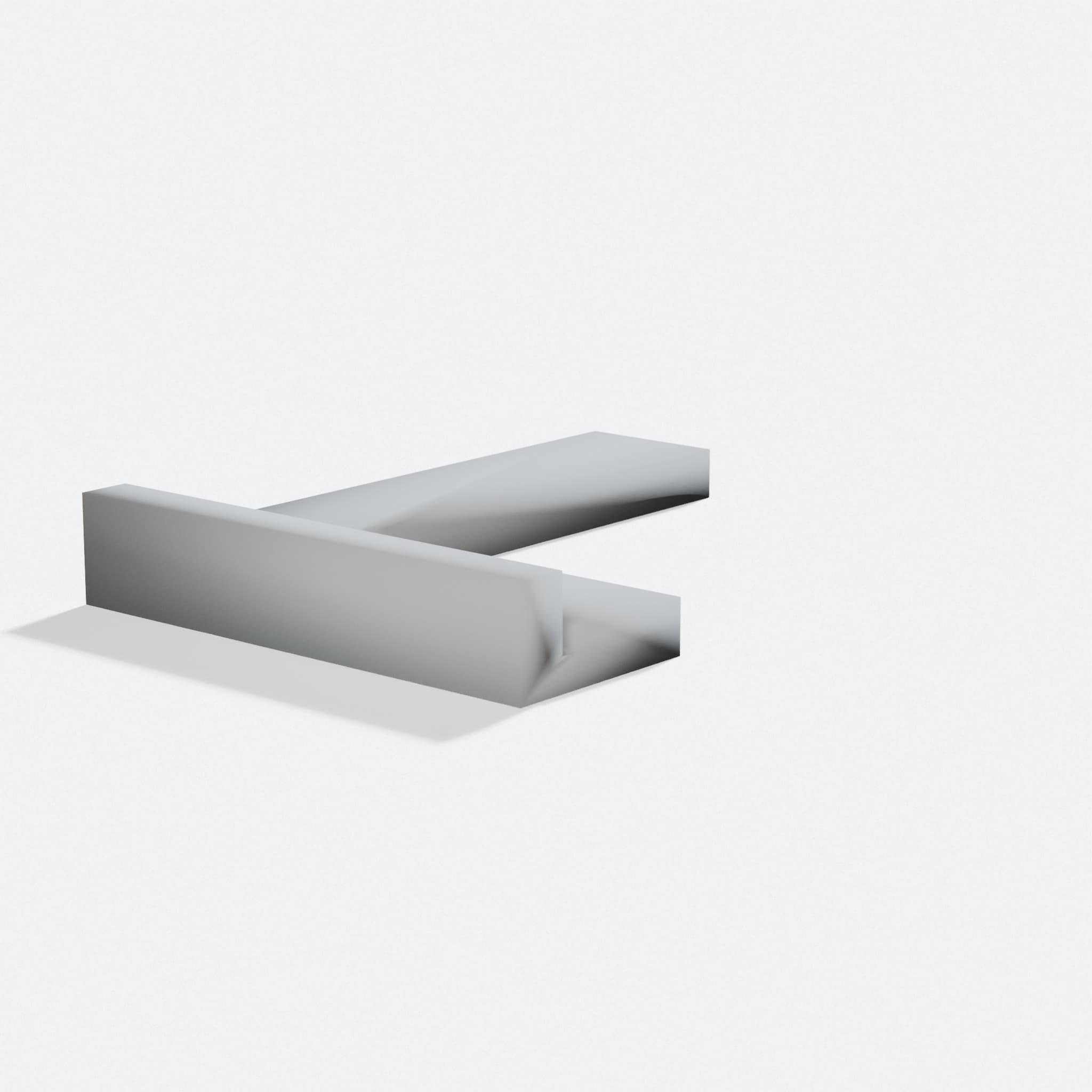

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Square ruler with a built-in marking guide
  • Cut-out at the corner for clean marks
  • Use on metal or wooden parts
  • Saves you from a missing combination square
  • A handy backup tool for any workshop

Mark a clean square line every time. This try square ruler has a built-in guide and a cut-out at the corner, so you can mark wood or metal parts with one hand. The shape mimics a German Schlosserwinkel, the classic shop square.

A handy backup for the days your real square has walked off.

Made in the USA.

5.7k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by Stemer114. We did not draw it.

Shared under GNU GPL. See the original design
