Drilling Jig with Integrated Dust Collector

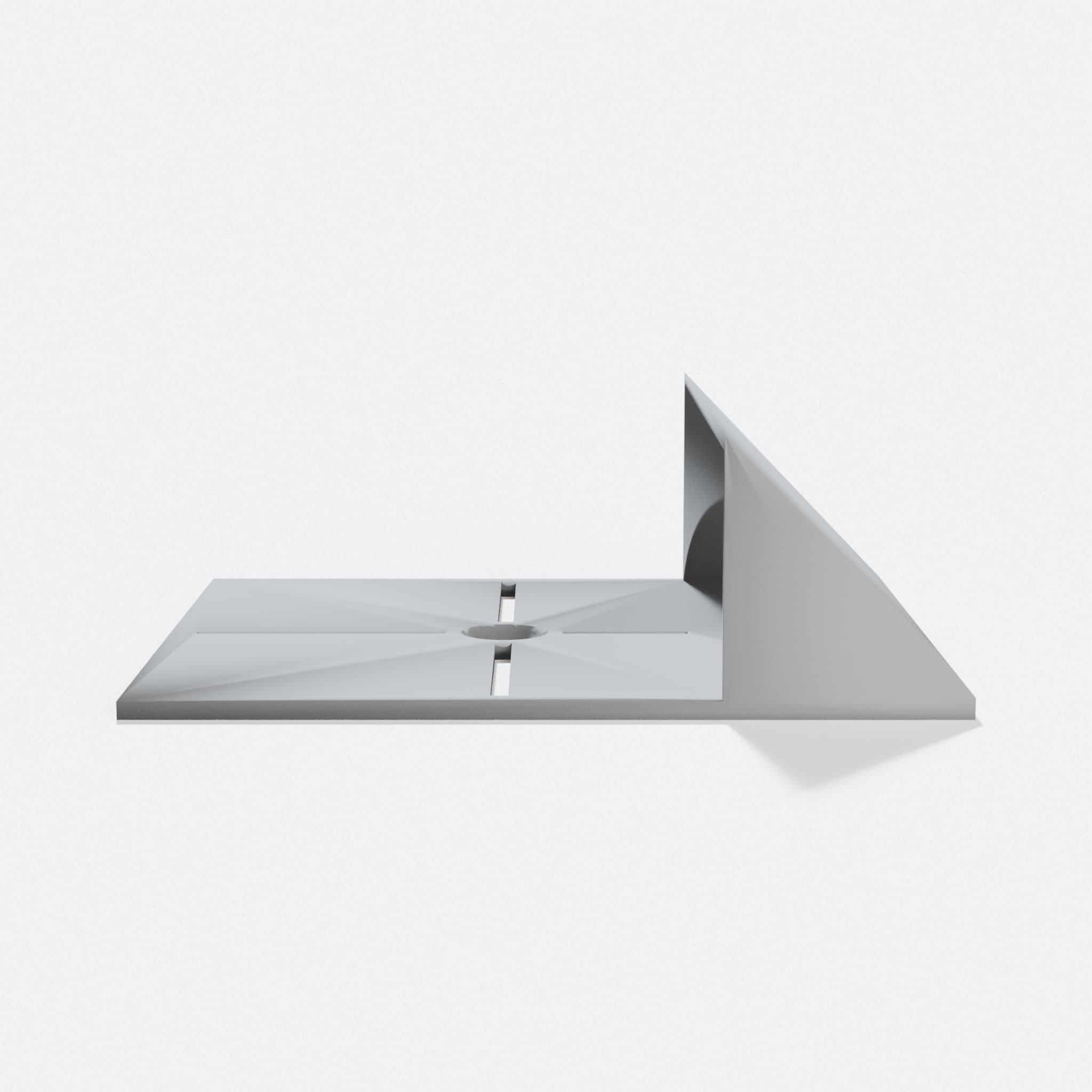

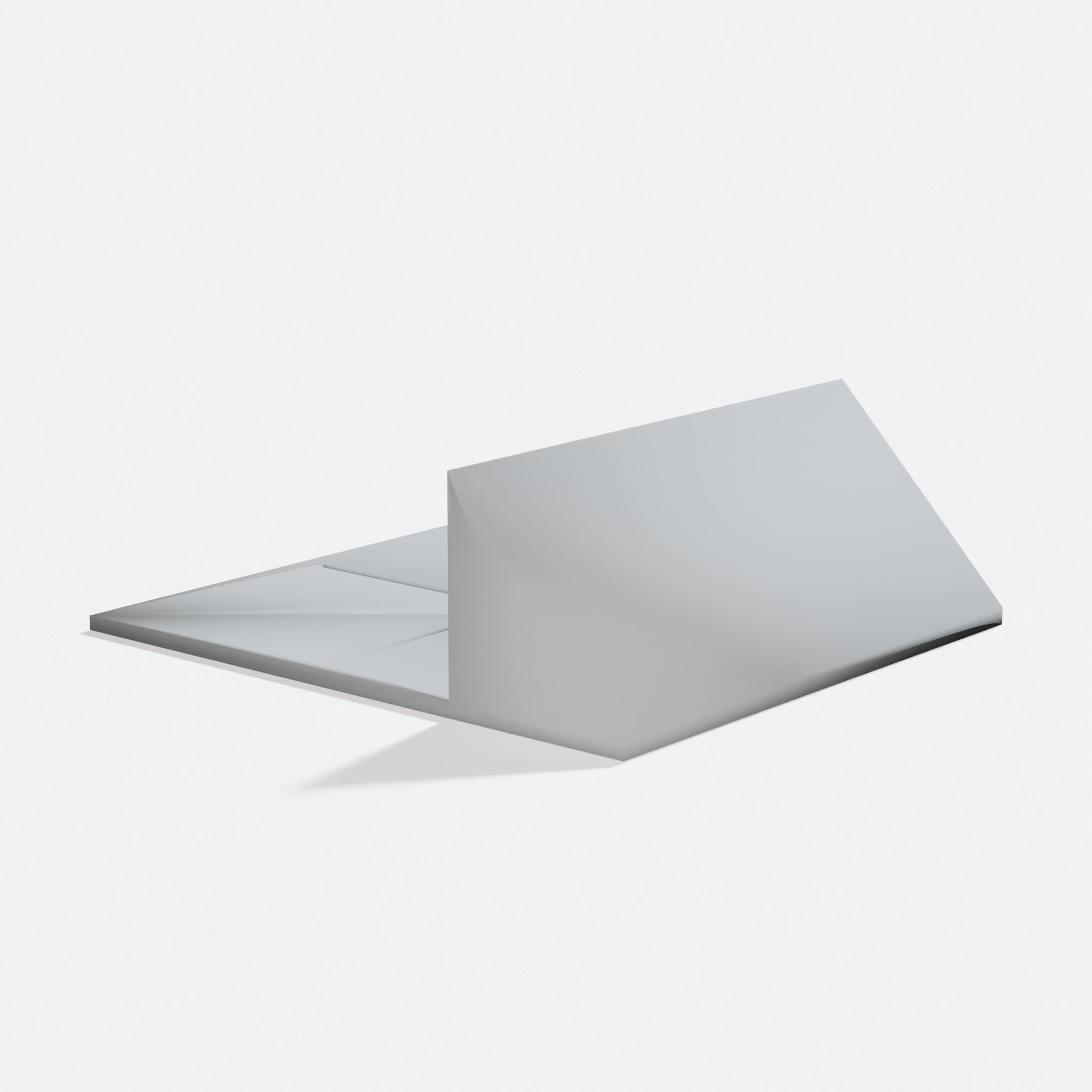

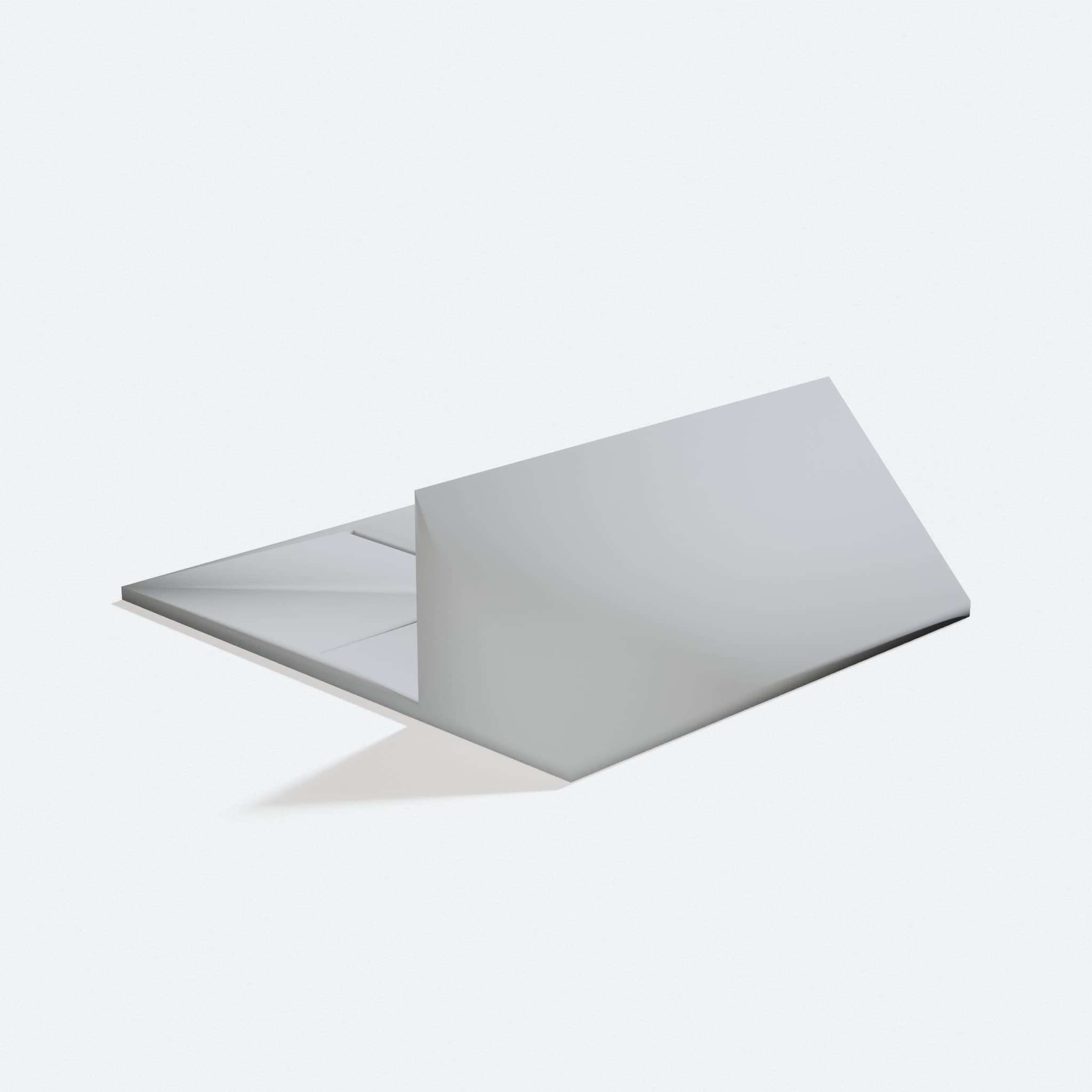

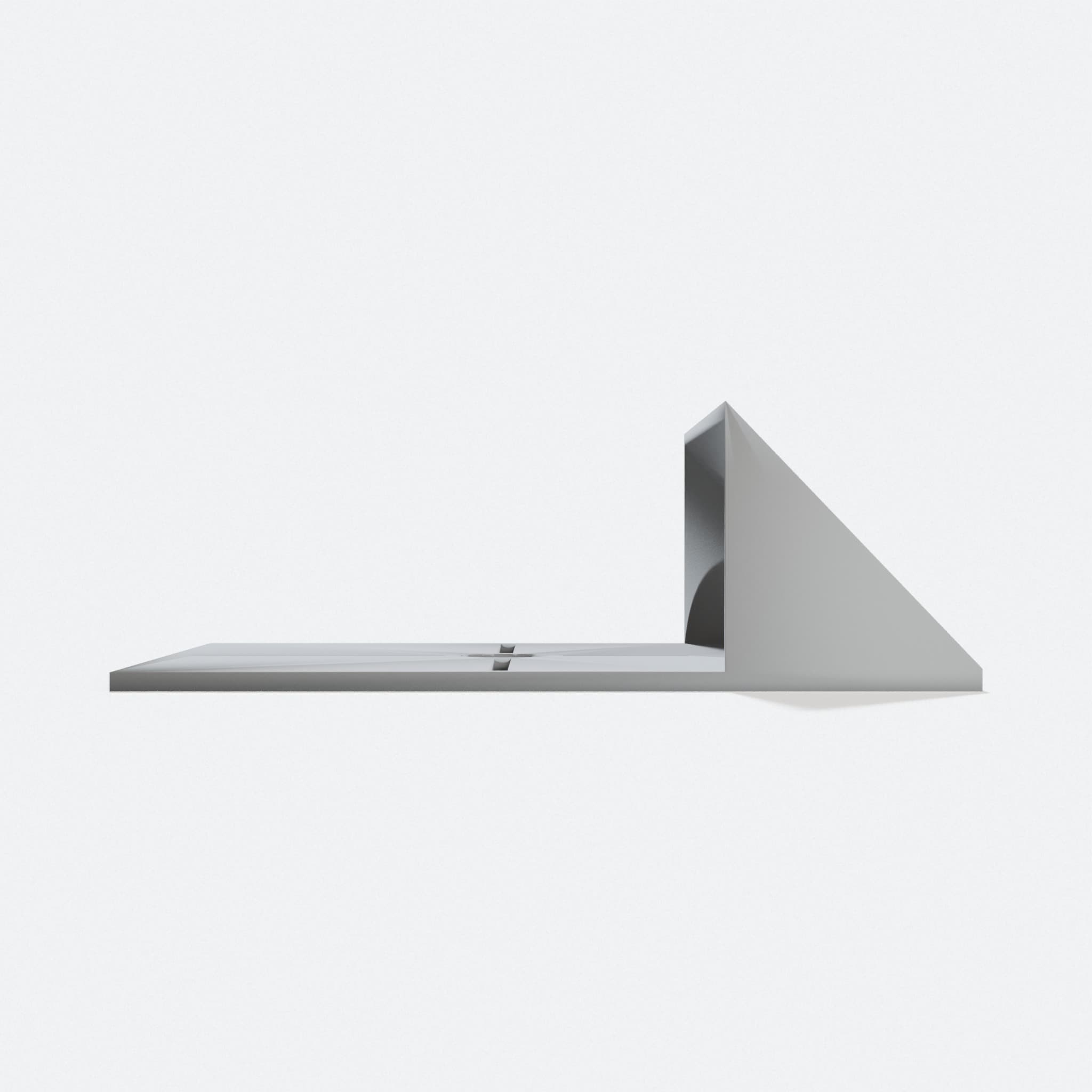

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Guides drill bits precisely with centered vertical alignment lines
- Collects dust at the point of drilling for cleaner workspaces
- Features corrected 90-degree reference line for accurate positioning
- Compact design works with common drill bit sizes
- Refined through multiple community improvements for better accuracy
This drilling guide combines precision alignment with dust collection in one 3D printed workshop tool. It helps you drill accurate holes while capturing debris at the source, making it ideal for clean, controlled drilling tasks around the home or shop.

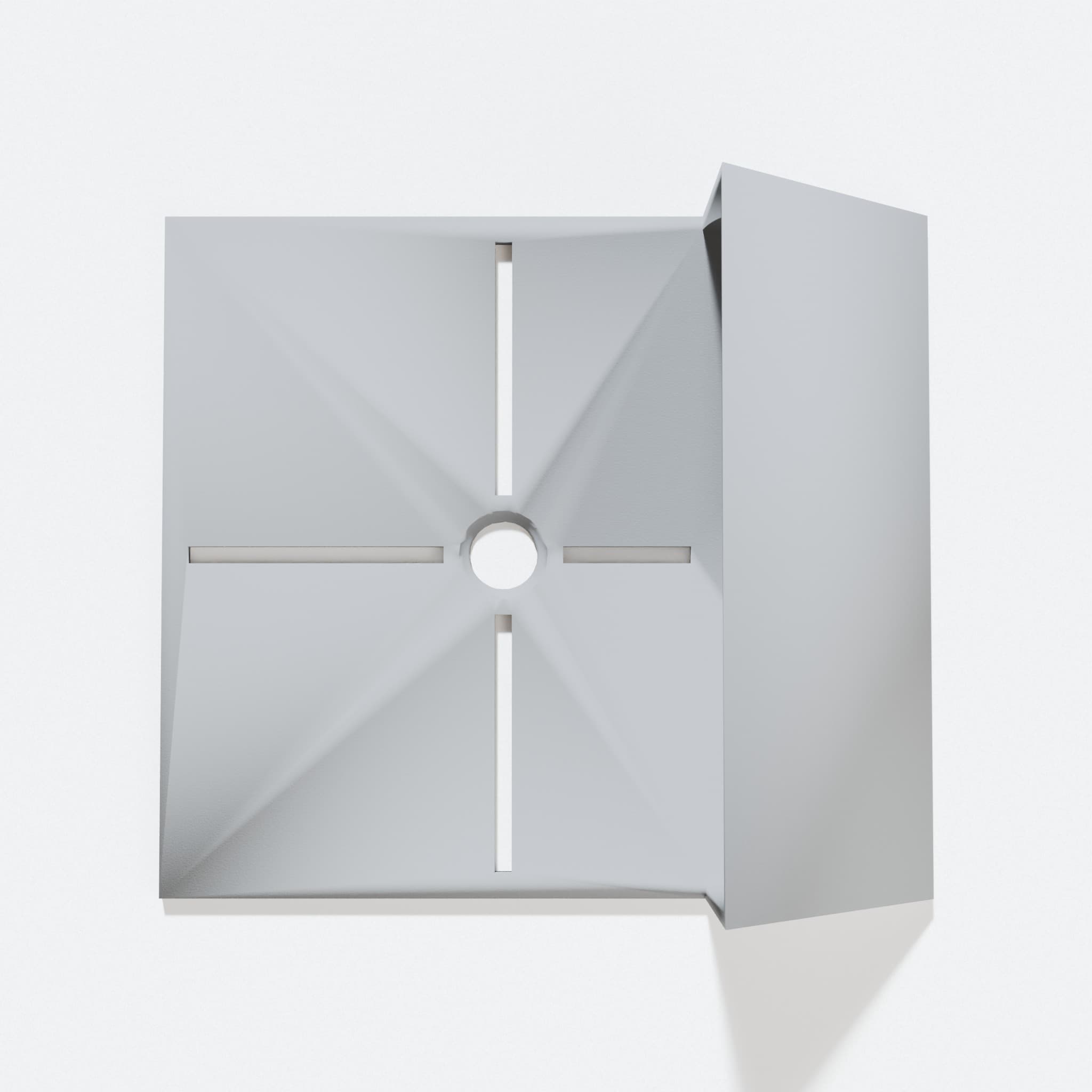

The design features a centered vertical alignment line positioned at a true 90-degree angle, plus an additional reference line below the drilling hole. These improvements ensure your drill bit stays properly aligned throughout the drilling process.
Originally developed through collaboration between multiple makers in the 3D printing community, this version corrects earlier alignment issues and refines the overall functionality. The integrated dust collector catches particles as you work, reducing cleanup time and keeping your workspace tidy.
19k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
