Thread Gauge Card, 3D Printed Workshop Tool

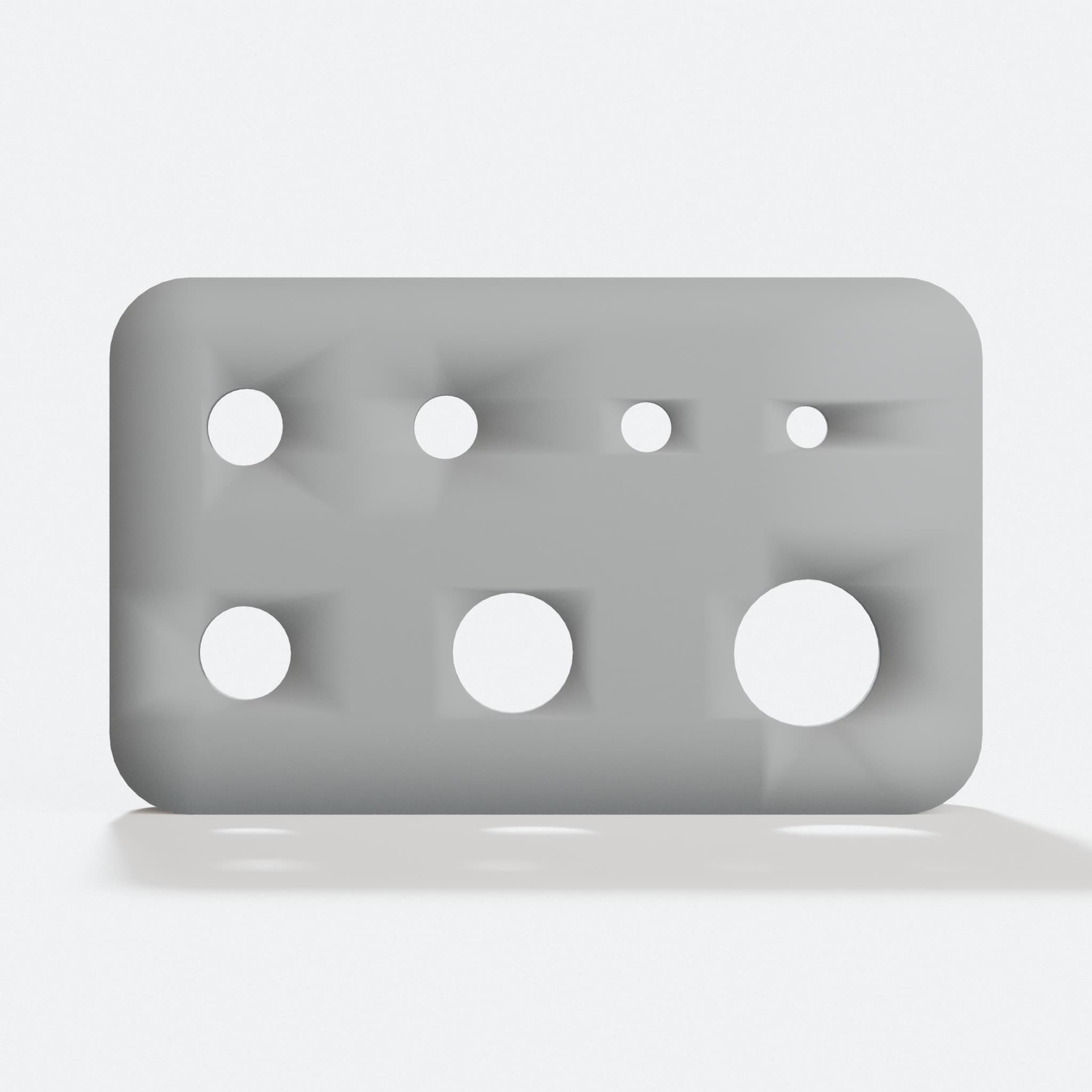

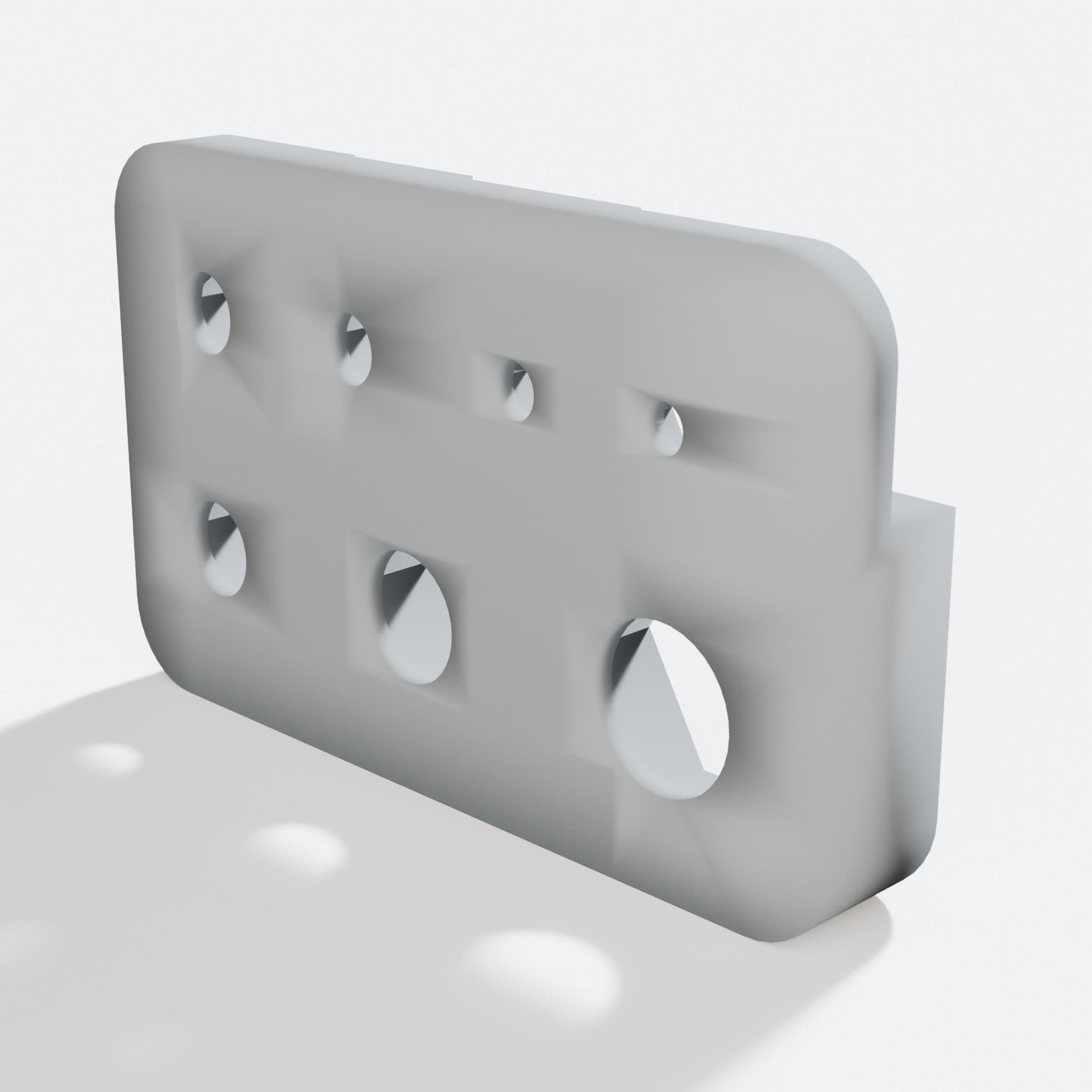

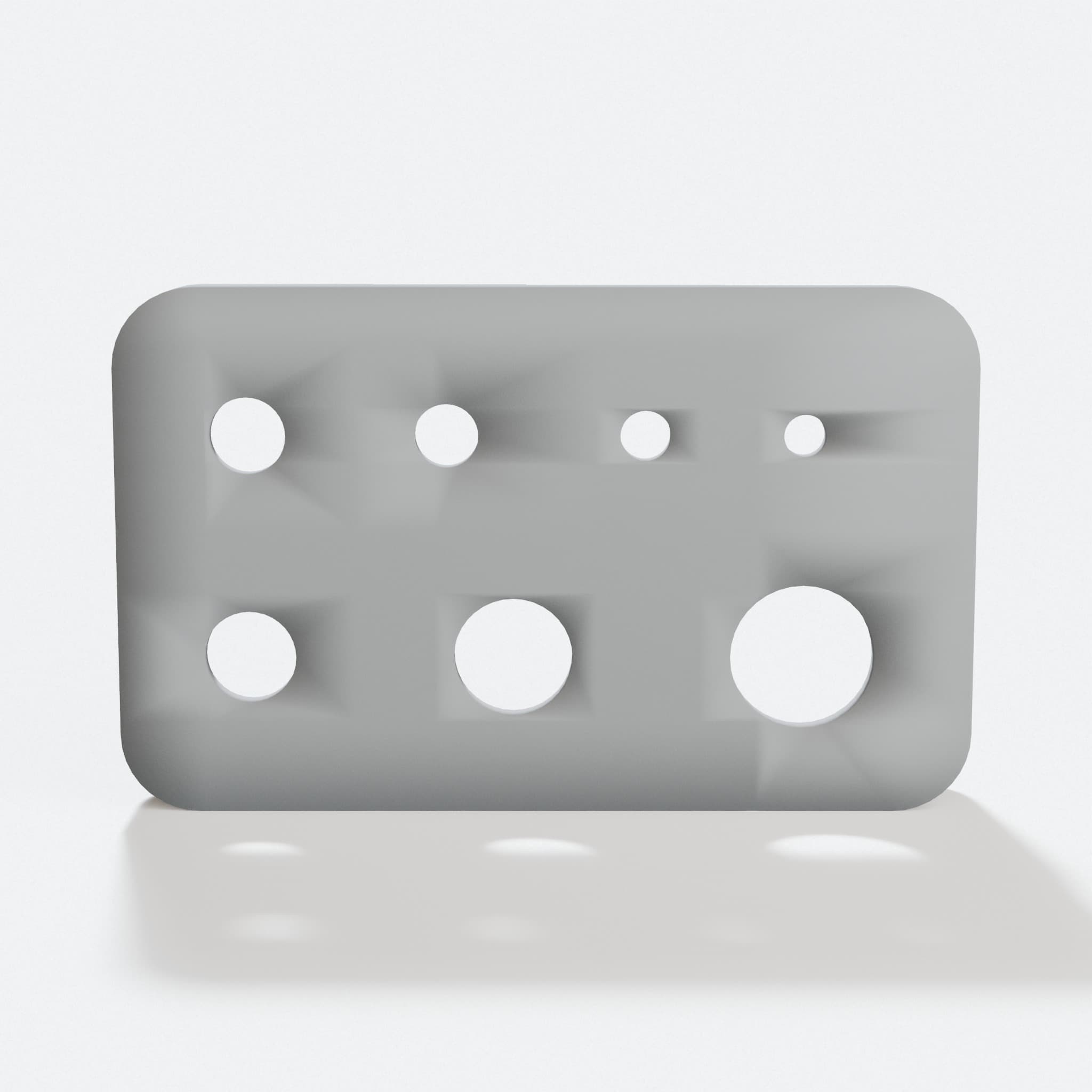

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Metric and standard thread sizes on one card so you sort bolts and screws fast.
- Handy card design fits in your toolbox so you always have the right gauge when you need it.
- Quick reference holes let you match your fasteners on the spot, no guessing needed.
- Durable 3D printed construction holds up to daily workshop use.
Your fastener mess gets organized in minutes. This thread gauge card gives you a simple way to sort and identify bolts, screws, and nuts by size.
The card shows both metric and standard thread sizes in easy-to-read holes. You slip your bolt or screw into each hole until you find a match. No more digging through drawers or mixing up sizes. Keep it in your toolbox or hang it on your wall for quick reference whenever you're working on a project.
Made with 3D printing so you get a sturdy, long-lasting tool that handles real workshop life. Small enough to toss in a drawer, useful enough to grab every time you work with fasteners.
4.1k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
More like this
Precision Measuring Tool Set - 3D Printed Workshop Tools
Design library
Resistor Lead Forming Tool, 3D Printed Workshop Helper
Design library
Center Finder Tool for Wood, Mark Perfect Midpoints Every Time
Design library
Hot Glue Gun Stand for Small Glue Guns, Compatible with Prusa
Design library
Drilling Jig with Integrated Dust Collector
Design library
Support for Dremel 4000, 3D Printed Workshop Tool
Design library
Cross Tweezer for Soldering, Normal Spring Tension
Design library
Bit Organizer for Dremel Rotary Tool Bits and Discs
Design library
Who made this design
Designed by abutai. We did not draw it.
Shared under Creative Commons, credit and share alike. See the original design
