160mm Speed Square with Notch for Woodworking Layout
Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Metric 160mm layout markings so you can measure and mark angles in one tool
- Notched edge shaped for woodworking joinery so you can mark joint lines
- Flat square body shaped for layout work on wood and workshop projects
- Compact 160mm size shaped to sit easily in a tool bag or drawer

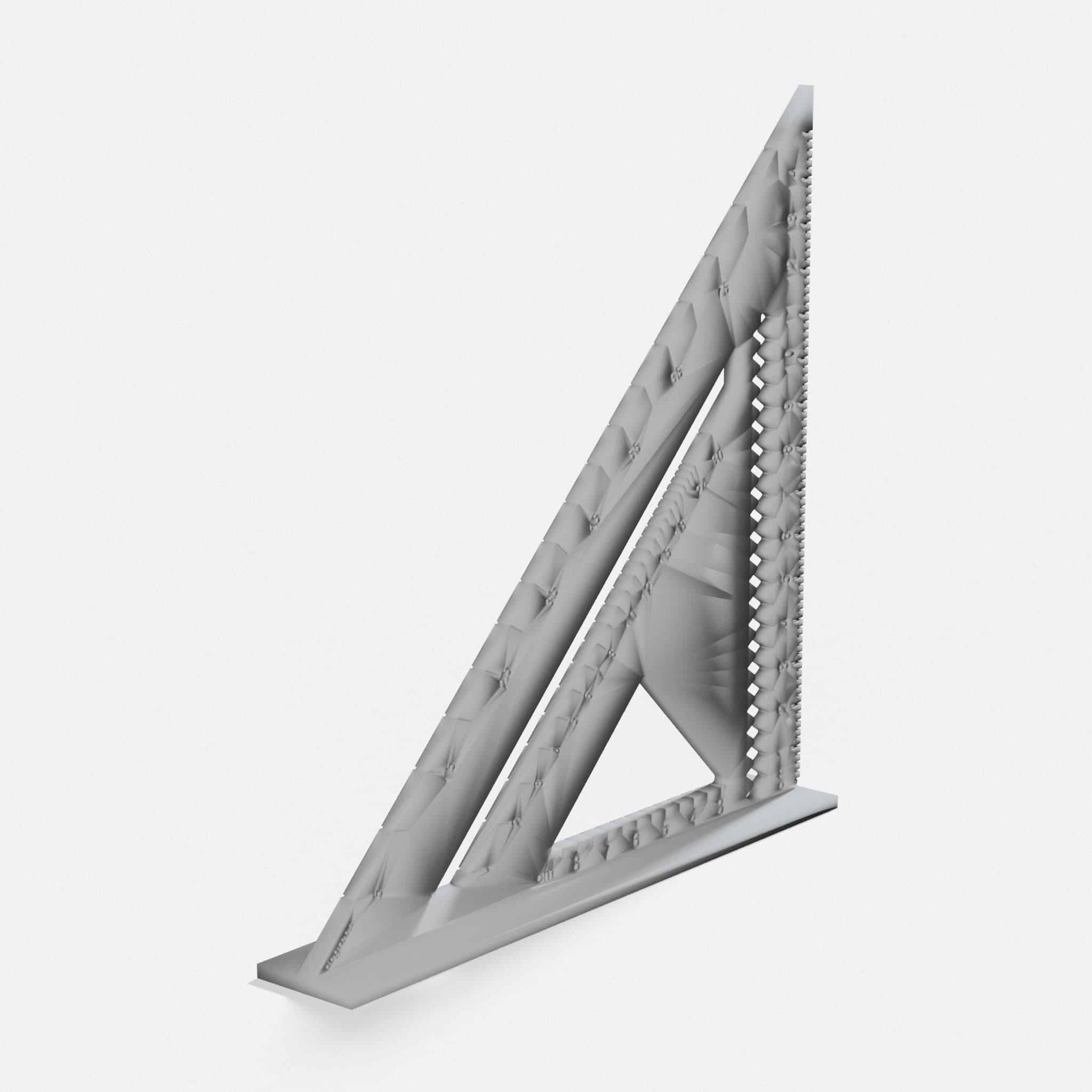

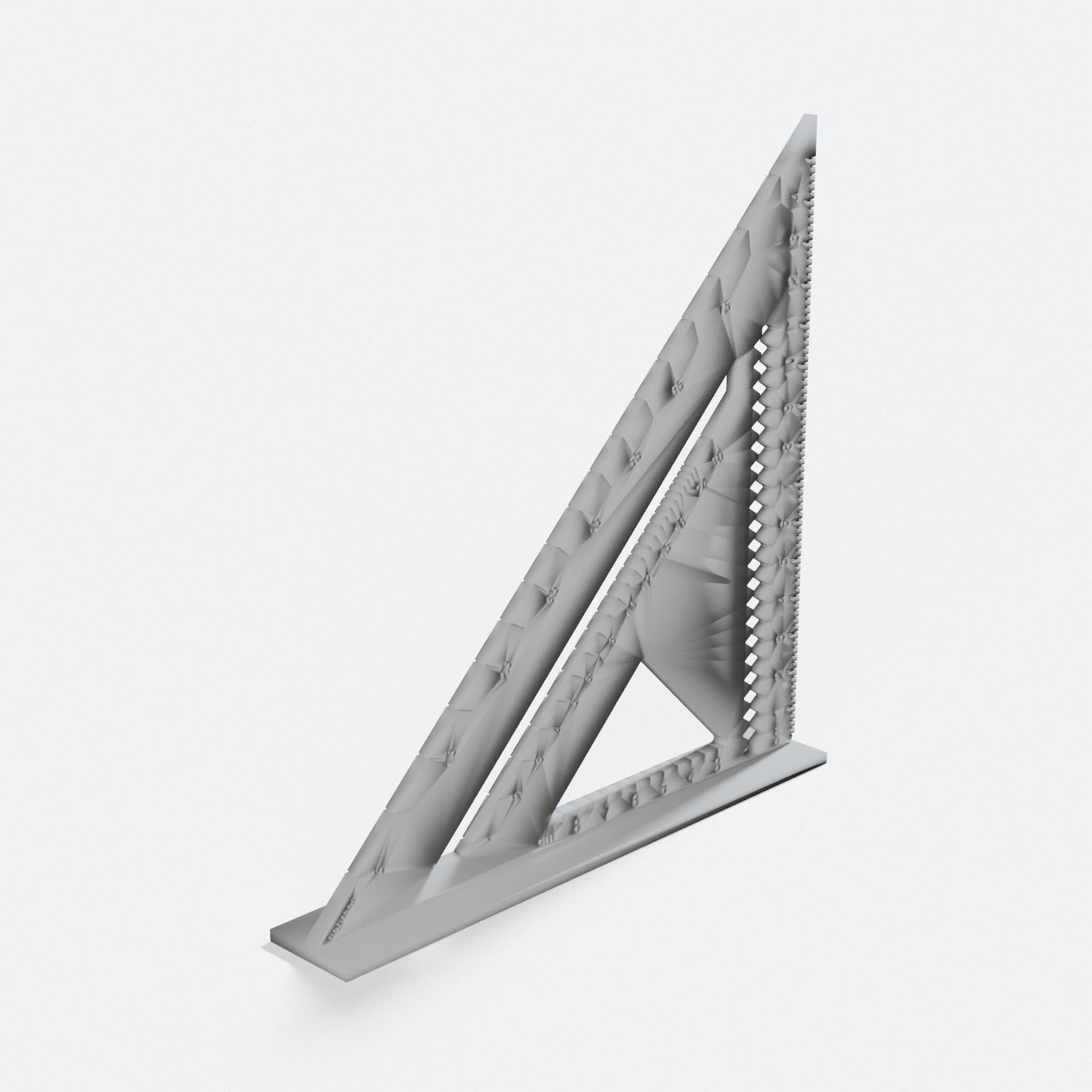

Speed Square notched sits on your workbench ready for layout work. This is the 160mm metric version, shaped with an extra notch cut into the body for woodworking joinery marks.
The square keeps the classic triangle shape used for marking angles and straight lines on wood. The added notch gives you a spot to mark joint lines directly on your material, so you can use one tool for both general layout and joinery marking.
This piece is sized at 160mm, a compact size that fits in a tool bag or hangs on a shop wall. It works well for anyone who cuts wood joints by hand and wants a marking tool shaped for that task.
This item is not made or endorsed by any speed square brand. It is an independent design inspired by the classic layout tool shape.
4.1k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
