Socket Holder Tray for 5.5mm to 24mm Sockets

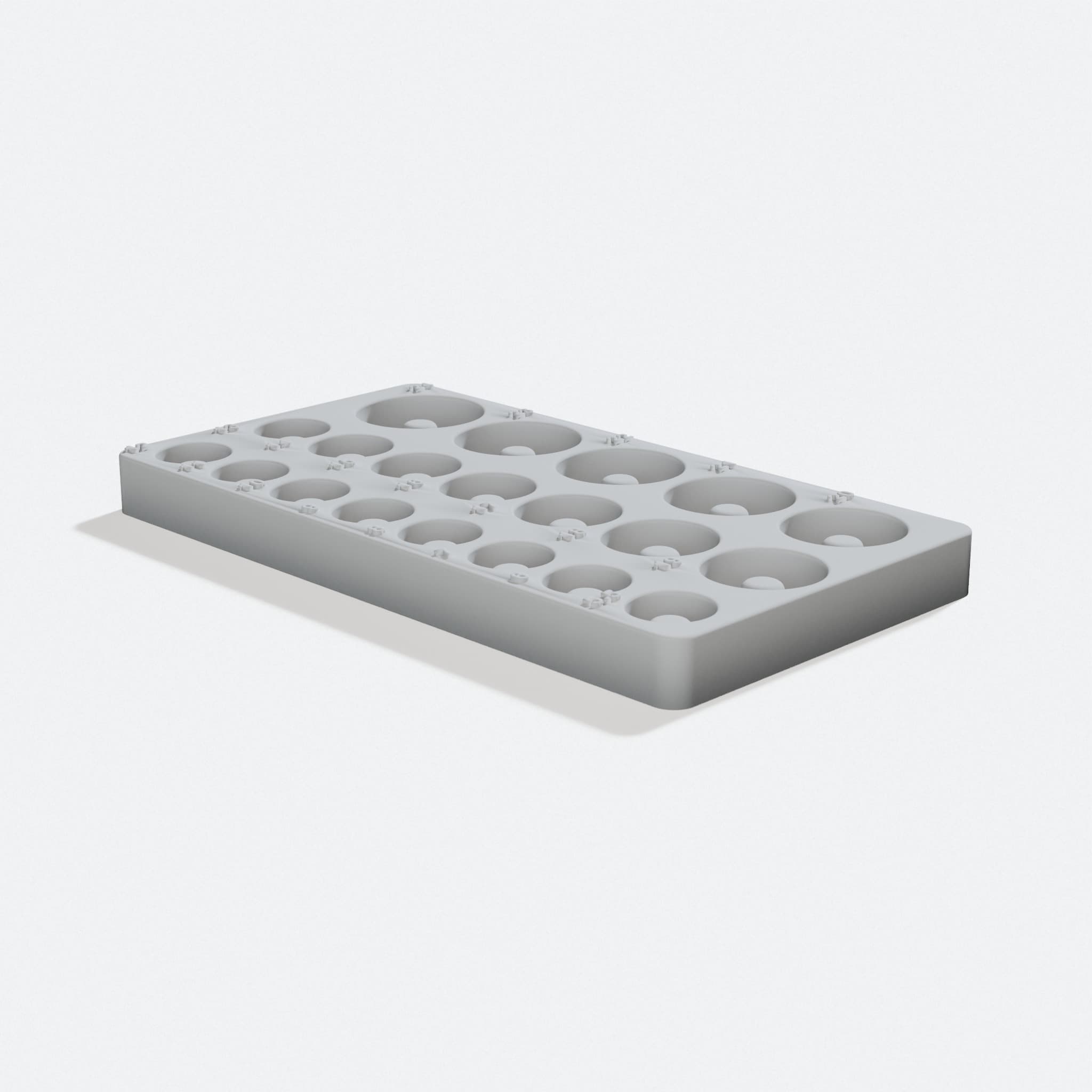

Socket Holder Tray for 5.5mm to 24mm Sockets, design preview, turn three quarter

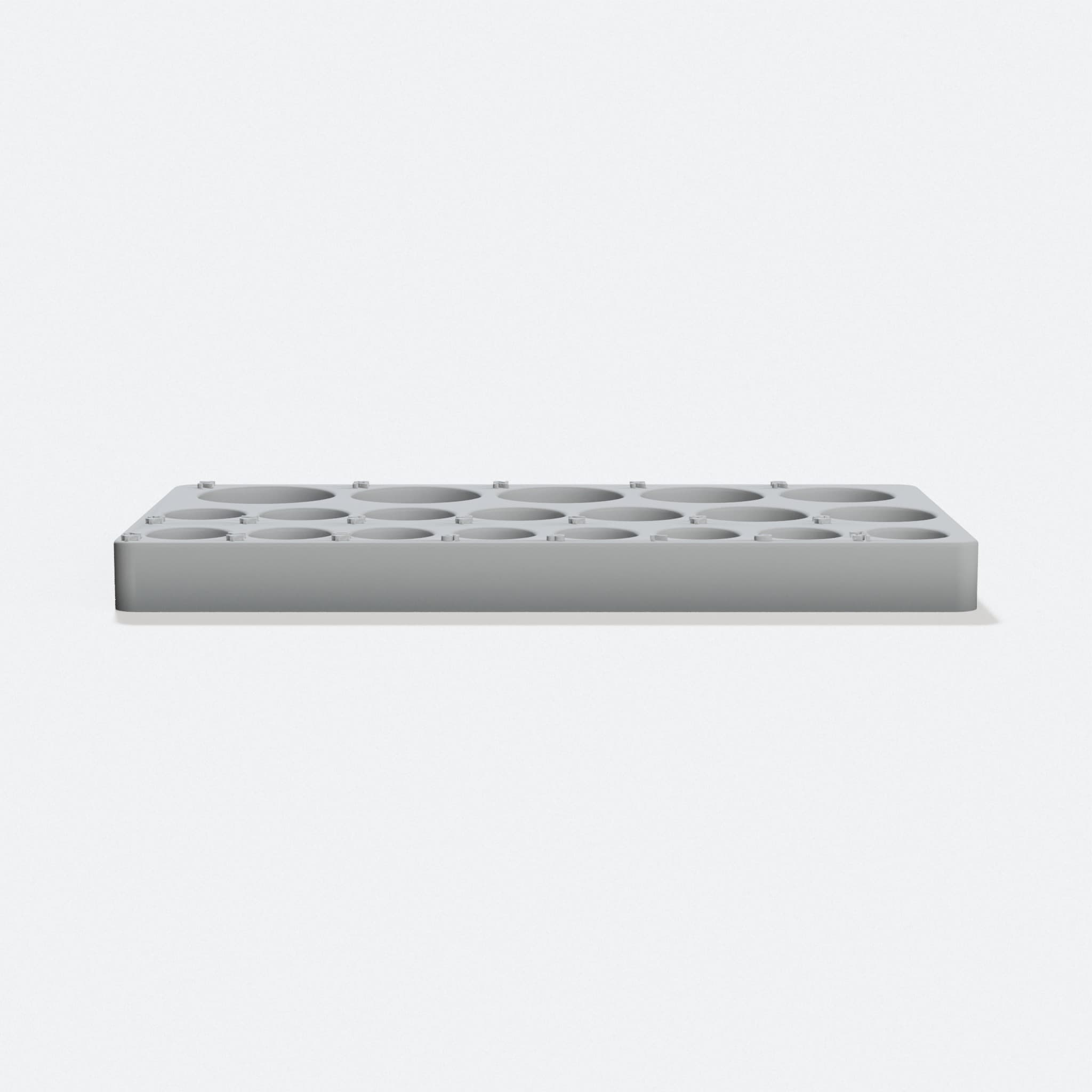

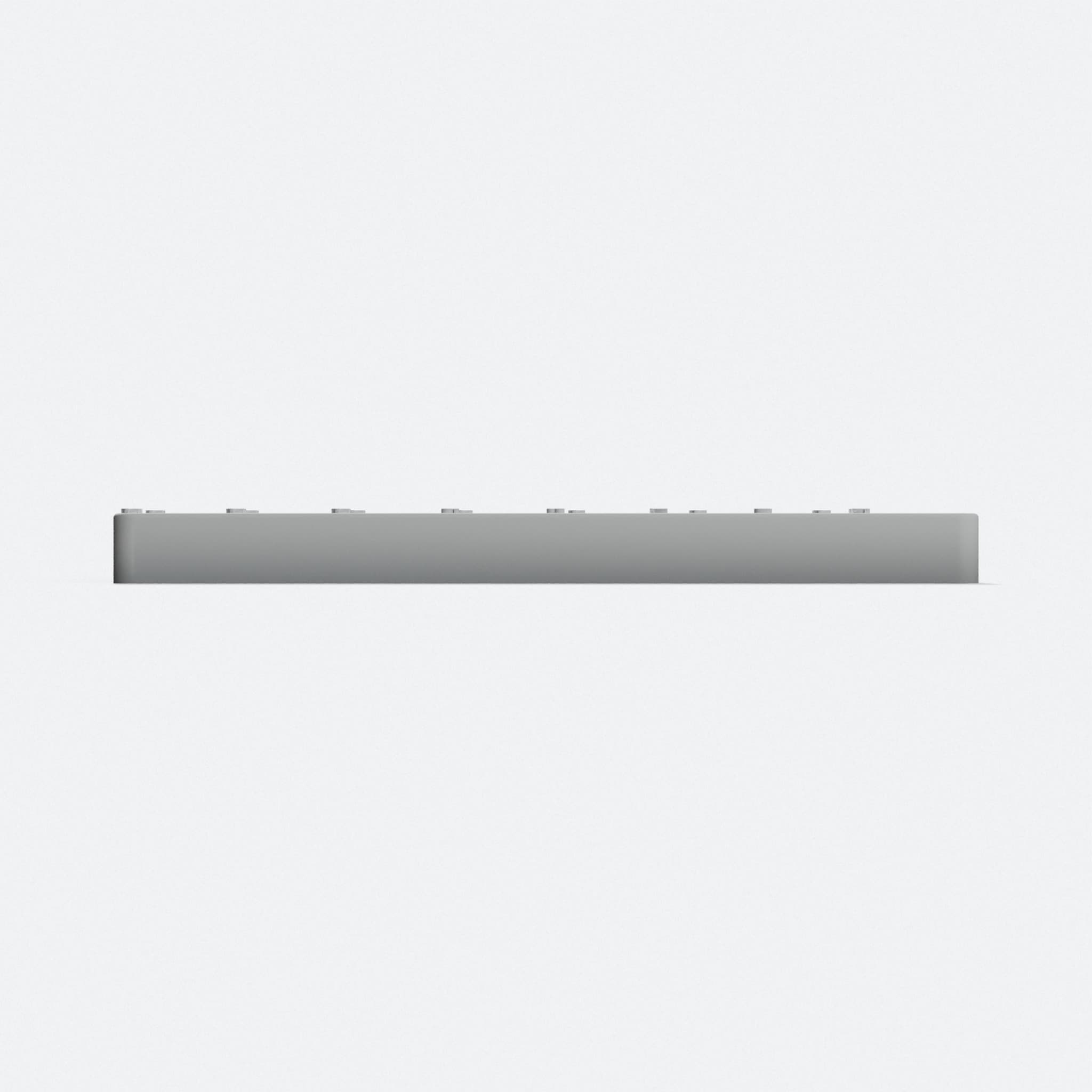

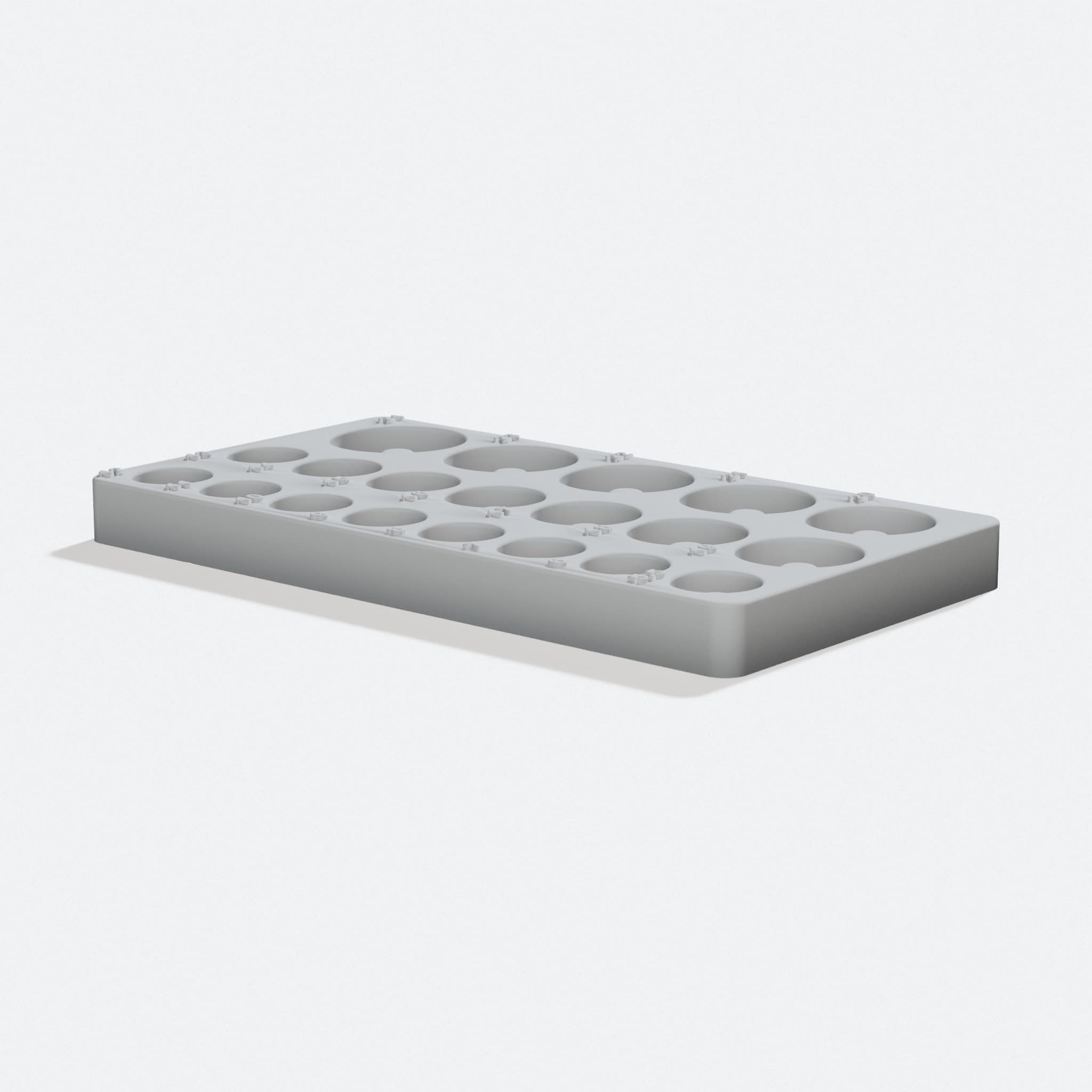

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Socket tray for 6 to 24 mm metric sockets, no skips
  • Plus 5.5 mm slot for that one odd-size socket
  • Frees up tool box space and speeds tool selection
  • Inspired by the popular Craftsman socket holders
  • A staple for any home garage tool box

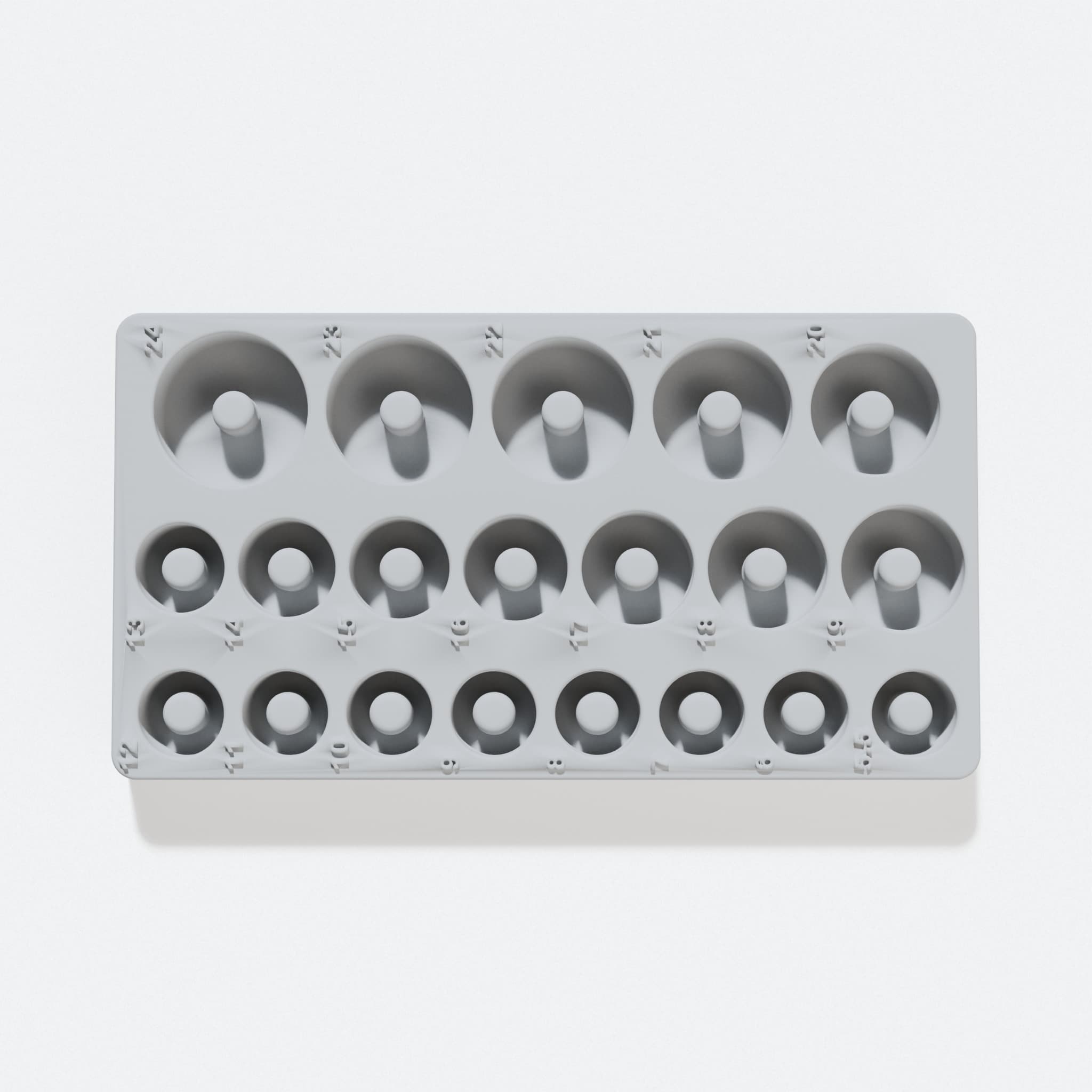

You glance at the tool box and every socket sits in its own slot in numerical order. This tray covers 6 to 24 mm metric sockets in 1 mm steps with no skips, plus a 5.5 mm slot for that one odd-size socket many sets include.

The design draws from the popular Craftsman socket holder family, with cleaner ledges and tighter fits for full sockets. Use it for 3/8 inch drive sockets like the Williams MSB-20HRC 20-piece set.

A small upgrade for any home or pro garage tool box.

4.3k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by BrenoAutoGarage. We did not draw it.

Shared under Creative Commons, credit required. See the original design
