Shimano CenterLock Disc Brake Tool

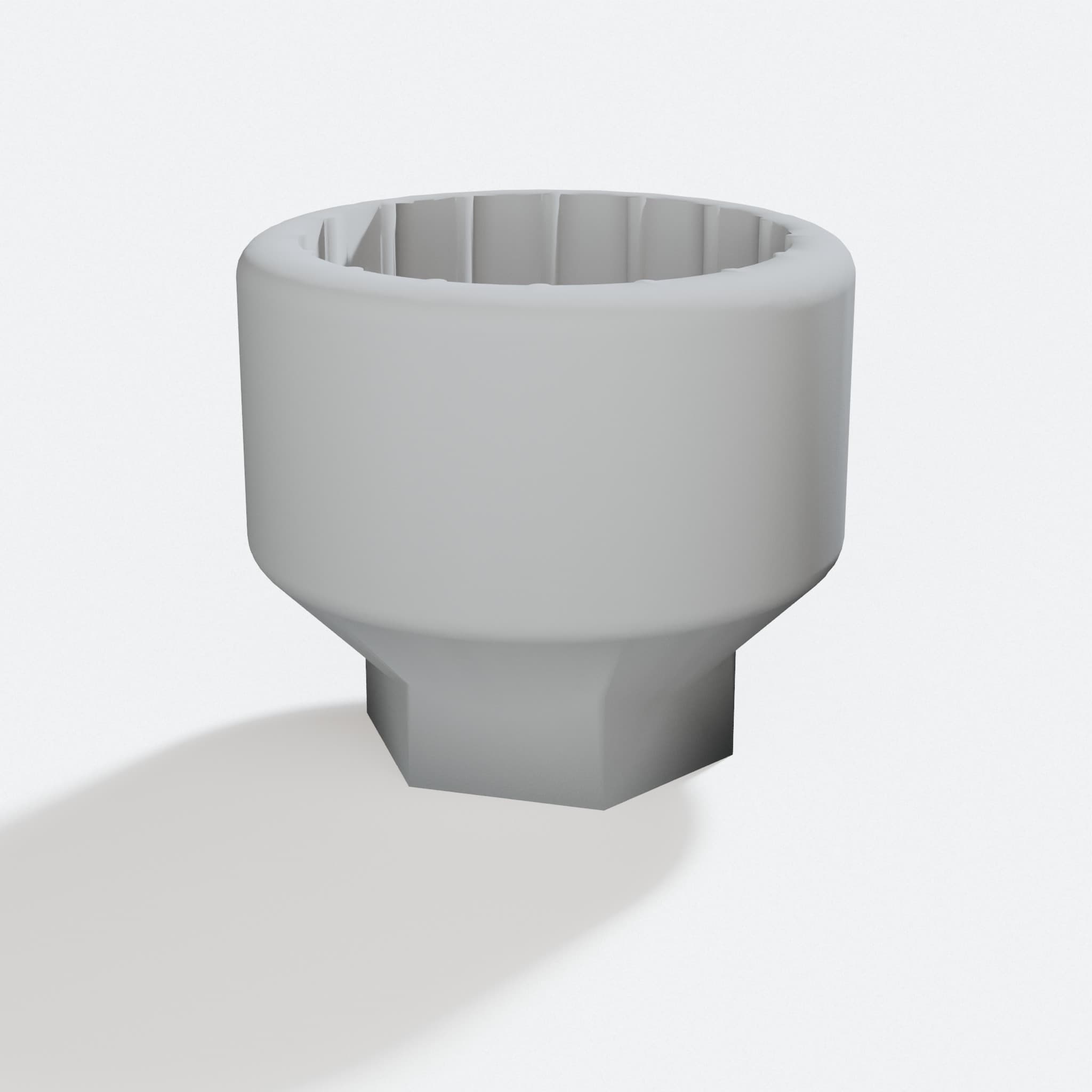

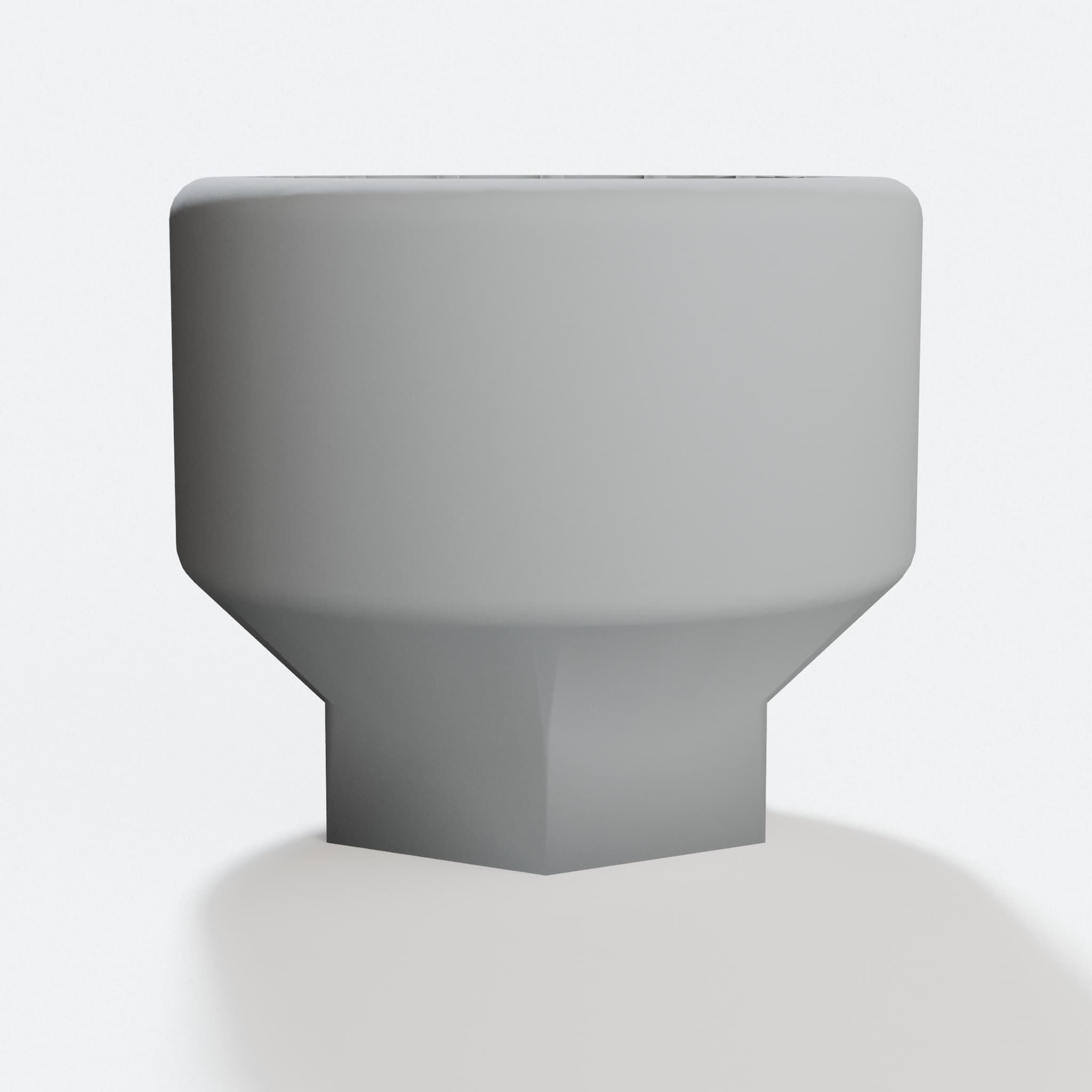

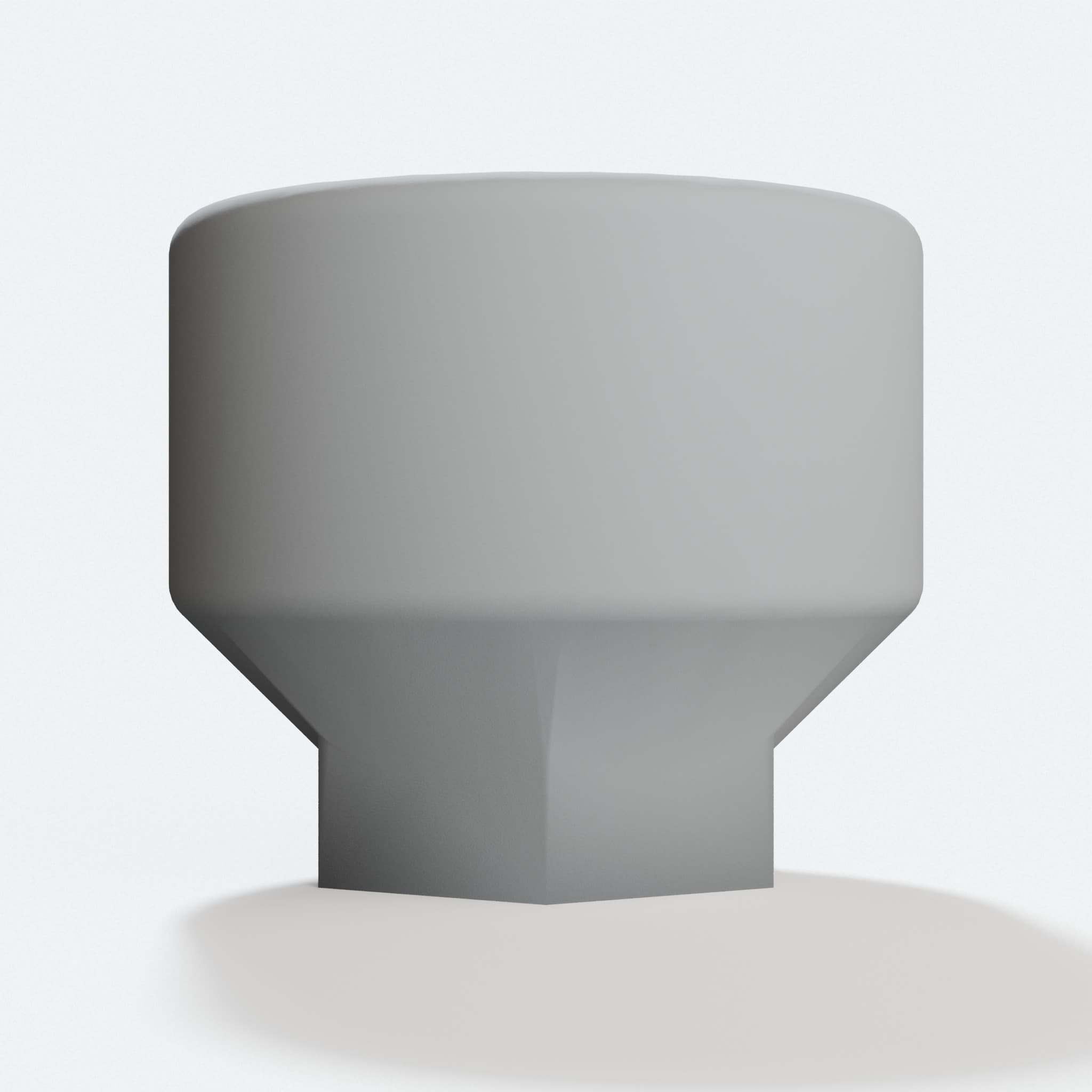

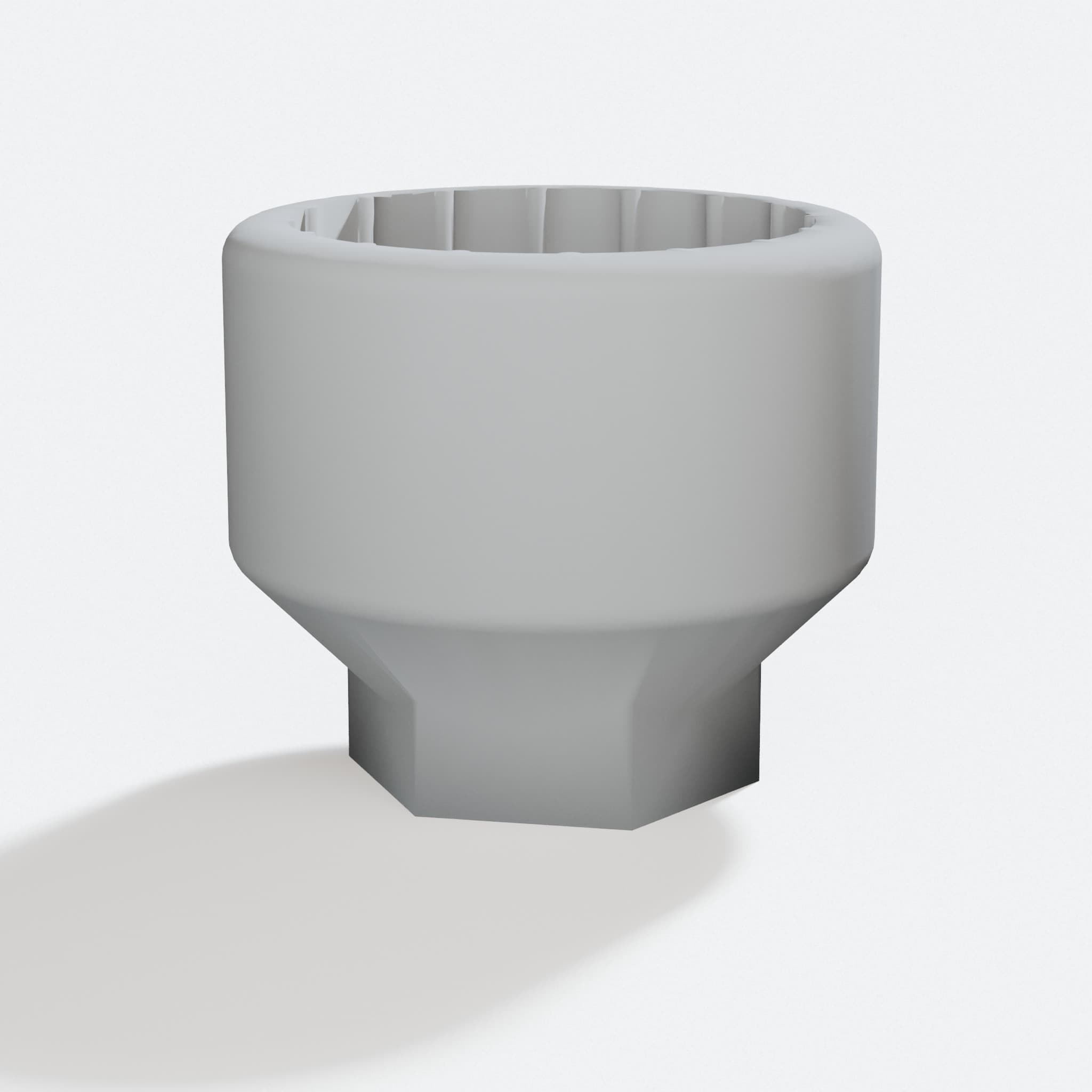

Design preview. Rendered from the file, not a photo.
The maker says it fits: Shimano center lock disc brake rotors. See the proof
This model is not currently offered as a verified ready to buy print.
What it does
- Works with your torque wrench so you can tighten the brake nut safely to exactly 40 Nm
- Includes both square and hexagon fittings, so you have backup options when one shape isn't enough
- Prints in ASA at 80% infill for strength that holds up under real torque pressure
- Hexagon design fits a standard 32mm nut, so you can use tools you already own
You can service your own Shimano disc brakes without paying a shop, when you have the right tool. This 3D-printable tool grabs your brake rotor locknut from both angles, so you have choices when you need them.
The square opening handles basic jobs, but when you need serious torque, the hexagon lets you attach a 32mm wrench or nut to your torque wrench. One maker tested this design at 40 Nm using ASA plastic and 80% infill. It survived both tightening and loosening. You get a tool built to the exact specs your brakes require.
Print this yourself and keep it in your workbench. No waiting for shipping. No tool rental fees. Just you, your printer, and the brake work you need to do.
859 downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What it fits
The maker says it fits: Shimano center lock disc brake rotors

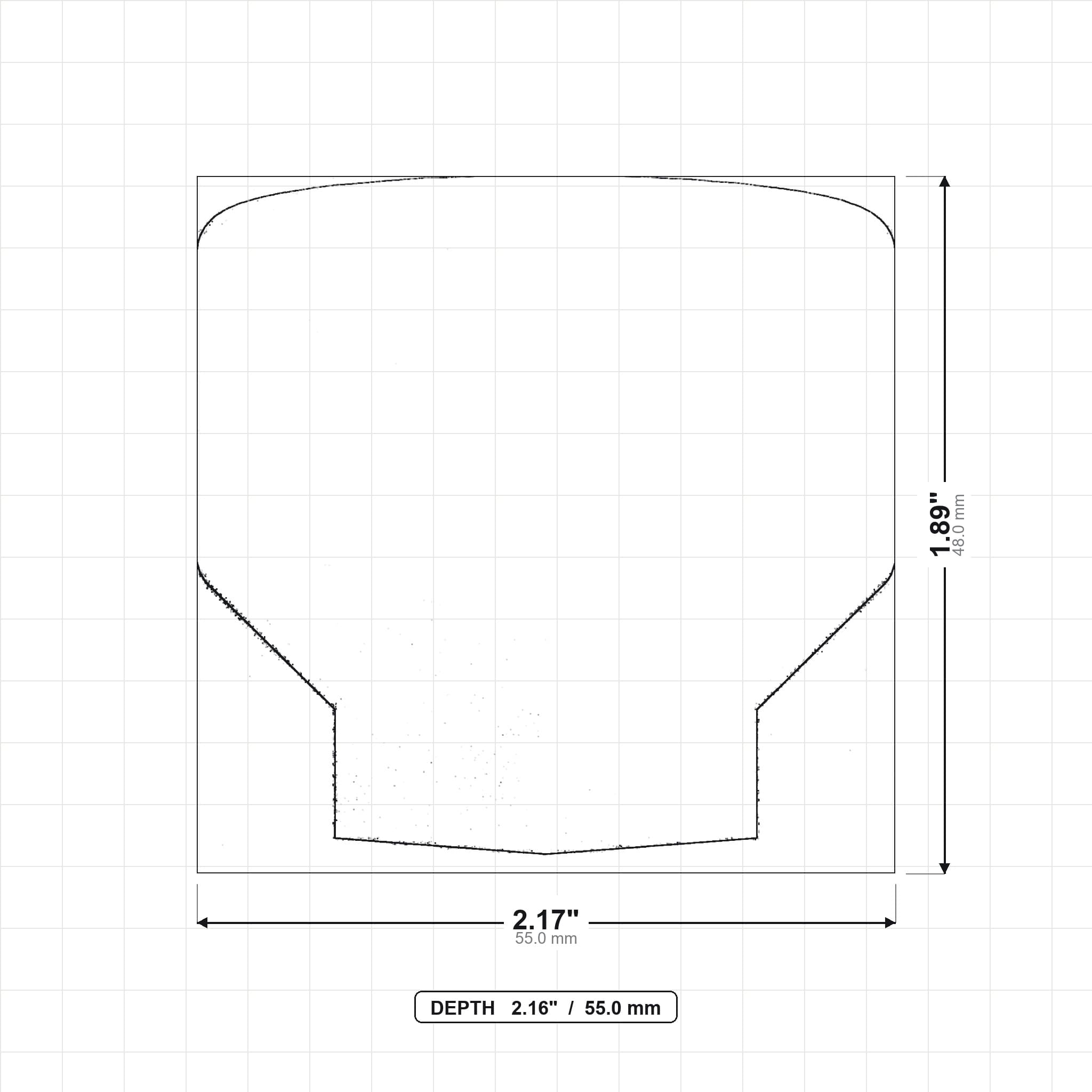

That is the maker's word, not a fit we measured. Check the size below against your own.
- Shimano center lock disc brake rotorsFrom the maker's own listing title, checked 2026-08-13. See the original post
Brand names here only say what this part fits. We are not connected to those companies, and they did not make or check this part.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
