Screw Sorting Jig with M5 M6 M8 M10 Gauge Slots

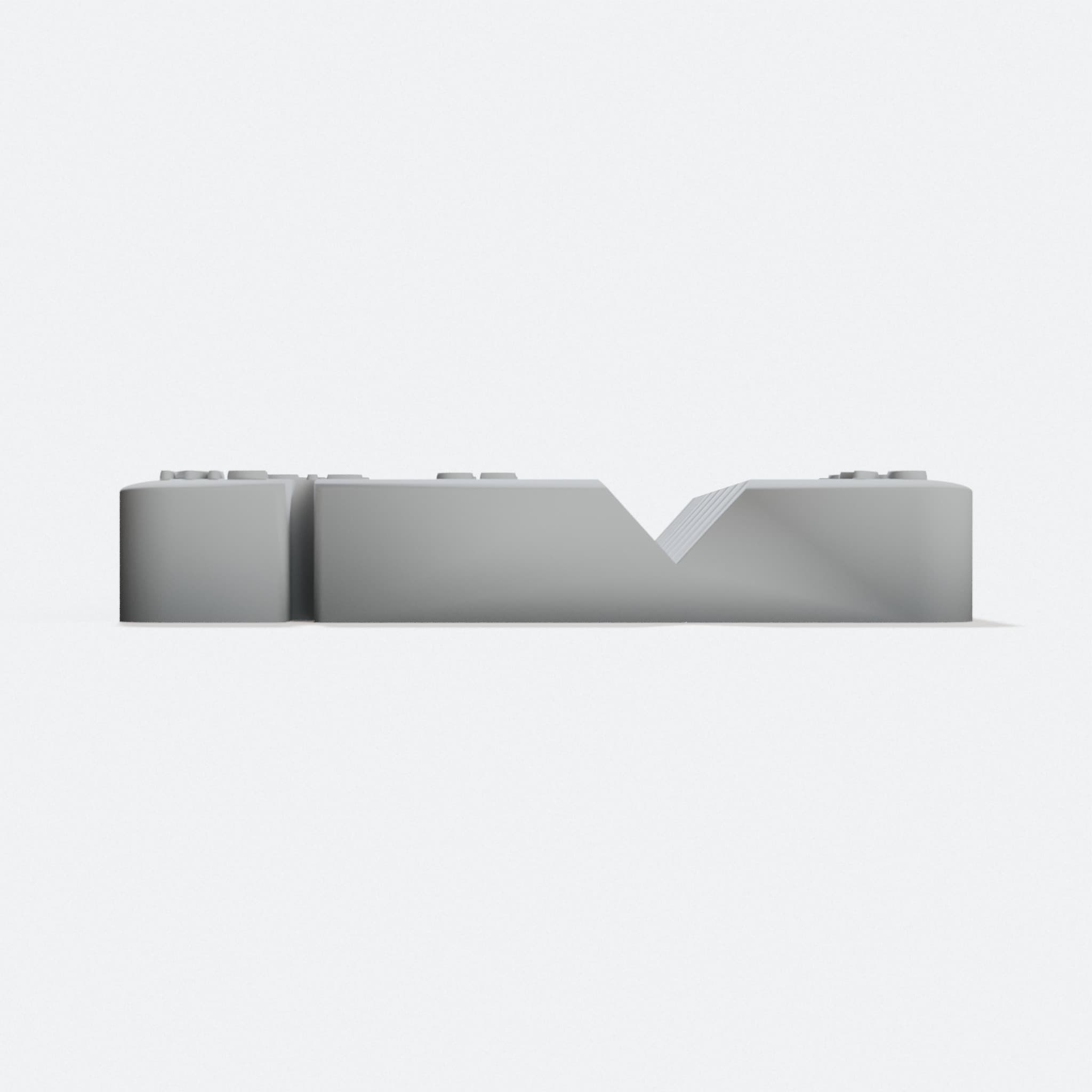

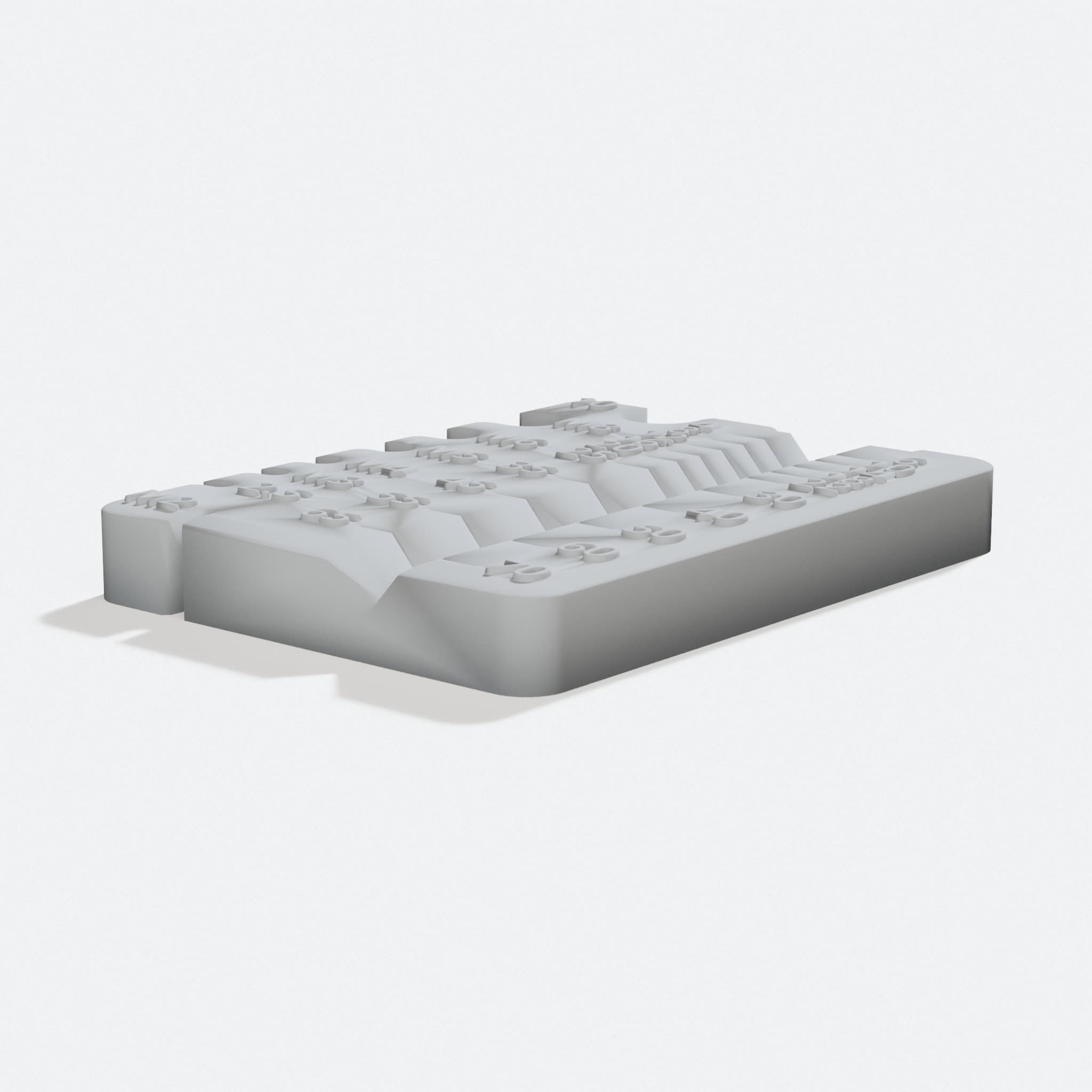

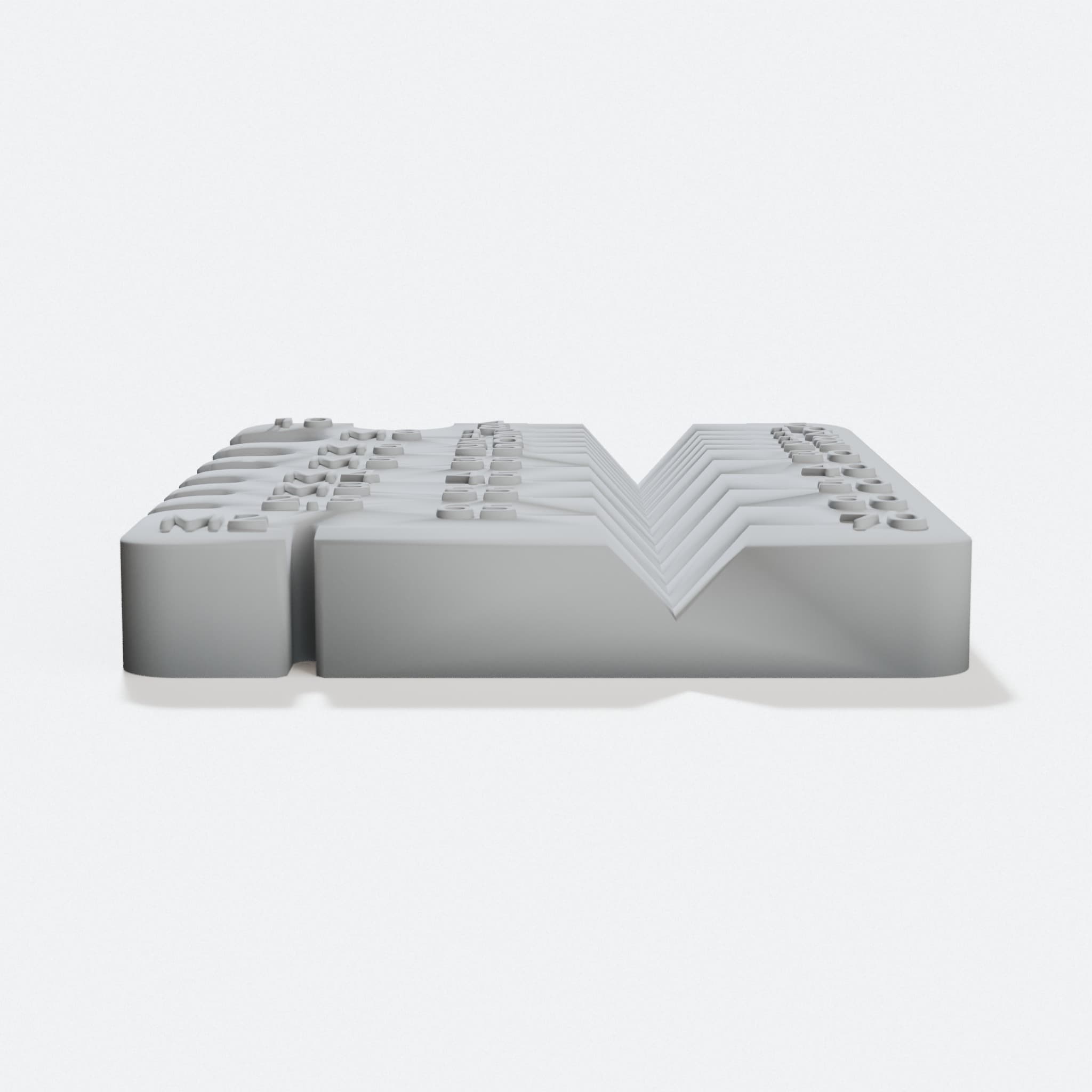

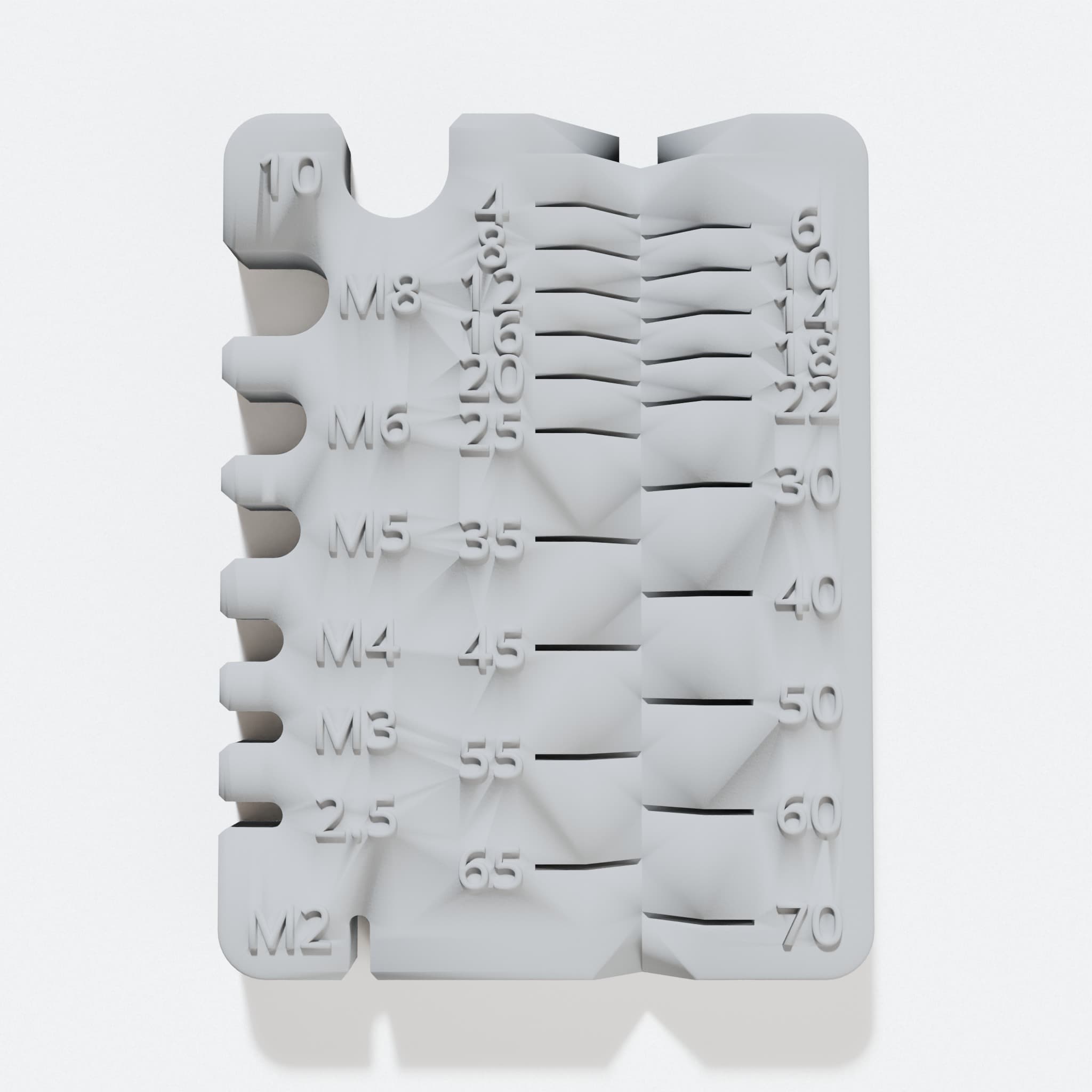

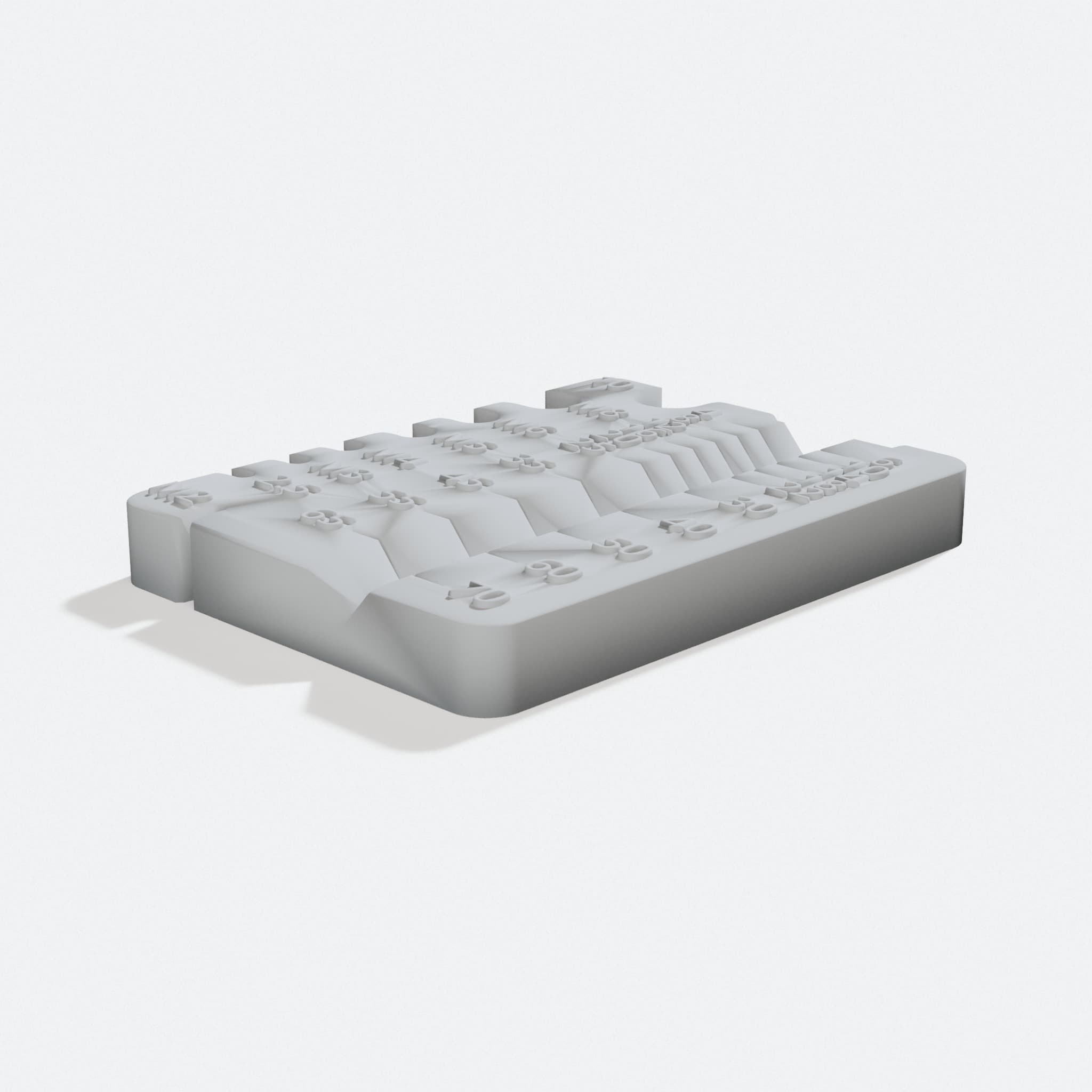

Screw Sorting Jig with M5 M6 M8 M10 Gauge Slots, design preview, turn three quarter

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Go/nogo slots for M5, M6, M8, and M10 so you can size screws by eye
  • Slotted layout groups screws by size so your bench stays neat
  • Flat base shaped to sit on a workbench or in a drawer
  • Printed in the USA and made to order after you buy
  • A simple shop tool for anyone who works with metric hardware

Sorting loose screws gets easier when you have a jig built just for the job. This screw sorting jig has four gauge slots cut for M5, M6, M8, and M10 sizes, so you can check a screw against the slot and see where it belongs.

The design uses a go/nogo slot for each size, based on standard ISO lengths. You drop a screw into a slot and match it to the right gauge without pulling out a caliper. The layout is open and easy to read, with no text printed on the back.

This jig is shaped for anyone who keeps a mix of metric screws on hand, from home builders to garage tinkerers. It gives your parts bin a clear system, one slot per size, so sorting stays simple.

Made to order in the USA after you place your order.

5.2k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by spudaddict. We did not draw it.

Shared under Creative Commons, credit required. See the original design
