Rounded Corner Template for Joinery (Customizable)

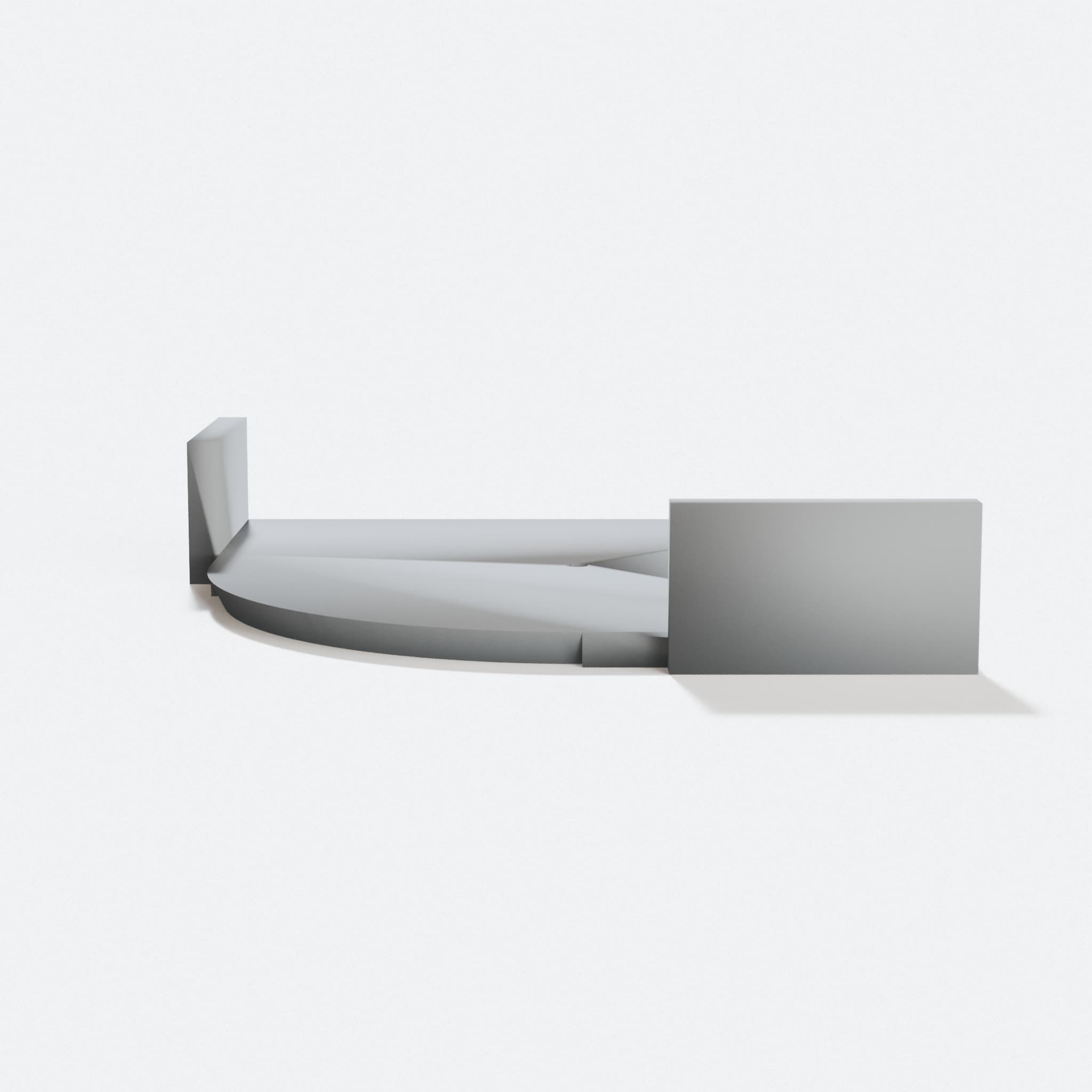

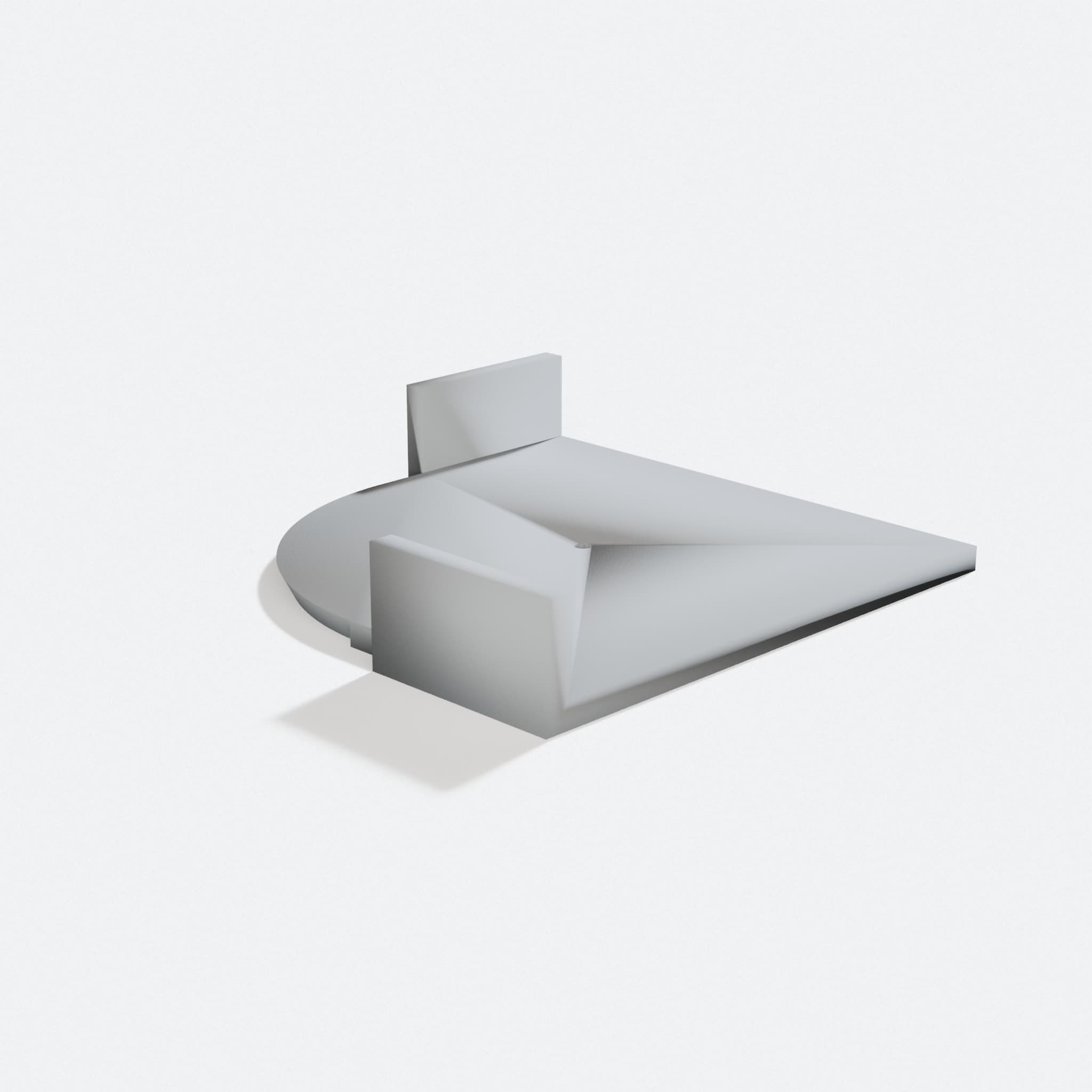

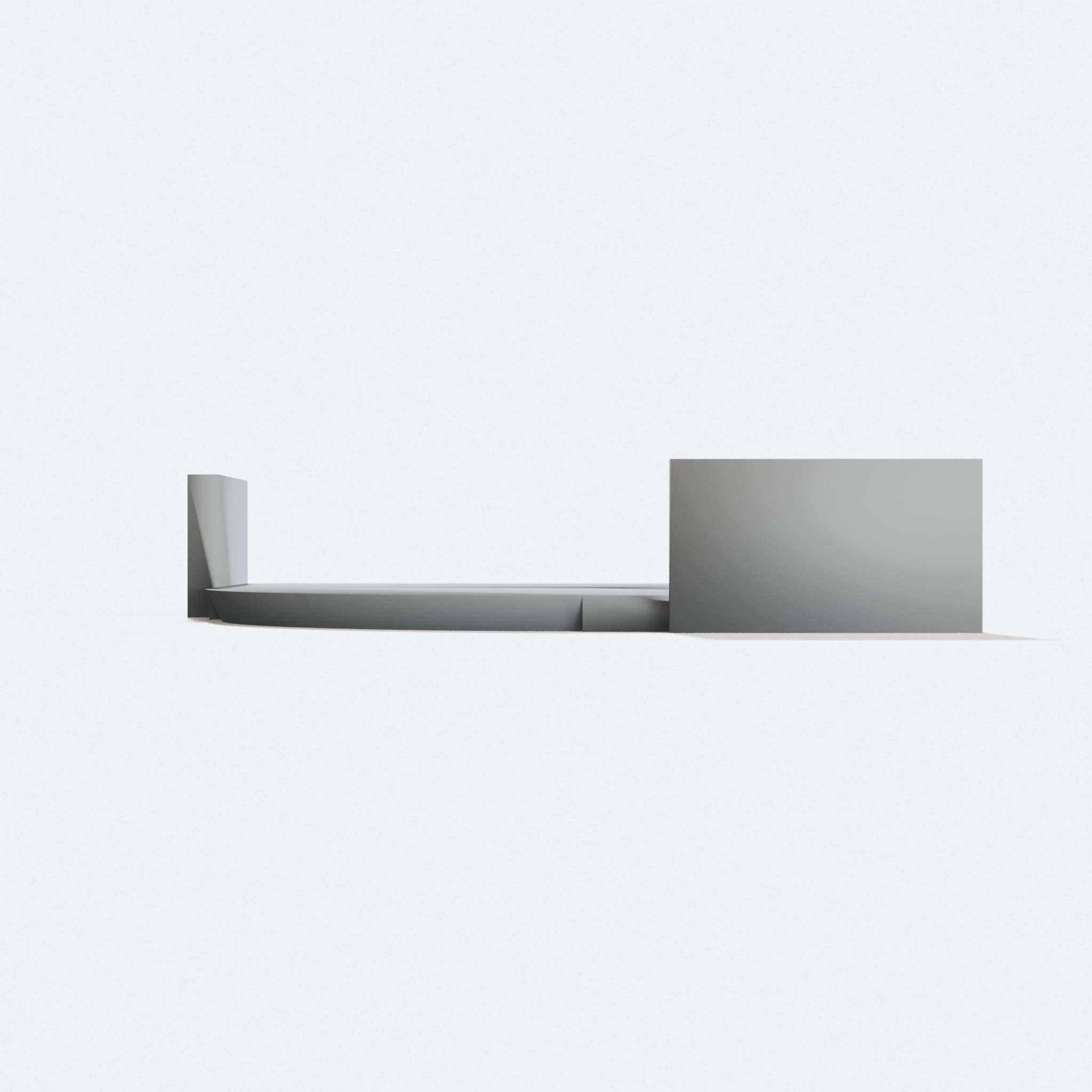

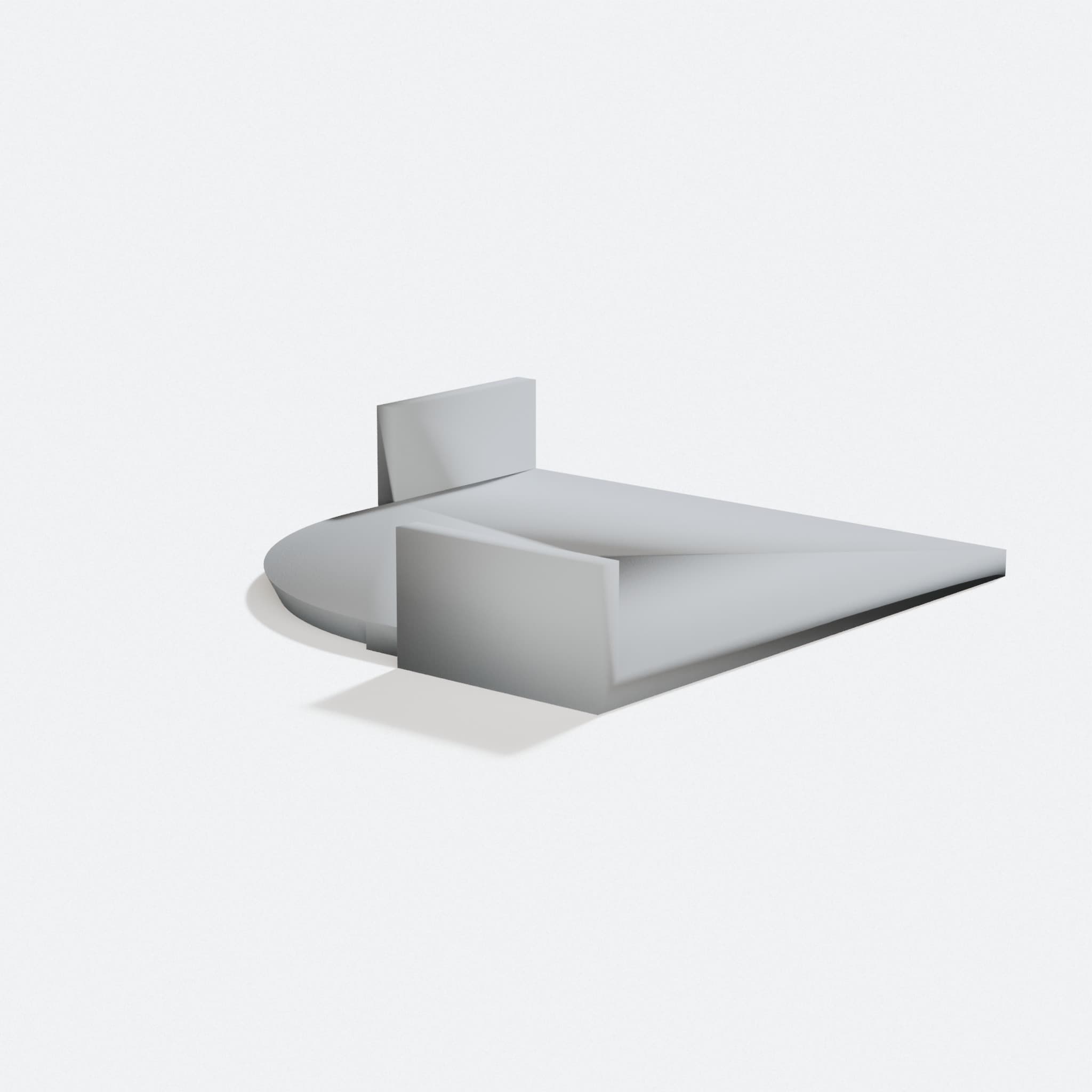

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Customizable radius, wall height, thickness, and inscription options
- Perfect for marking clean, consistent rounded corners in woodworking
- Includes step-by-step visual guide for easy use
- Choice of Letters or Orbitron font for personalized text
- Simple, effective tool for DIY joinery projects
This customizable rounded corner template is a handy addition to your collection of 3D printed workshop tools. It's designed to help you mark clean, consistent rounded corners for joinery projects, whether you're building furniture, cabinets, or other woodworking pieces.
The template comes with illustrated instructions showing you every step of the process, so you'll be marking perfect curves in no time. Customize the rounding radius to match your project specs, adjust the side wall height and thickness for a comfortable grip, and even add your own inscription in your choice of Letters or Orbitron font.
It's a straightforward, no-fuss tool that makes repetitive layout work faster and more accurate. Great for hobbyists and makers who want professional results without the guesswork.
905 downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
