Pocket Hole Jig for 2x4 Wood Joints

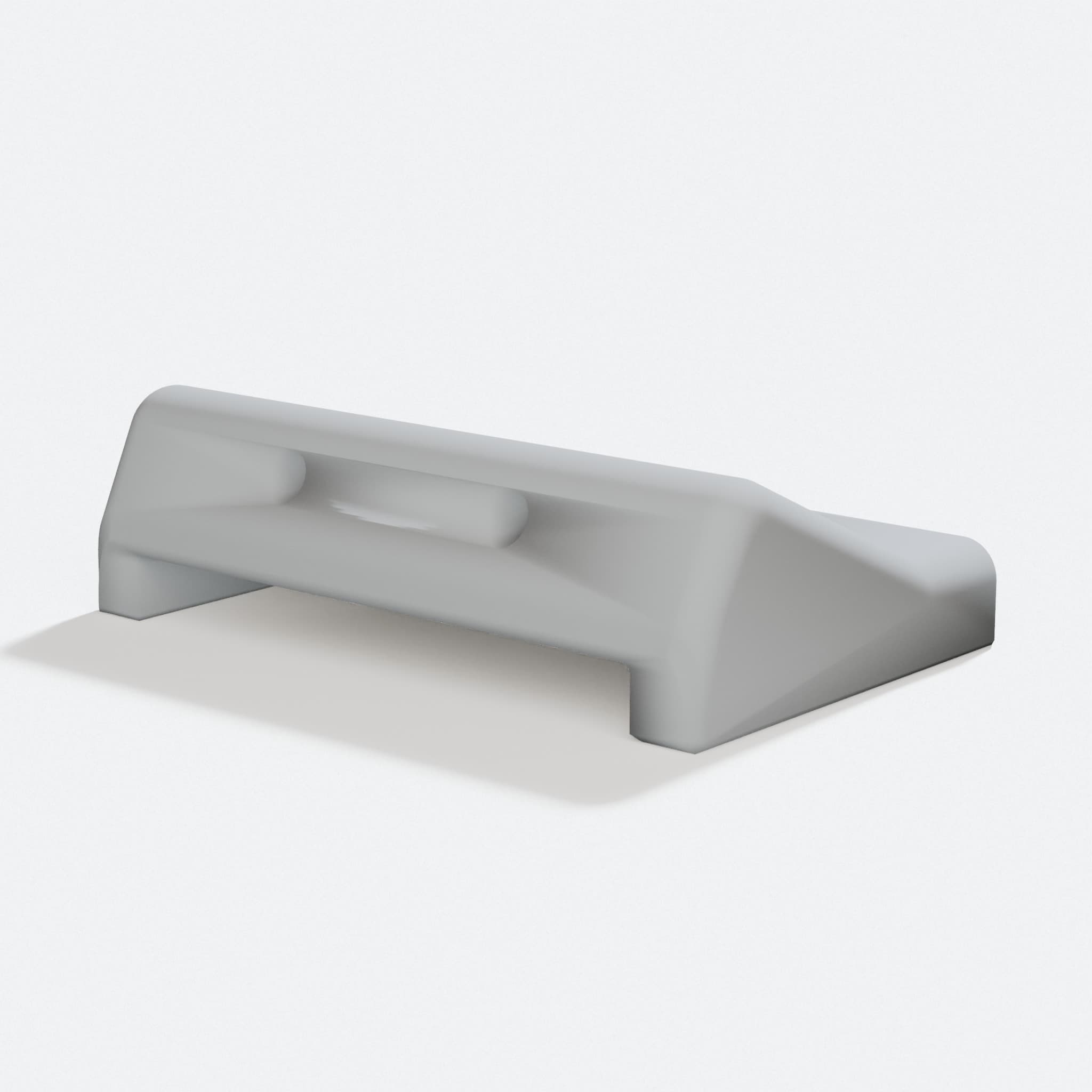

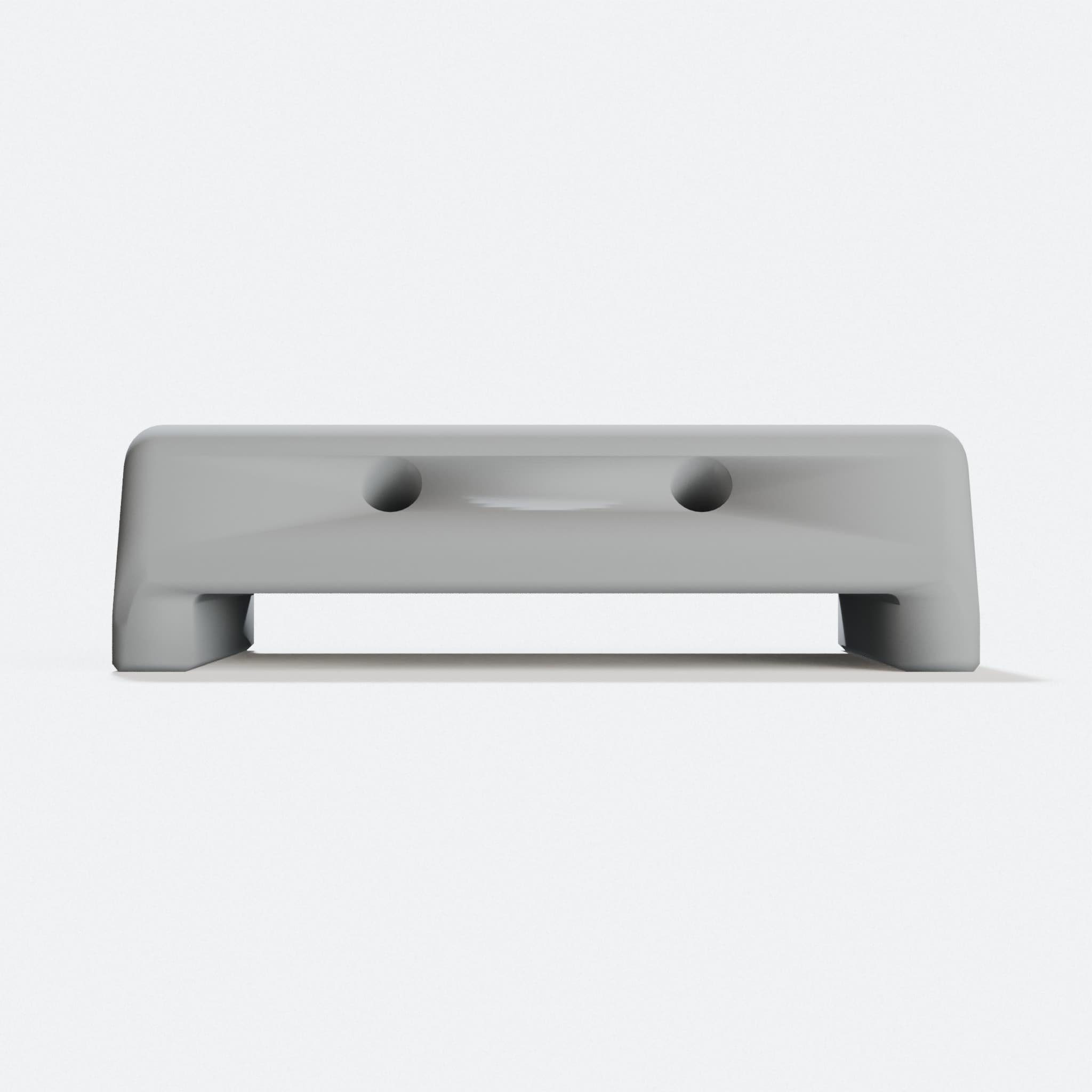

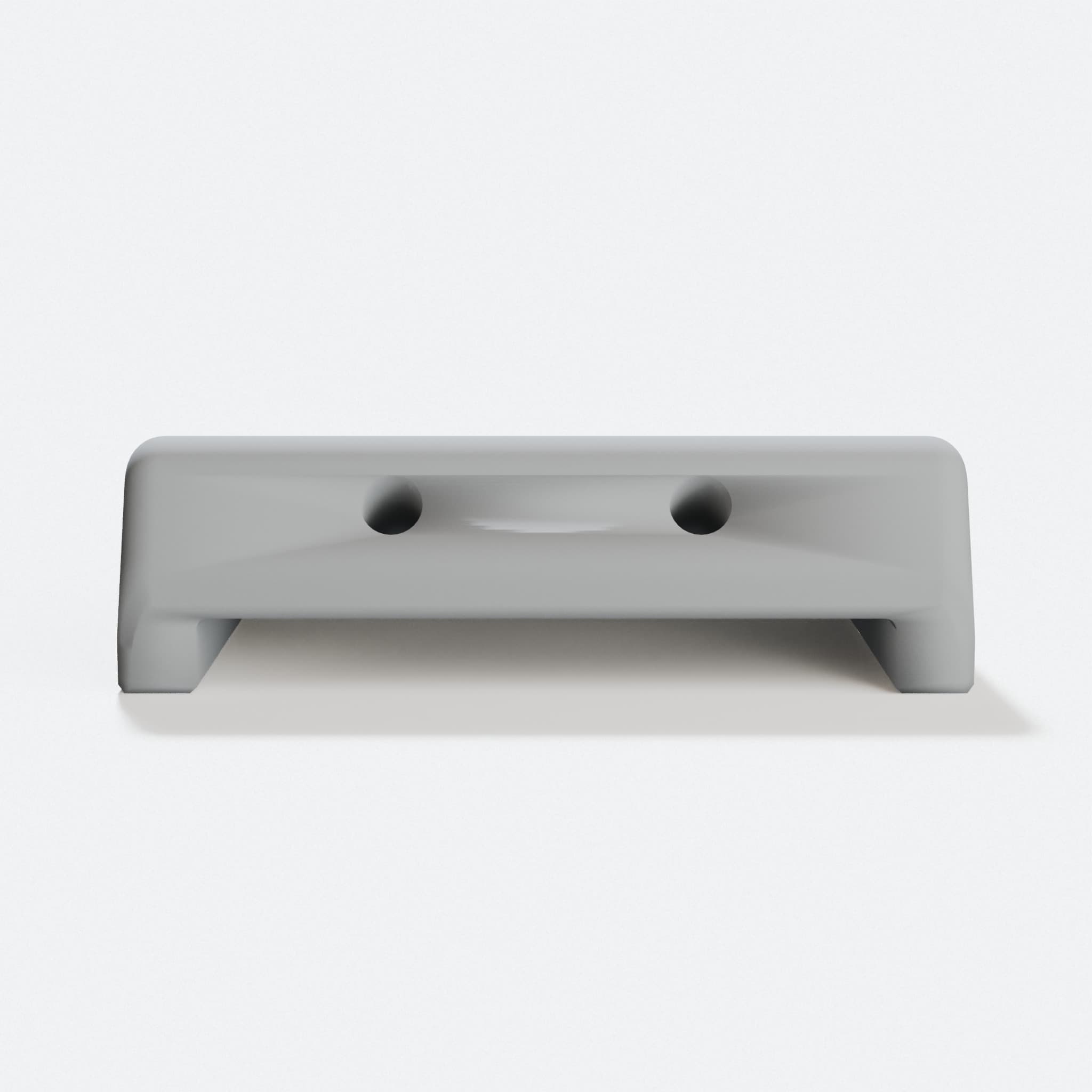

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Jig for drilling pocket holes in 2x4 wood
- Two sizes, 38mm and 89mm widths
- Set up for 8mm drill bits, 25 degree angle
- Saves you a hardwood pocket jig purchase
- A handy DIY tool for wood projects
Drill clean pocket holes in 2x4 wood. This jig has two widths, 38mm and 89mm, the standard sizes for 2x4 lumber. The bit hole is set for an 8mm drill bit, and the angle is 25 degrees, the right shape for a hidden pocket joint.
A handy DIY tool that saves the cost of a hardwood pocket jig.
Made in the USA.
9.7k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
