Pocket Hole Jig Customizable 3D Printed Workshop Tool

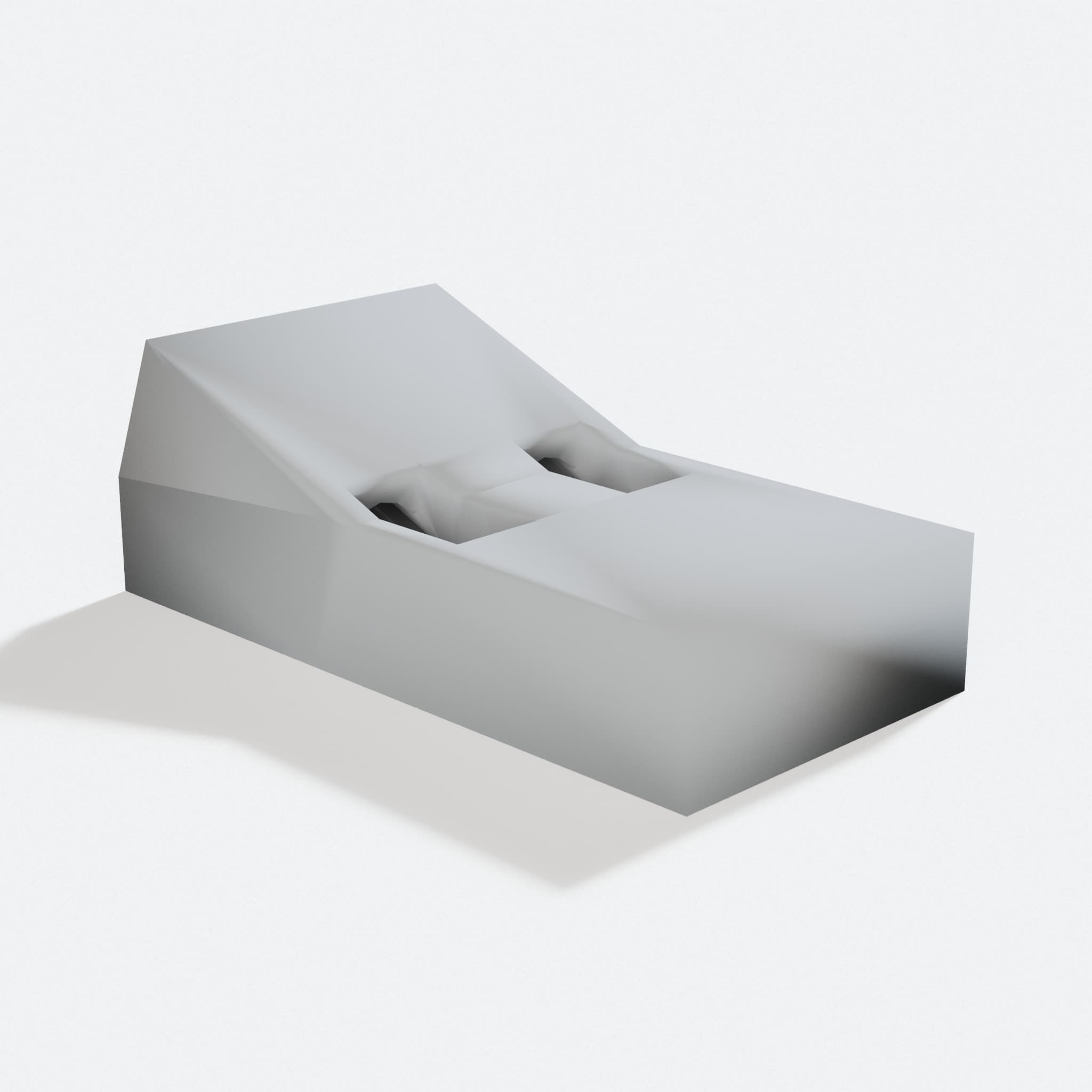

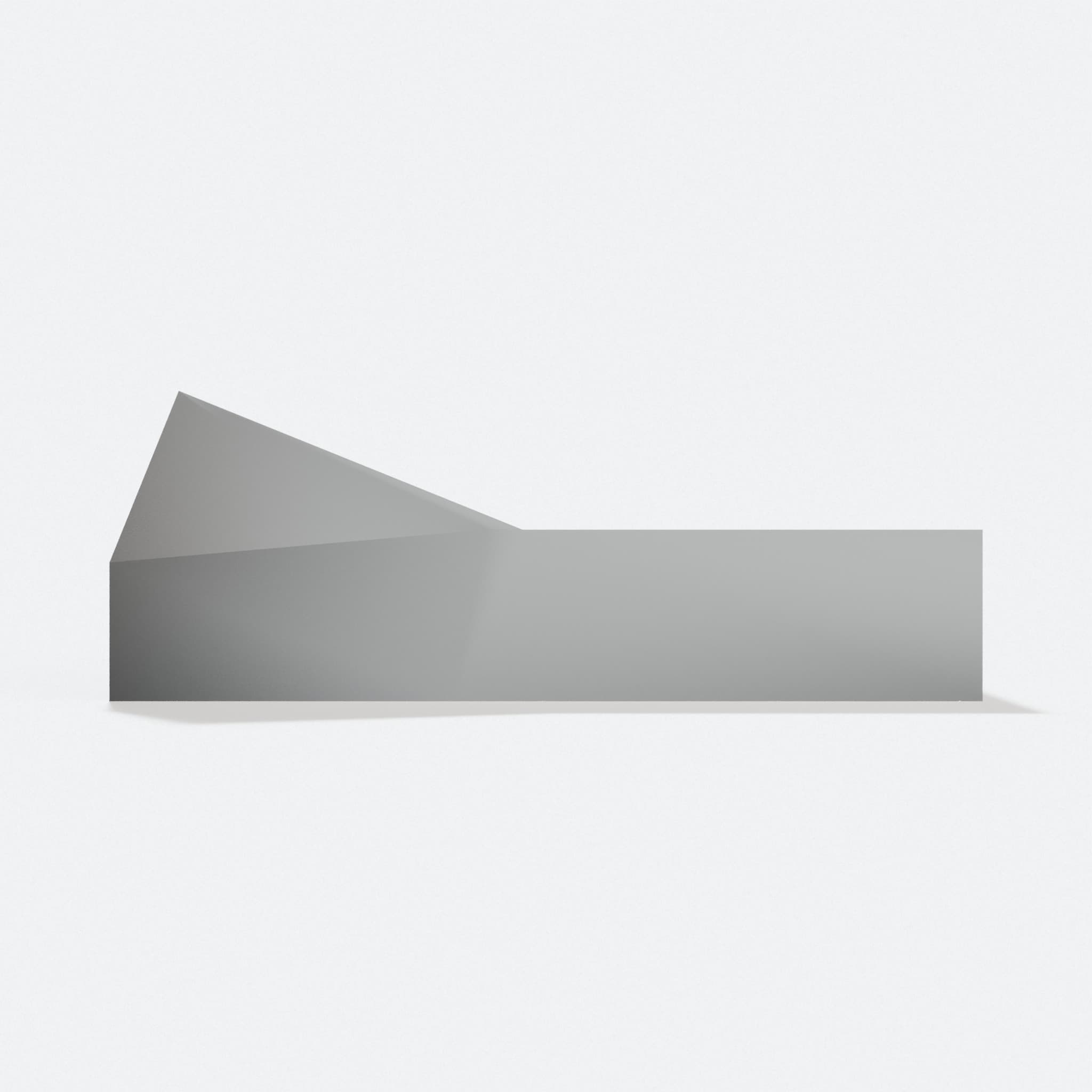

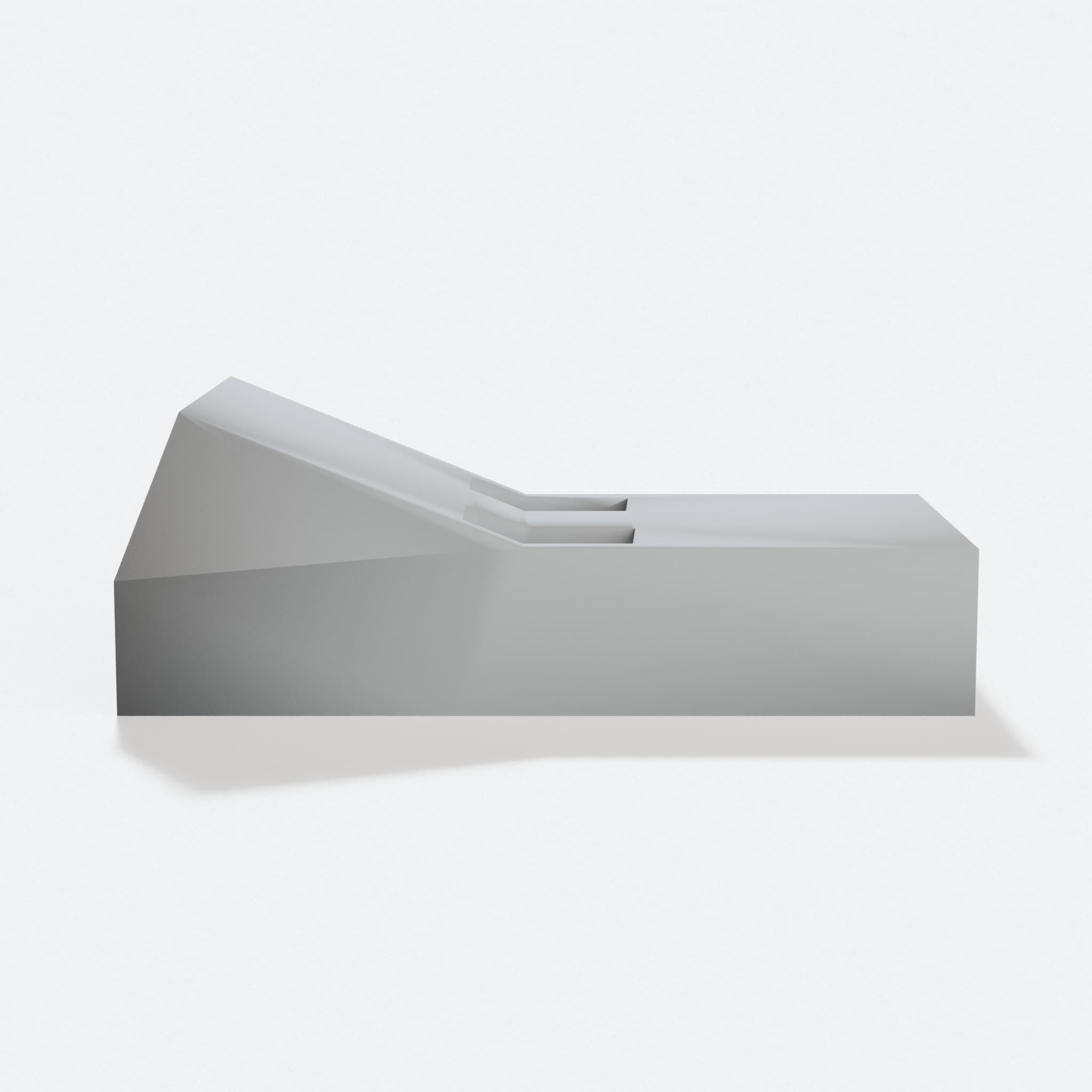

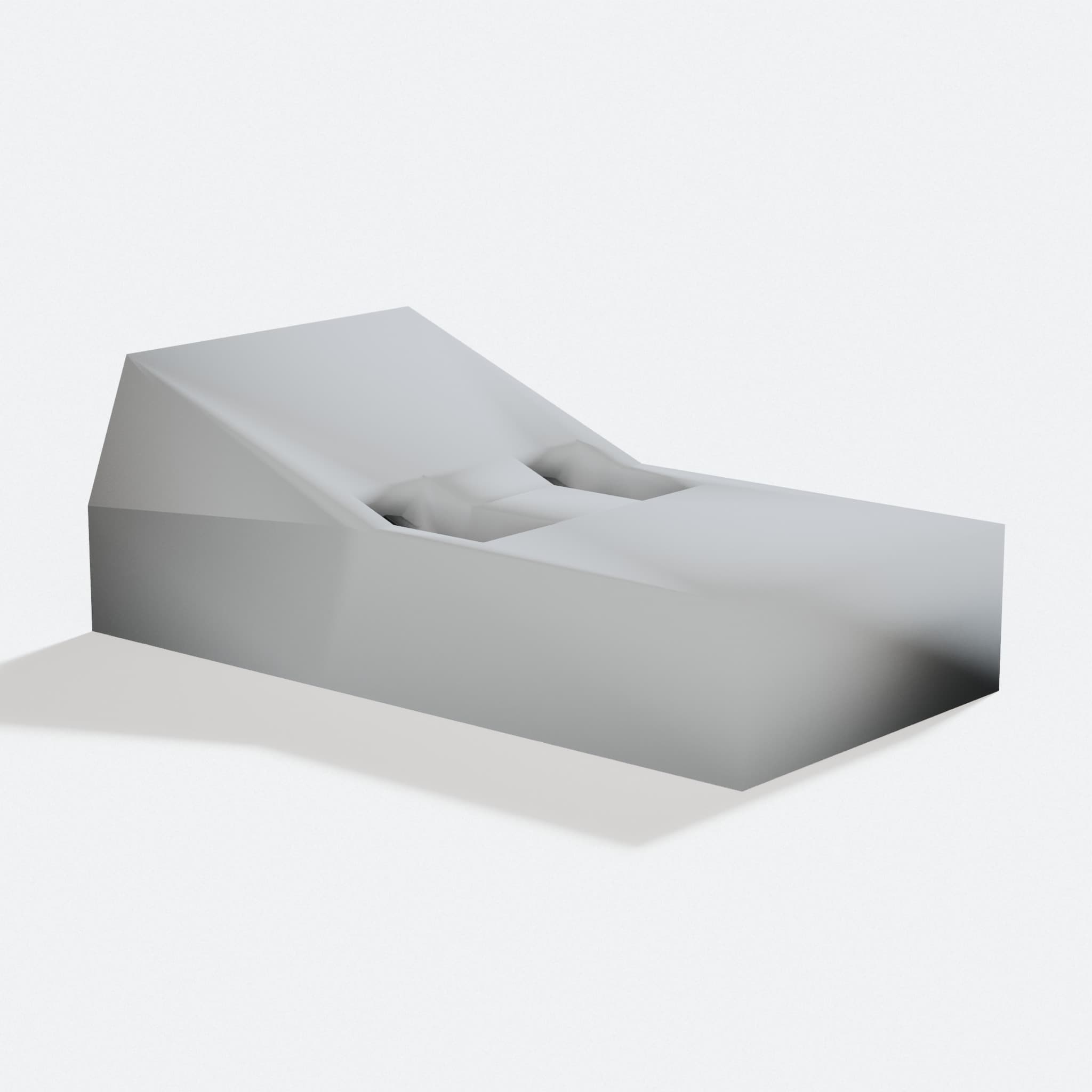

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Fully parameterized design lets you customize angles and spacing for your exact needs
- Open source OSHW tool guides drill bits for precise angled pocket holes in wood
- Durable 3D printed construction replaces metal jigs for small-shop woodworking
- Print-on-demand means fast turnaround without inventory delays
The Pocket Hole Jig Customizable is a fully parameterized, open source woodworking tool designed for makers and craftspeople. This 3D printed workshop tool guides your drill bit to create accurate angled pocket holes in wood, essential for seamless joinery and hidden fastening.
Unlike traditional metal jigs, this customizable design lets you adjust parameters to match your specific woodworking projects. The parametric approach means you get exactly the tool you need, tailored to your workshop setup and materials.
Perfect for hobbyists, small shops, and anyone building furniture or cabinetry. Print on demand and have your personalized jig ready to use in days.
15k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
More like this
Precision Measuring Tool Set - 3D Printed Workshop Tools
Design library
Resistor Lead Forming Tool, 3D Printed Workshop Helper
Design library
Center Finder Tool for Wood, Mark Perfect Midpoints Every Time
Design library
Hot Glue Gun Stand for Small Glue Guns, Compatible with Prusa
Design library
Drilling Jig with Integrated Dust Collector
Design library
Support for Dremel 4000, 3D Printed Workshop Tool
Design library
Cross Tweezer for Soldering, Normal Spring Tension
Design library
Bit Organizer for Dremel Rotary Tool Bits and Discs
Design library
Who made this design
Designed by Spoonless. We did not draw it.
Shared under Creative Commons, credit and share alike. See the original design
