Parametric Hose Connector Generator | 3D Printed Workshop Tool

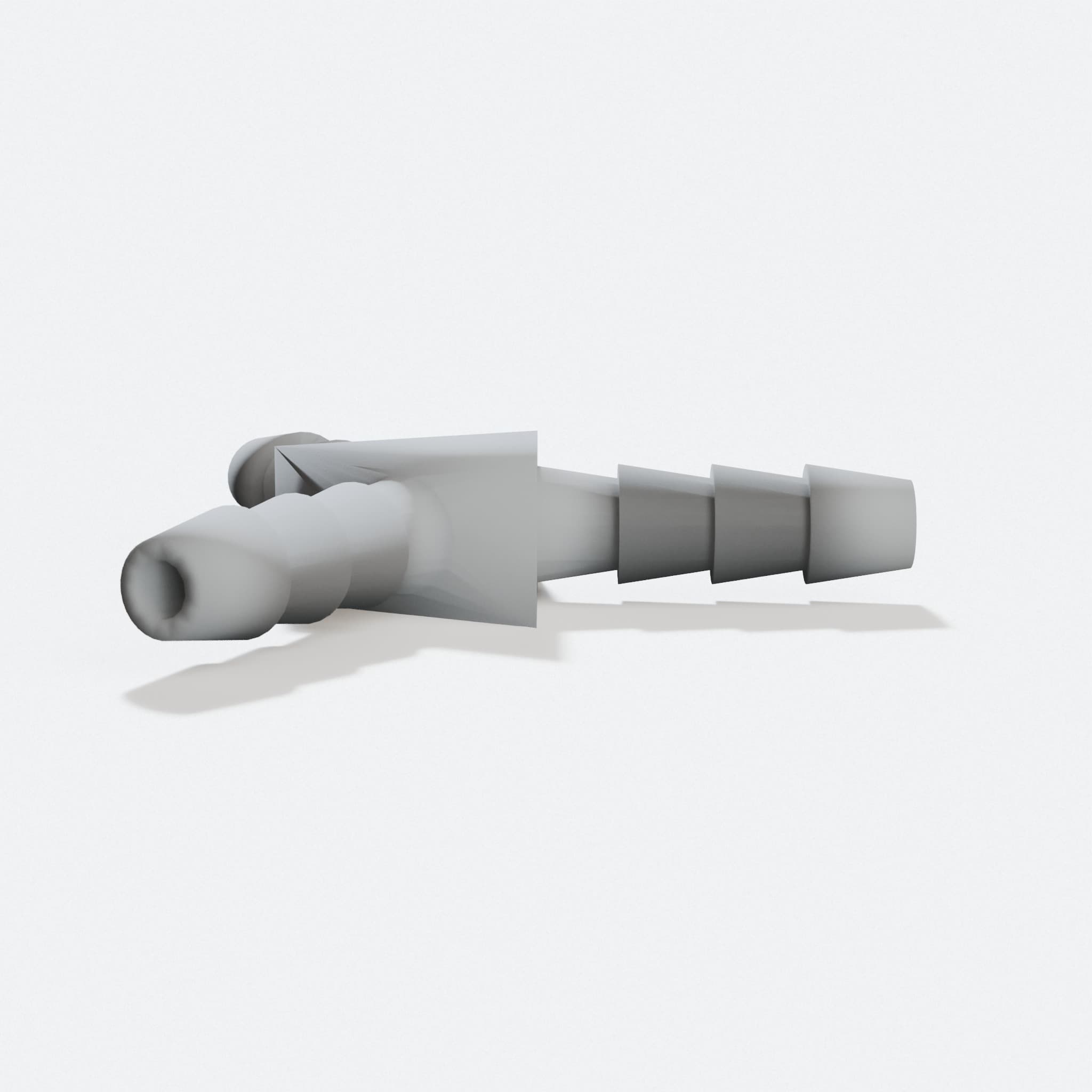

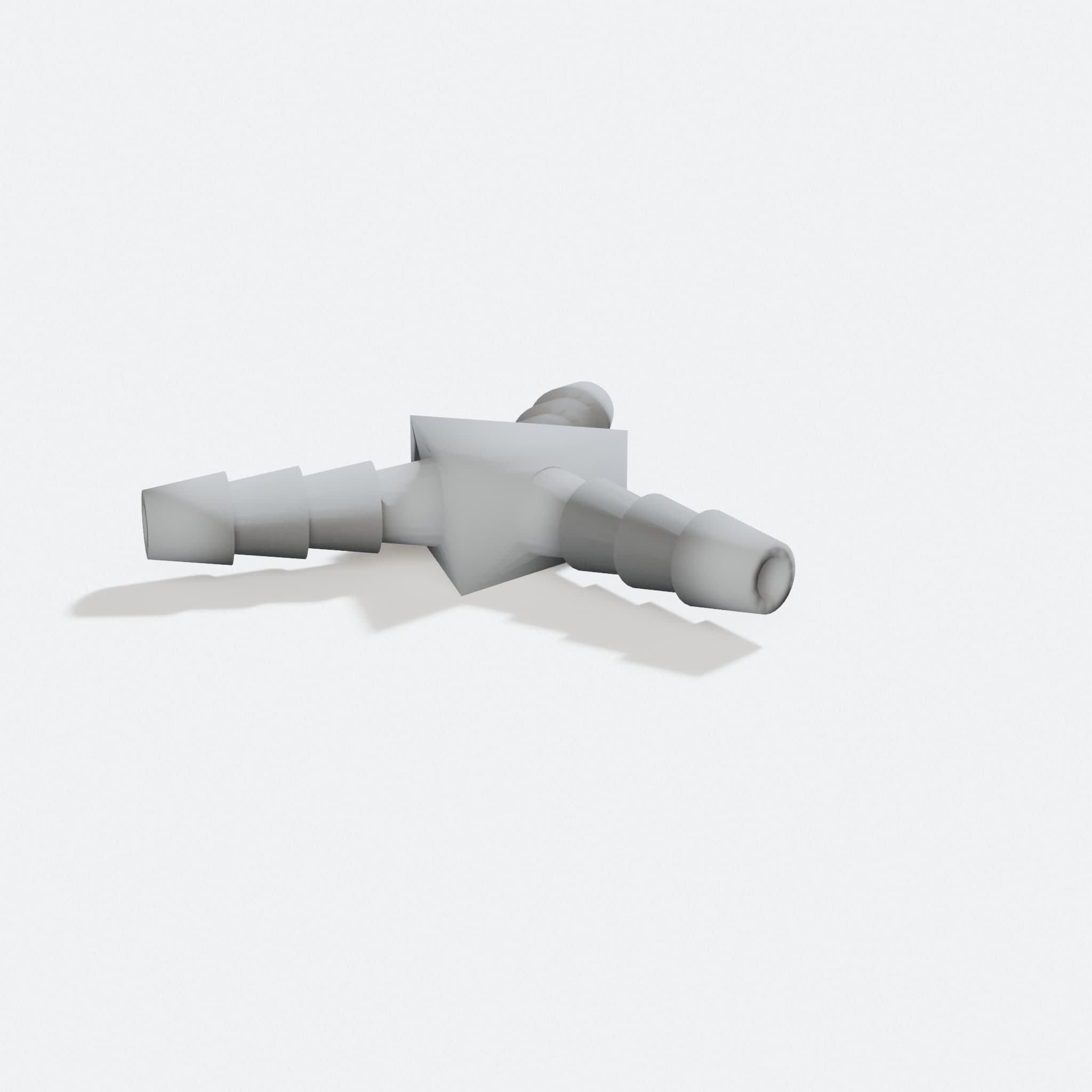

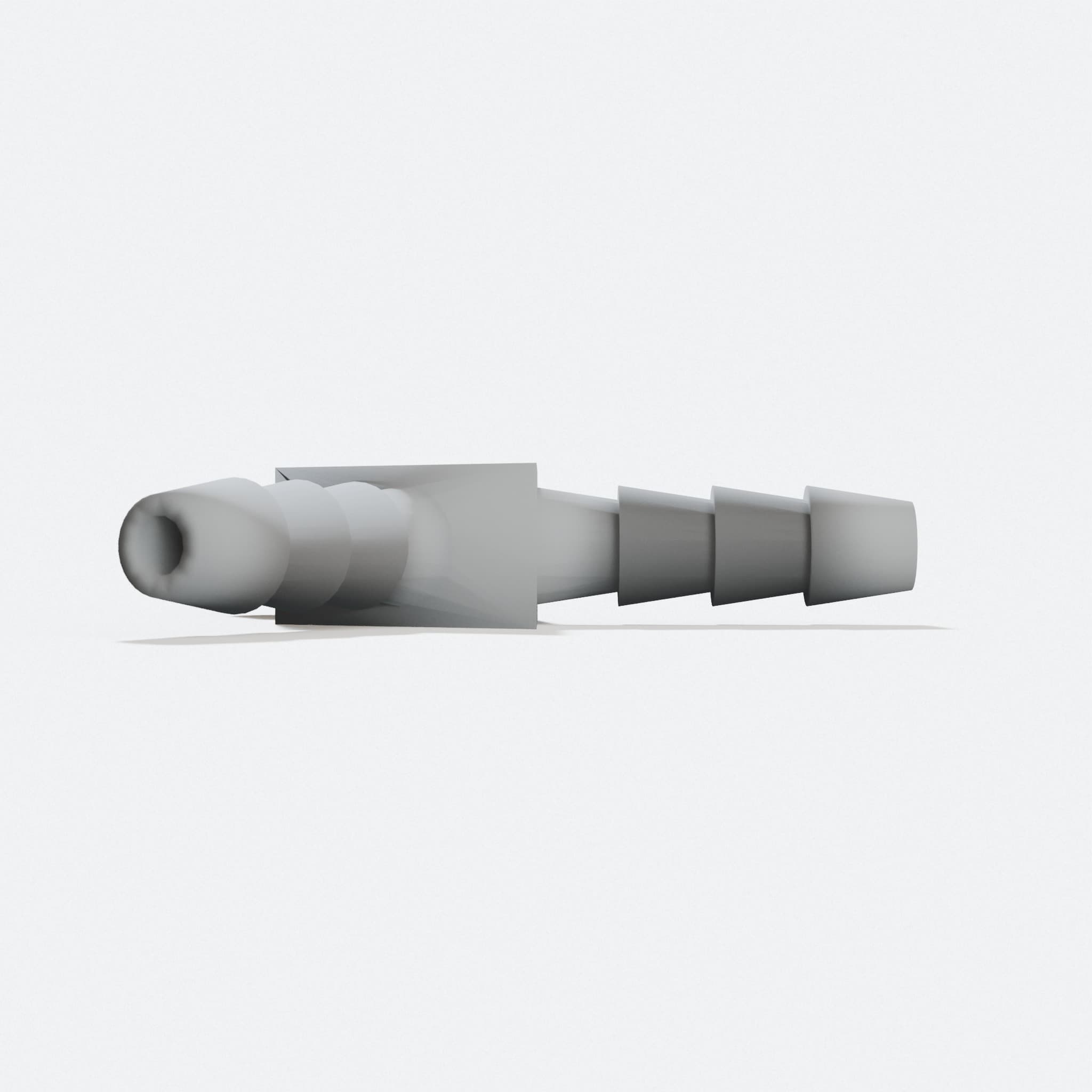

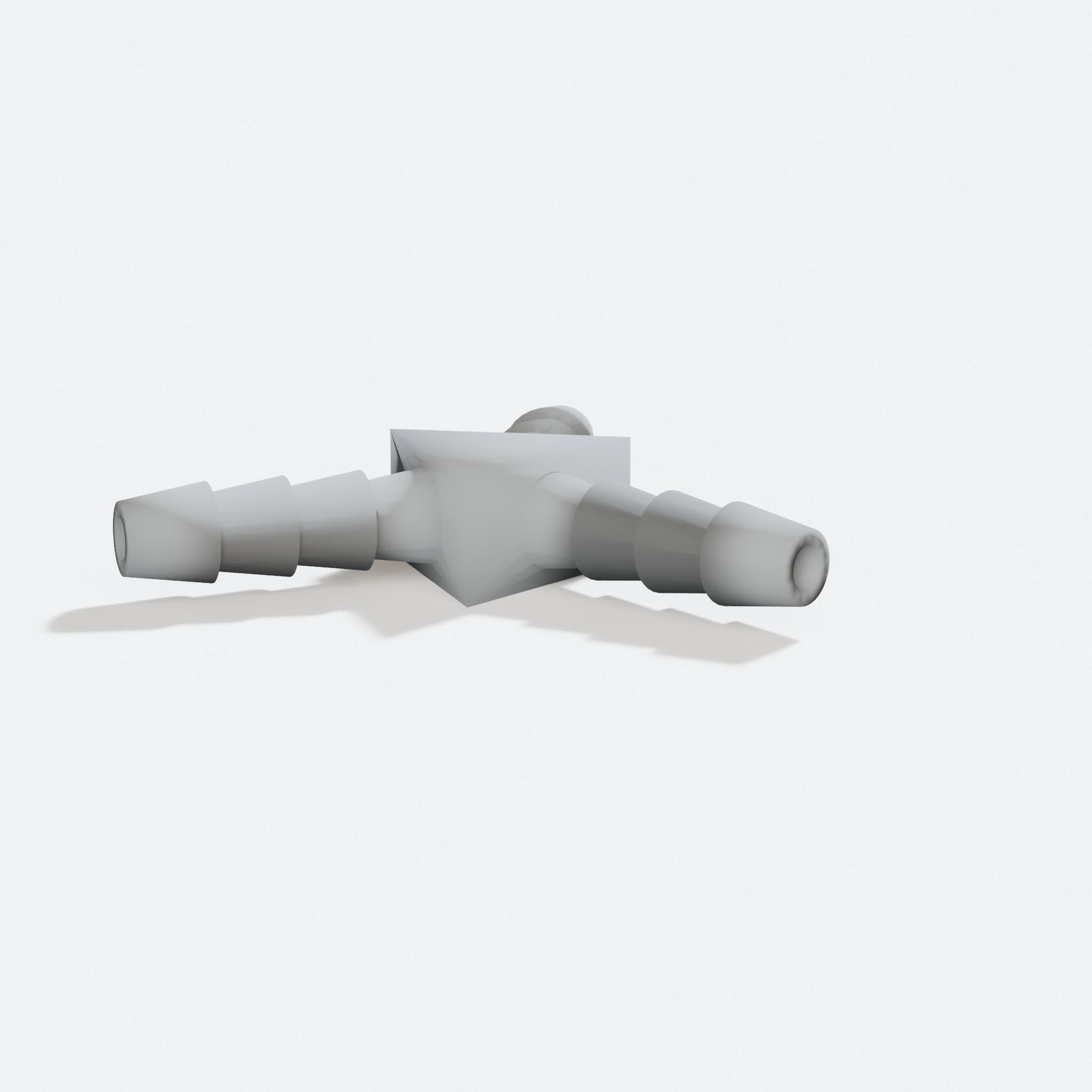

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Fully customizable connector design with polygon or round manifold options
- Create inline, L-shaped, or multi-port configurations for your tubing setup
- Supports mixed tube sizes with ports referenced to inside diameter
- Hexagonal collar option for spanner wrench grip on connectors
- On-demand 3D printing, design once, print exactly what you need
The Parametric Hose Connector Generator is a customizable 3D printed workshop tool that lets you create bespoke hose connectors tailored to your exact plumbing, pneumatic, or fluid transfer needs. Whether you need inline connectors, right-angled L-shaped fittings, or multi-port manifolds, this parametric design adapts to your specifications.
Choose between polygon and round manifold styles, mix different tube sizes in a single connector, and add a hexagonal collar for easy grip with a spanner. All ports are referenced to your tubing's inside diameter for precise, leak-resistant fits.
This design has been refined through community feedback and includes fixes for optimal 3D printing results. Perfect for custom workshop setups, prototype testing, or one-off projects where standard connectors don't fit your layout.
24k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PETG. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
More like this
Precision Measuring Tool Set - 3D Printed Workshop Tools
Design library
Resistor Lead Forming Tool, 3D Printed Workshop Helper
Design library
Center Finder Tool for Wood, Mark Perfect Midpoints Every Time
Design library
Hot Glue Gun Stand for Small Glue Guns, Compatible with Prusa
Design library
Drilling Jig with Integrated Dust Collector
Design library
Support for Dremel 4000, 3D Printed Workshop Tool
Design library
Cross Tweezer for Soldering, Normal Spring Tension
Design library
Bit Organizer for Dremel Rotary Tool Bits and Discs
Design library
Who made this design
Designed by WDWHITE. We did not draw it.
Shared under Creative Commons, credit required. See the original design
