Parametric Drill Bit Stand for Workshop Organizing

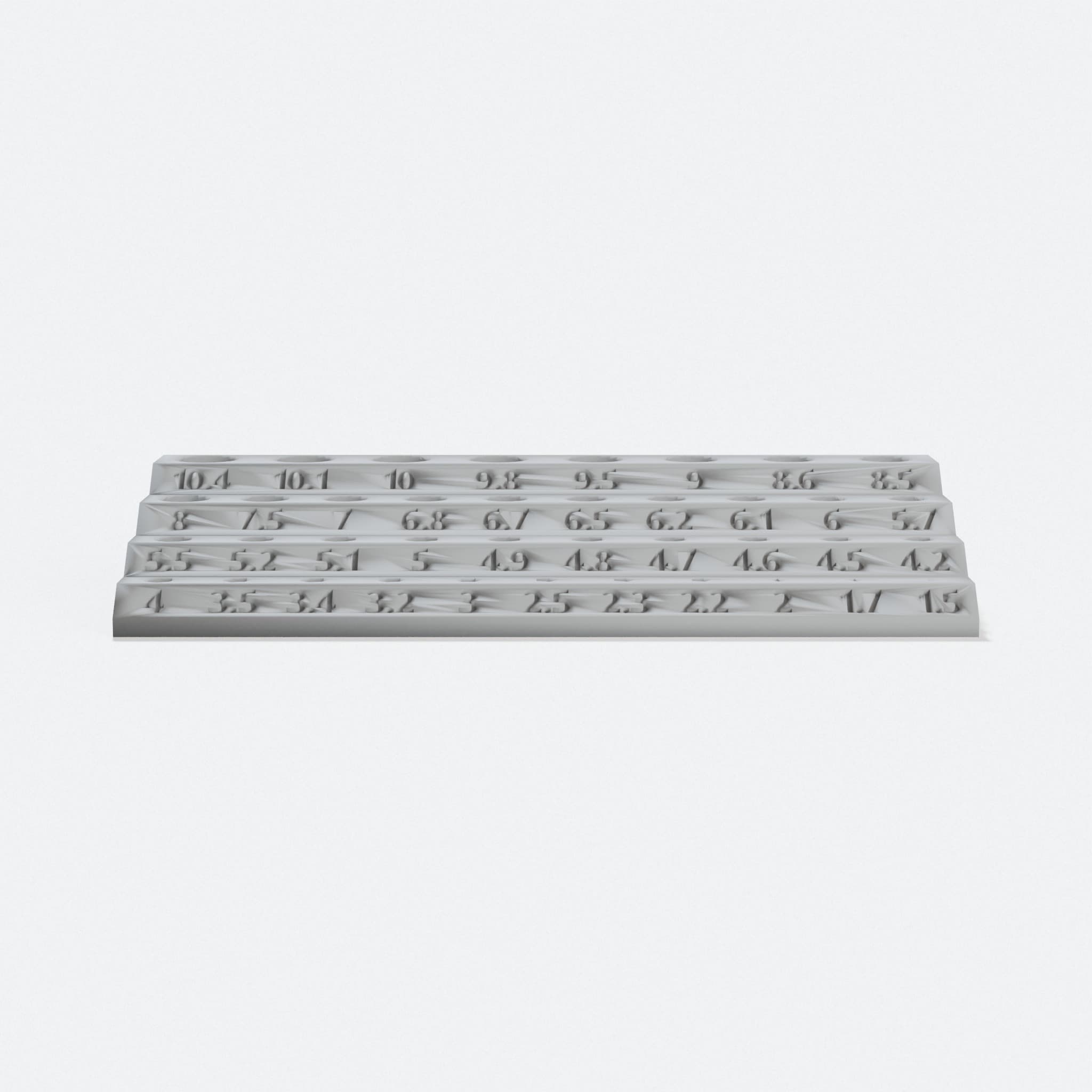

Parametric Drill Bit Stand for Workshop Organizing, design preview, hero tilt

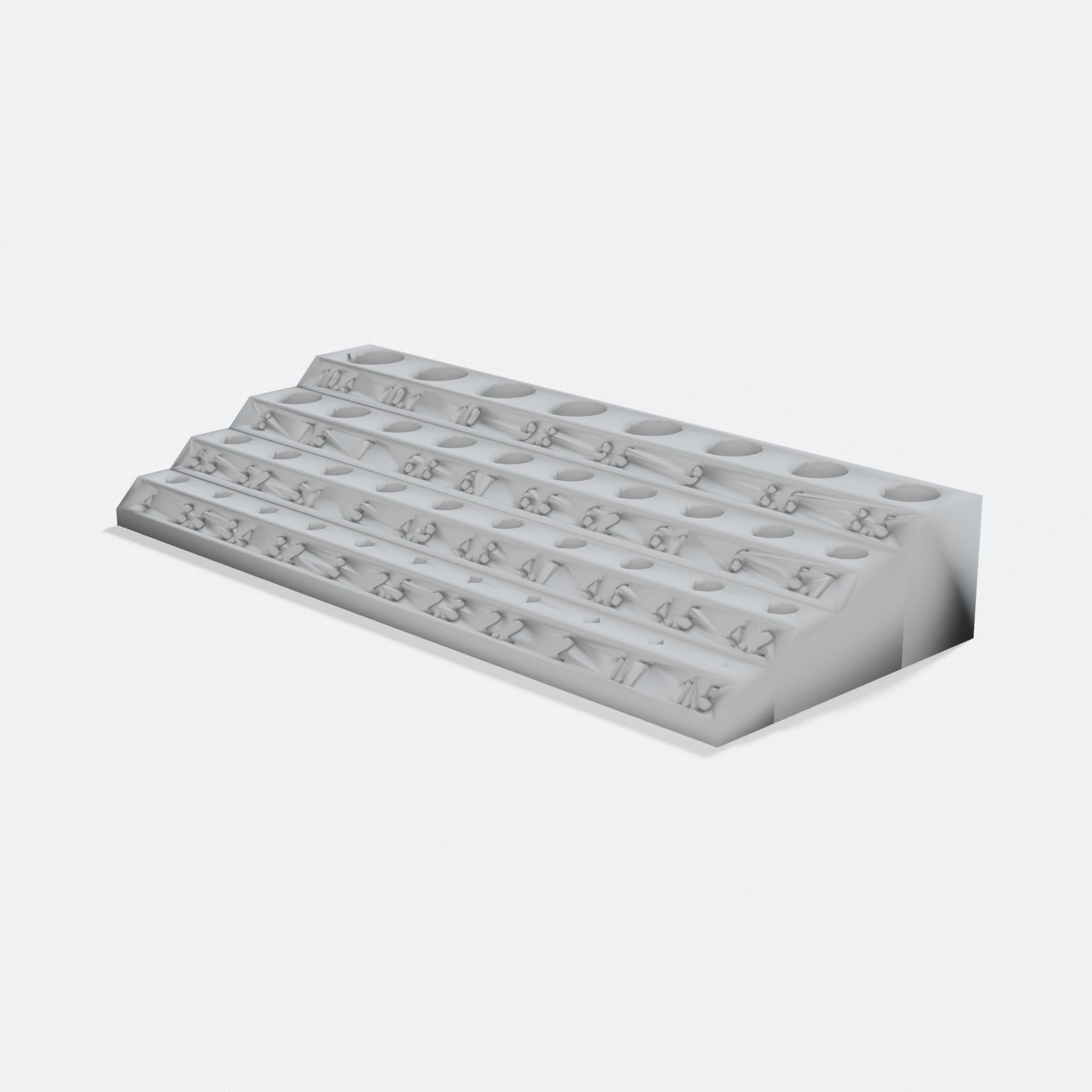

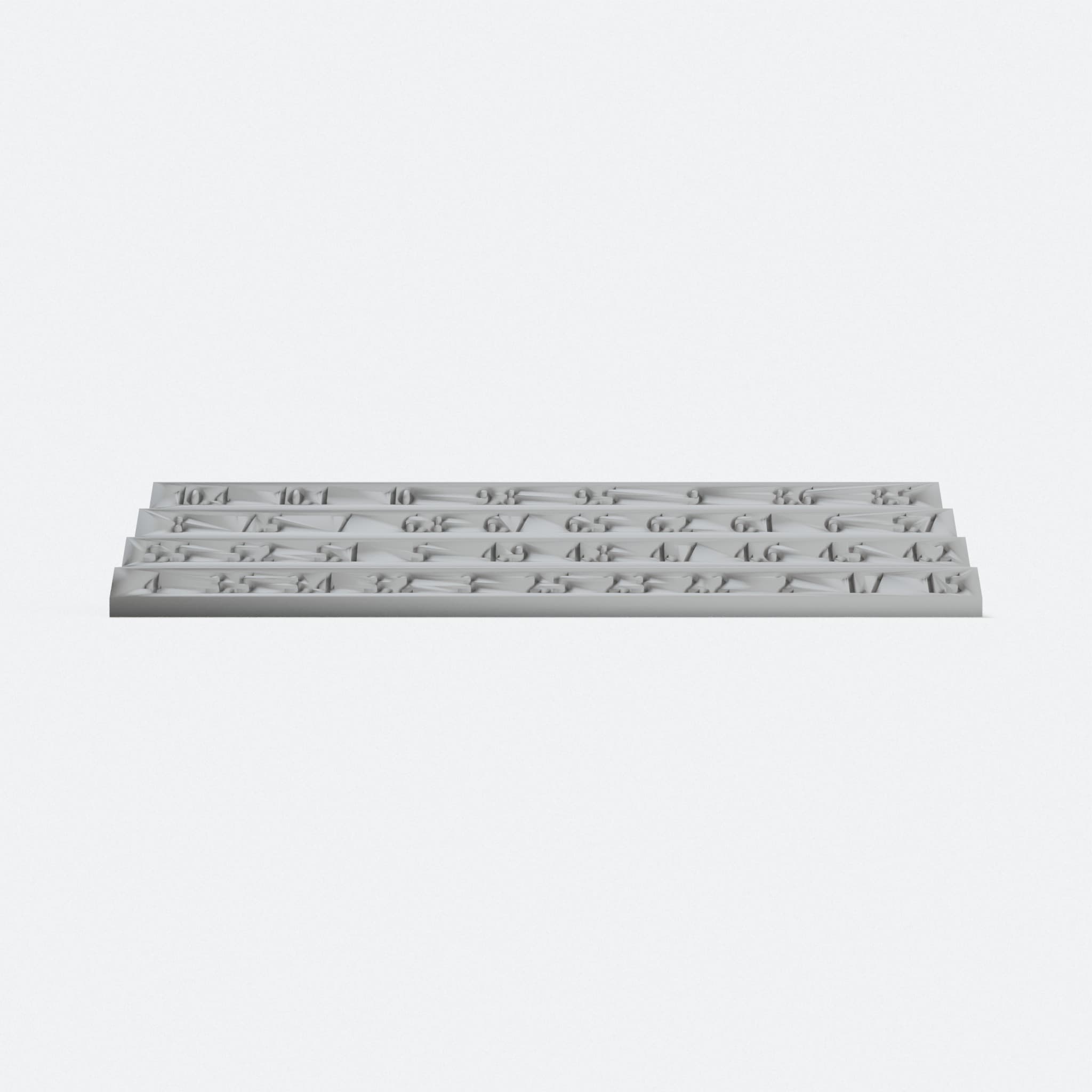

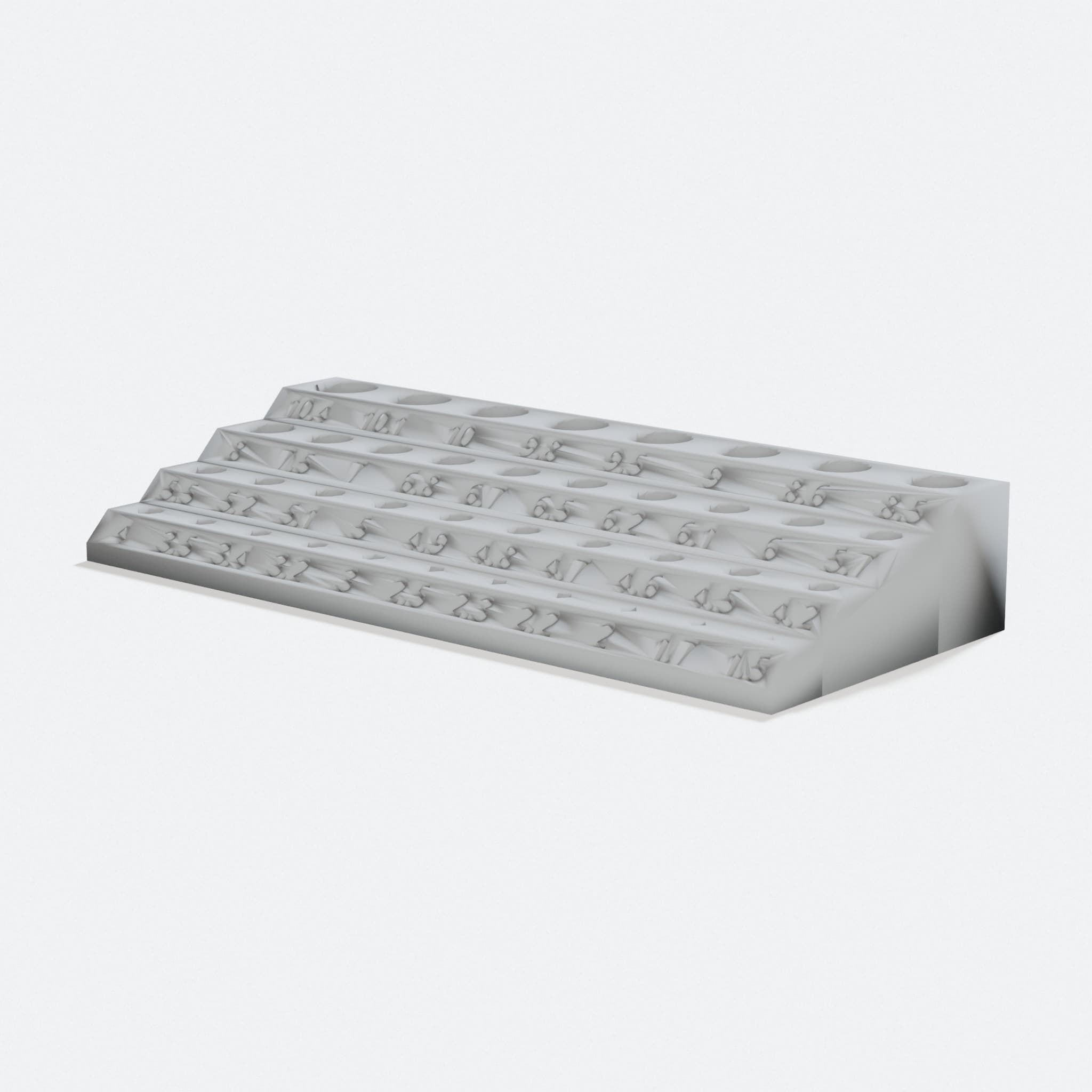

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Rows of shaped holes sized by diameter so you can spot the bit you need
  • Each hole matches a specific drill size so you can skip the measuring tape
  • Open display style shows every bit at once so you can scan your set fast
  • Compact stand shape fits on a bench or shelf near your other tools
  • Made as a parametric design with a clean, uniform look across every row

Workshop stands come in many shapes. This one lines up rows of shaped holes so each drill bit sits by its own diameter. Instead of digging through a toolbox or reaching for a caliper, you glance at the stand and see which bit is which.

The design comes from a coded, parametric layout, so the holes are shaped to match real drill bit sizes. Each row holds bits of a matching diameter, making it easy to build a visual reference for your collection. The open stand shape puts every bit in view at once.

This piece works well near your workbench, in a garage, or on a shelf in a shop space. It gives your loose drill bits a home and a clear layout, so your tool drawer stays a little less chaotic.

17k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by Yenya. We did not draw it.

Shared under GNU GPL. See the original design
