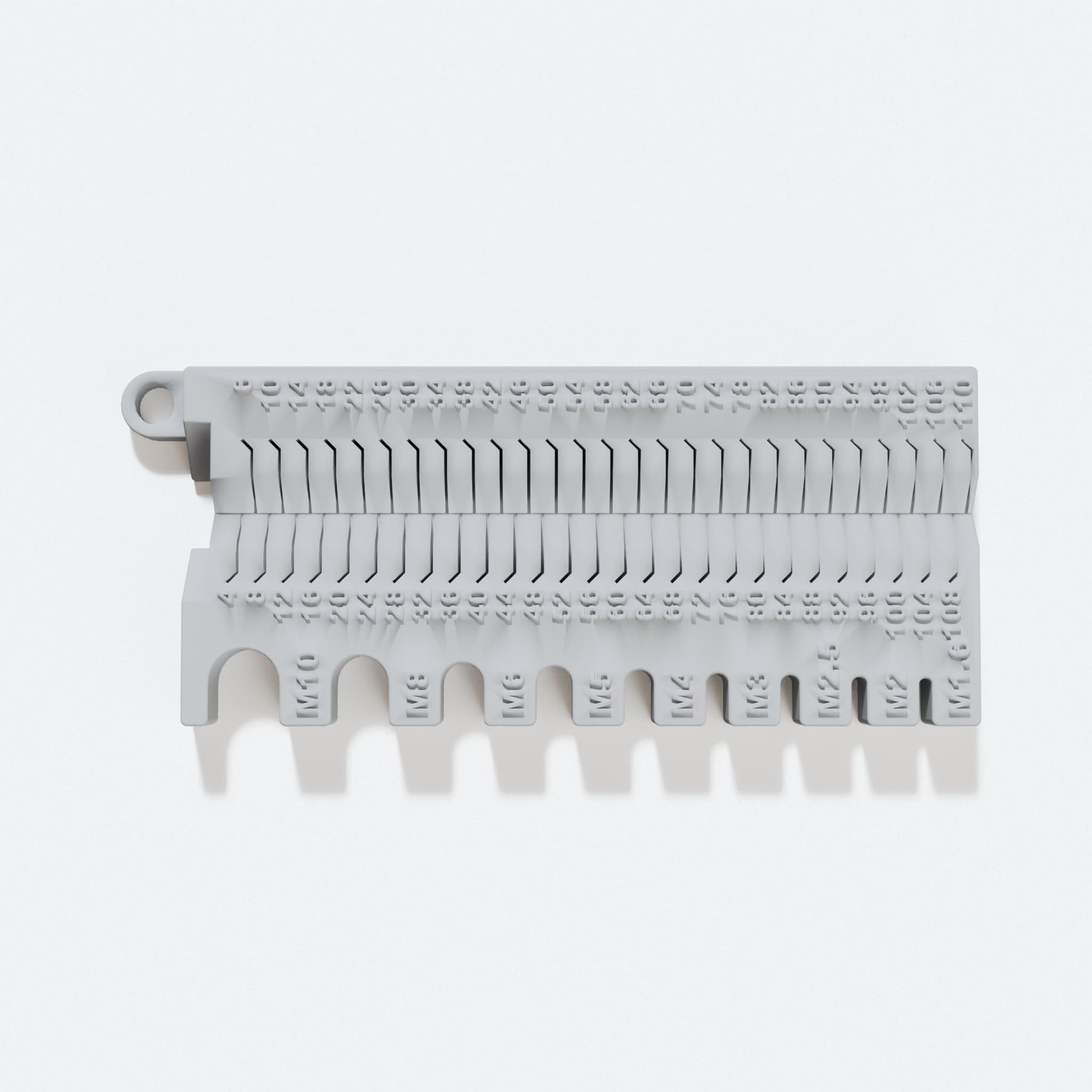

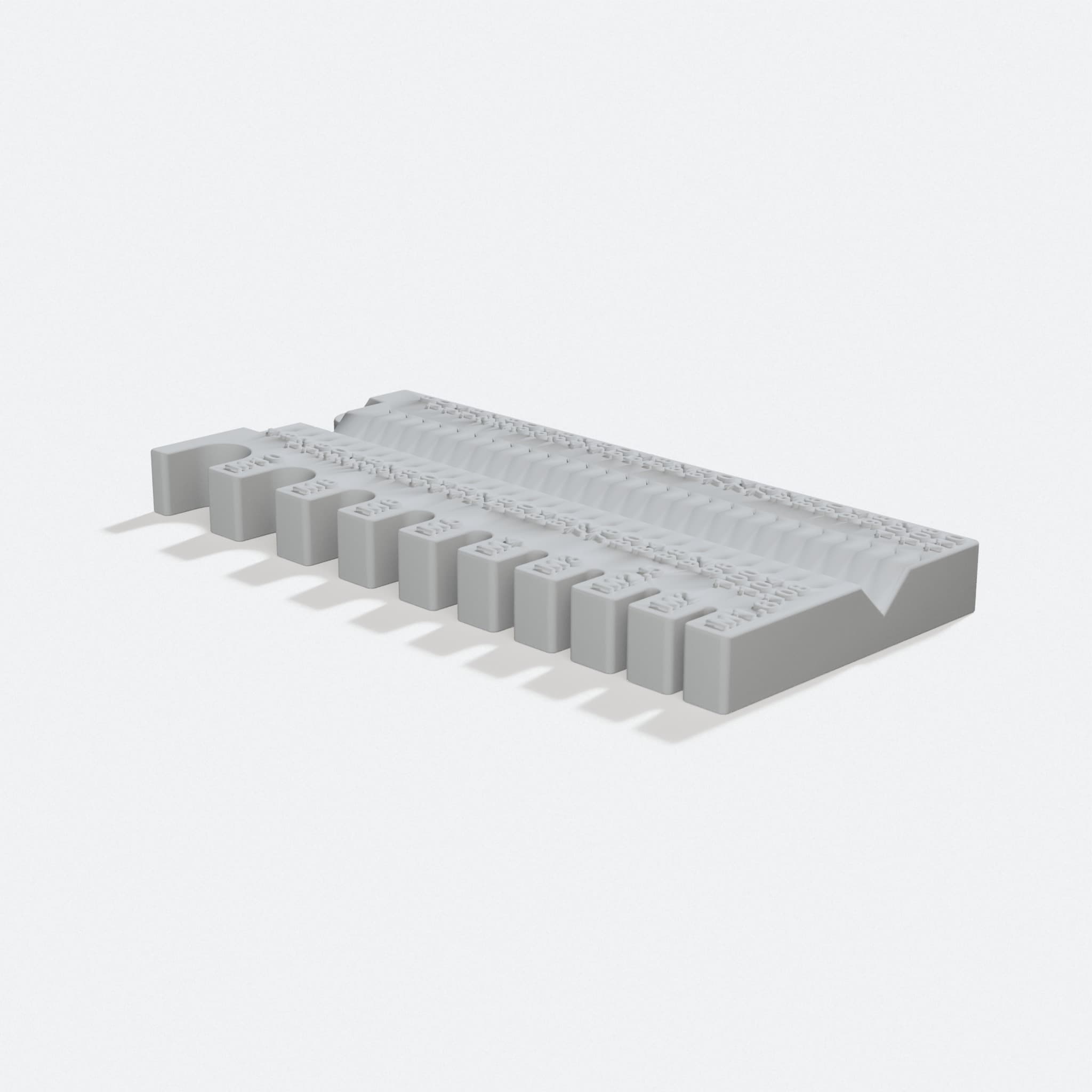

Metric Screw Measuring Gauge M1.6 to M10, design preview, turn three quarter

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Sizes screws from M1.6 up to M10 in one tool
  • Measures length from 4mm to 100mm
  • Frees you from guessing the right screw on the bench
  • Saves time hunting through bin after bin

Stop guessing the metric screw size. This measuring gauge sorts M1.6, M2, M2.5, M3, M4, M5, M6, M8, and M10 metric screws by diameter, with a length scale that runs from 4mm up to 100mm. Drop the screw into the matching slot, read the length off the scale.

The shape stays simple, so the gauge sits on a bench or hangs on a wall. The metric ruler runs along one edge for quick length checks, and the diameter slots line up for fast diameter reads. Less time hunting, more time building.

Built for makers, electronics workers, and anyone whose desk drawer hides a thousand loose screws. The kind of small tool that pays for itself by Tuesday.

5.6k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
