Filament Welding Jig, Print-in-Place Splicing Fixture

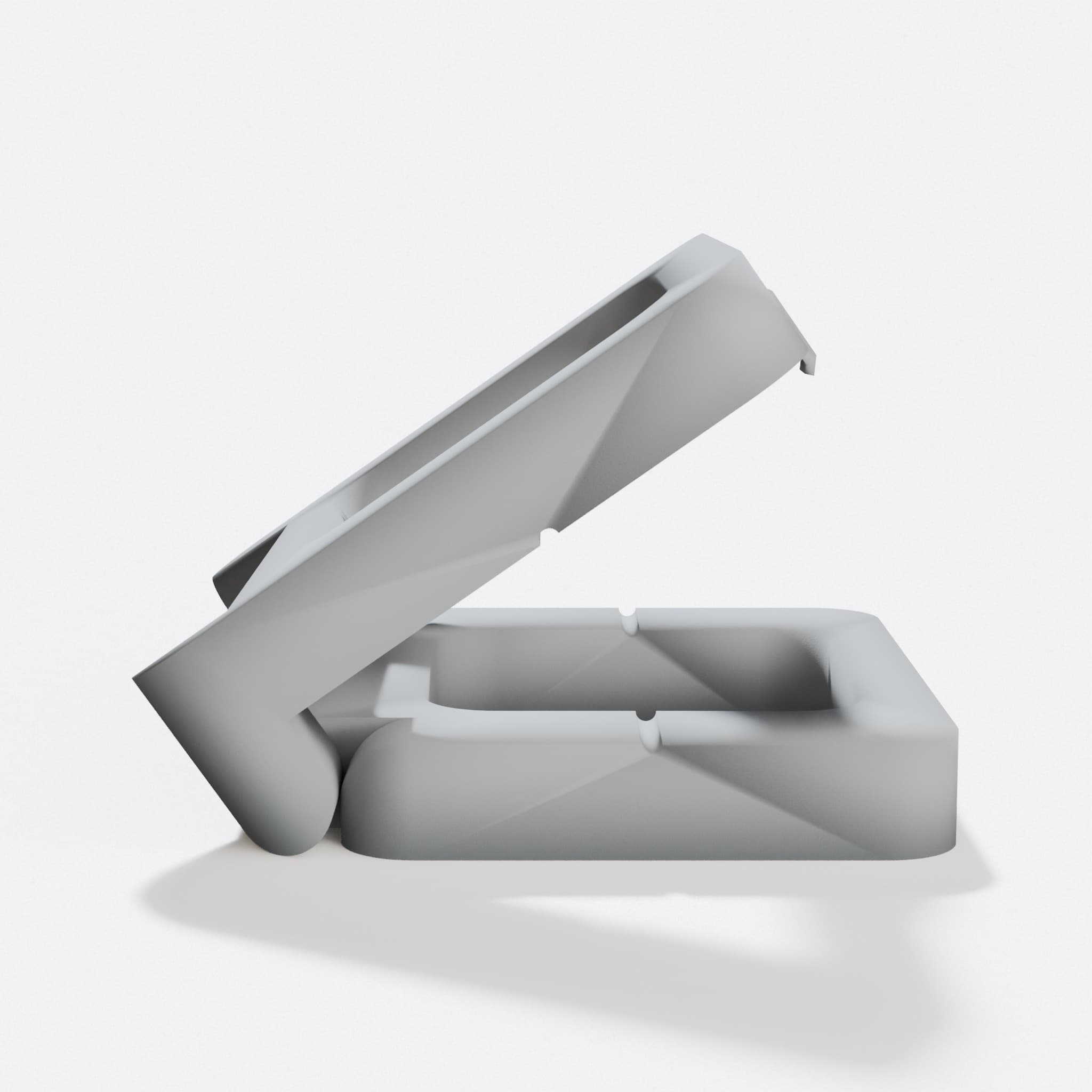

Filament Welding Jig, Print-in-Place Splicing Fixture, design preview, hero tilt

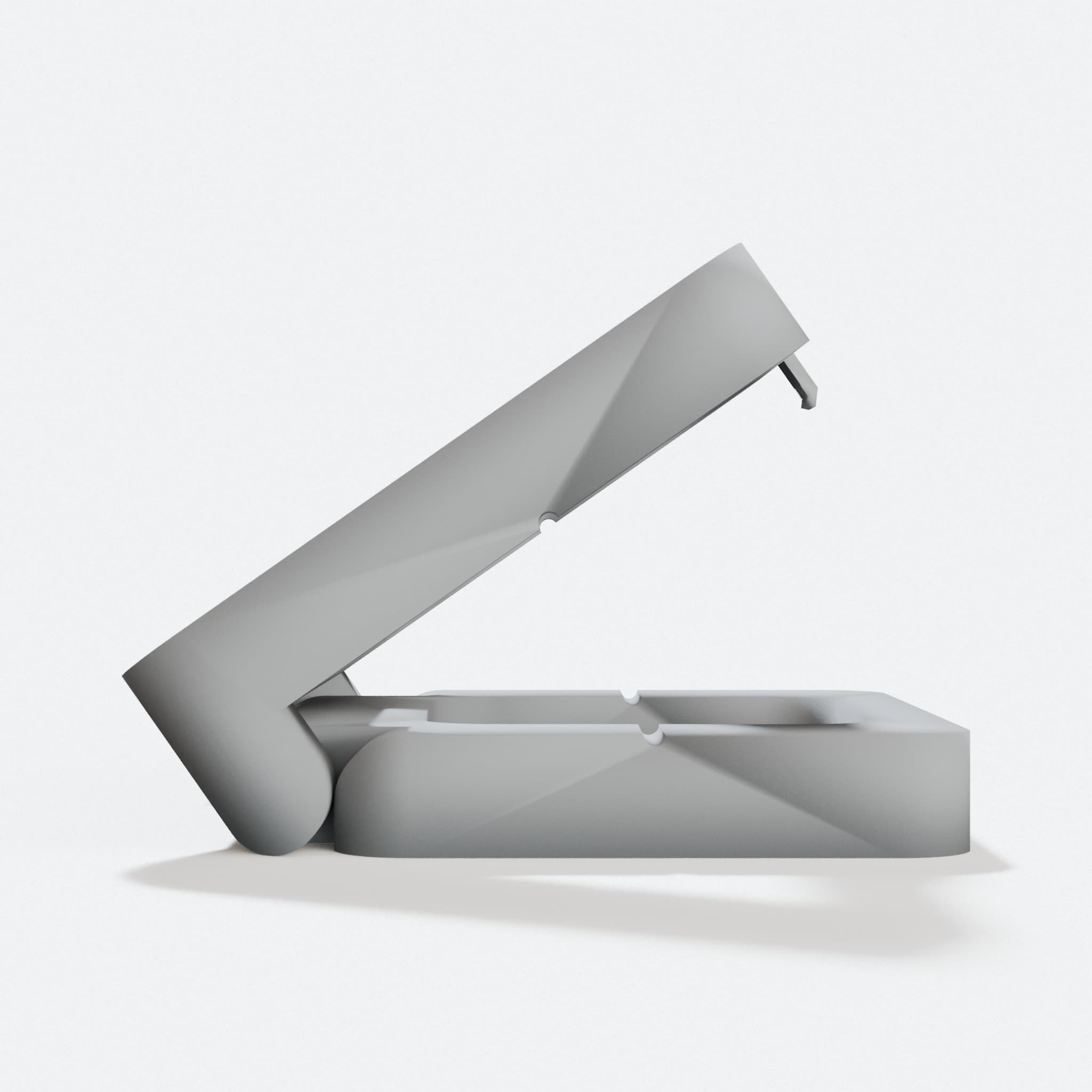

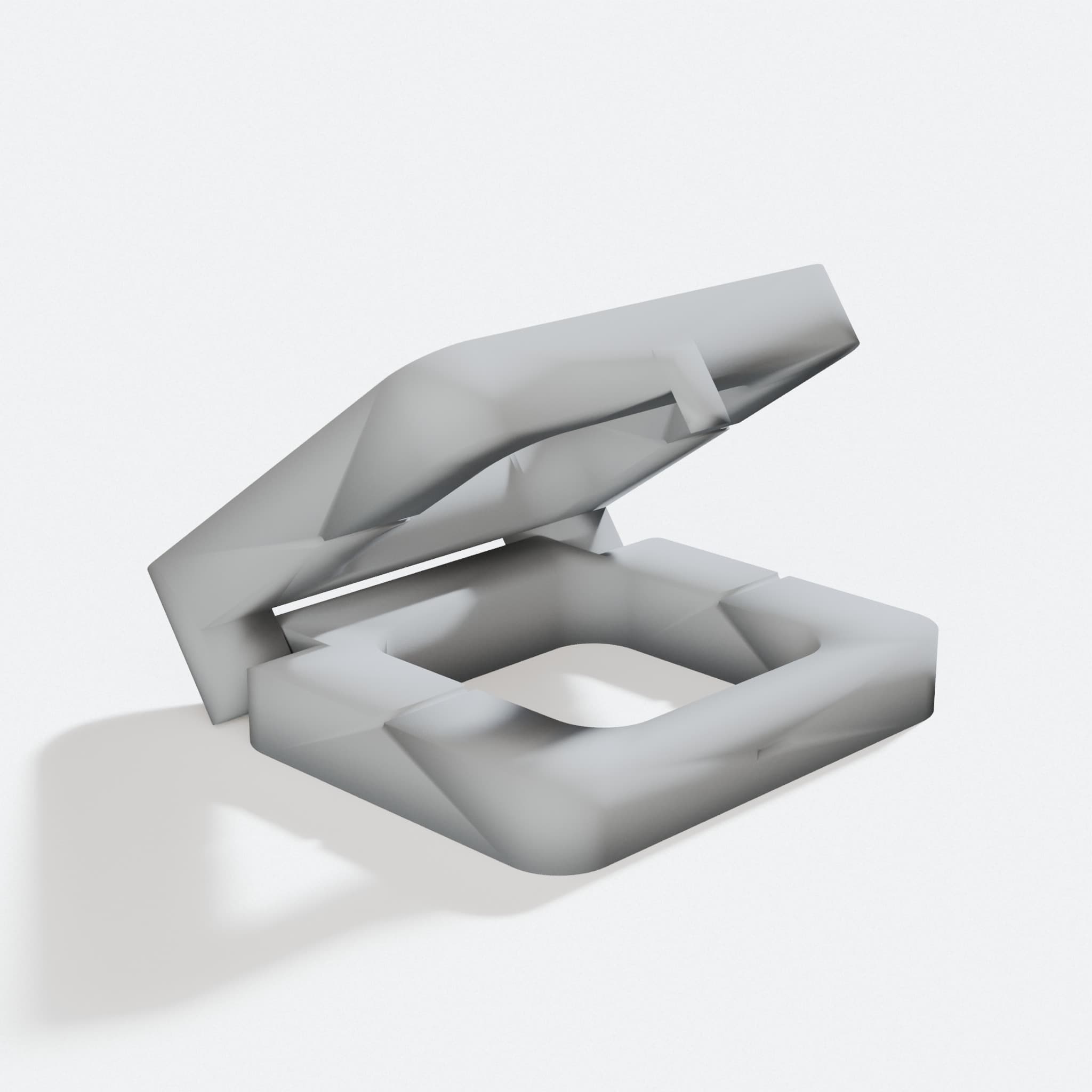

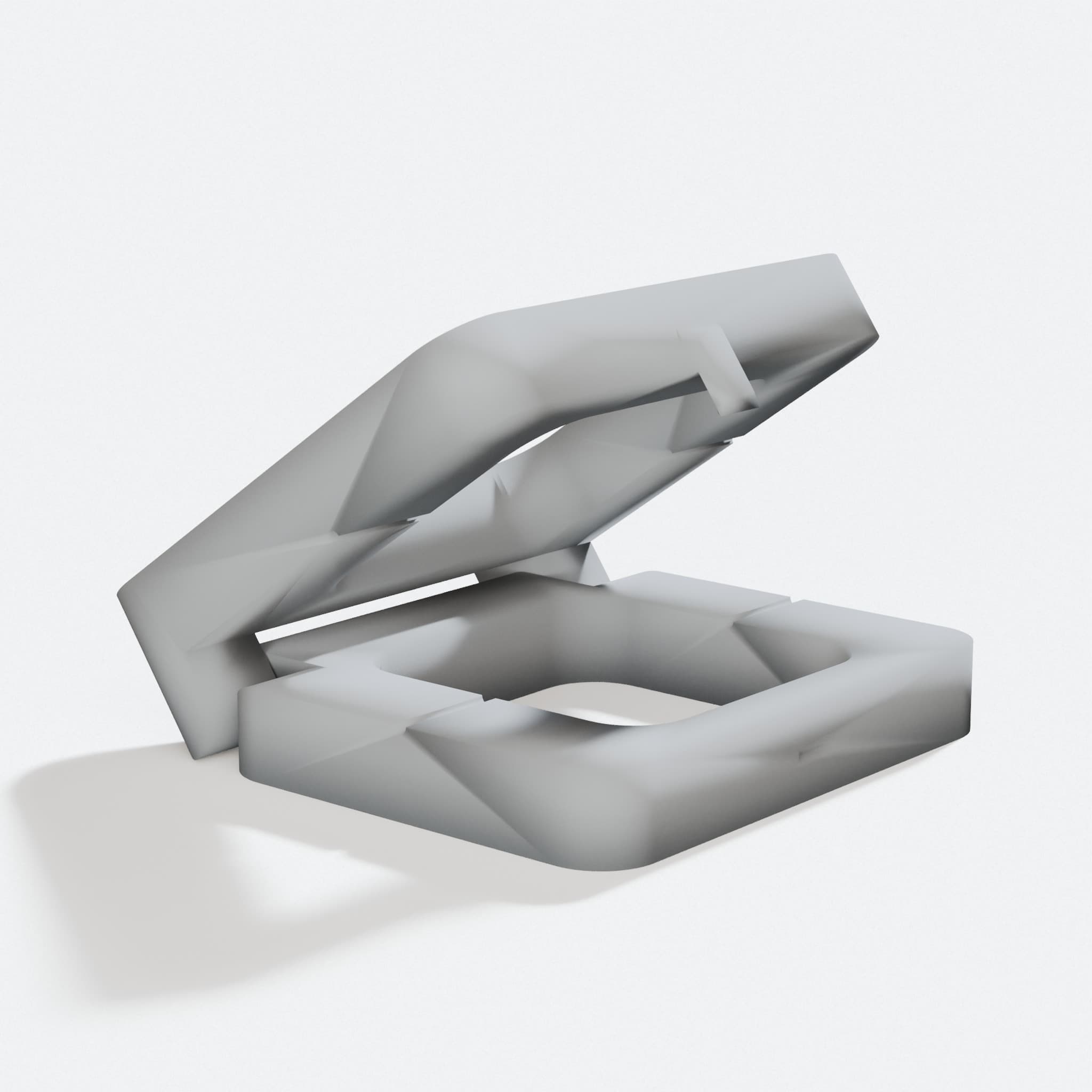

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Holds two filament ends steady so you can splice them
  • Print-in-place design works fresh off the bed
  • No screws to strip out over time
  • Saves the tail end of every roll from the trash
  • Joins colors for fun multi-color prints

Stop tossing the last meter of every roll. This filament welding jig holds two filament ends in line so you can splice them with a soldering iron. Use it to save the tails of old rolls or to join two colors into one custom roll.

The fixture is print-in-place, so it comes off the bed ready to use. The clamp is built into the body, so there are no screws to strip out over time. Set the soldering iron to your normal print temperature, press the ends together, and you have a clean joint.

Made in the USA. A simple workshop tool that pays for itself.

1.9k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by alexlunamarie. We did not draw it.

Shared under Creative Commons, credit and share alike. See the original design
