Dual Relay Board Bumper for CNC Spindle Control Boards

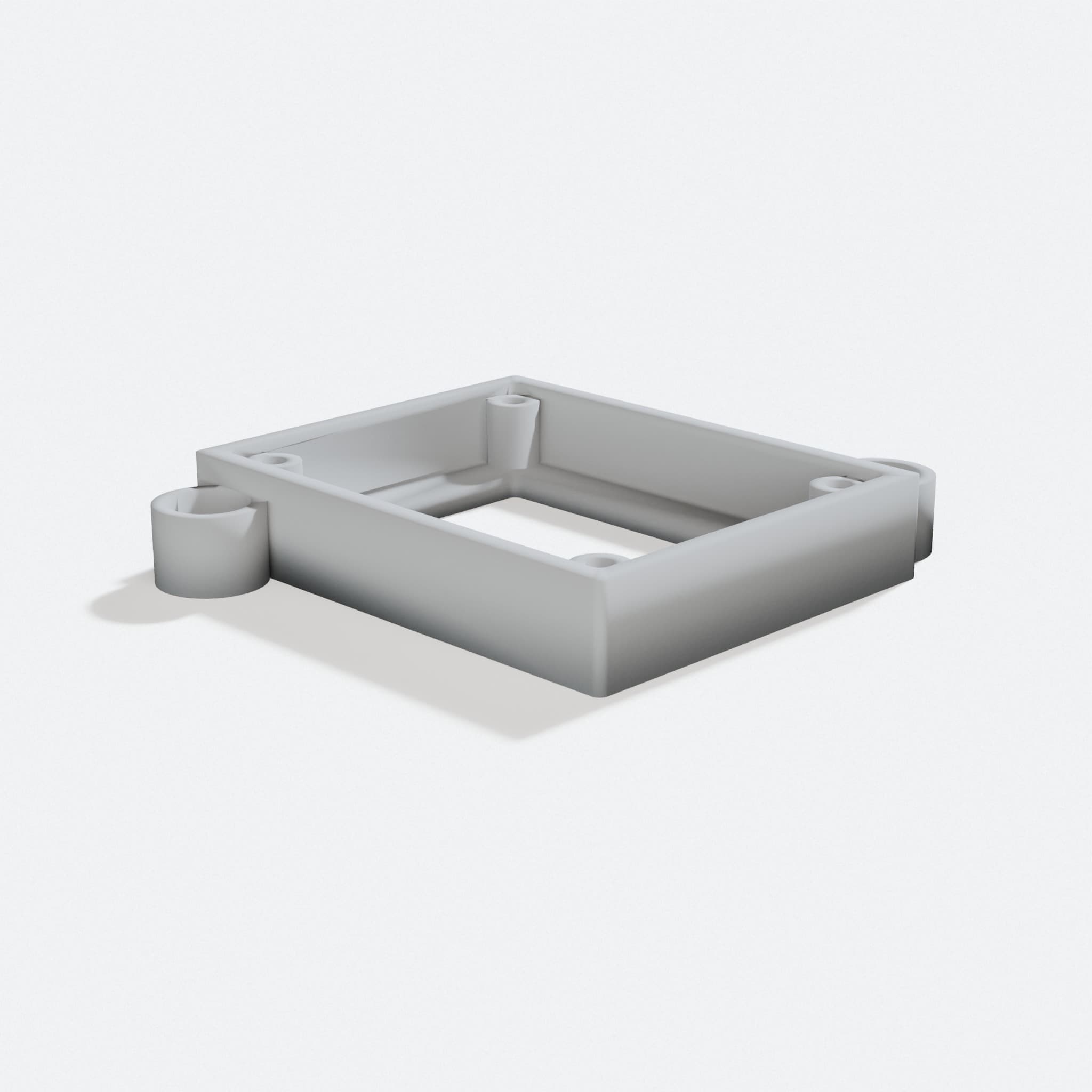

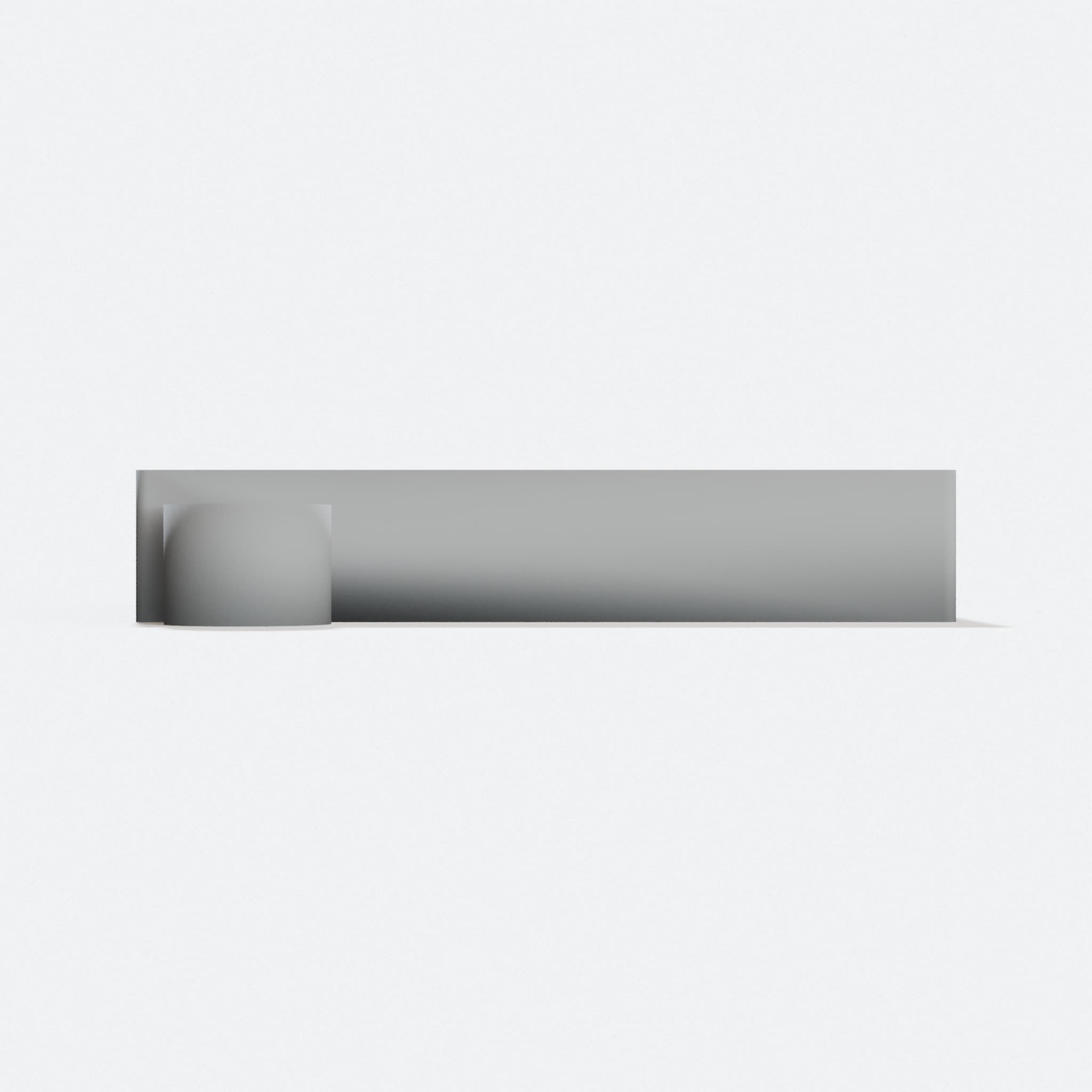

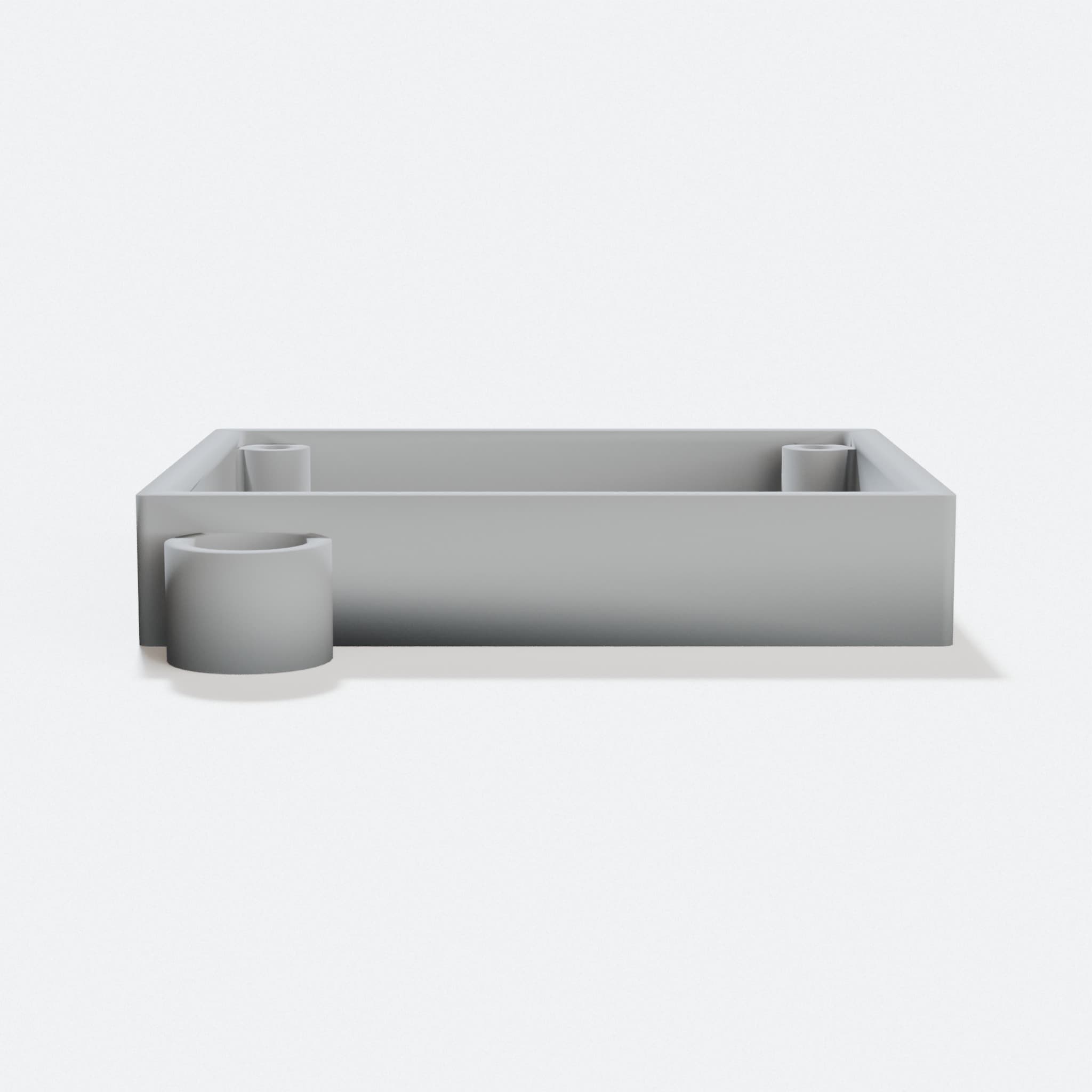

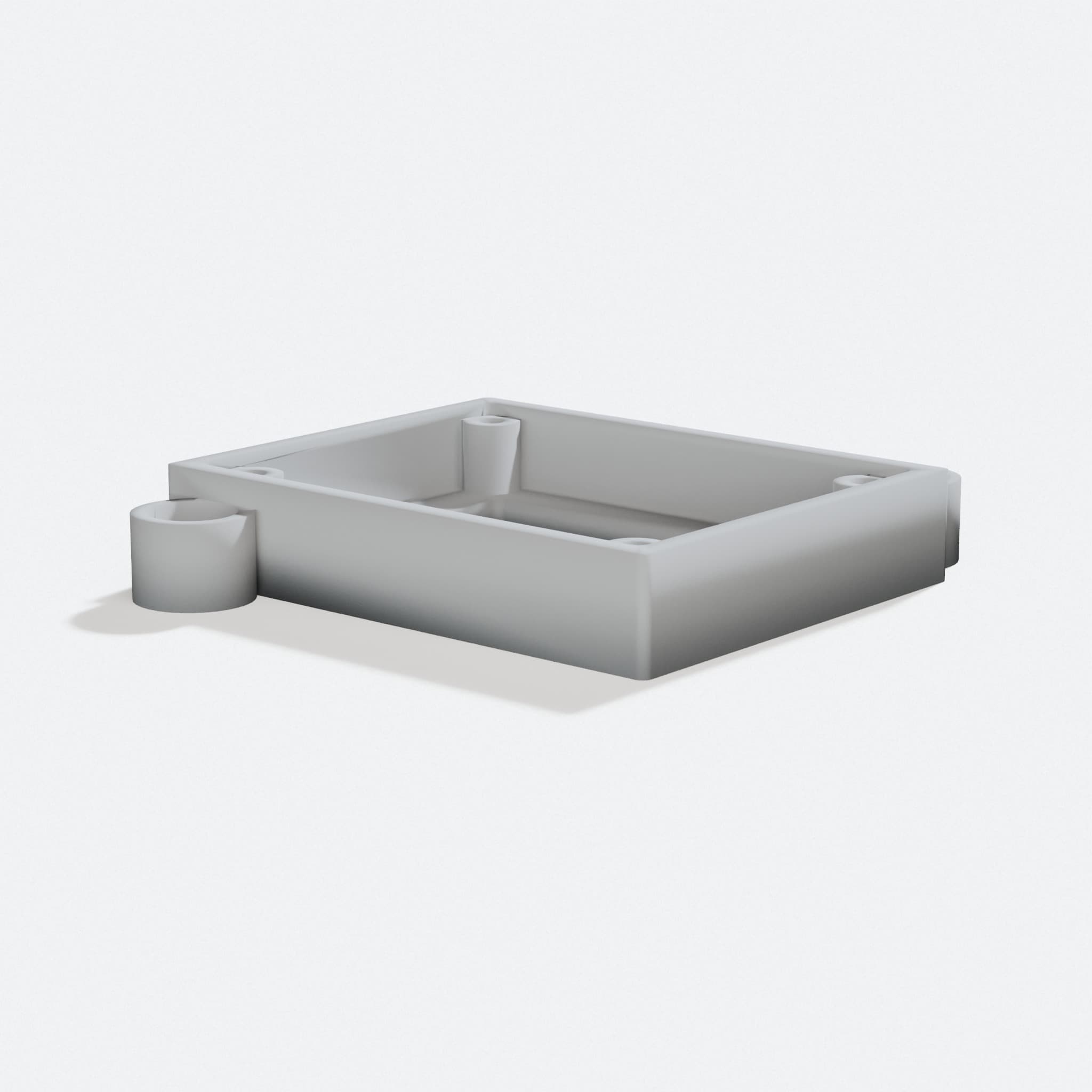

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Shaped to fit around a dual relay board so it sits inside your CNC setup
- Open frame design leaves room for wiring so you can connect your relay board
- Reinforced corner columns give the frame a sturdier build for your workshop
- Compact bumper shape fits close to your CNC electronics without extra bulk
- Made for Grbl-based spindle control setups so it matches your relay board size
Beside your CNC controller box, this bumper gives your dual relay board a defined spot to sit. It is shaped to wrap around the board's edges, keeping its footprint neat inside your electronics enclosure.
The design comes from a maker who needed a simple mount for a dual relay board used to run a CNC spindle with Grbl. This version, relay board bumper 1b, adds small reinforcements at each corner column for a sturdier frame shape. The open sides leave room for wiring, so you can access the board's terminals without removing the bumper.
This bumper works well for hobby CNC builds where the relay board controls spindle power. It gives your electronics a defined edge and a bit of separation from other parts in your control box.
2.4k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
