Customizable Drain Filter for Workshop Tools

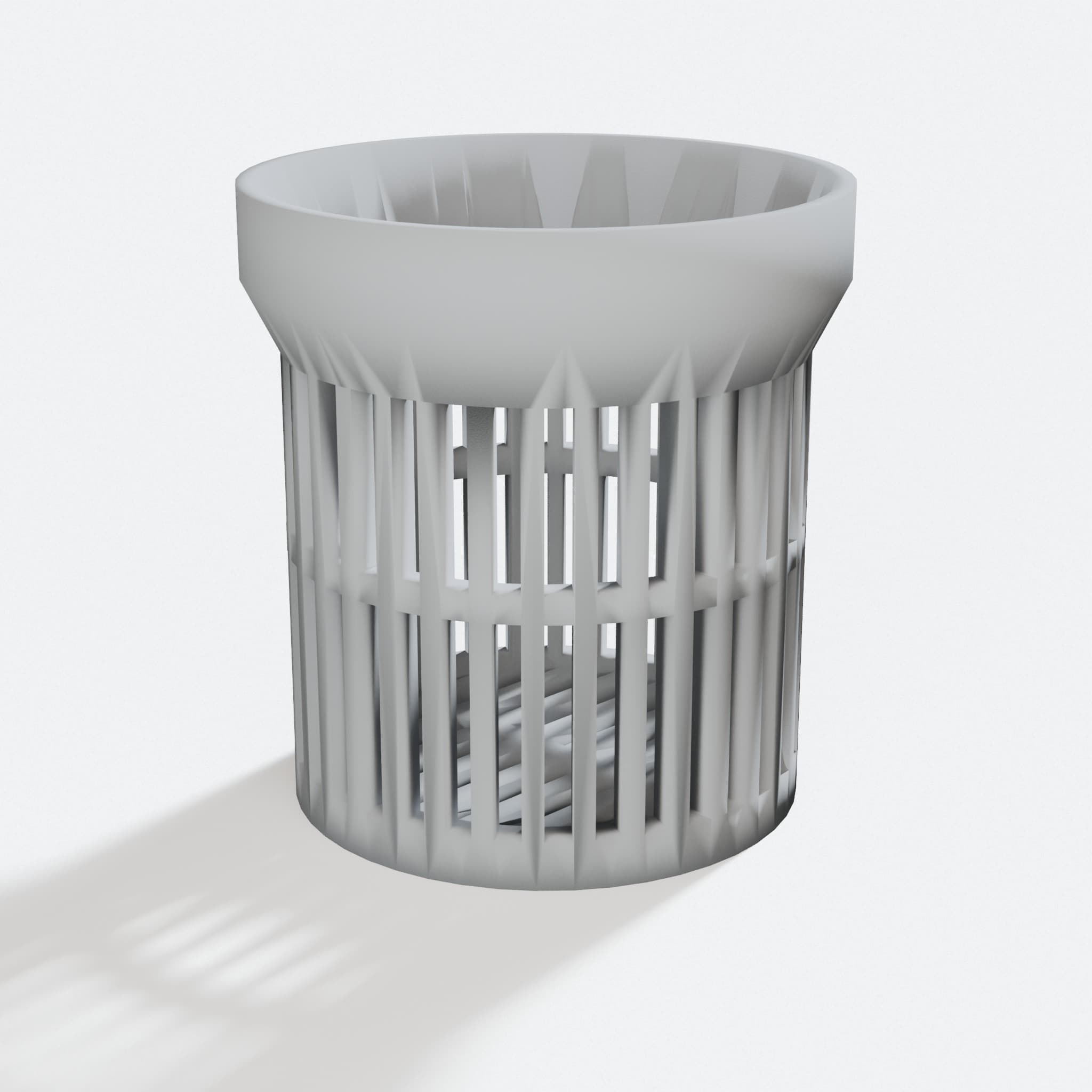

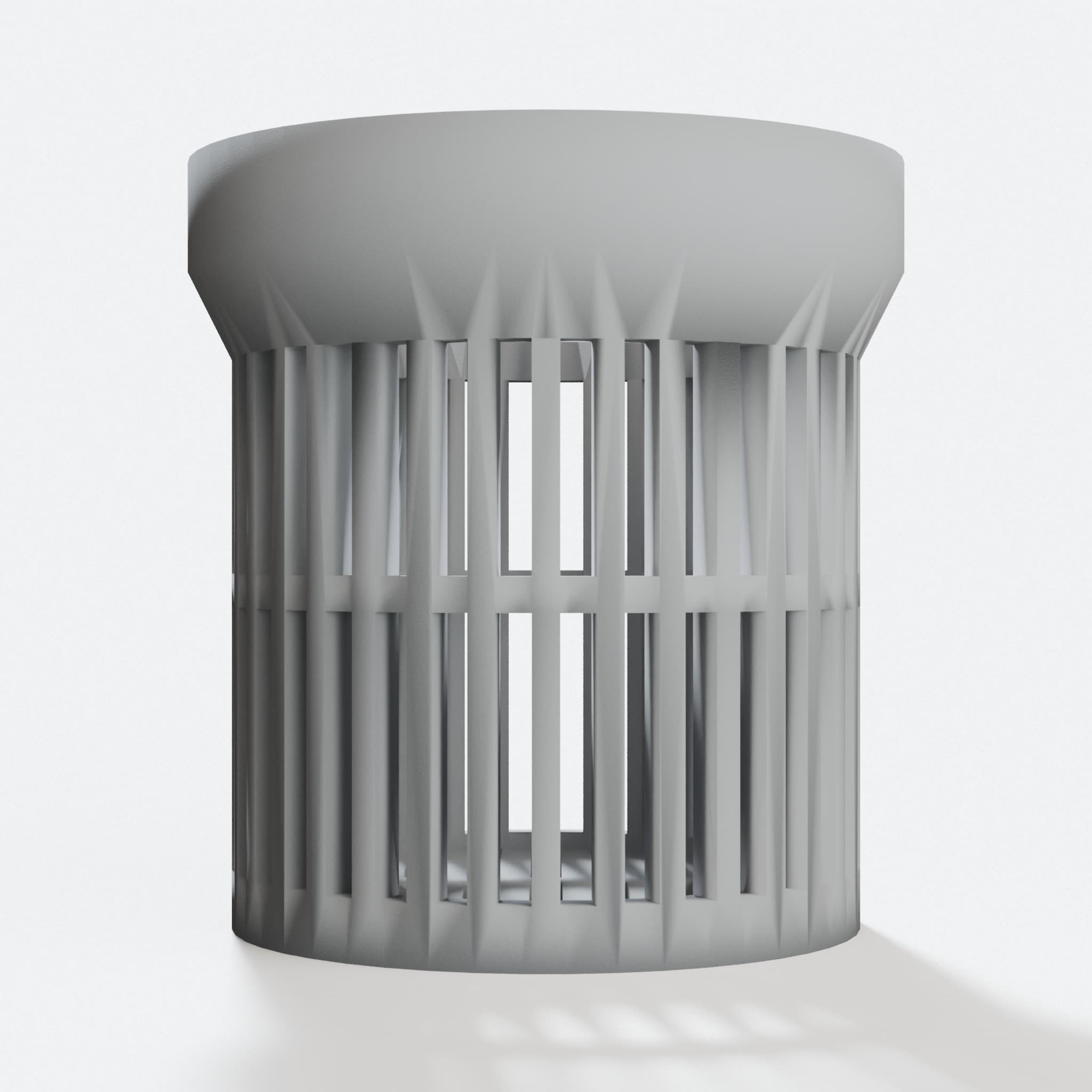

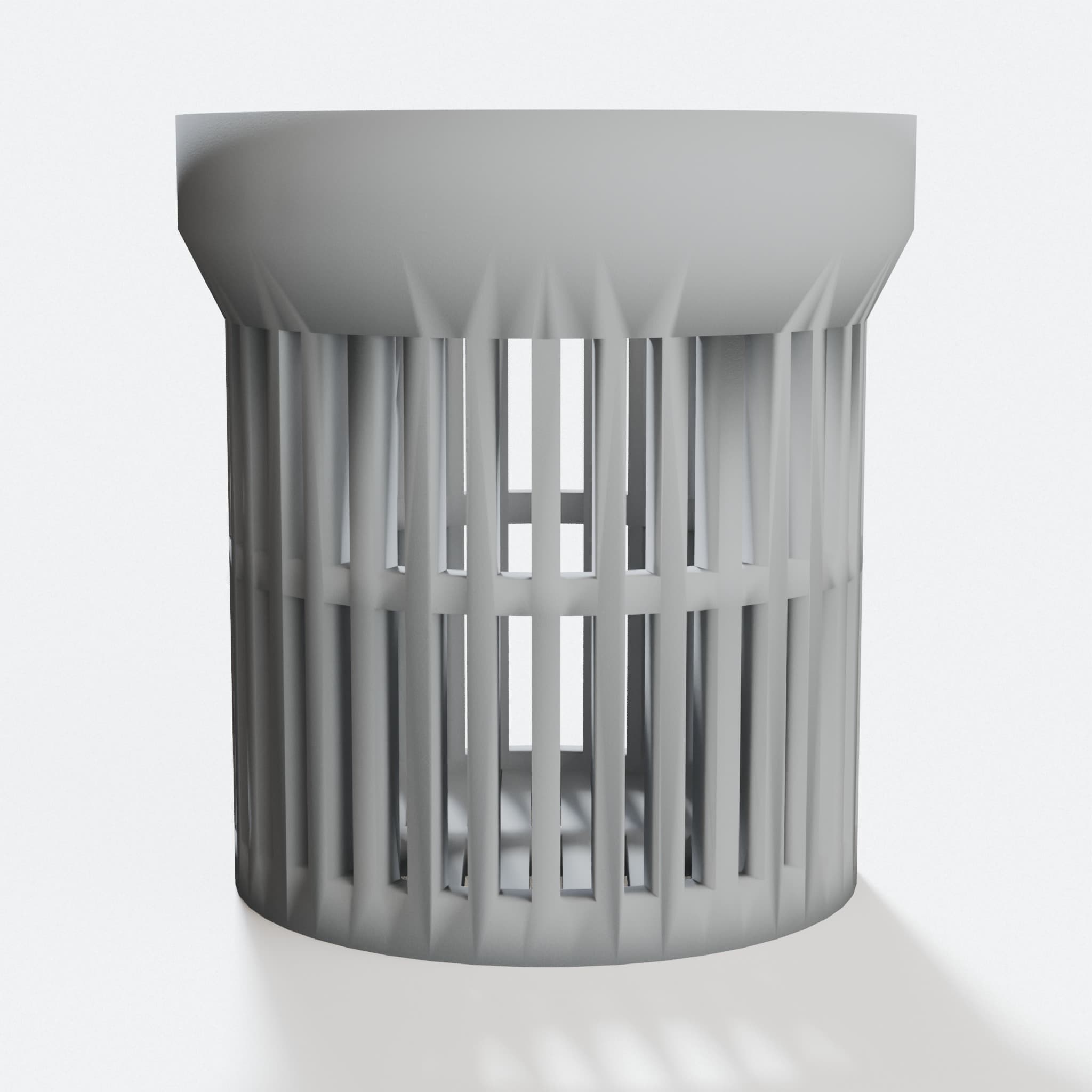

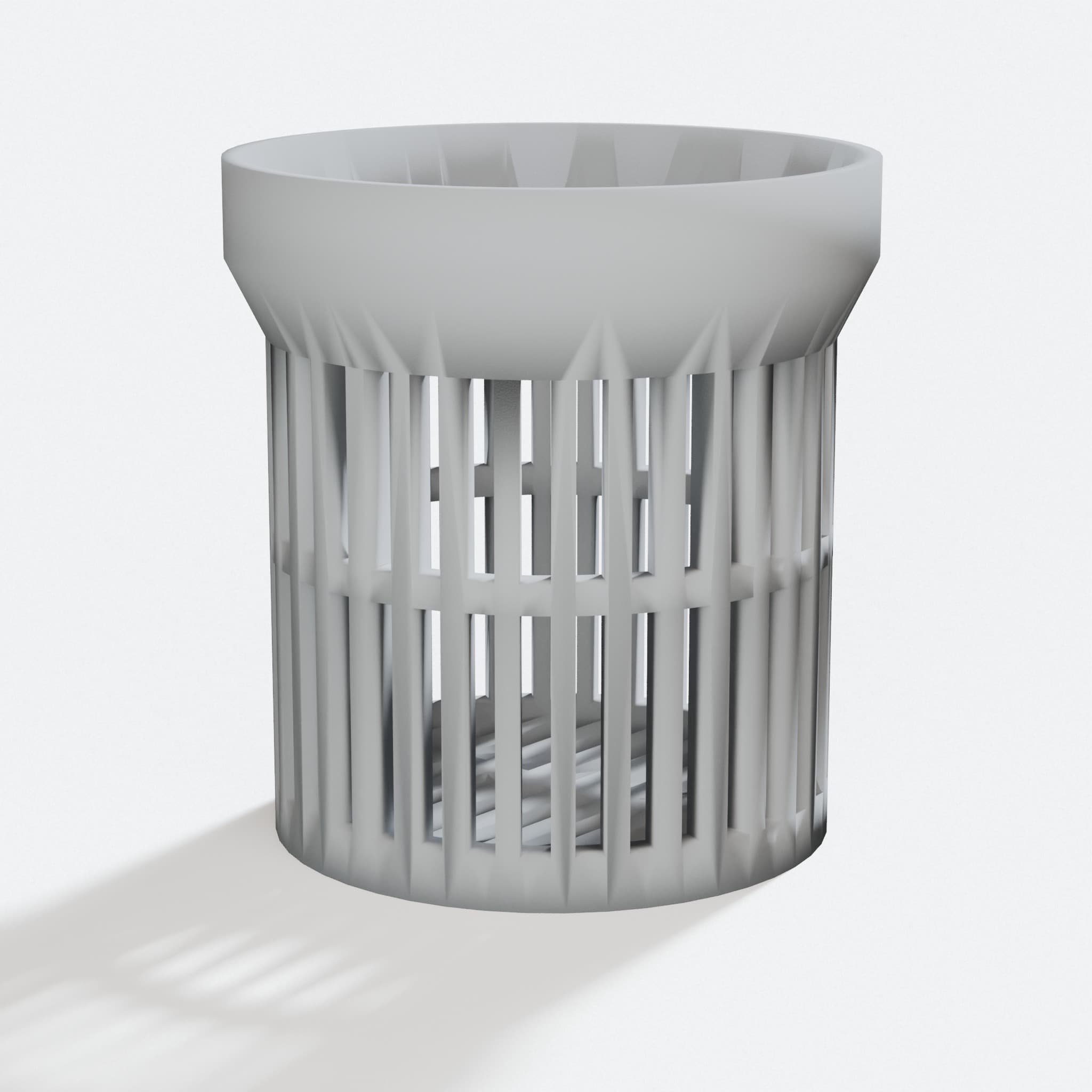

Customizable Drain Filter for Workshop Tools, design preview, hero tilt

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Catches metal chips and swarf before they reach your coolant pump, so your CNC mill stays cleaner longer
  • Fits your drain size because you customize the opening to match your setup
  • Keeps your coolant basin free of debris, so maintenance takes less time and your fluid lasts longer
  • Made from 3D-printed parts you receive ready to use, no assembly needed

Your CNC mill's coolant system stays healthy when metal chips never reach the pump basin. This drain filter sits at your coolant drain and catches the larger debris before it can cause problems.

The design catches chips and swarf before they drain into your coolant pump. You can customize the filter opening to fit your specific drain size, so it works with your exact setup. Just print it, install it, and let it do the work.

Built for workshop tools that need to last, this filter keeps your coolant cleaner and your maintenance simpler.

4.3k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by revar. We did not draw it.

Shared under BSD. See the original design
