Cable Chain Conduit for Bend Radius Control

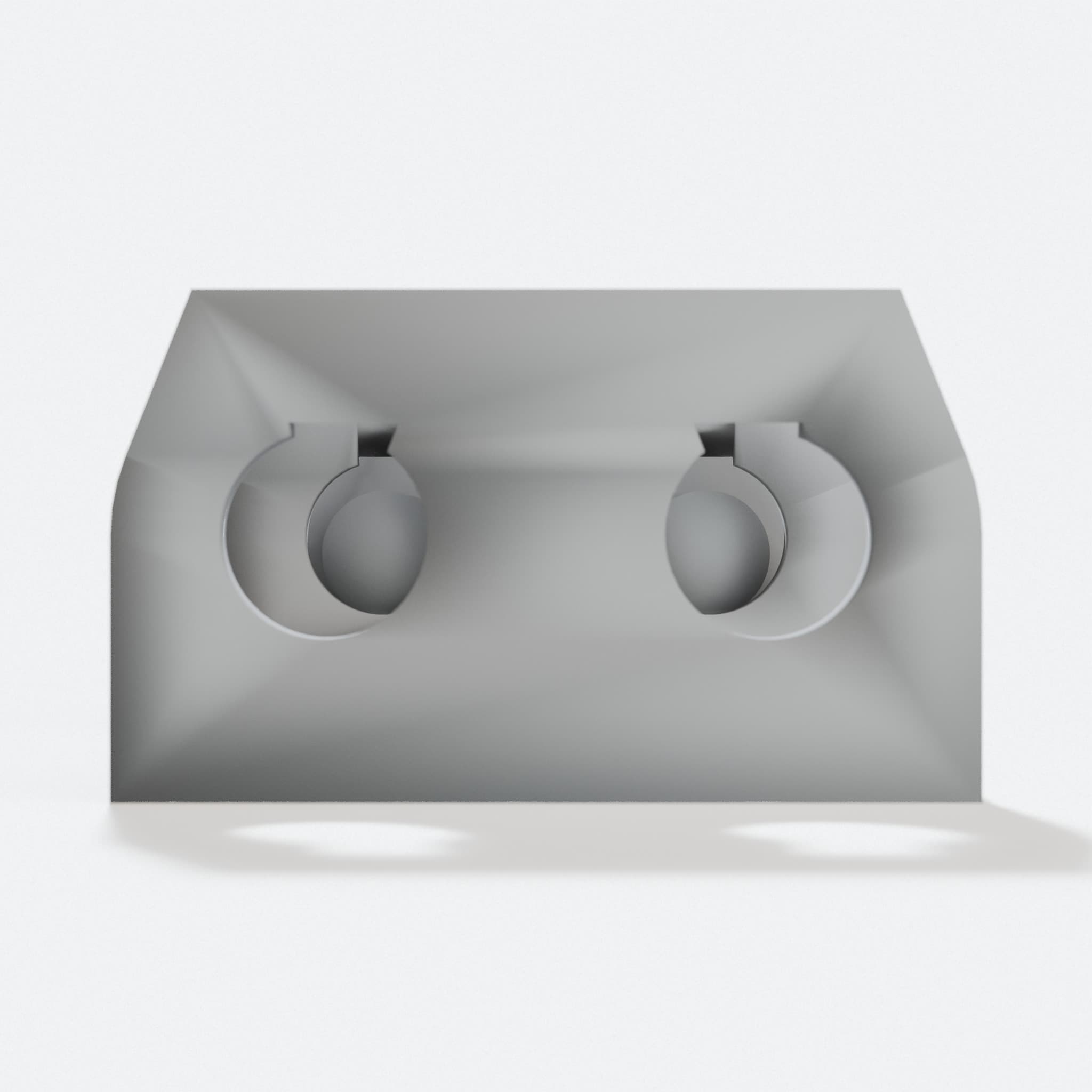

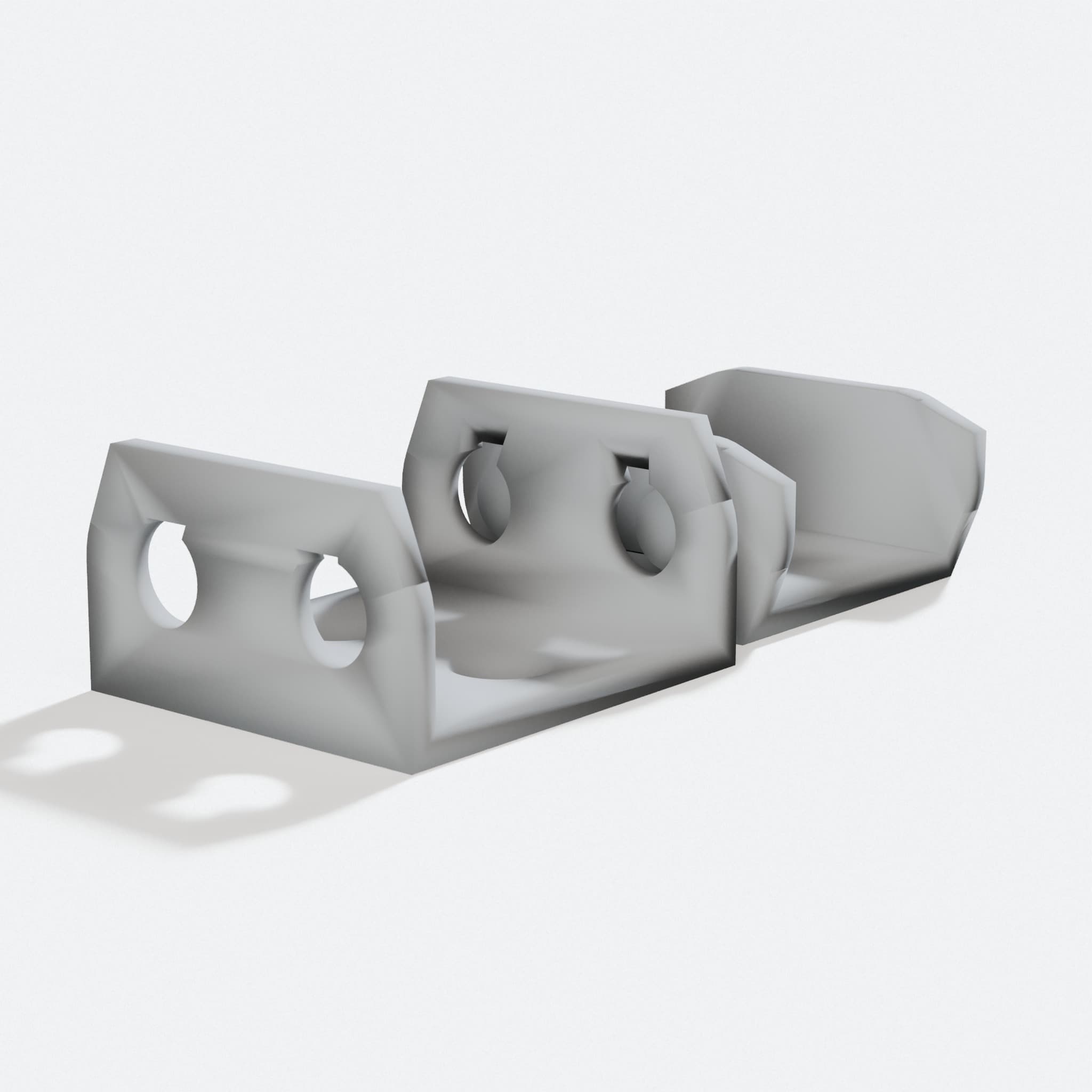

Cable Chain Conduit for Bend Radius Control, design preview, hero tilt

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Curved link shape guides cable bend so wires flex along a set radius
  • Open channel design lets you route cables through the linked path
  • Shaped for repeated flex cycles so you can manage moving cable runs
  • Made to order in the USA after you order
  • Fits robot arms, machine axes, and other spots with cables that move

Inside a robot arm or a moving machine axis, cables get pulled, twisted, and flexed over and over. This cable chain conduit is shaped to guide a cable along a set bend path, so the wire follows a controlled curve instead of bending at a sharp angle.

The chain shape links together to form a channel that cradles your cable run. It is built around the idea that a cable should never bend tighter than its own limit allows. This piece gives your wiring a defined curve to follow wherever the cable moves.

You get a physical, ready-made conduit piece, shaped for use on machines, robot arms, or any setup where a cable needs to flex along a consistent path. Check your cable's own bend limit before use to confirm it matches this chain's curve.

2.1k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by AKADAP. We did not draw it.

Shared under GNU GPL. See the original design
