Cura Infill Display Model

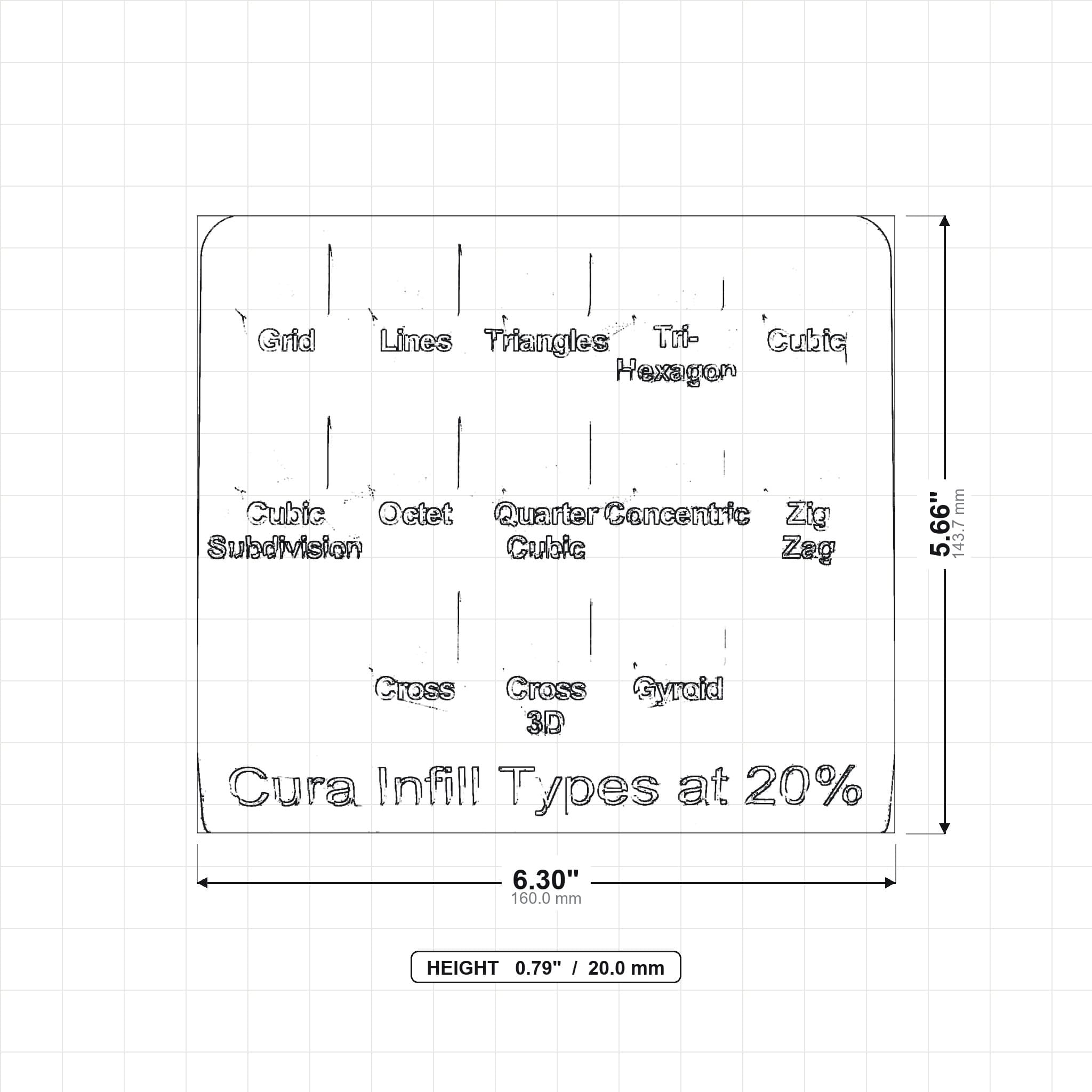

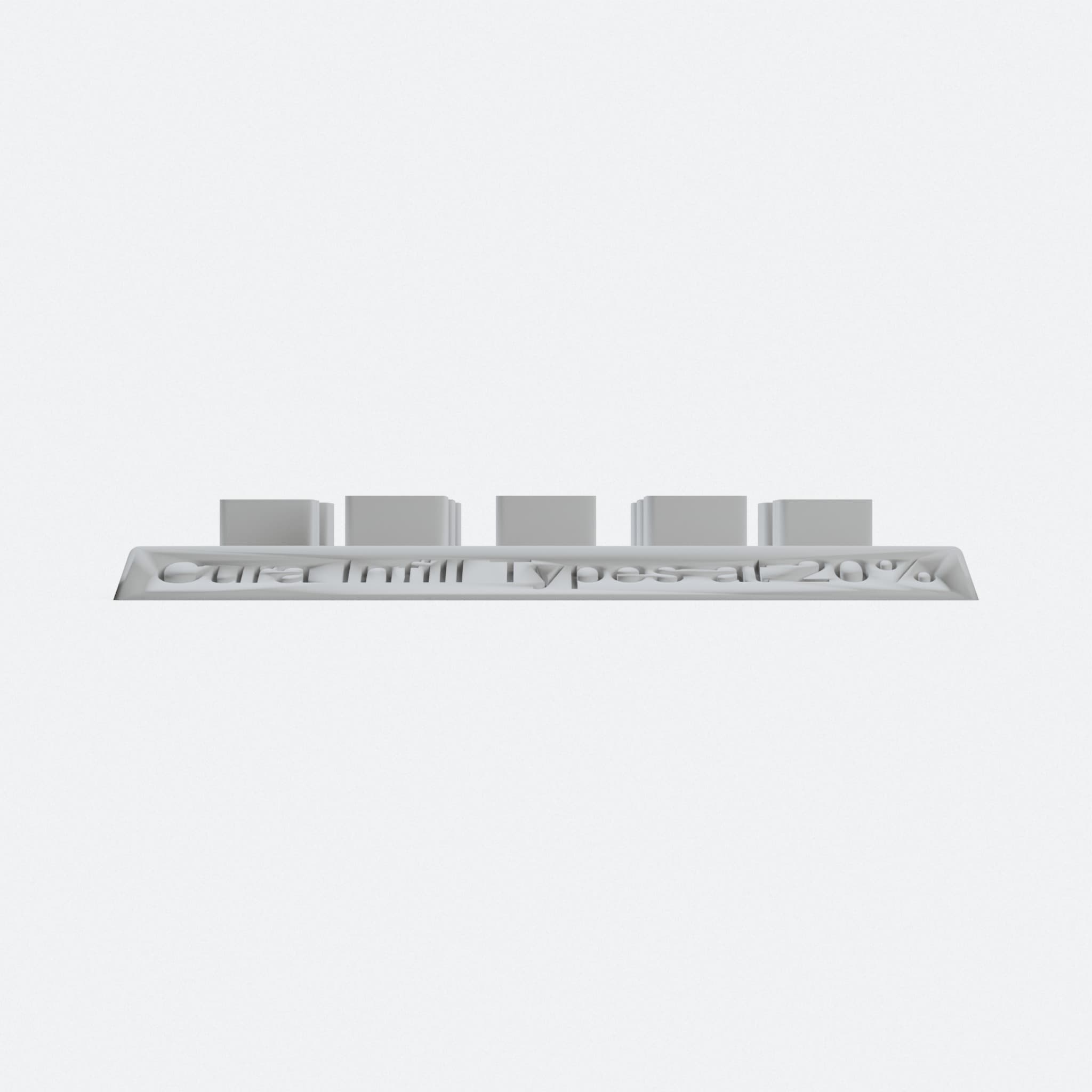

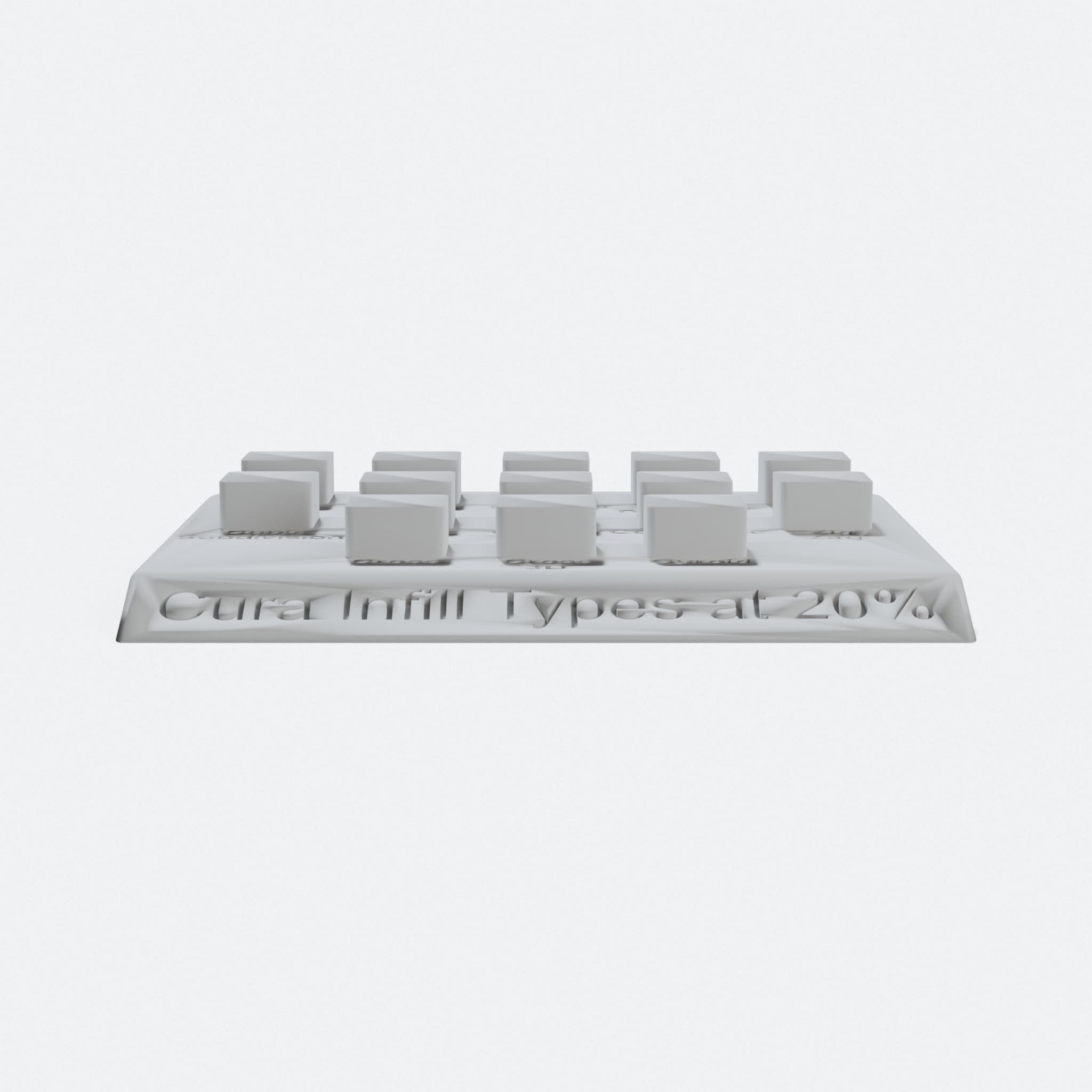

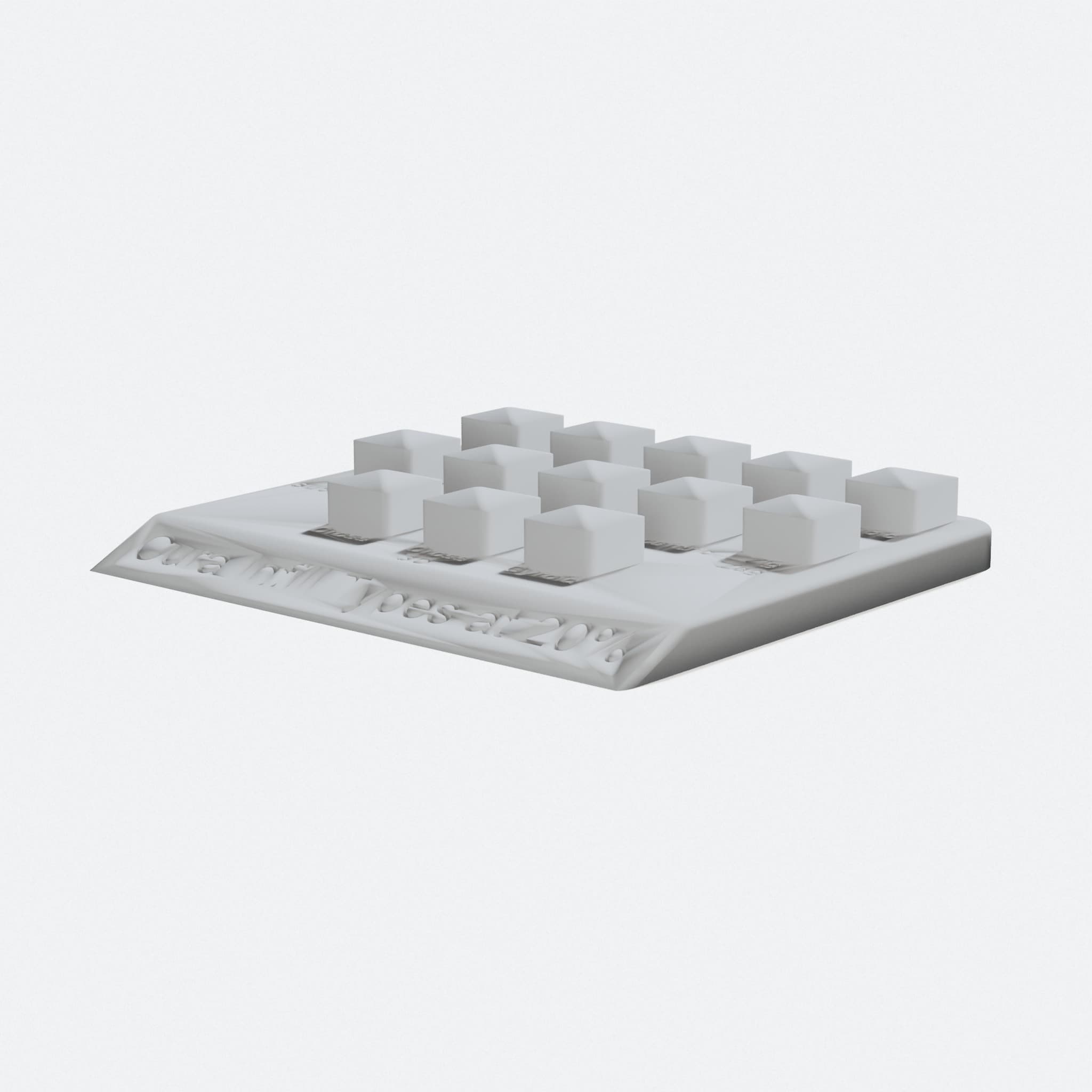

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does

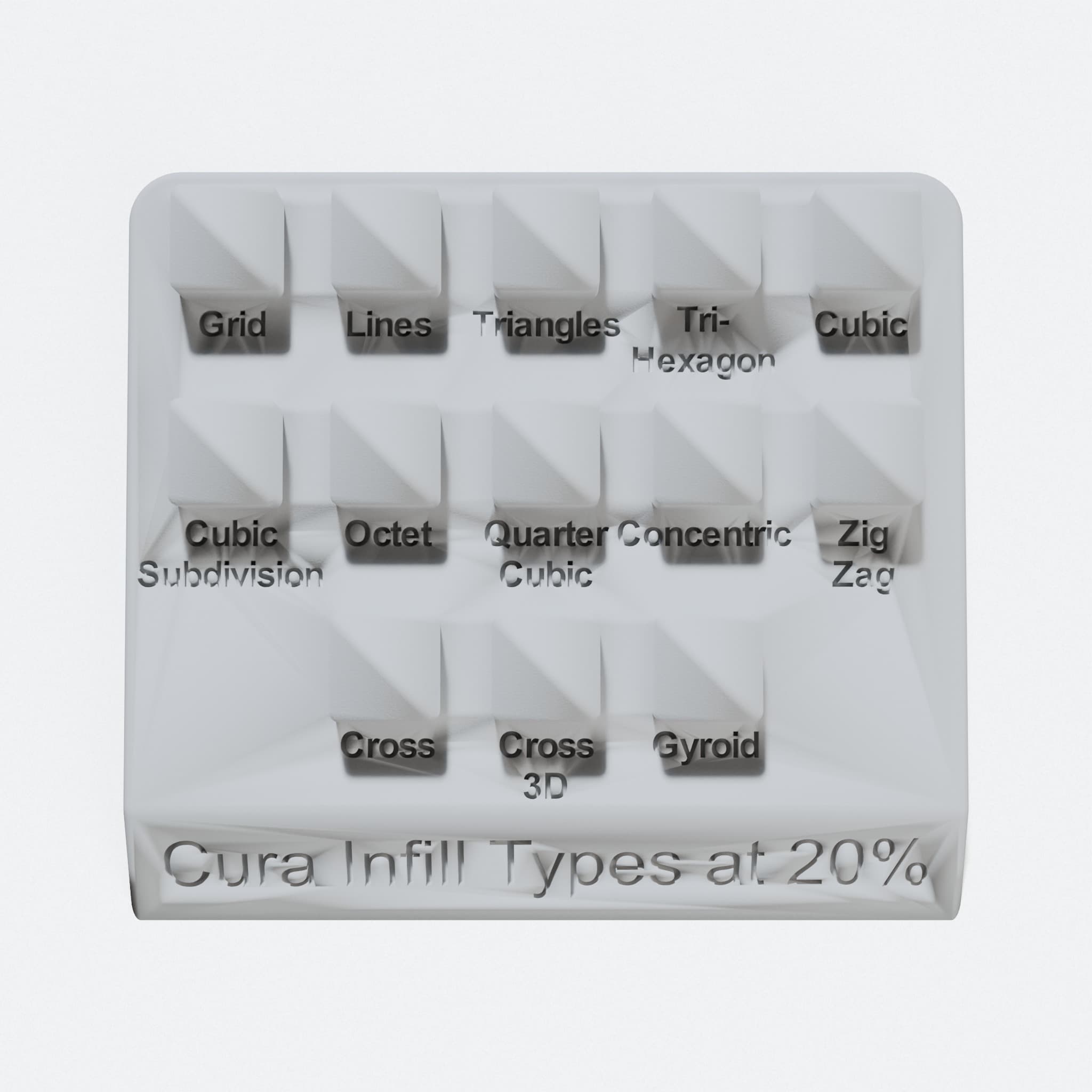

- Shows all infill patterns from Cura 4.6 in one piece so you can compare them side by side
- Prints with support blockers and cutting mesh so you see each infill type clearly labeled
- Includes G-code file for Ender 3 printers so setup takes just a few minutes
- Helps you pick the right infill density for your next project, saving material and print time
- Perfect for STEM classes and maker groups learning about 3D printing settings
You get to see every infill option Cura offers in one printed display. This model shows you what each pattern looks like so you can choose the best one for your needs.
The display comes with a G-code file ready for your Ender 3. It uses support blockers placed across the bed to create separate sections for each infill type. You swap out the support blocker settings in Cura to show different densities, all labeled on the front. This design lets you print one piece instead of many small tests.
Teachers use this to show students how infill affects strength and weight. Makers use it to dial in settings before printing larger parts. Either way, you learn faster with a visual guide right in your hands.
7.8k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
More like this
Great Pyramid of Giza 3D Print Model for Classroom Education
Design library
Functional Differential Gear System - 3D Printed Educational Model
Design library
Mesostructured Cellular Materials 3D Printed Wall Art
Design library
Devious Pythagorean Cup - Hidden Siphon 3D Printed
Design library
Making Music: 3D-Printable STEM Musical Instrument
Design library
Customizable Sacred Geometry Polyhedra 3D Printed Wall Art
Design library
Domestic Cat Skull Replica, Cat Cranium and Jaws
Design library
Circuit Schematic Stencil for Drawing Electronics Diagrams
Design library
Who made this design
Designed by ccarbs. We did not draw it.
Shared under Creative Commons, credit required. See the original design
