Corner Radius Router Template Jig for Woodworking Projects

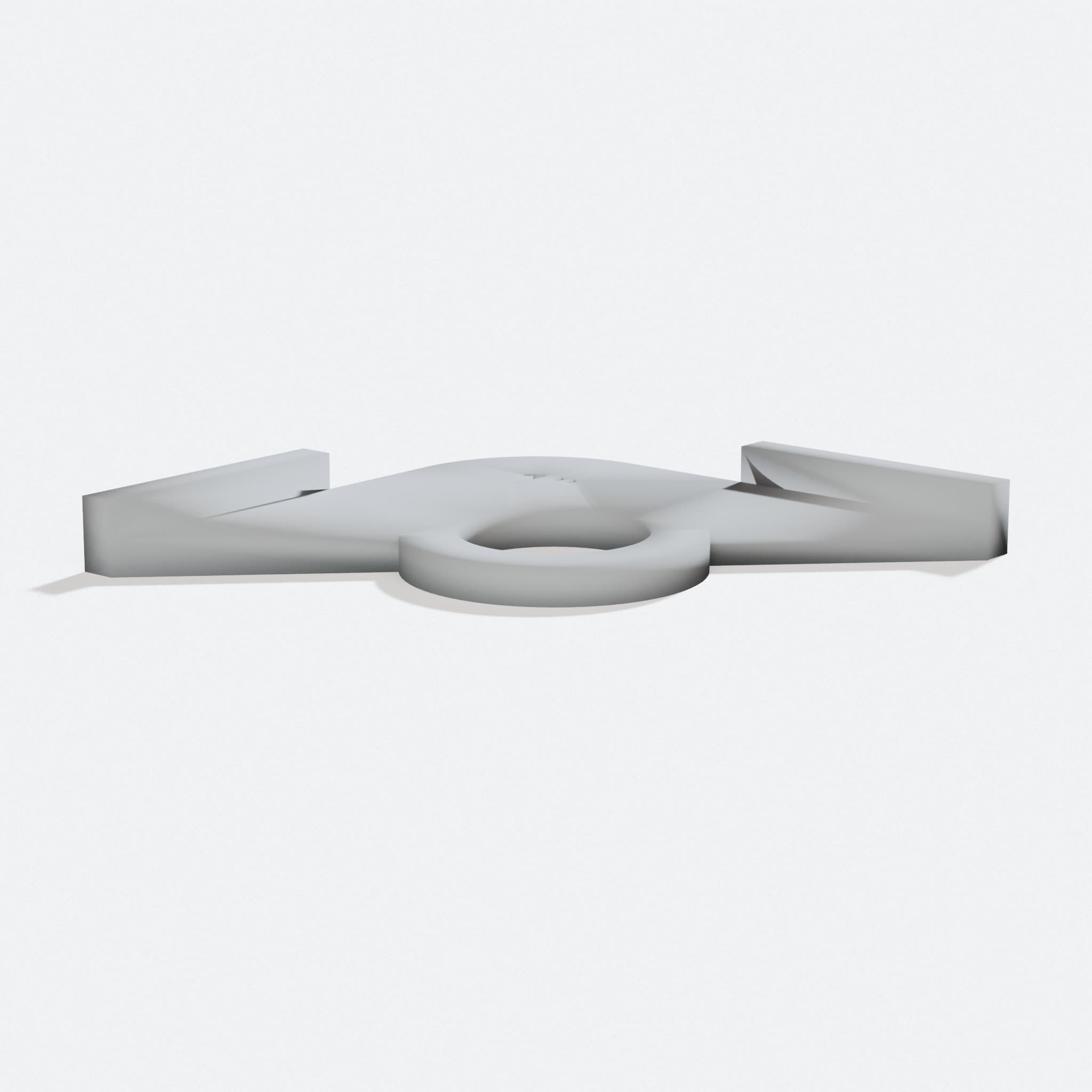

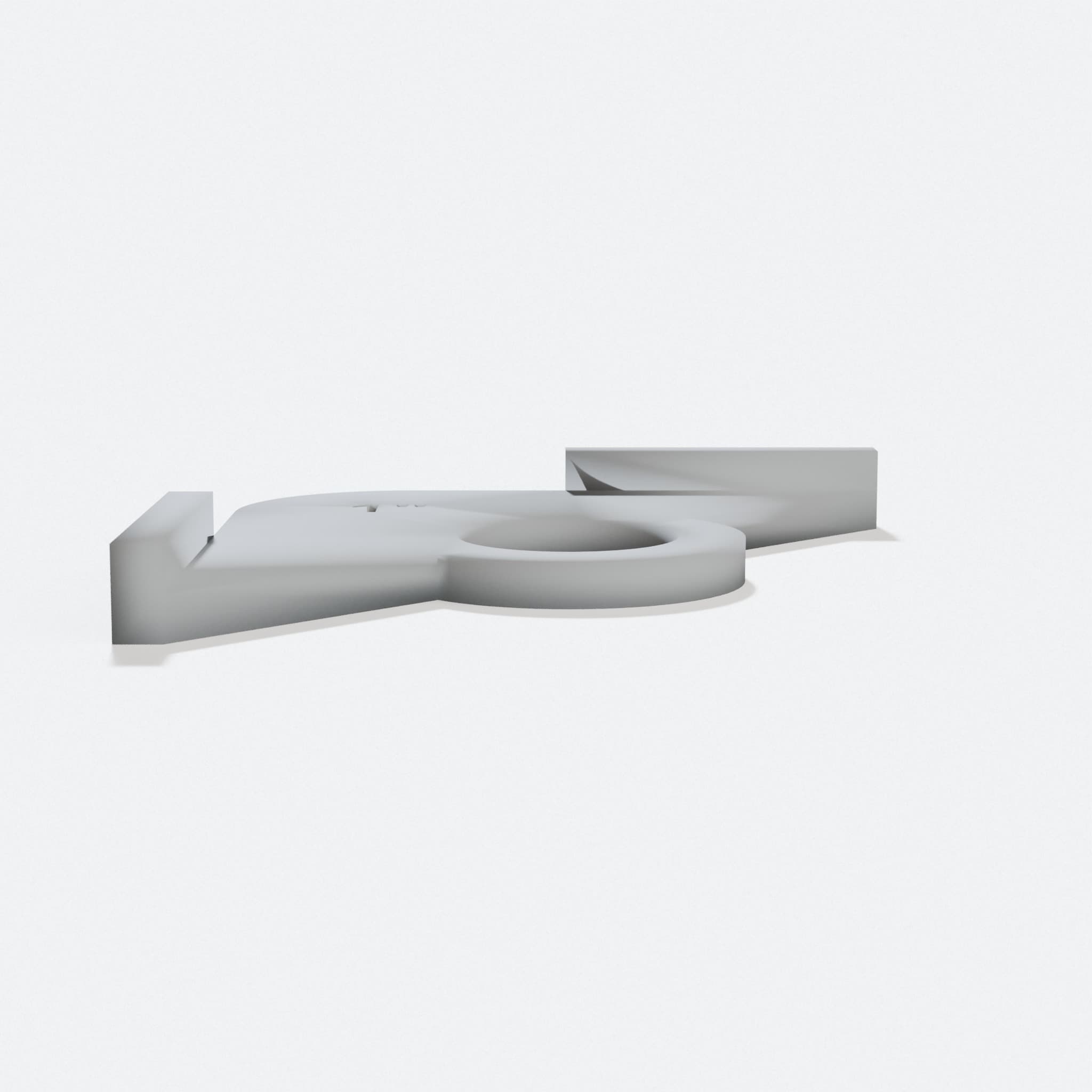

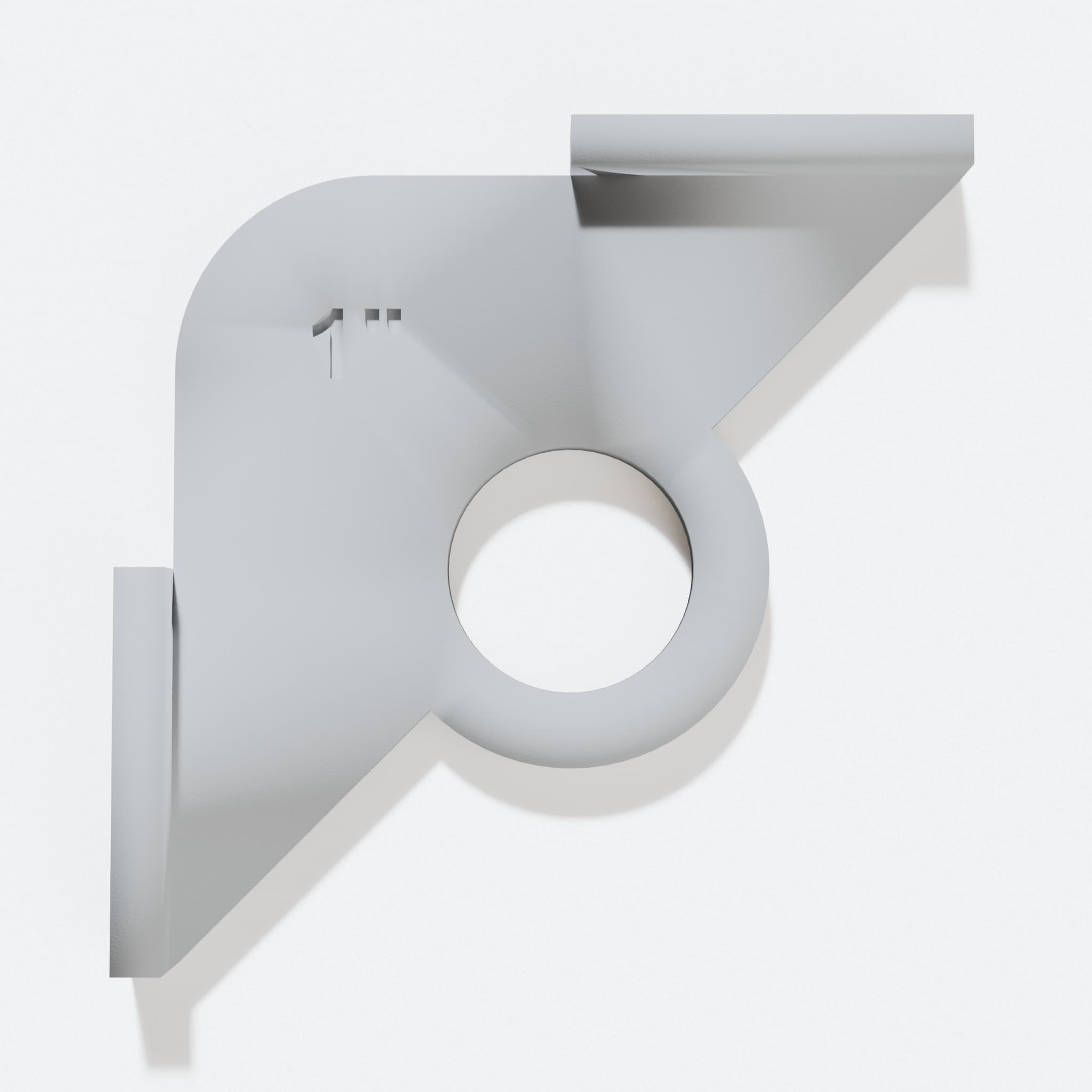

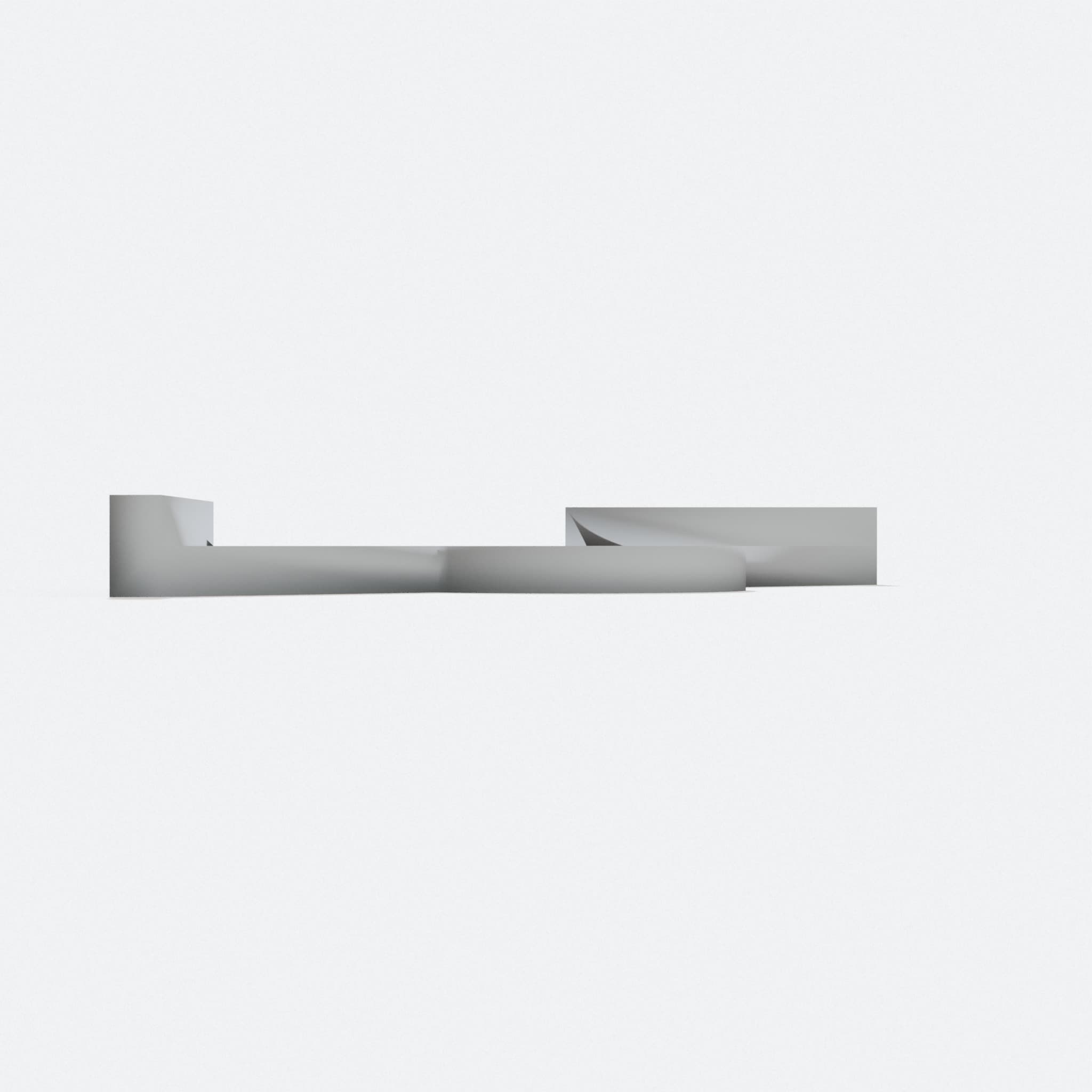

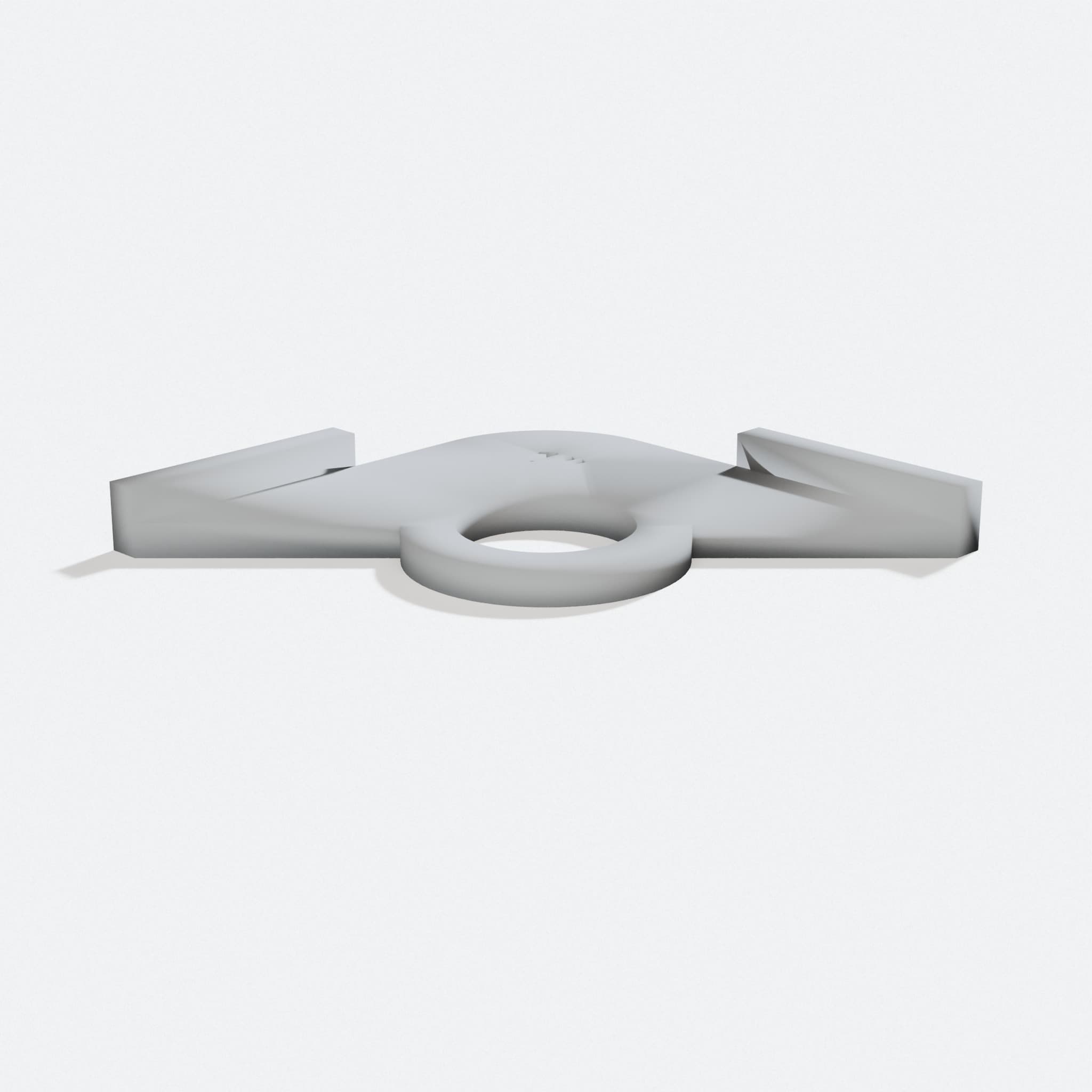

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Nine radius sizes: 5/16", 7/16", 1/2", 5/8", 1", 1.25", 1.5", 2", 2.5"
- Designed for router table use with built-in finger safety features
- Creates smooth rounded edges on wood corners quickly and consistently
- Works with standard router bearing bits, no supports needed for printing
- Ideal for small woodworking projects and repeat corner work
This corner radius routing template brings precision and safety to your woodworking projects. Designed specifically for router table work, it helps you create clean, professional rounded edges on wood corners with minimal setup.
The template includes nine different radius sizes, 5/16", 7/16", 1/2", 5/8", 1", 1.25", 1.5", 2", and 2.5", giving you flexibility for projects ranging from small boxes to larger furniture pieces. Each radius is clearly marked for quick selection at the router table.
Safety-focused design features keep your fingers away from the router bit while maintaining firm control. The template works with standard router bearing bits and has been tested to hold up well during typical use. For extended production runs where heat buildup may occur, consider the material upgrade options available at checkout.
32k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
