Corner Blocks for Band Clamp, 3D Printed Workshop Tool

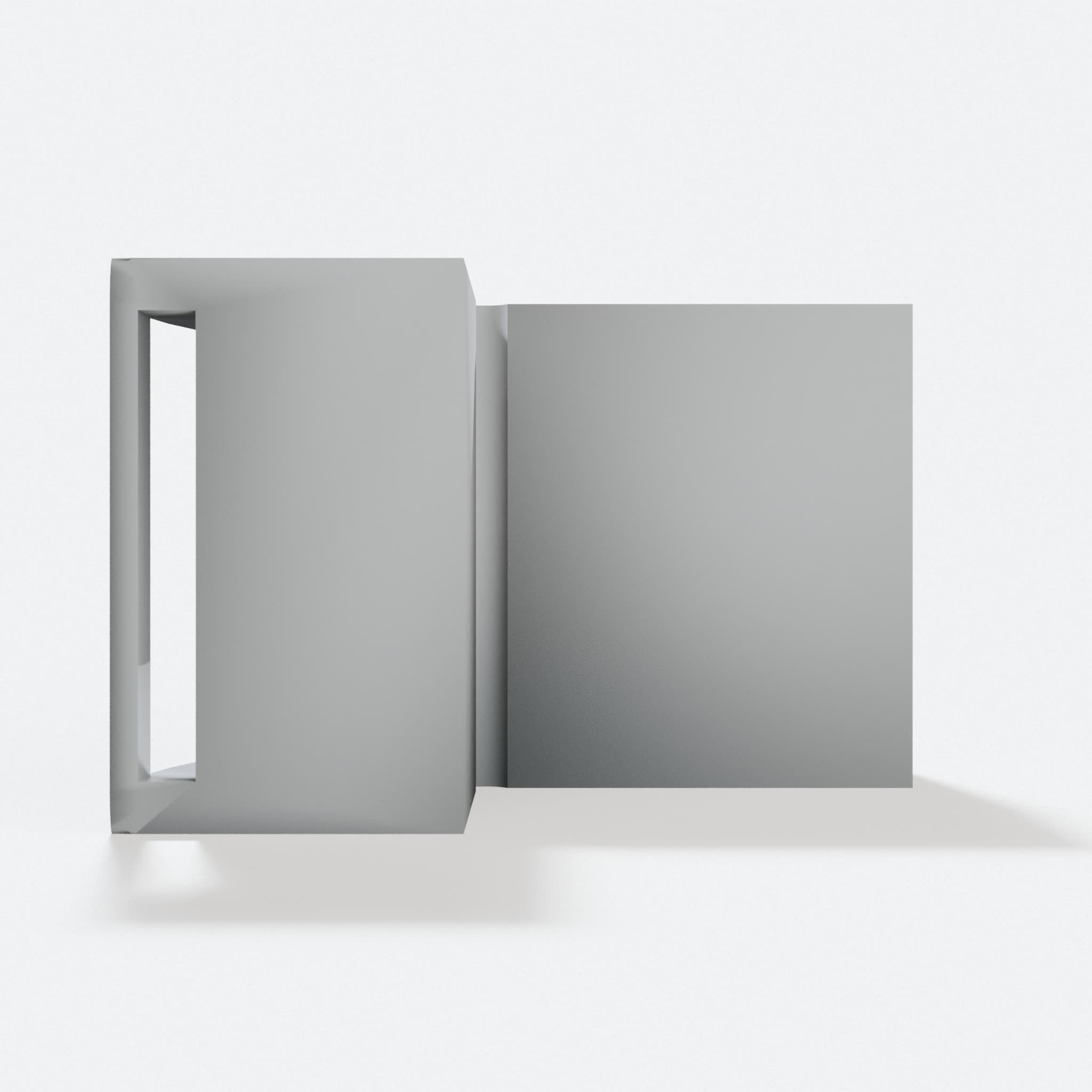

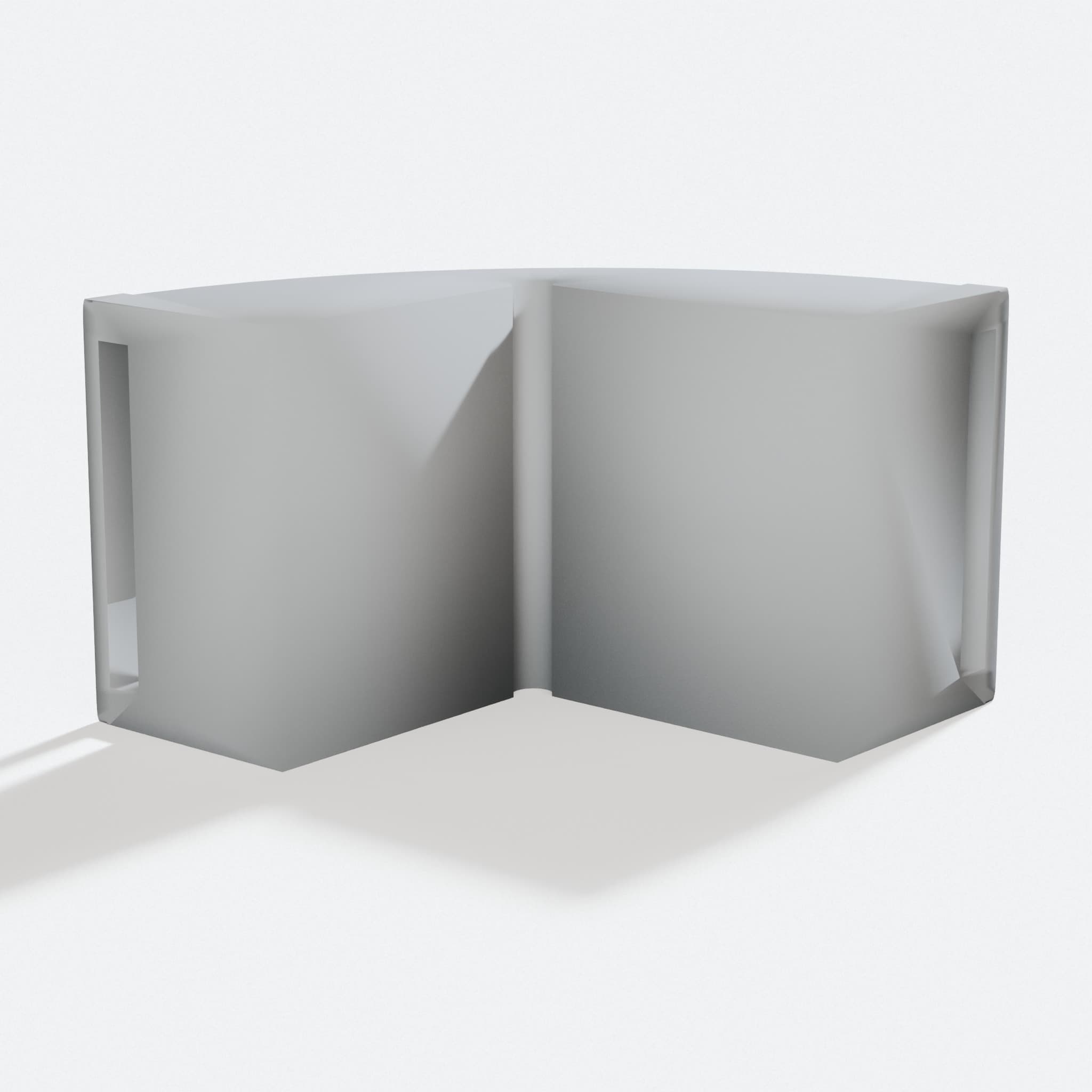

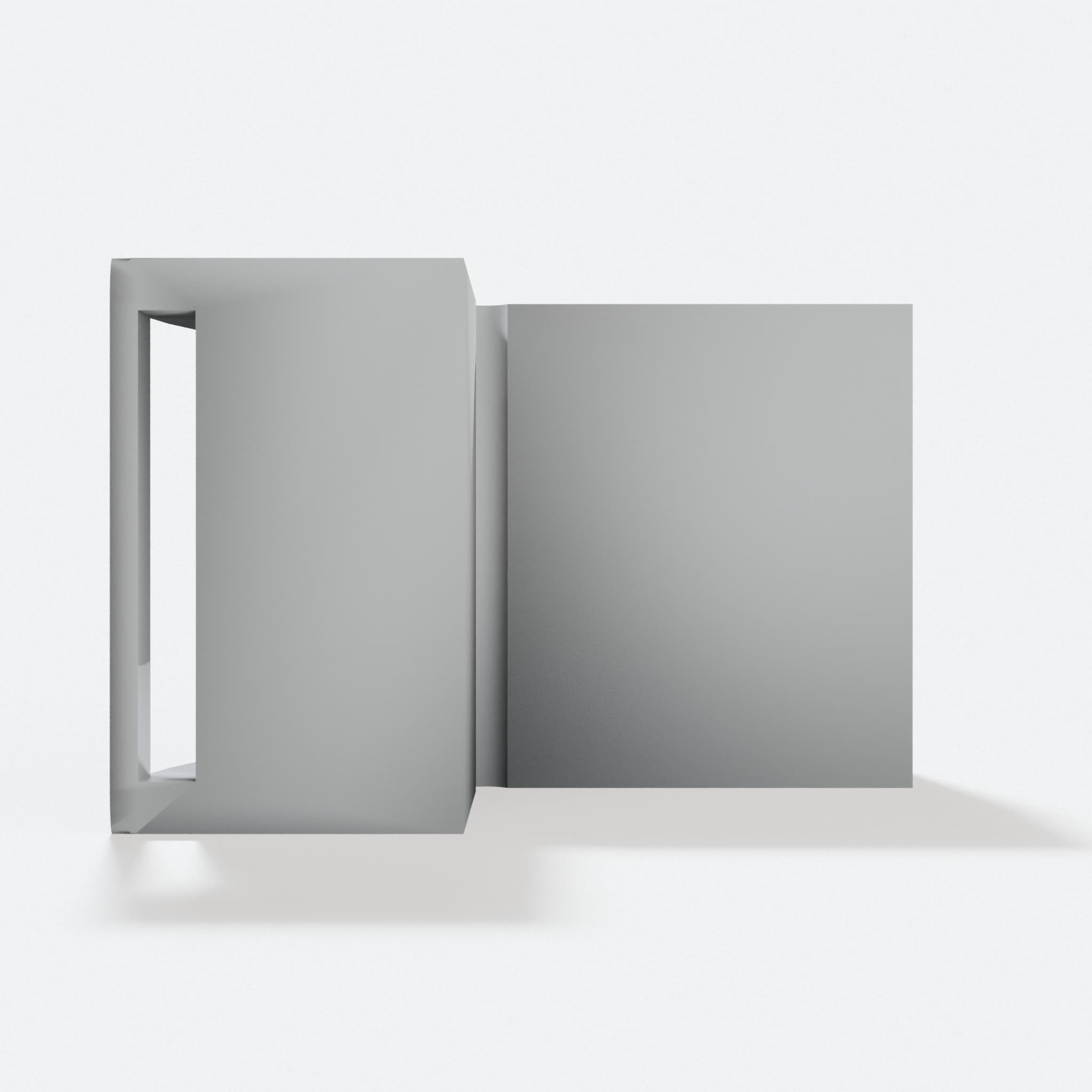

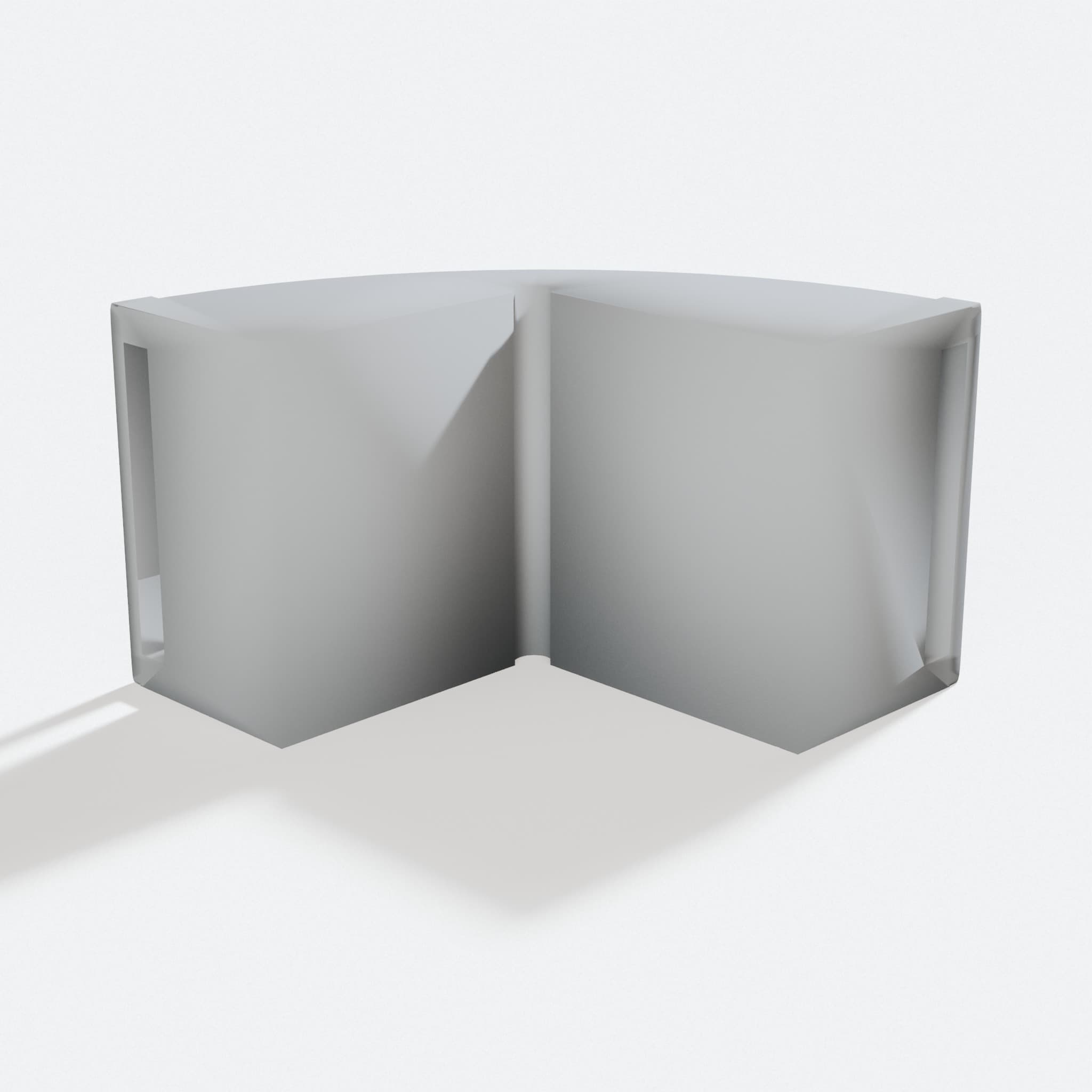

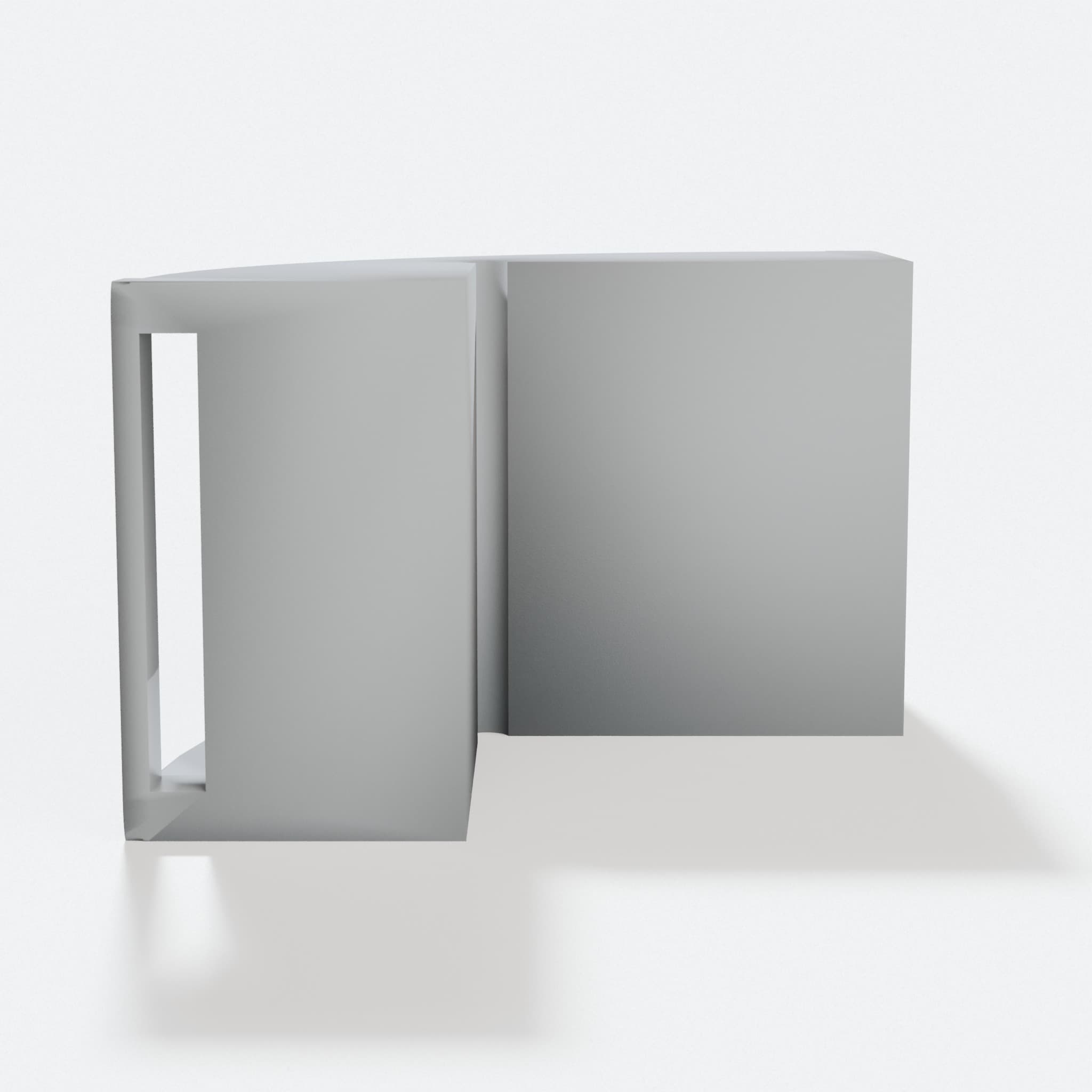

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Converts a ratchet strap into a four corner clamp, so you hold boxes square while glue sets
- Works with 1 inch wide straps you already own, so you skip buying expensive clamps
- Pulls mitered corners into perfect alignment, so your box joints look sharp and tight
- Prints in PLA or ABS for strength you choose, so you build it your way
- Designed for workshop use, so you clamp boxes while gluing them together
Stop wrestling with loose corners when you glue boxes together. These corner blocks turn a simple ratcheting tie down strap into a powerful four corner clamp that holds your work square and true.
Thread your 1 inch wide strap through the blocks at each corner. The blocks pull inward as you tighten the strap, pressing all four corners flush at once. This design works especially well with mitered corners, actually pulling them into perfect alignment as you clamp. You get professional results without buying expensive workshop clamps.
Print these blocks in PLA with standard settings, or use ABS for extra strength on heavy projects. The designer tested them on real box builds and found they hold tight through the entire glue cure time.
6.1k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
