Compatible with Arduino AWG Wire Gauge Tool

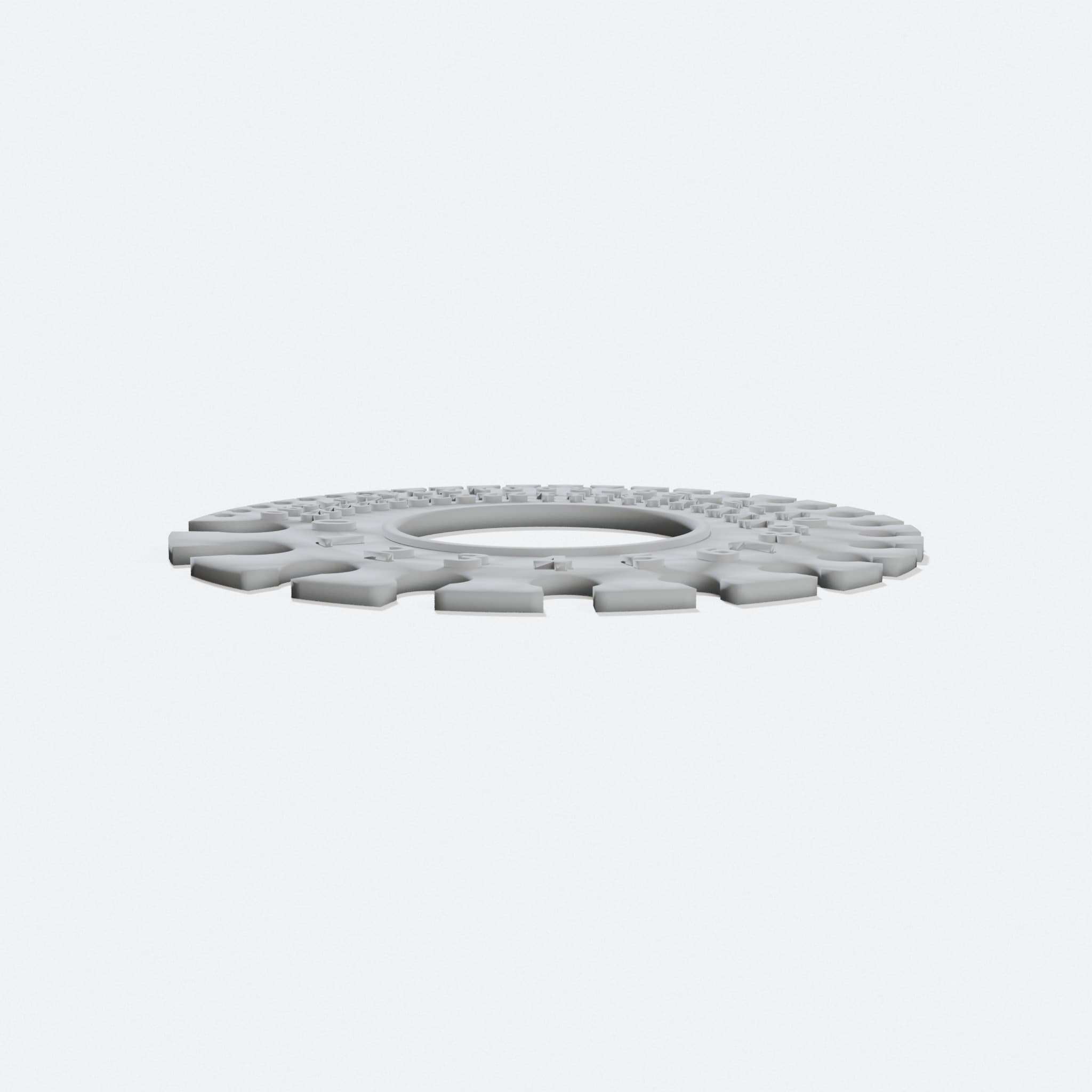

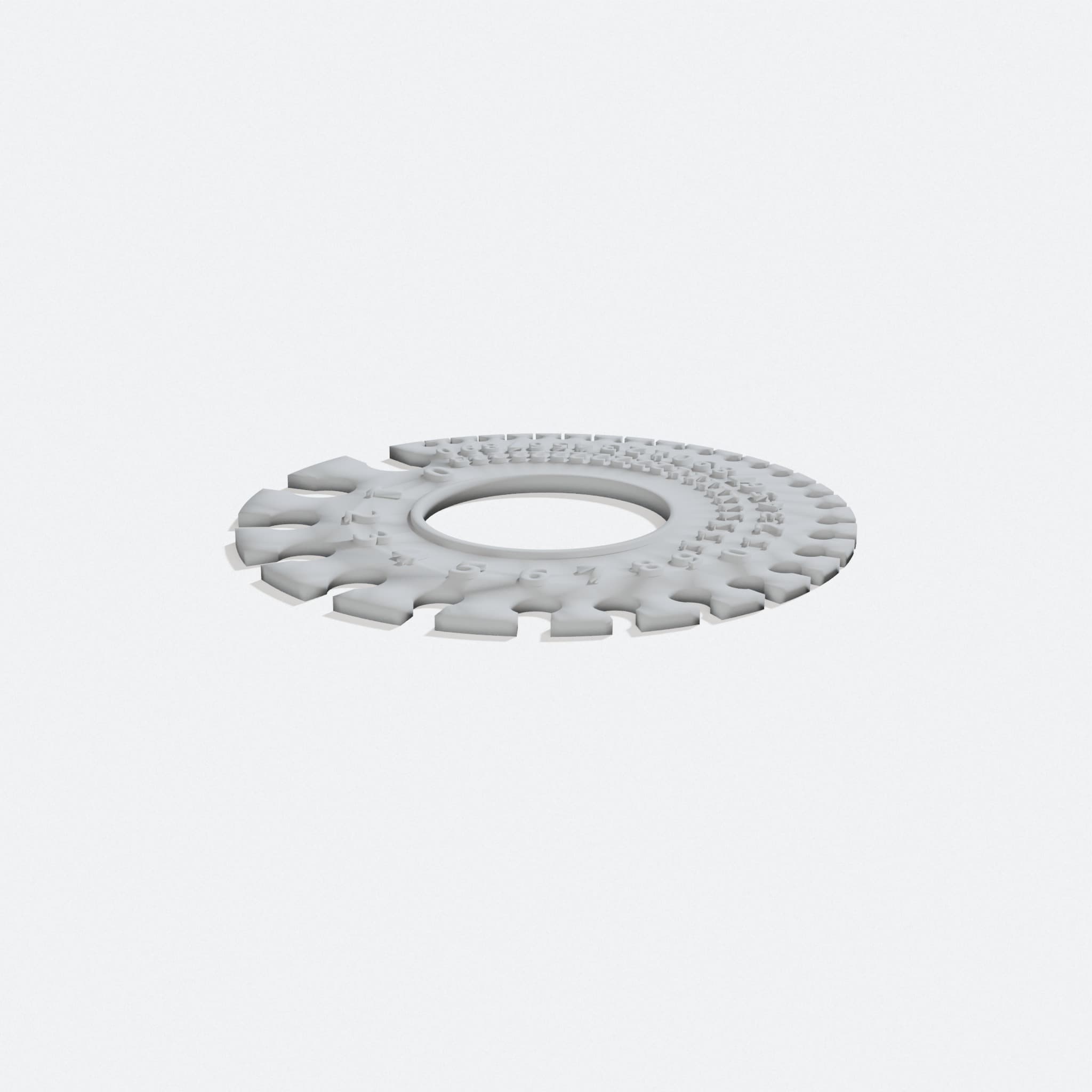

Compatible with Arduino AWG Wire Gauge Tool, design preview, turn three quarter

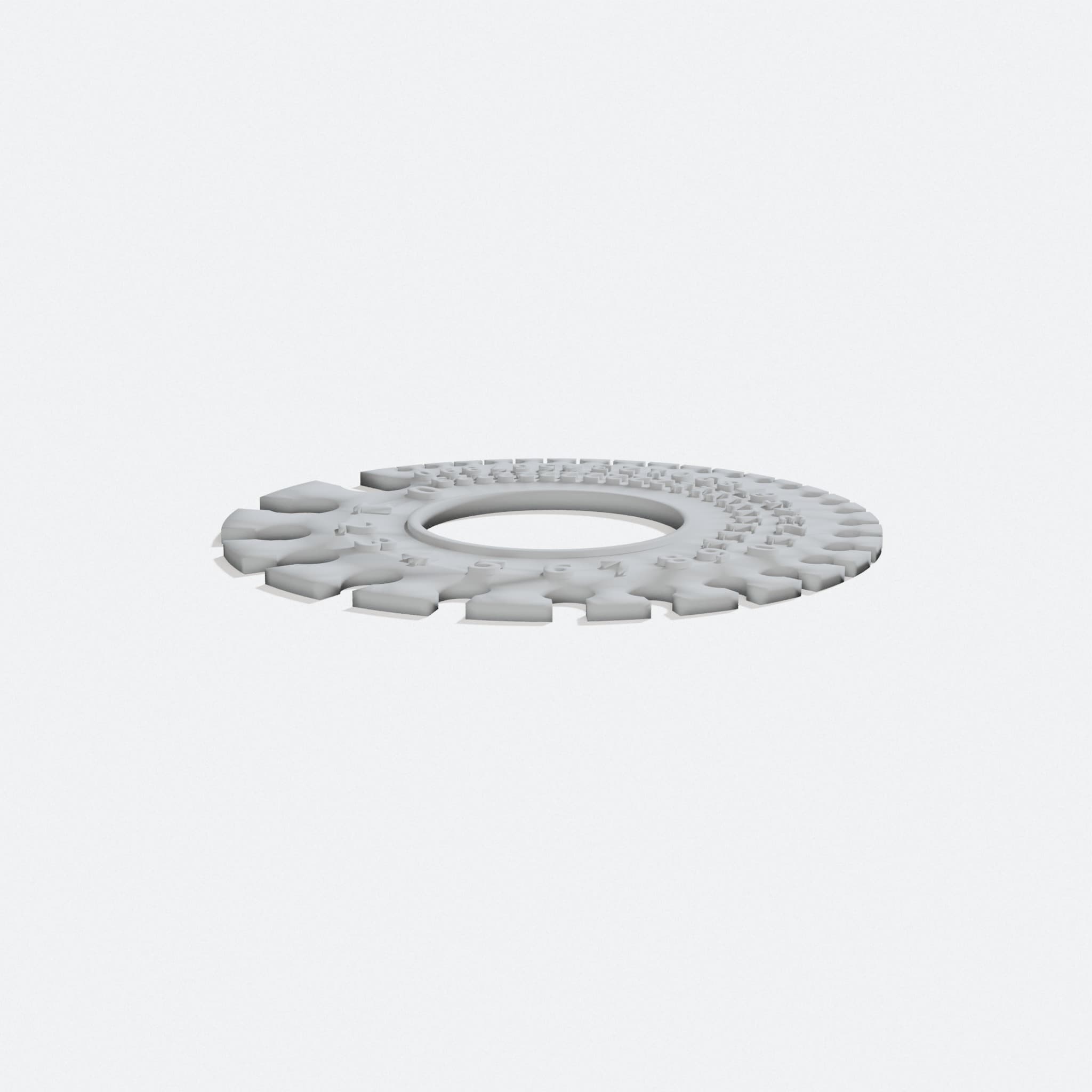

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

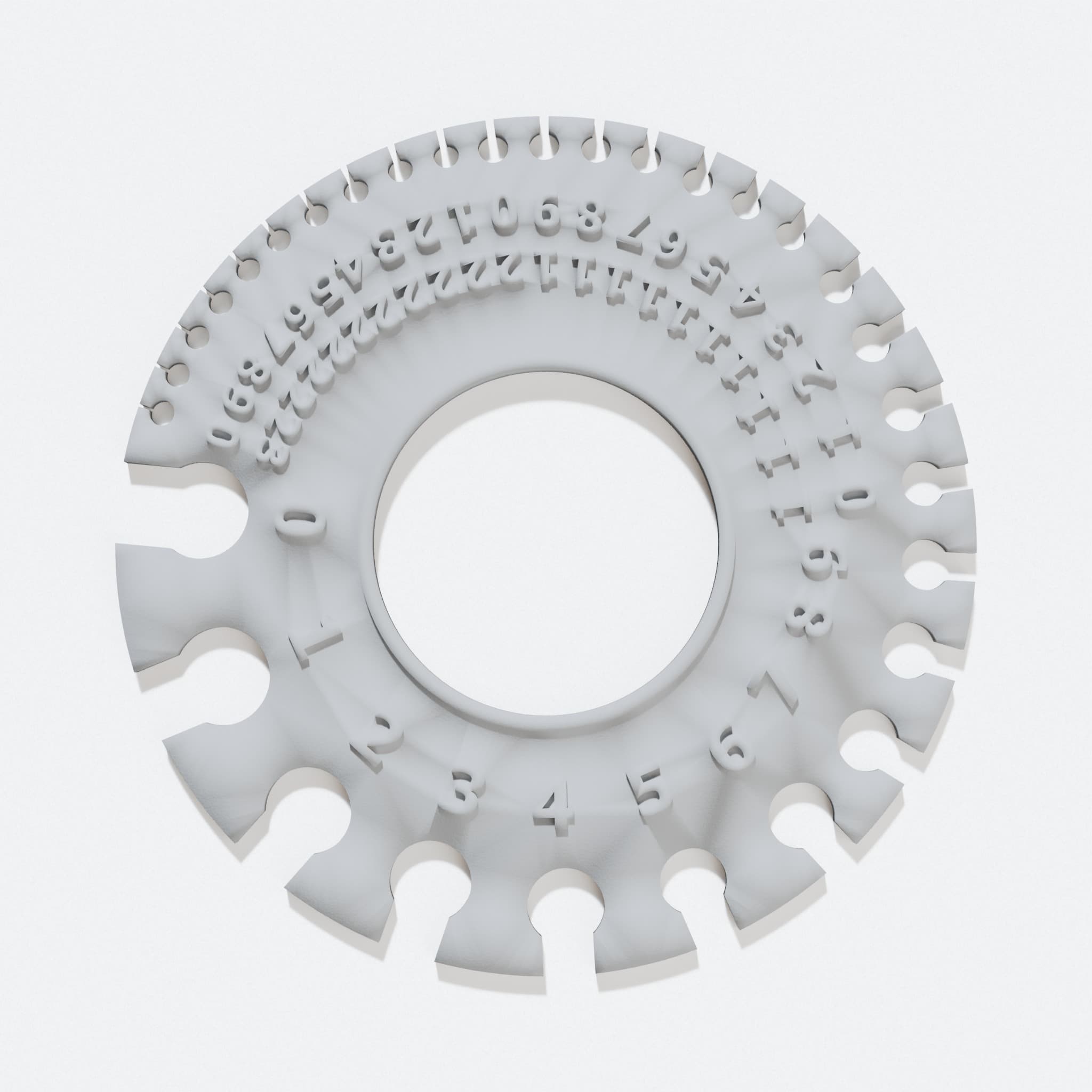

  • Wire gauge tool sized to American Wire Gauge standard
  • Sizes from AWG-0 through AWG-30
  • A staple for electronics, jewelry, and arduino work
  • Doubles as a printer calibration test piece
  • Saves you from guessing wire diameter on builds

You strip a wire, slip it into the right gauge slot, and the AWG number reads instantly. This wire gauge tool measures wires from AWG-0 to AWG-30, sized exactly to the American Wire Gauge standard.

The accuracy of your gauge depends on your printer calibration. The tool also doubles as a calibration test piece: if AWG 25-30 print closed, you know your printer needs flow tuning.

Use it for arduino projects, electronics work, jewelry making, and any wire-based build.

Not affiliated with, endorsed by, or sponsored by Arduino. Arduino and its product names are trademarks of their respective owners.

3.4k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
