Carpenter's Square with Ruler, Escuadra Layout Tool Display

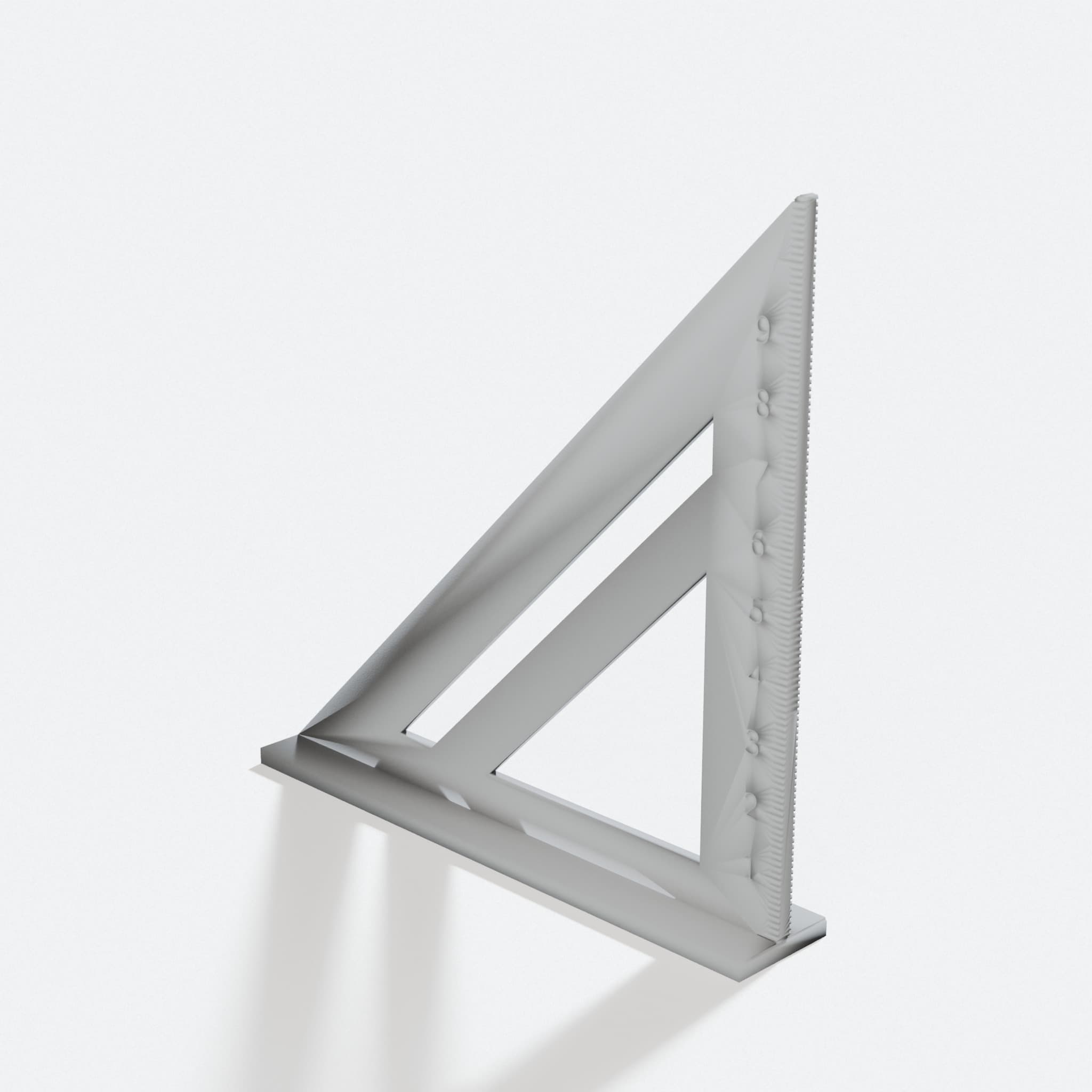

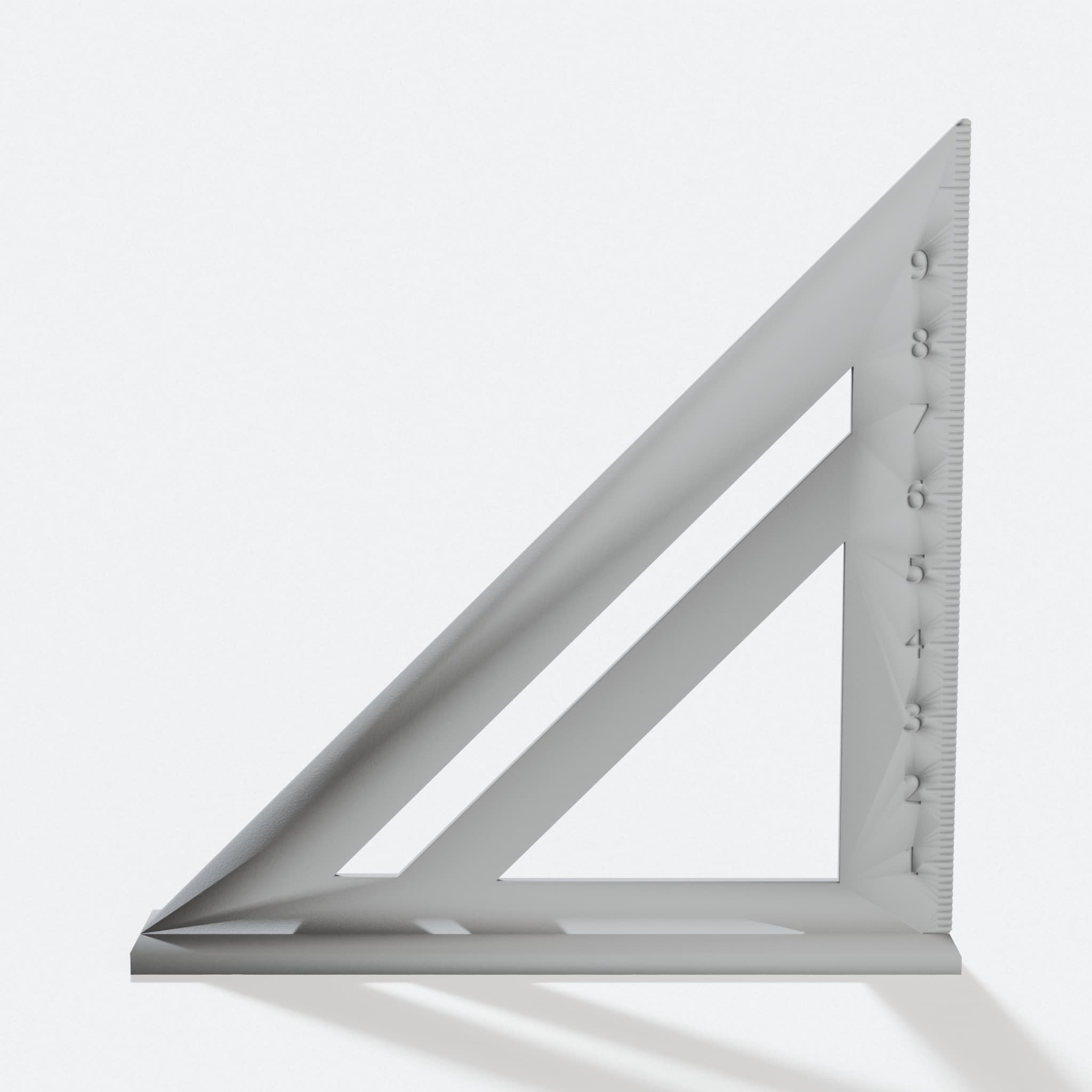

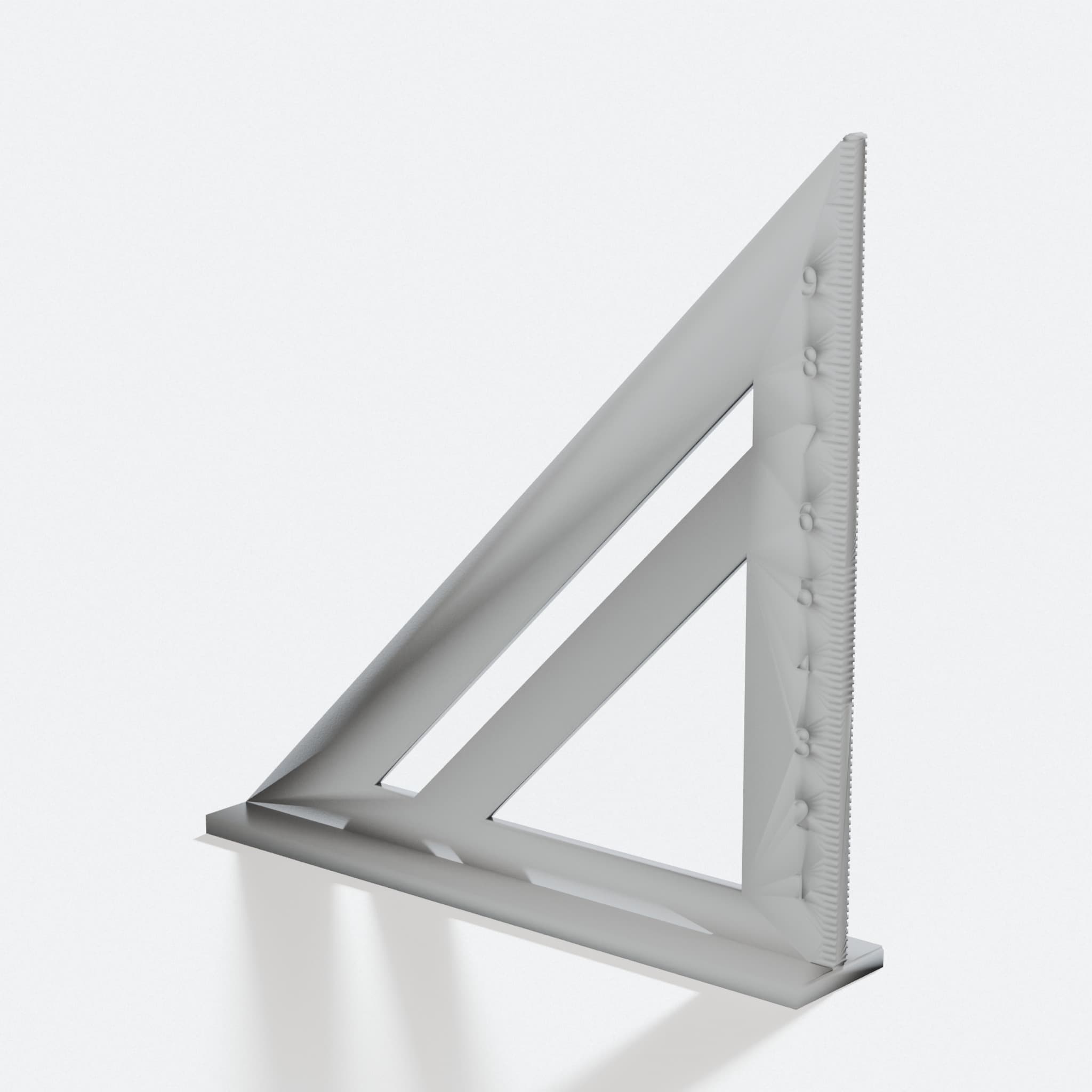

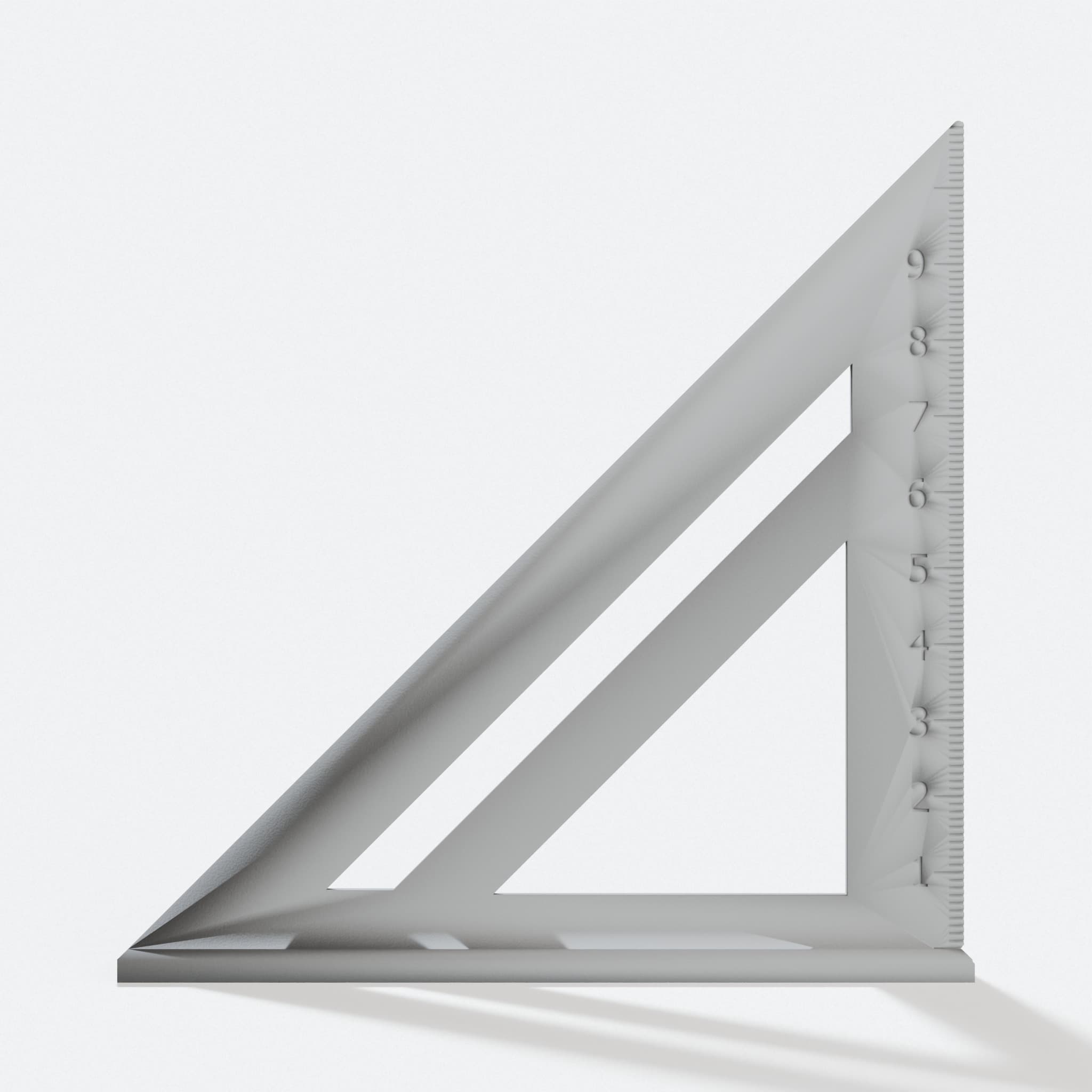

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Square shape with an integrated ruler so you can see layout marks at a glance
- Corner form gives it a workshop tool look so it stands out on a shelf or pegboard
- Made to order in the USA after you order, so it starts as your own piece
- Compact profile so it fits on a workbench or tool wall with room to spare
Across a workbench or tool wall, this carpenter's square brings a classic workshop shape into view. Known as the Escuadra, it takes the form of a right-angle square with a ruler built into its edge, styled after the layout tools carpenters have used for ages.
The corner shape and marked edge give it a clear, recognizable look. You can set it out on a shelf, hang it near your other tools, or use it as a display piece that shows off its square design and ruler detailing.
Each one is made to order in the USA after you place your order. This listing is not affiliated with or endorsed by any tool brand.
2.2k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
More like this
Precision Measuring Tool Set - 3D Printed Workshop Tools
Design library
Resistor Lead Forming Tool, 3D Printed Workshop Helper
Design library
Center Finder Tool for Wood, Mark Perfect Midpoints Every Time
Design library
Hot Glue Gun Stand for Small Glue Guns, Compatible with Prusa
Design library
Drilling Jig with Integrated Dust Collector
Design library
Support for Dremel 4000, 3D Printed Workshop Tool
Design library
Cross Tweezer for Soldering, Normal Spring Tension
Design library
Bit Organizer for Dremel Rotary Tool Bits and Discs
Design library
Who made this design
Designed by Martinno. We did not draw it.
Shared under Creative Commons, credit required. See the original design
