Support Plate Base for ATX Breakout Board Benchtop Power

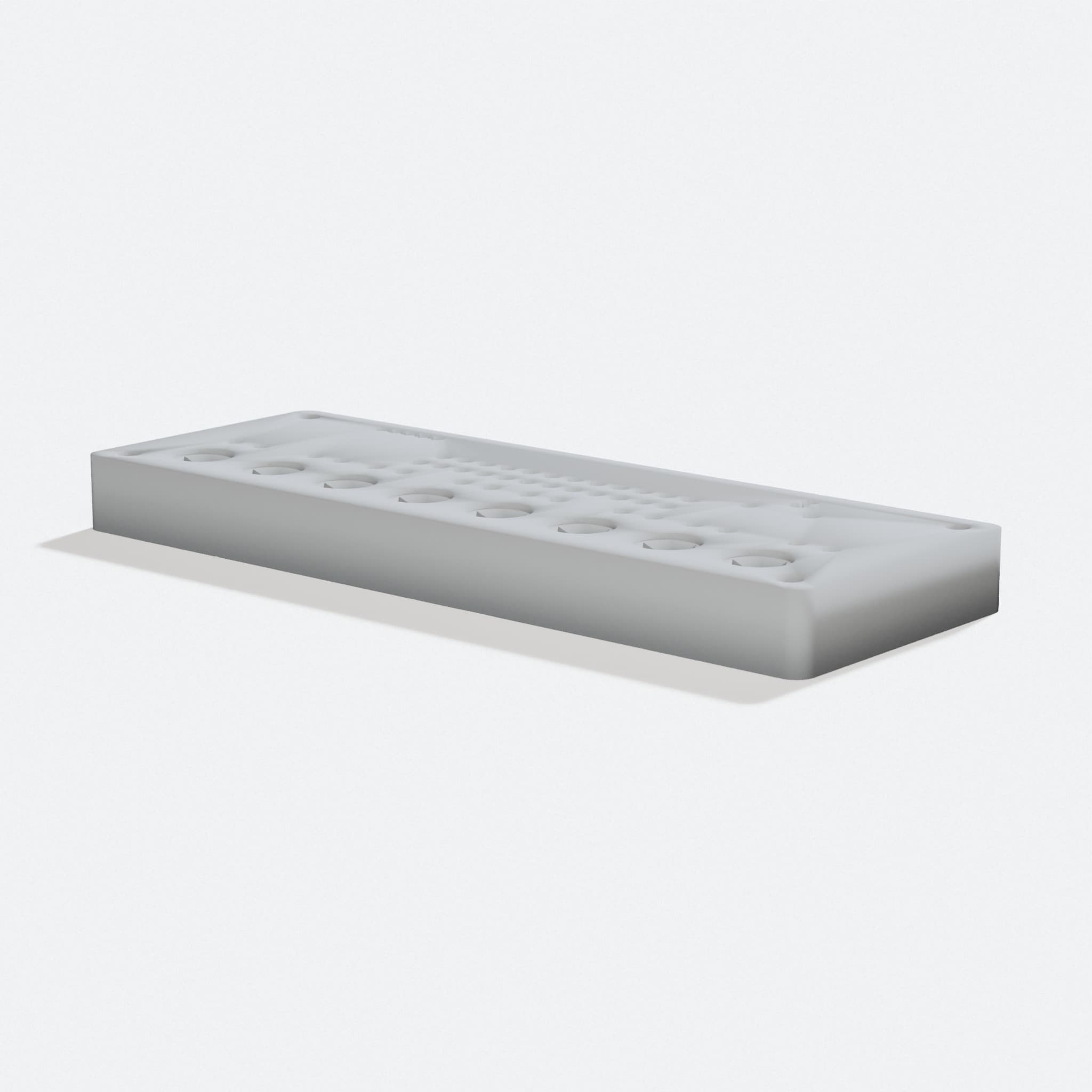

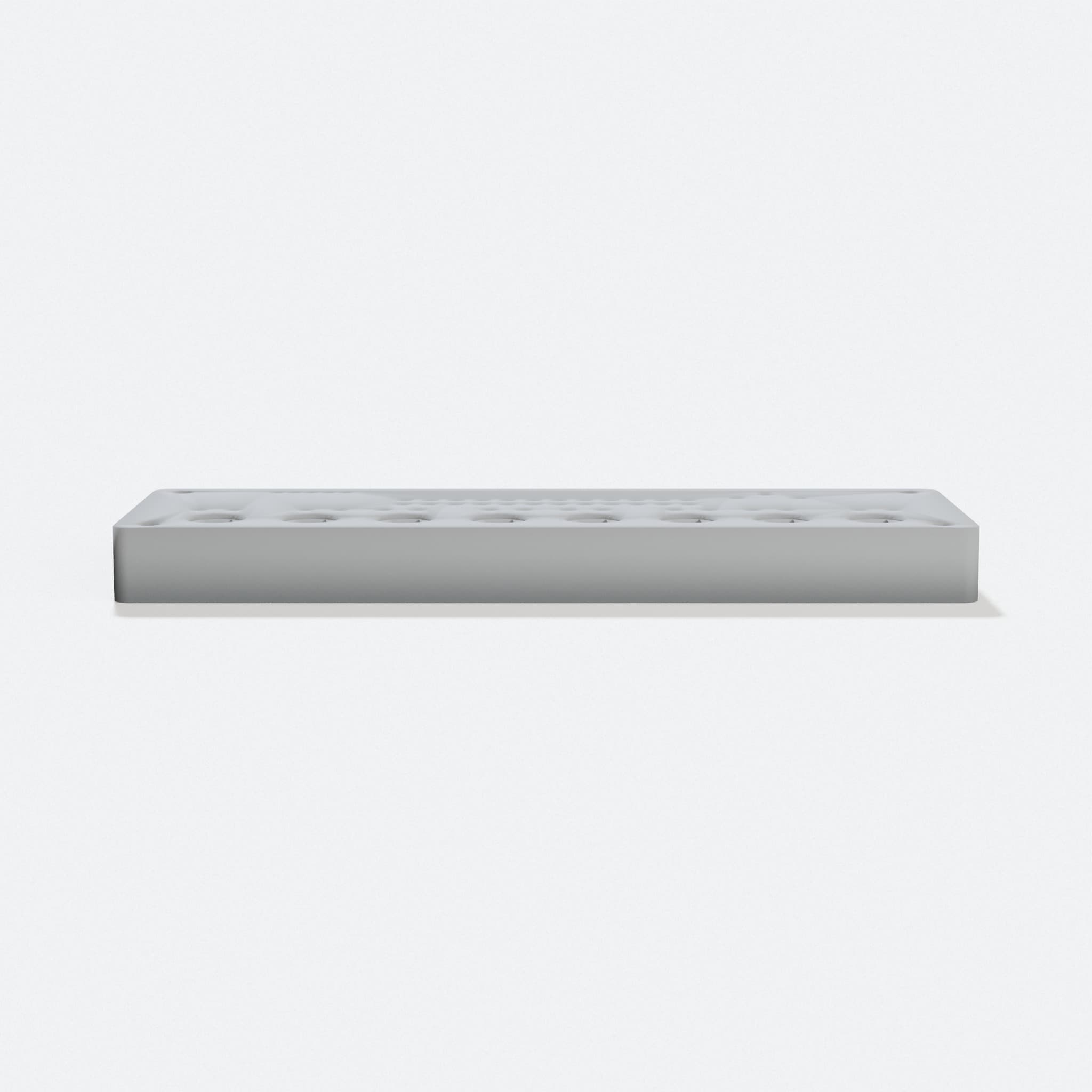

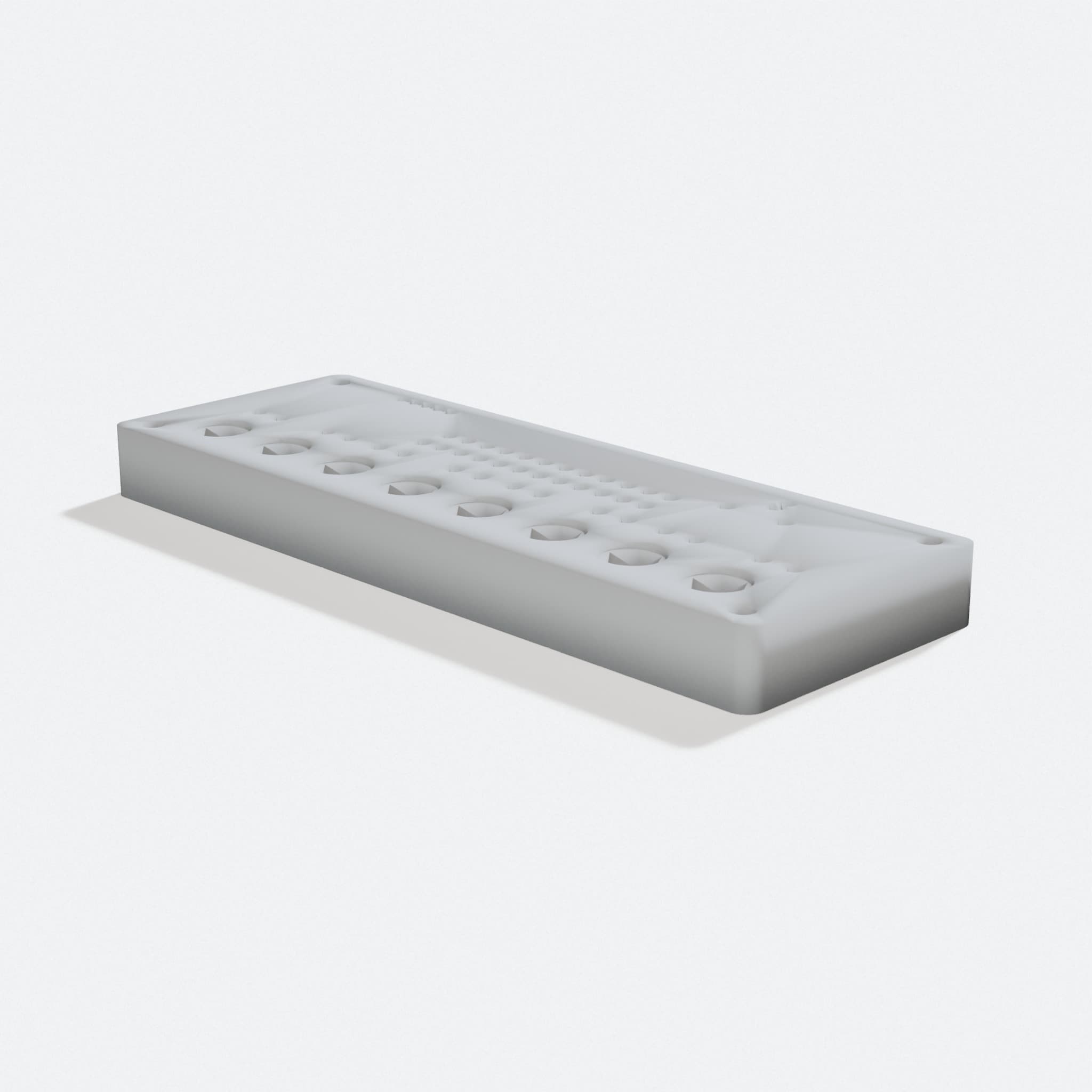

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Flat plate shaped to back the ATX breakout board's terminal area
- Fixing points line up with the board so you can mount it to your bench
- Open layout leaves the terminals exposed for wiring access
- Made to order in the USA after you place your order
- Sized for a generic ATX breakout board used in benchtop power setups
Terminal strips on an ATX breakout board sit exposed unless you give them a base. This support plate sits under your benchtop power breakout board, giving the terminals and board a flat surface to rest against.
The plate carries fixing points that match the board's mounting holes, so you can attach the board to the plate before setting up your bench power supply. The layout leaves the terminal screws reachable for wiring, while the board itself gets a flat surface along its length.
This is a support plate only, shaped for a generic ATX breakout board setup. It does not include a cover or a PSU mounting bracket. Check that your board matches a standard ATX breakout board layout before you order.
558 downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
