Angled Hex Bit Organizer for Tool Drawers

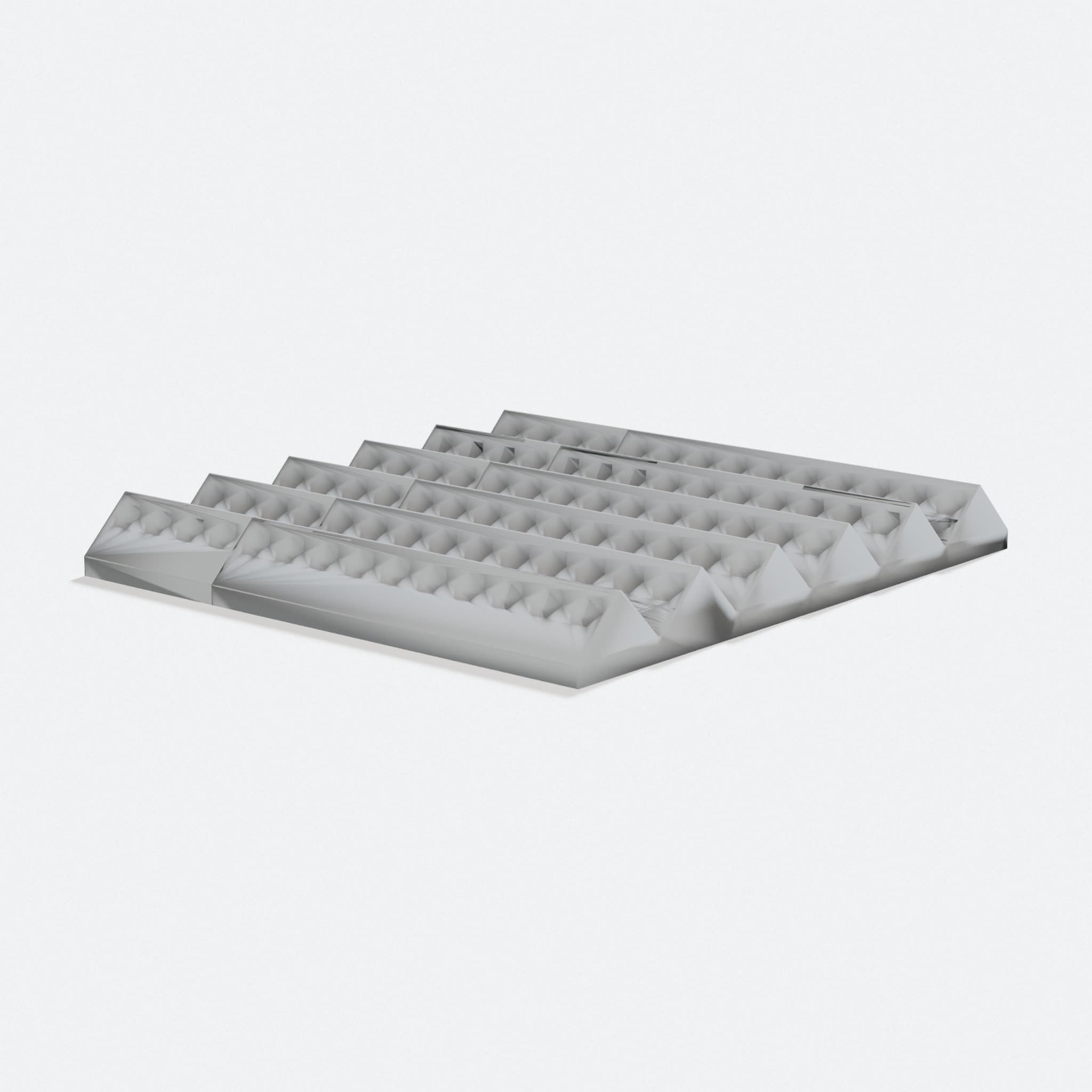

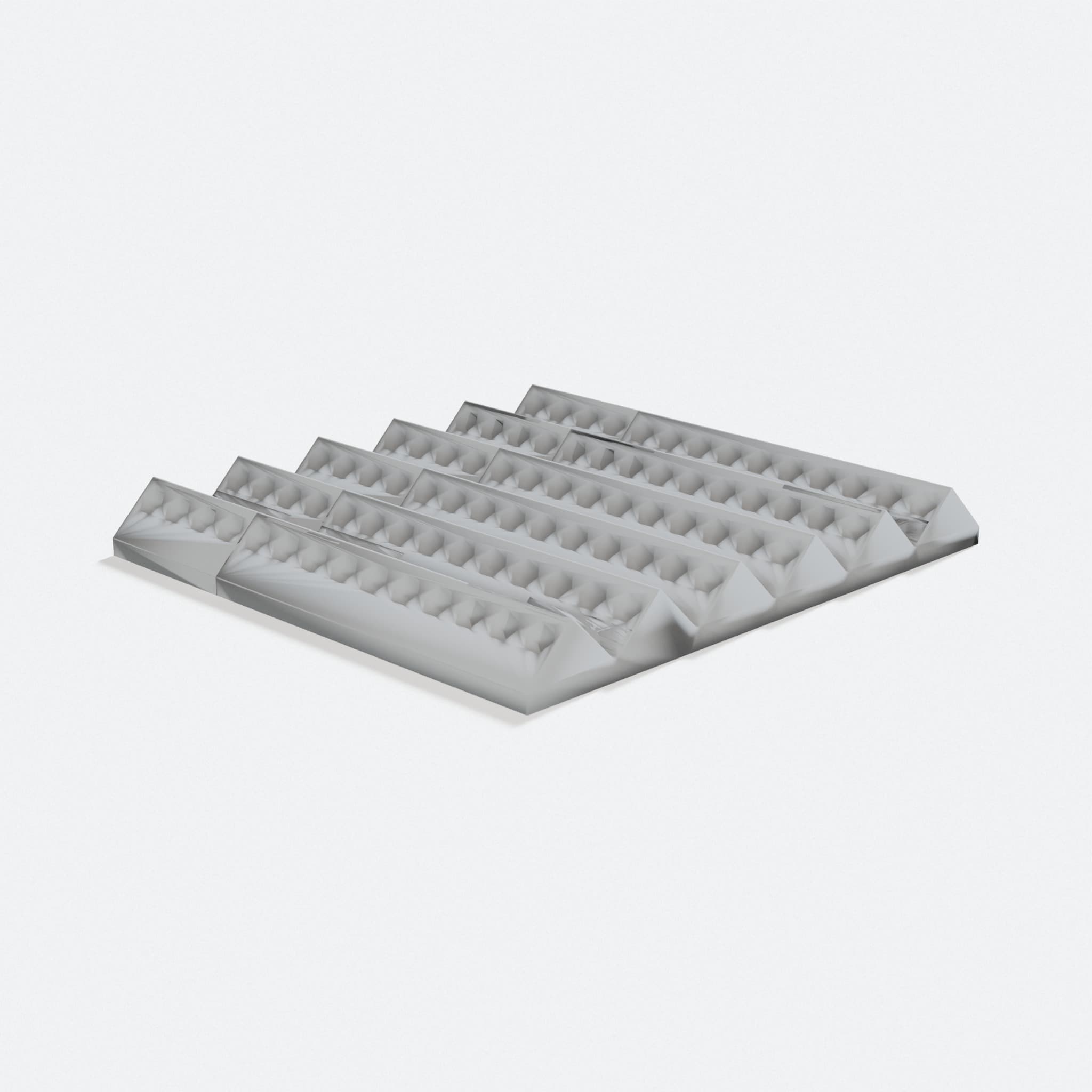

Angled Hex Bit Organizer for Tool Drawers, design preview, turn three quarter

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Holds hex bits at an angle to fit short tool drawers
  • Available in 10-bit and 14-bit wide versions
  • Saves drawer height where vertical holders do not fit
  • Frees up bench and tool box space
  • A solution when standard upright bit holders are too tall

You open the tool drawer and the hex bits are organized again, even though the drawer is too short for upright holders. This angled organizer tilts the bits forward, so they fit drawers that vertical holders cannot.

Two sizes cover real tool kits. The 10-bit version handles a small daily-driver set, the 14-bit version covers a fuller mixed metric and SAE collection. Use them in shop drawers, tool boxes, or workshop cabinets.

A small upgrade that fixes a real problem with drawer storage.

3.1k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by wrong17. We did not draw it.

Shared under Creative Commons, credit and share alike. See the original design
