3D Printed Thickness Gauge 1mm to 10mm Workshop Tool

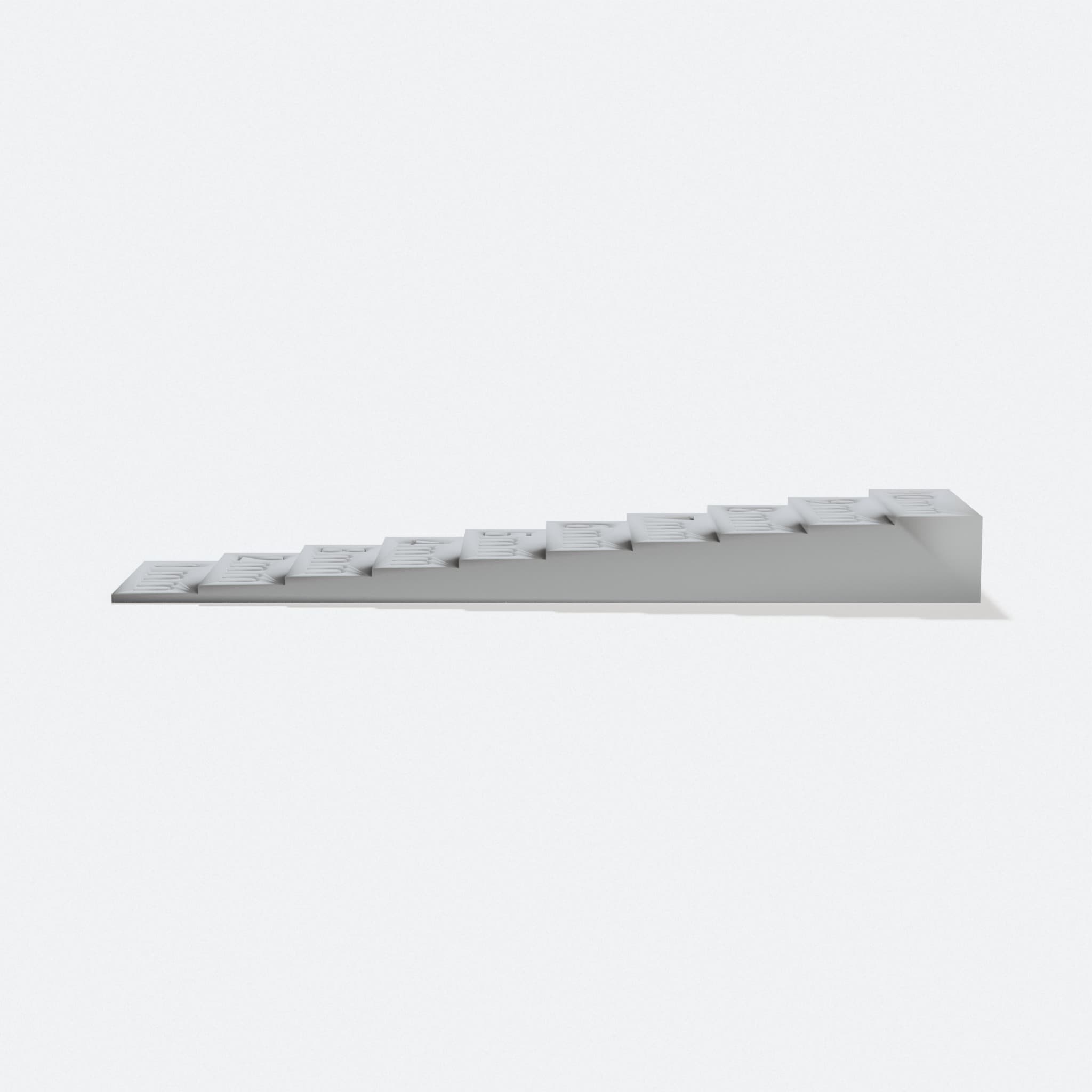

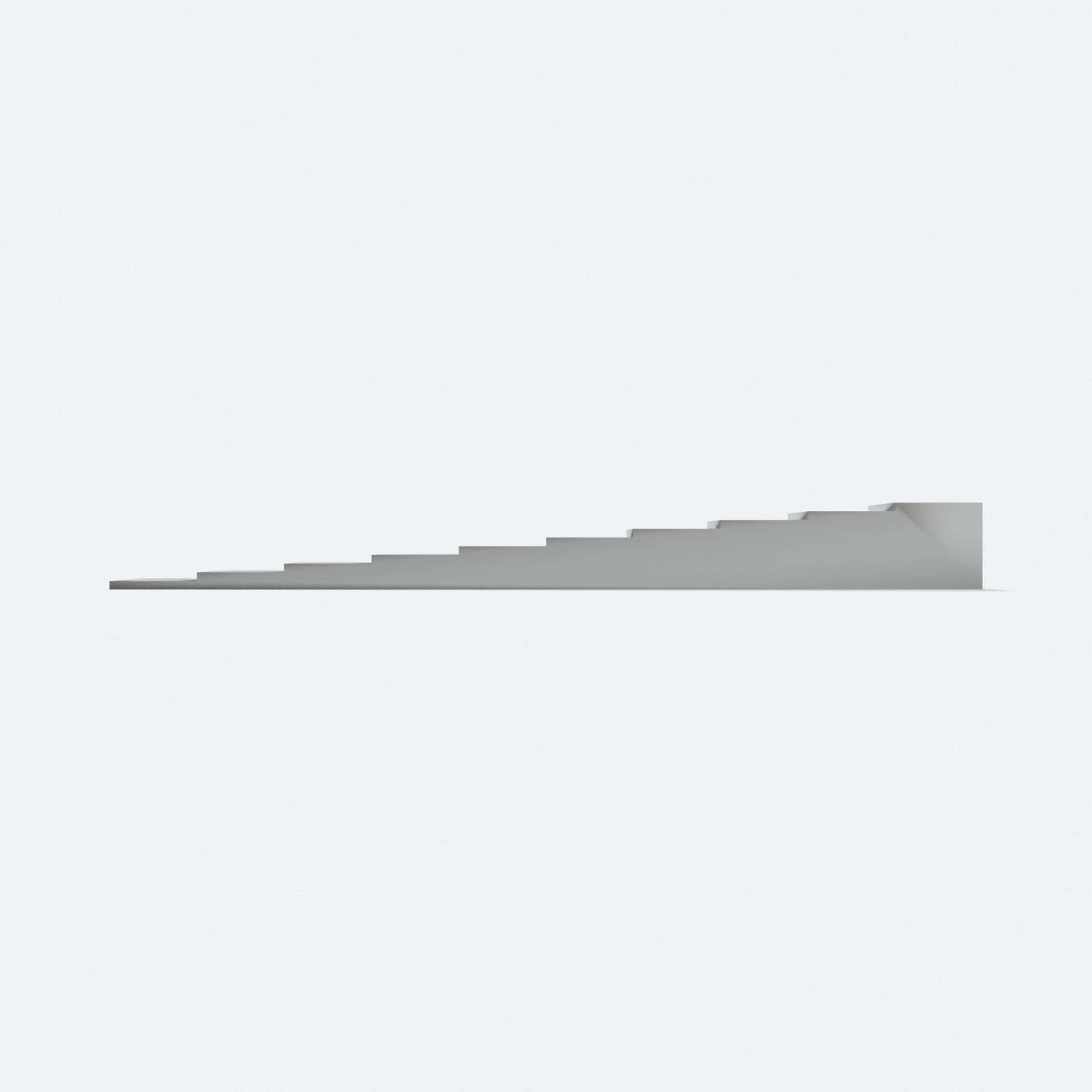

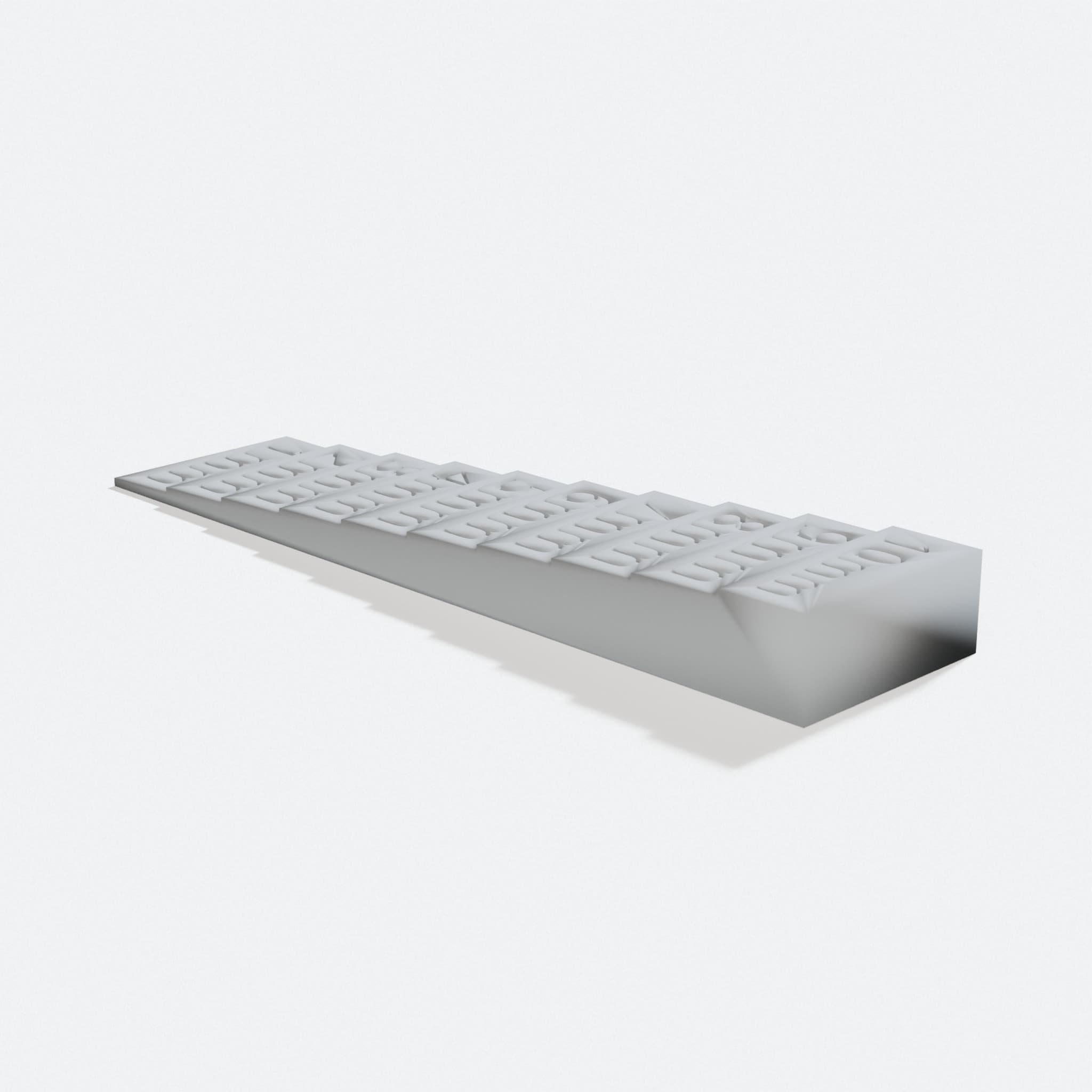

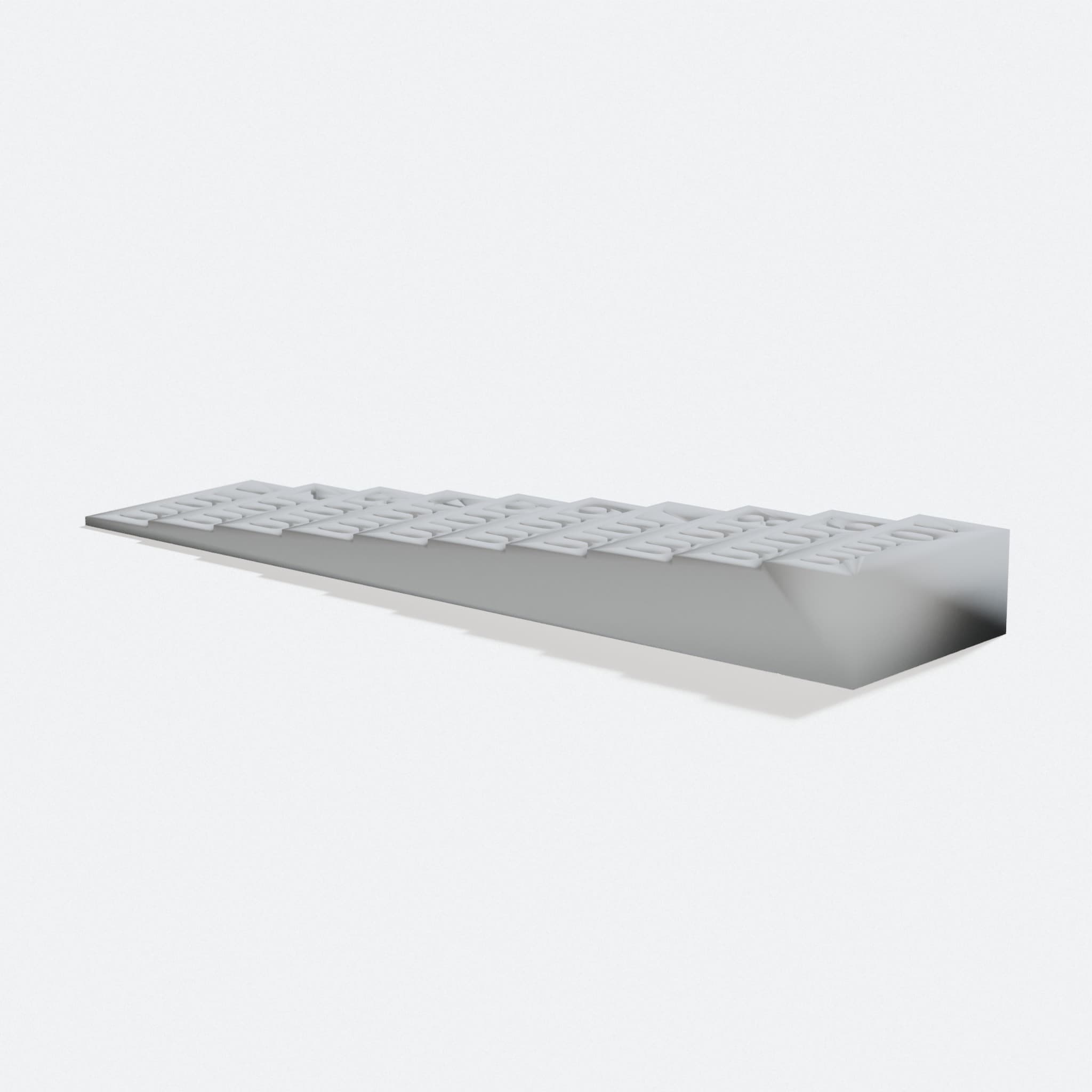

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Measures material thickness from 1mm to 10mm in easy 1mm steps so you know exact dimensions every time
- Simple design means you can use it right away without learning a complex tool
- Print on demand so you get a custom gauge made just for your workshop needs
- Fits in your hand and pocket, making it easy to carry between projects
You need to measure material thickness fast and accurate. This 3D-printed gauge gives you instant readings from 1mm to 10mm without guessing or pulling out complicated tools.

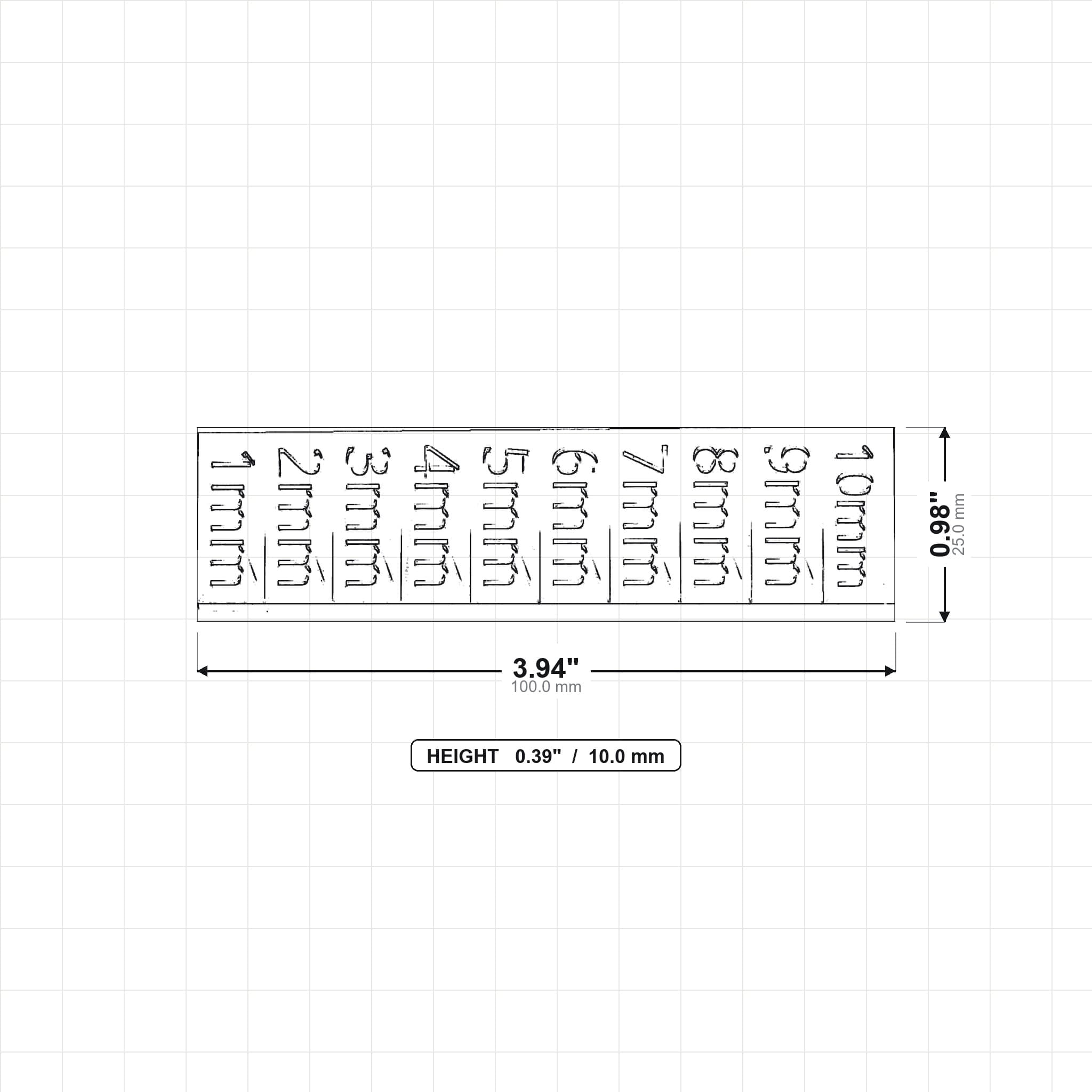

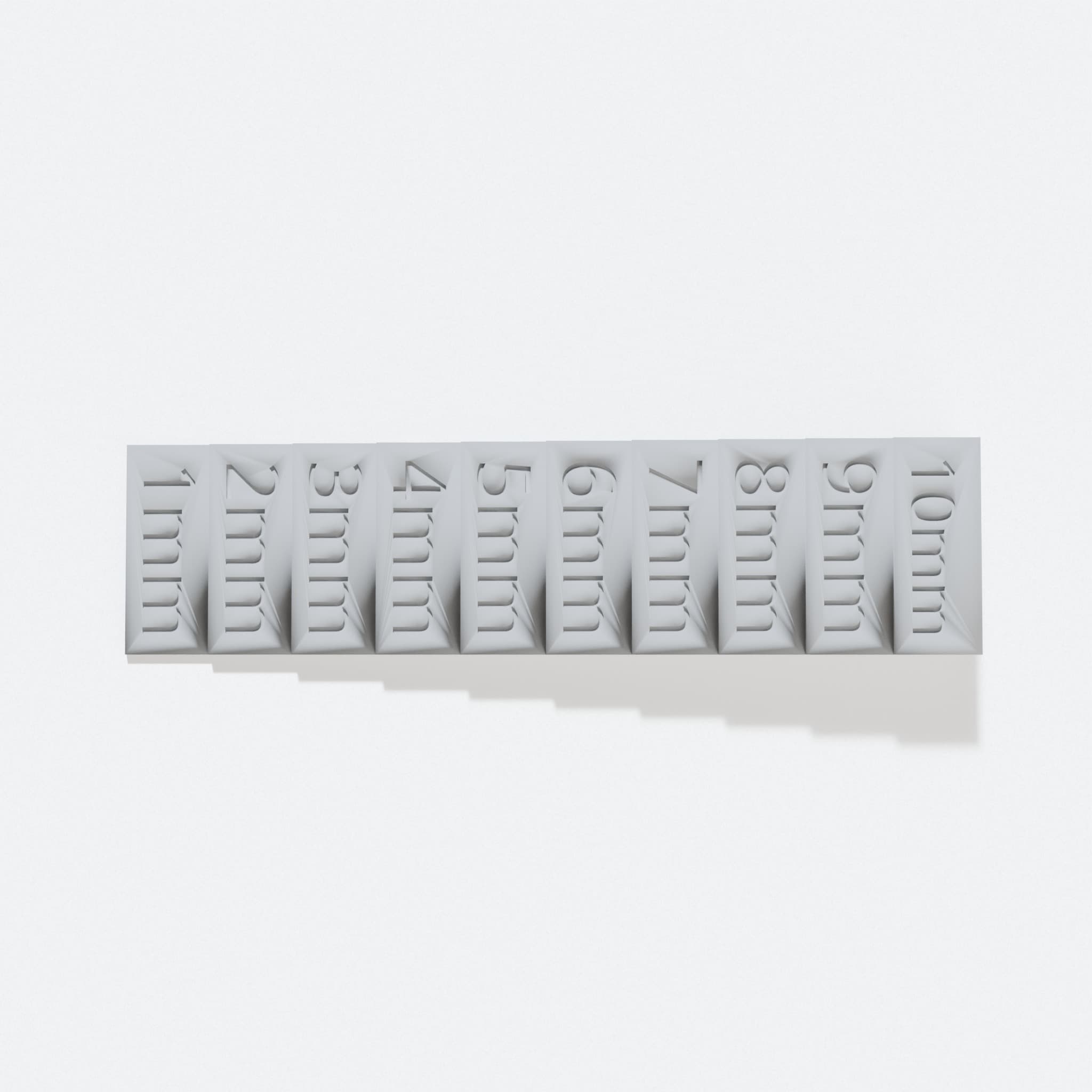

The gauge works like steps on a ladder. Each notch represents 1mm, so you can quickly compare your material to find the exact thickness. Just slide your material into the gauge and read the measurement right there. No math, no confusion, just the size you need to know.
Print this gauge at home or order it made for you. It takes minutes to produce and works great for wood, plastic, metal, and paper. Keep one in your shop, toolbox, or bag so you always have a thickness checker ready.
5.4k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
