3D Printed Soldering Jig for Workshop Tools

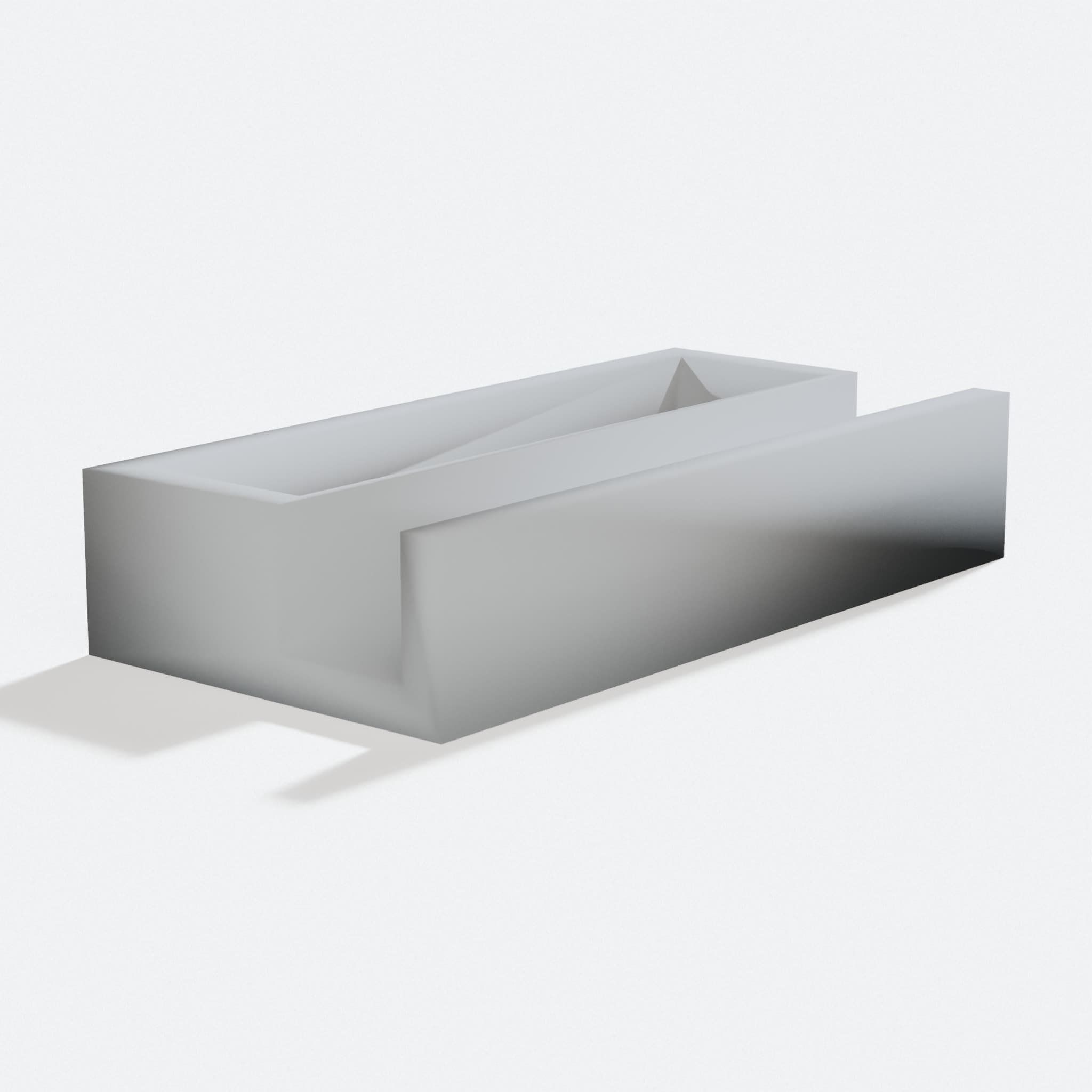

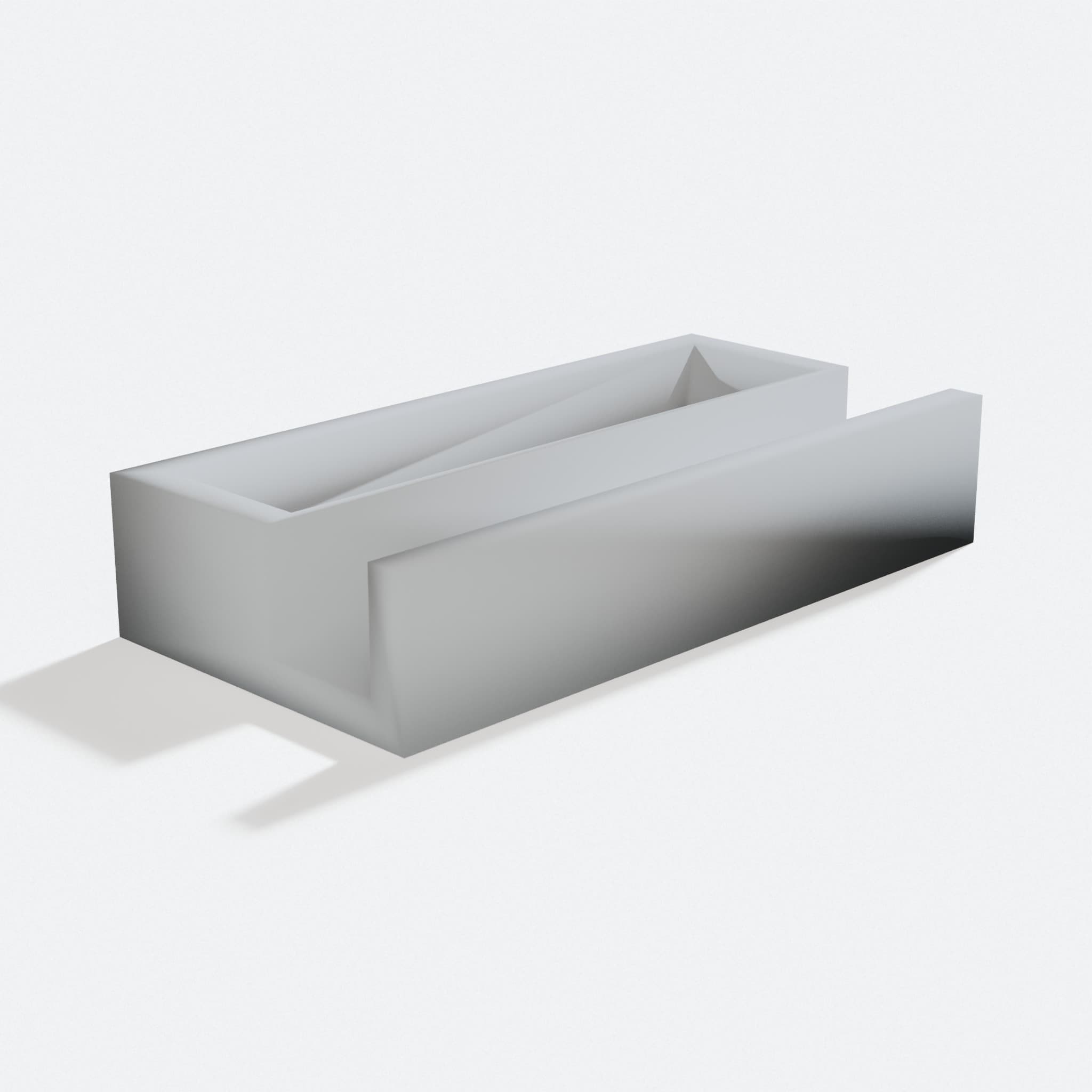

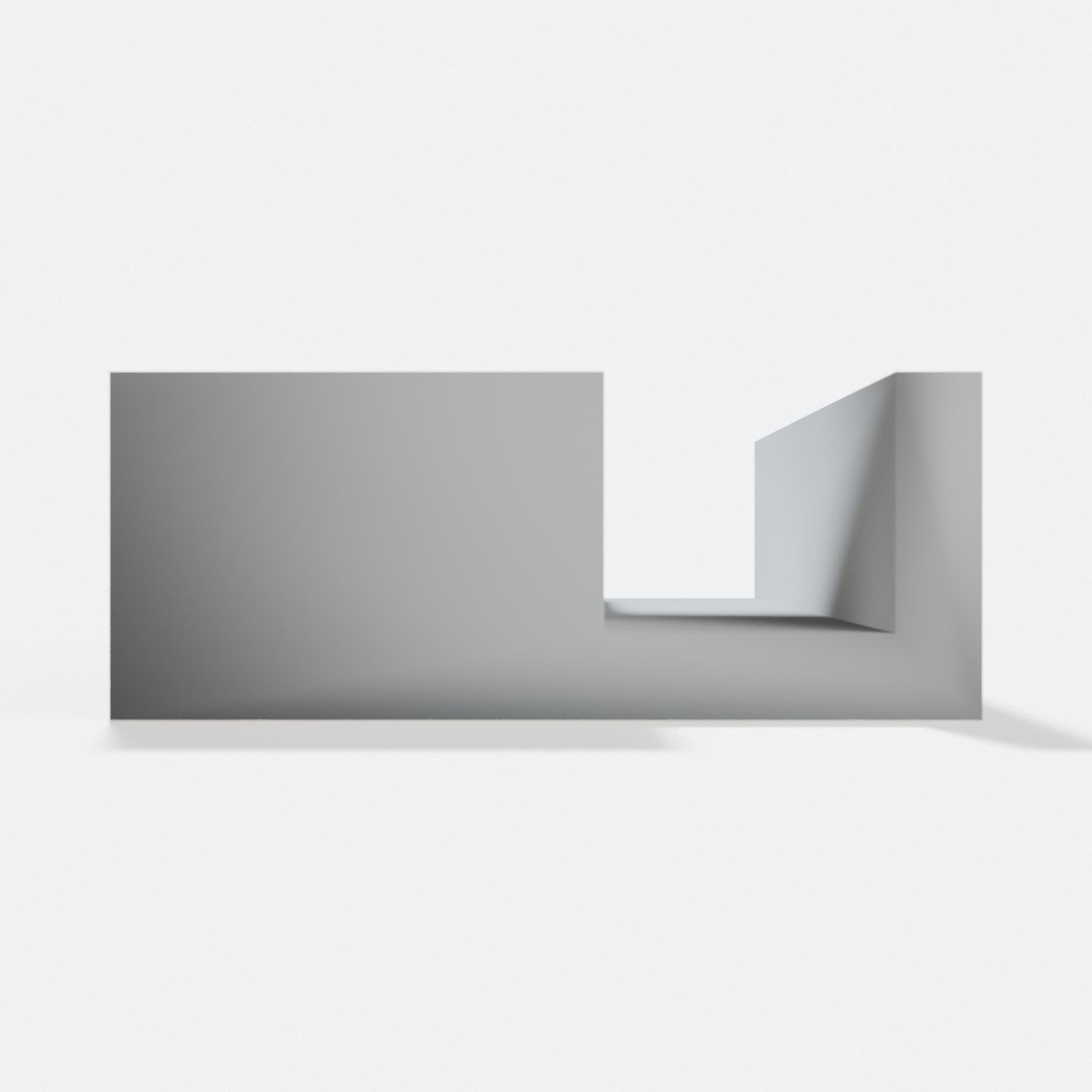

3D Printed Soldering Jig for Workshop Tools, design preview, hero tilt

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Holds your connector straight and level so it doesn't go in crooked
  • Speeds up assembly work, so you finish your projects faster
  • Works great for small batches and custom builds
  • Keeps both hands free for soldering, so you stay safer and more accurate

Get your connectors soldered straight the first time. This soldering jig holds through hole components exactly where they need to be, so your assembly goes smooth and fast.

Made from the US, this tool sits flat on your workbench and clamps your parts in place. You slide your connector in, and it stays put while you solder. No more crooked joints or wasted parts. Great for building robots, electronics kits, or any project with multiple connectors to install.

Perfect if you work on small batches or one-off builds. Skip the expensive factory tools and print what you need right now.

1.1k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by LucidOne. We did not draw it.

Shared under BSD. See the original design
