3D Printed PCB Holder Workshop Tool

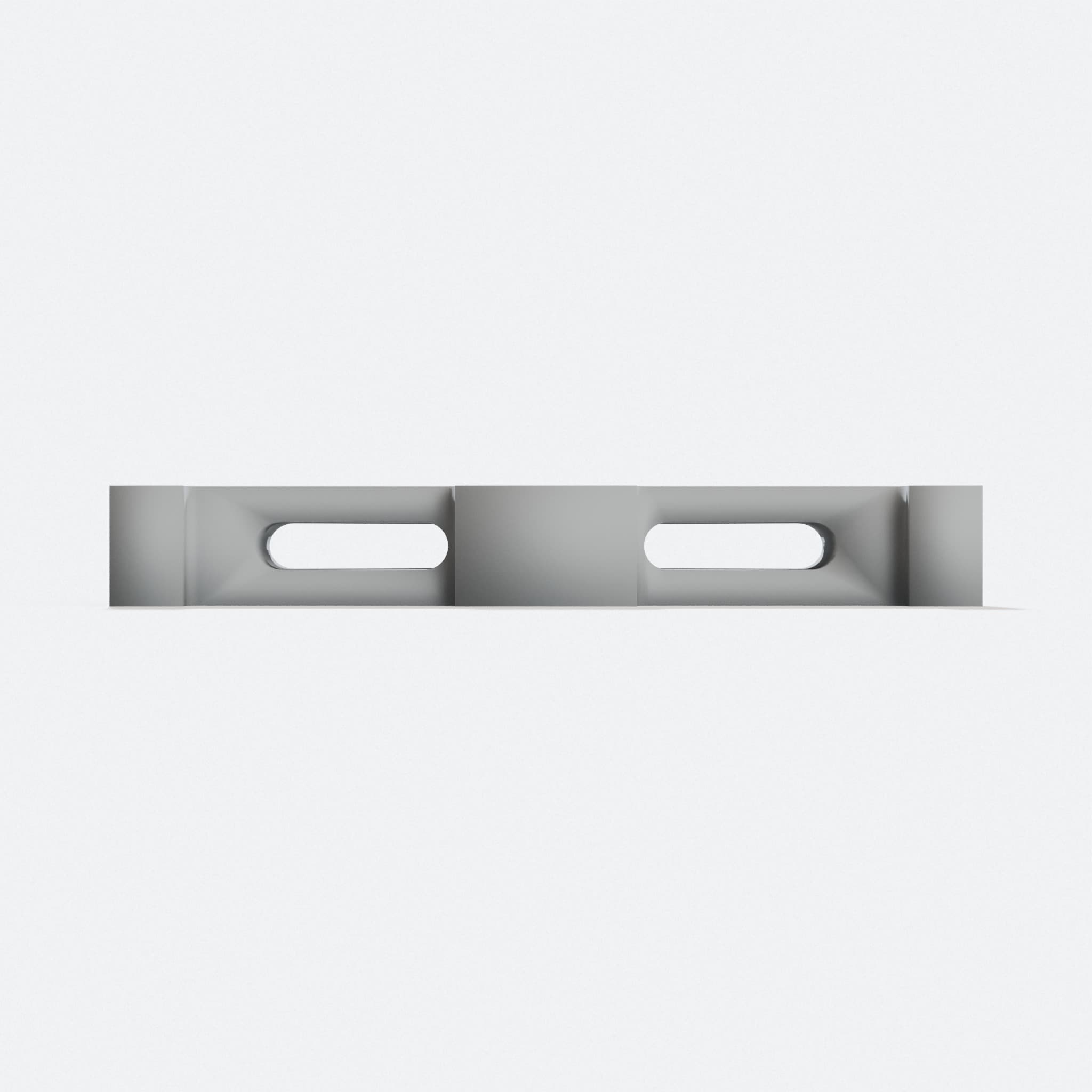

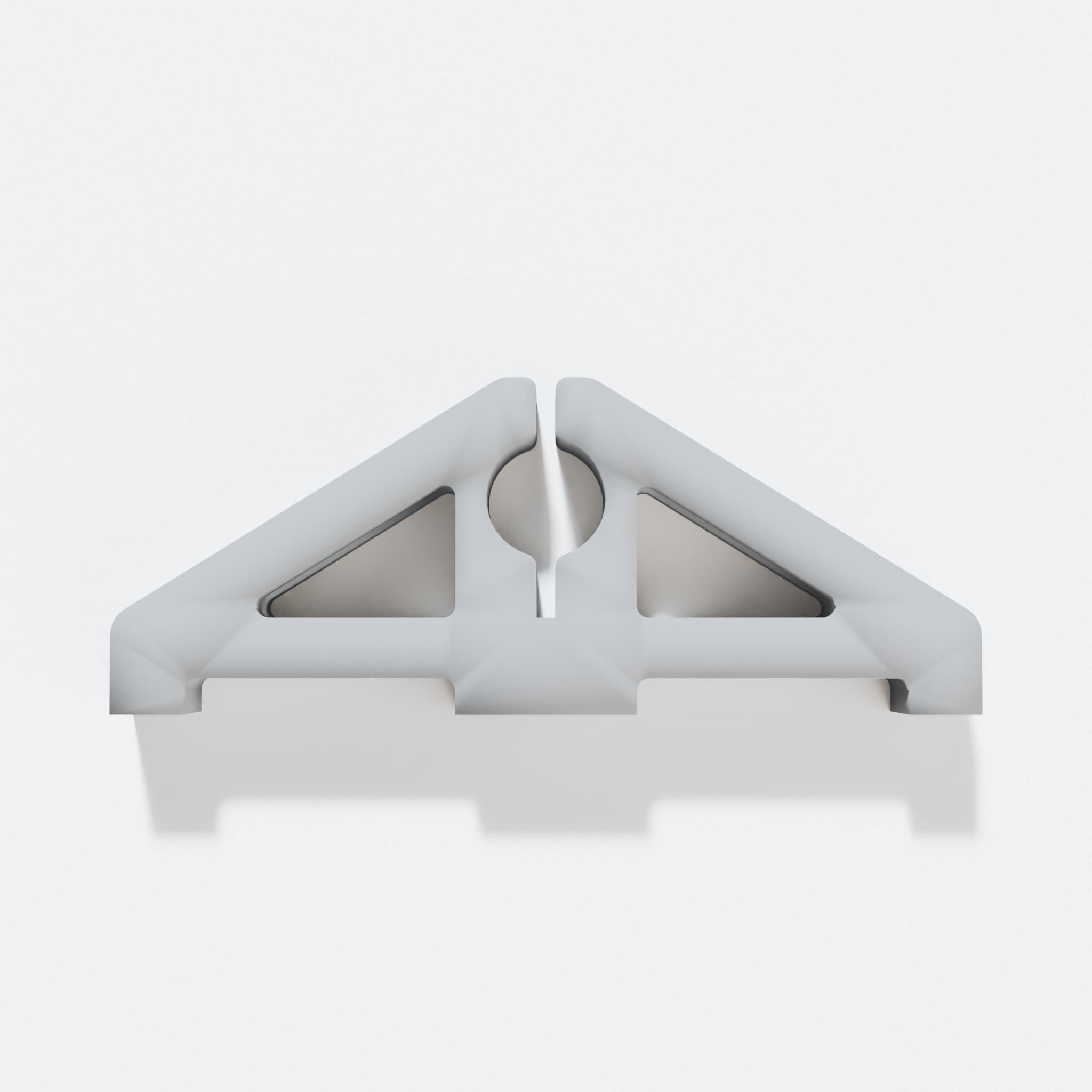

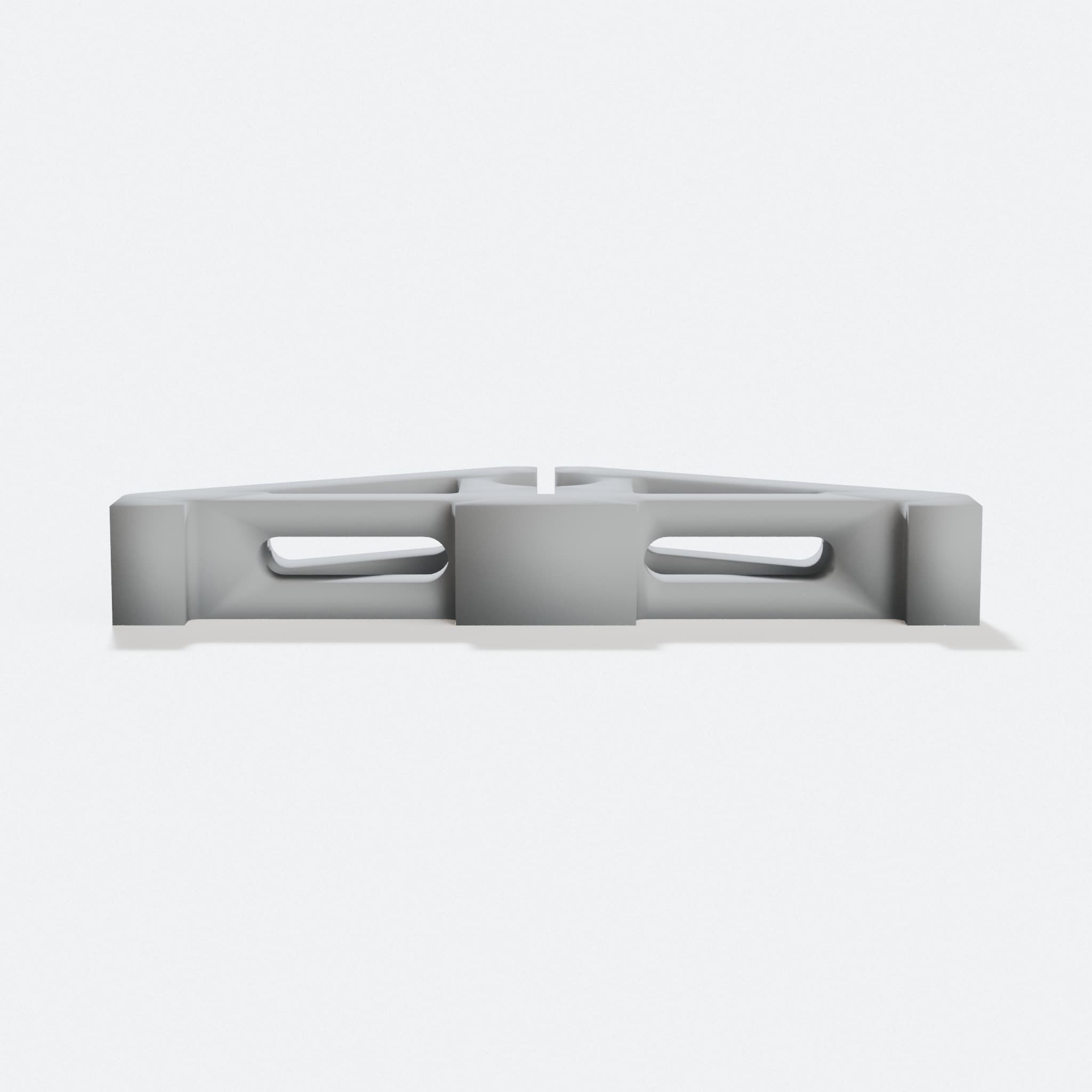

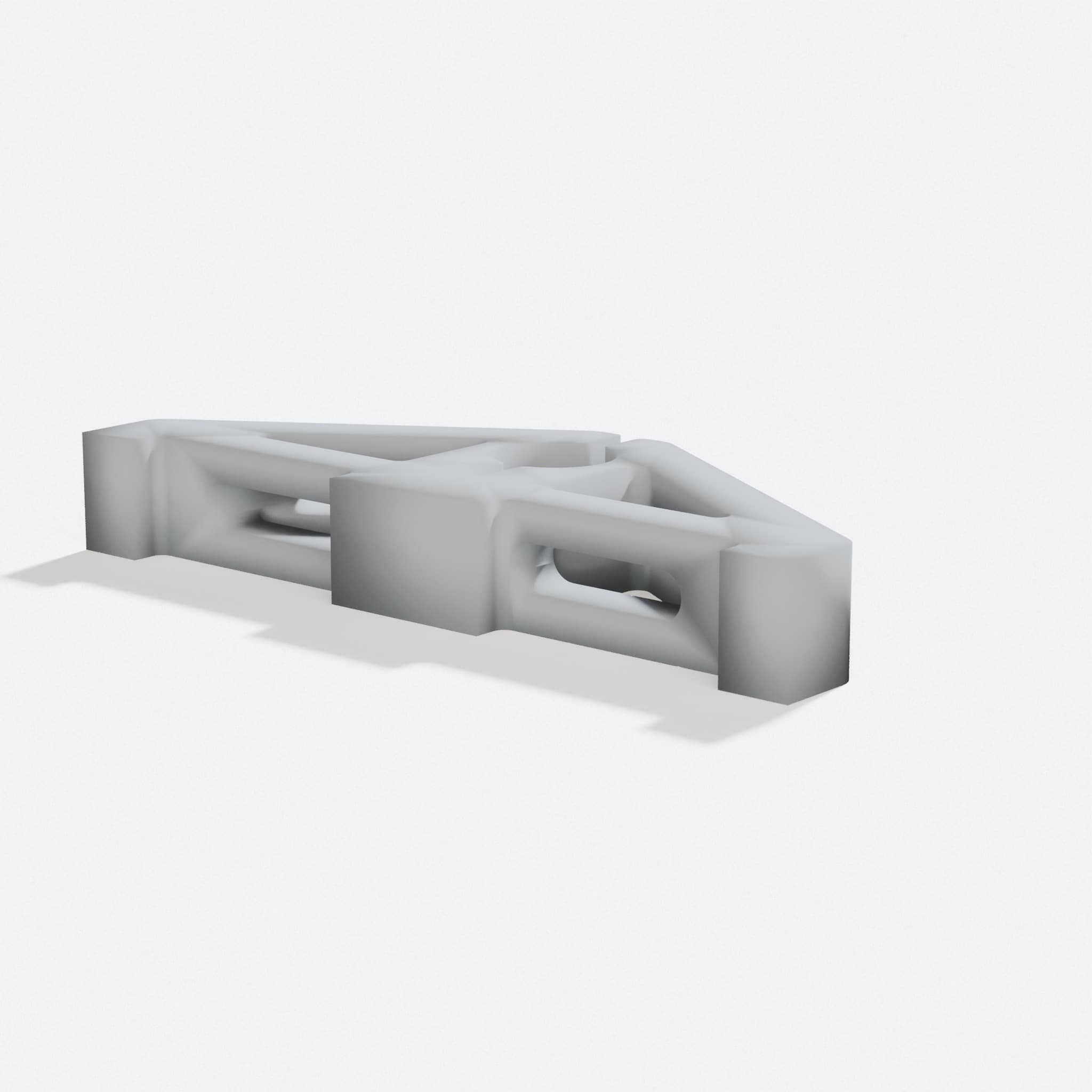

3D Printed PCB Holder Workshop Tool, design preview, turn three quarter

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Holds your circuit board steady at 1.6mm slot width so you can solder both hands free
  • Adjustable design lets you modify the slot thickness yourself to fit your boards
  • Print it on demand and have your custom holder ready to use in days

Your soldering work gets easier when your PCB stays put. This simple holder keeps your board steady and angled just right, so both your hands stay free for soldering, testing, and repairs.

The design is straightforward. A board slot cuts through at 1.6mm thickness, which fits standard PCBs. If your boards run thicker or thinner, you can adjust the slot size yourself before printing. That means you get exactly what you need, not a one-size-fits-all tool.

Print it on demand, and it ships to you ready to use. Set it on your workbench and get started.

620 downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by Holixus. We did not draw it.

Shared under BSD. See the original design
