3D Printed Drilling Guide with Dust Catch

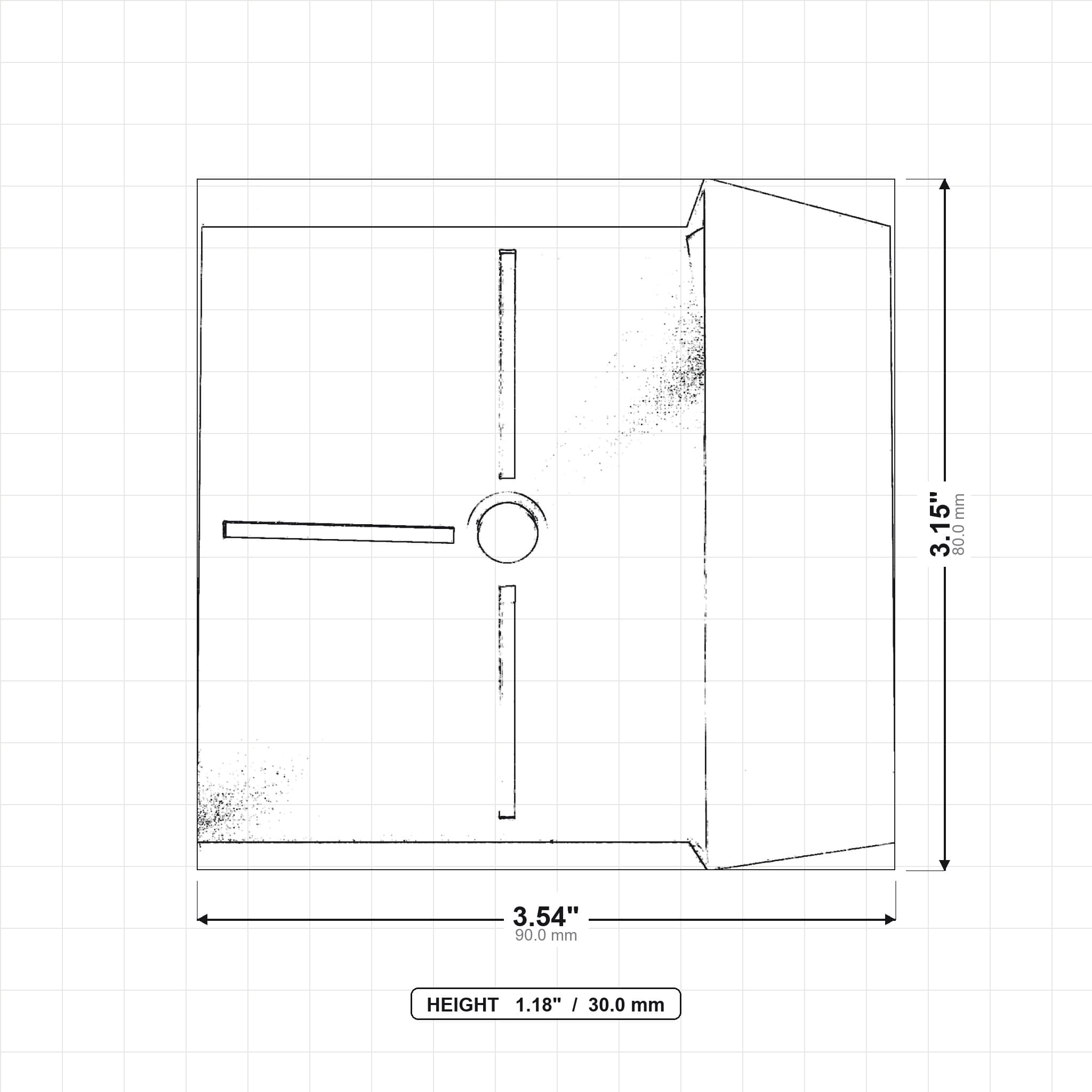

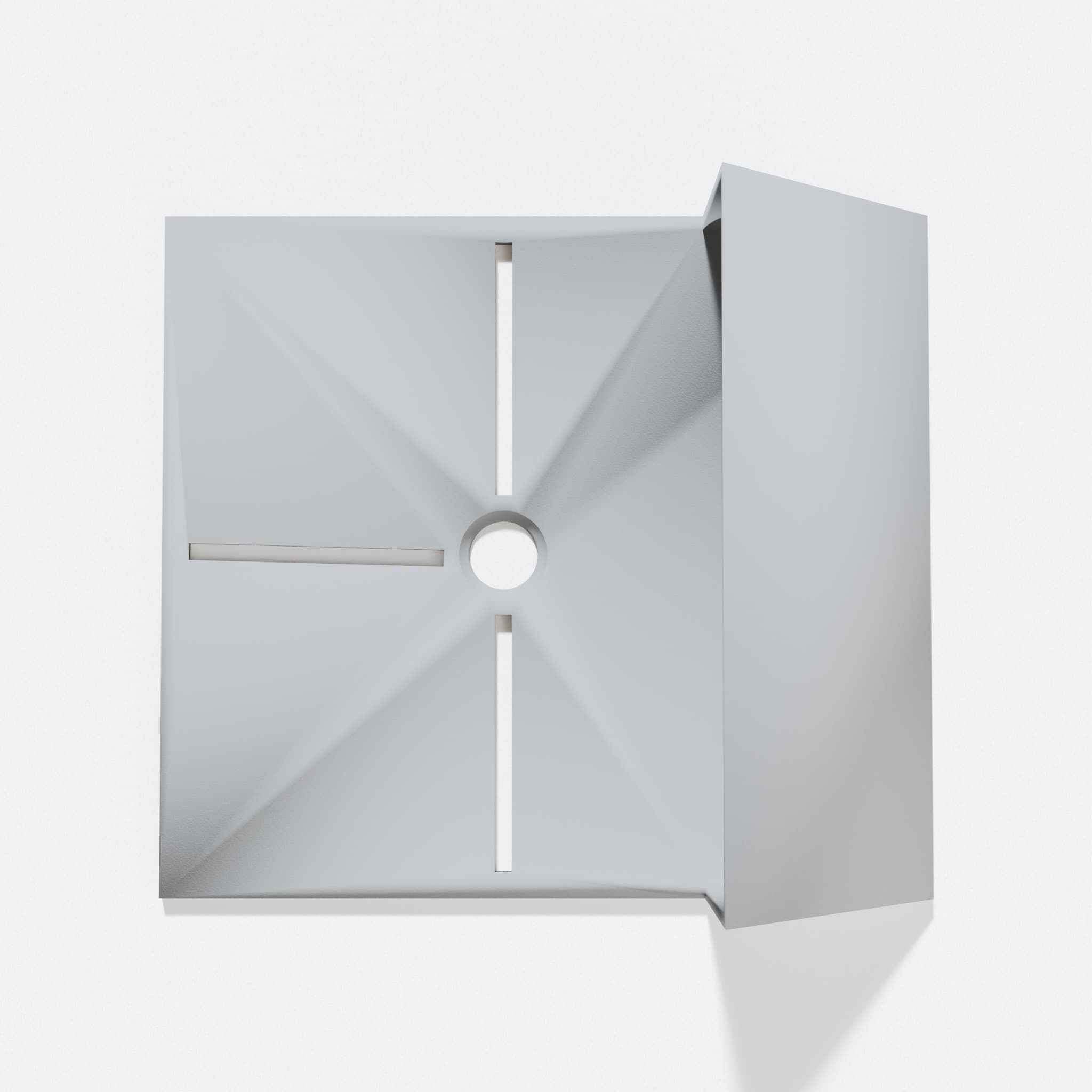

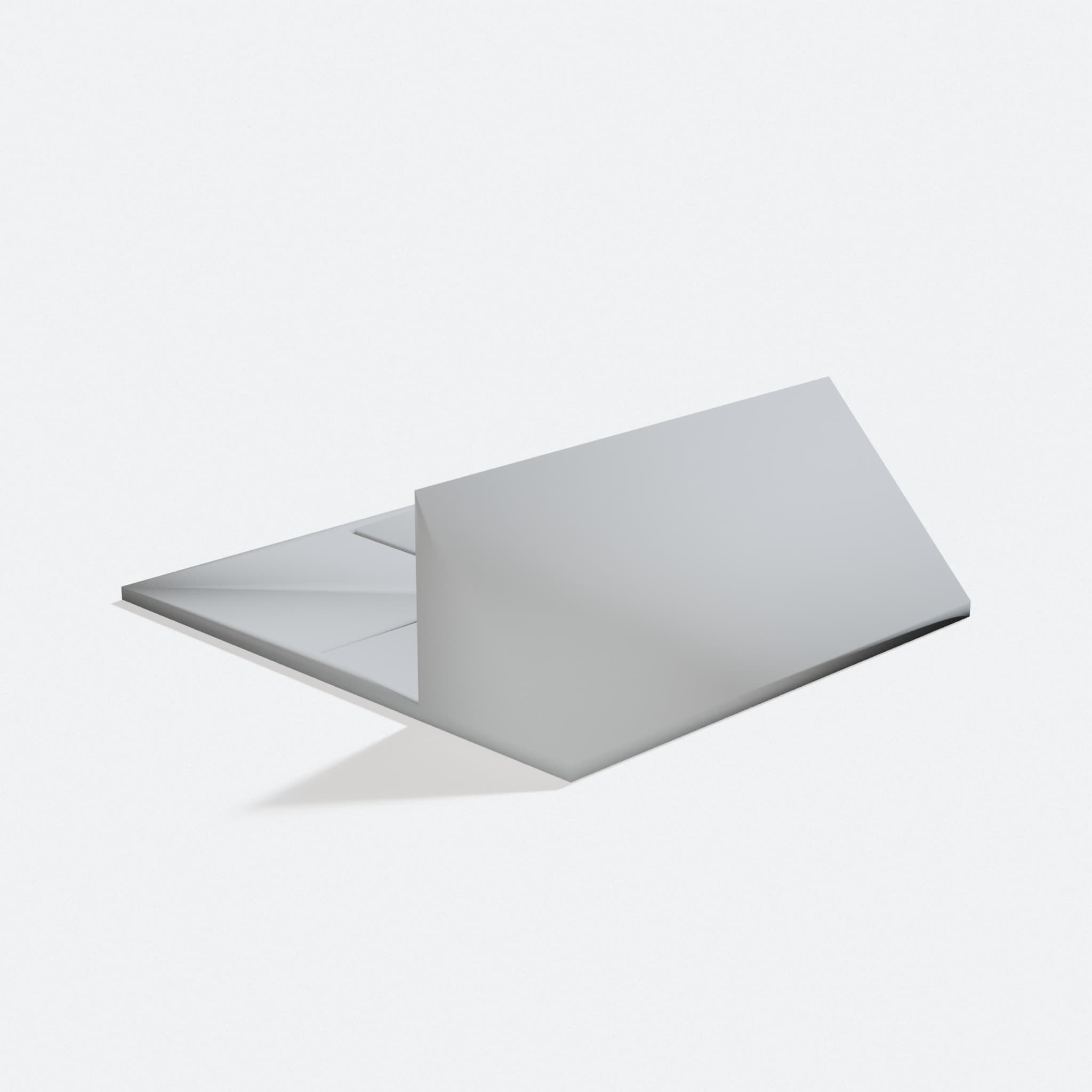

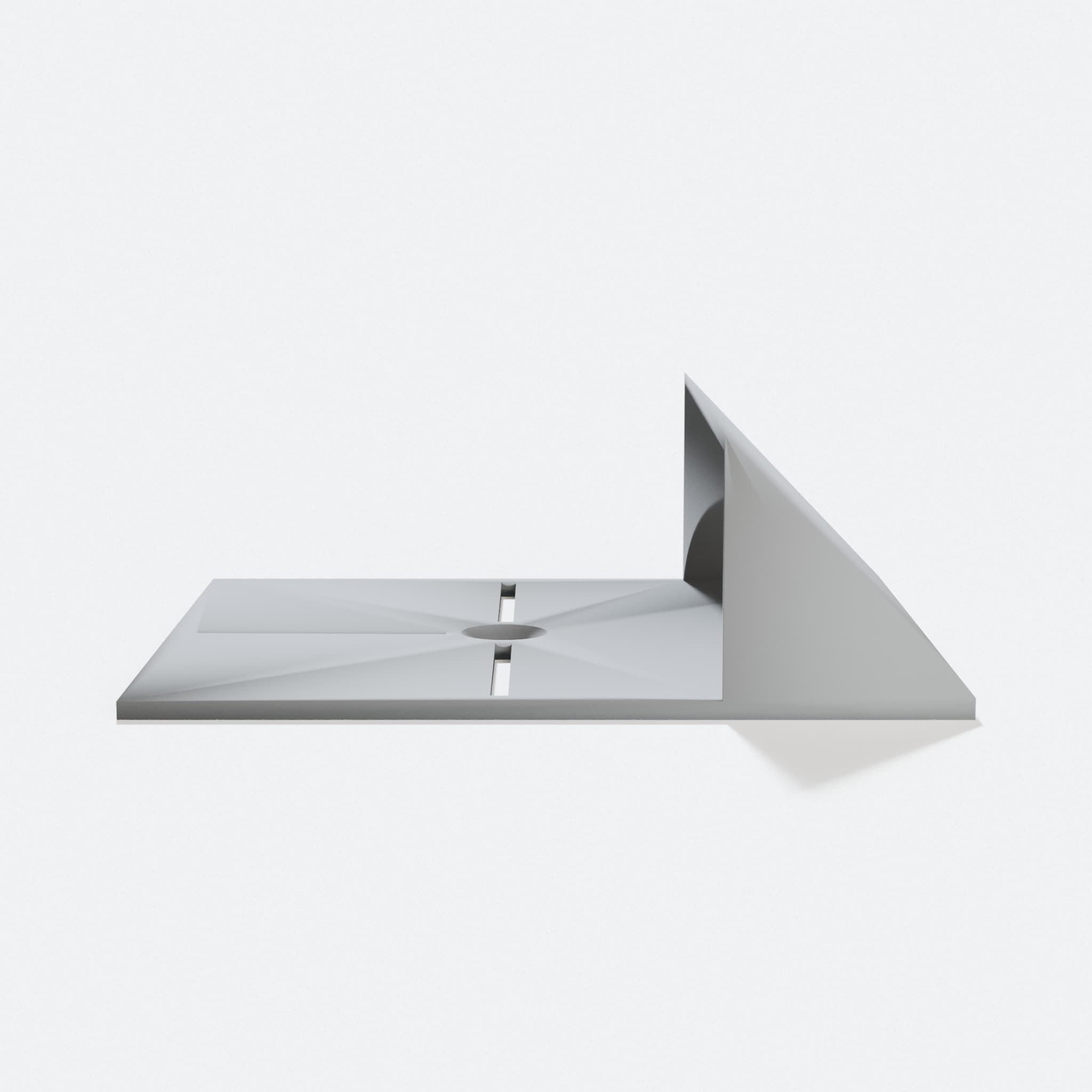

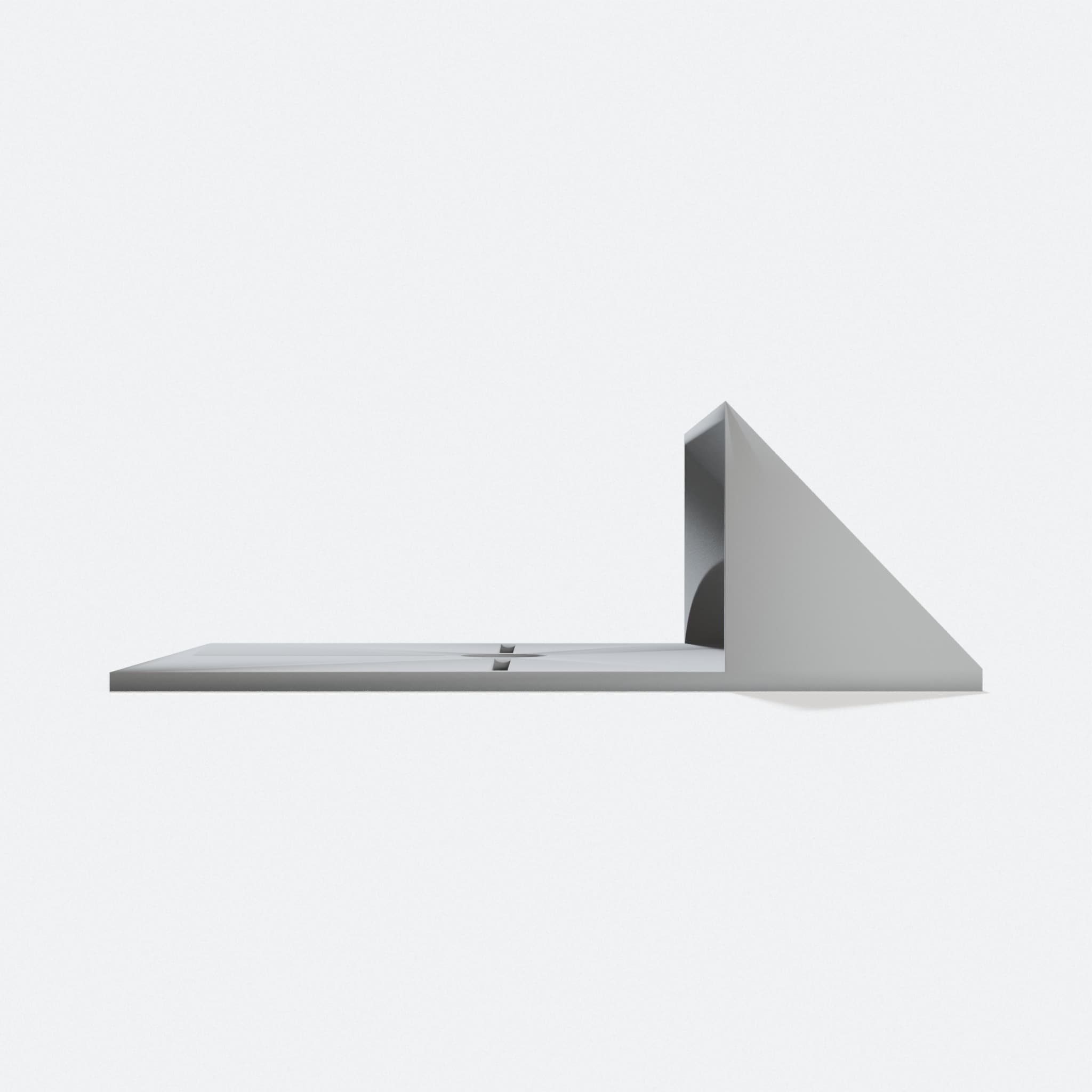

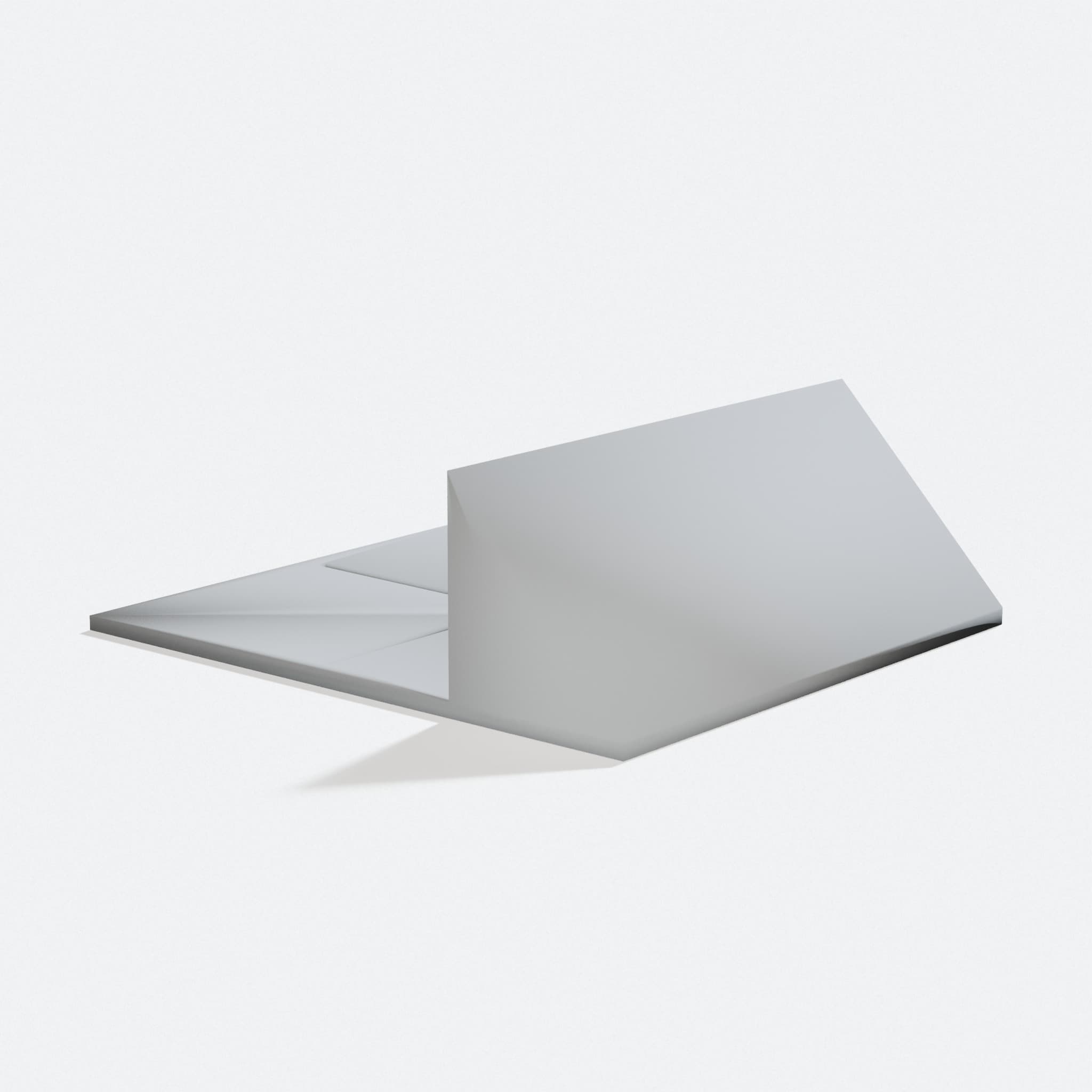

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Catches drill dust and debris so your workspace stays clean while you work.
- Centers your drill bit perfectly every time, so your holes come out straight and accurate.
- Prints easily at home, so you have your tool ready in hours instead of days.
- Holds residue in one spot, so cleanup takes seconds instead of minutes.
Keep your drill work clean and precise with this 3D-printed drilling guide. You get a tool that catches dust before it spreads across your workshop, and it centers your bit for perfect holes every time.
This drilling aid holds drill residue in a built-in catch area while your bit stays perfectly centered. Just position it on your material, align your drill, and go. The centering guide keeps your bit from wandering, so your holes come out straight and true. No more crooked starts or messy cleanup.
Print this tool yourself and have it ready when you need it. It works with hand drills and corded or battery-powered models alike.
3.8k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
More like this
Precision Measuring Tool Set - 3D Printed Workshop Tools
Design library
Resistor Lead Forming Tool, 3D Printed Workshop Helper
Design library
Center Finder Tool for Wood, Mark Perfect Midpoints Every Time
Design library
Hot Glue Gun Stand for Small Glue Guns, Compatible with Prusa
Design library
Drilling Jig with Integrated Dust Collector
Design library
Support for Dremel 4000, 3D Printed Workshop Tool
Design library
Cross Tweezer for Soldering, Normal Spring Tension
Design library
Bit Organizer for Dremel Rotary Tool Bits and Discs
Design library
Who made this design
Designed by Blauhand. We did not draw it.
Shared under Creative Commons, credit required. See the original design
