3D Printed Drill Guide for Straight Perpendicular Holes

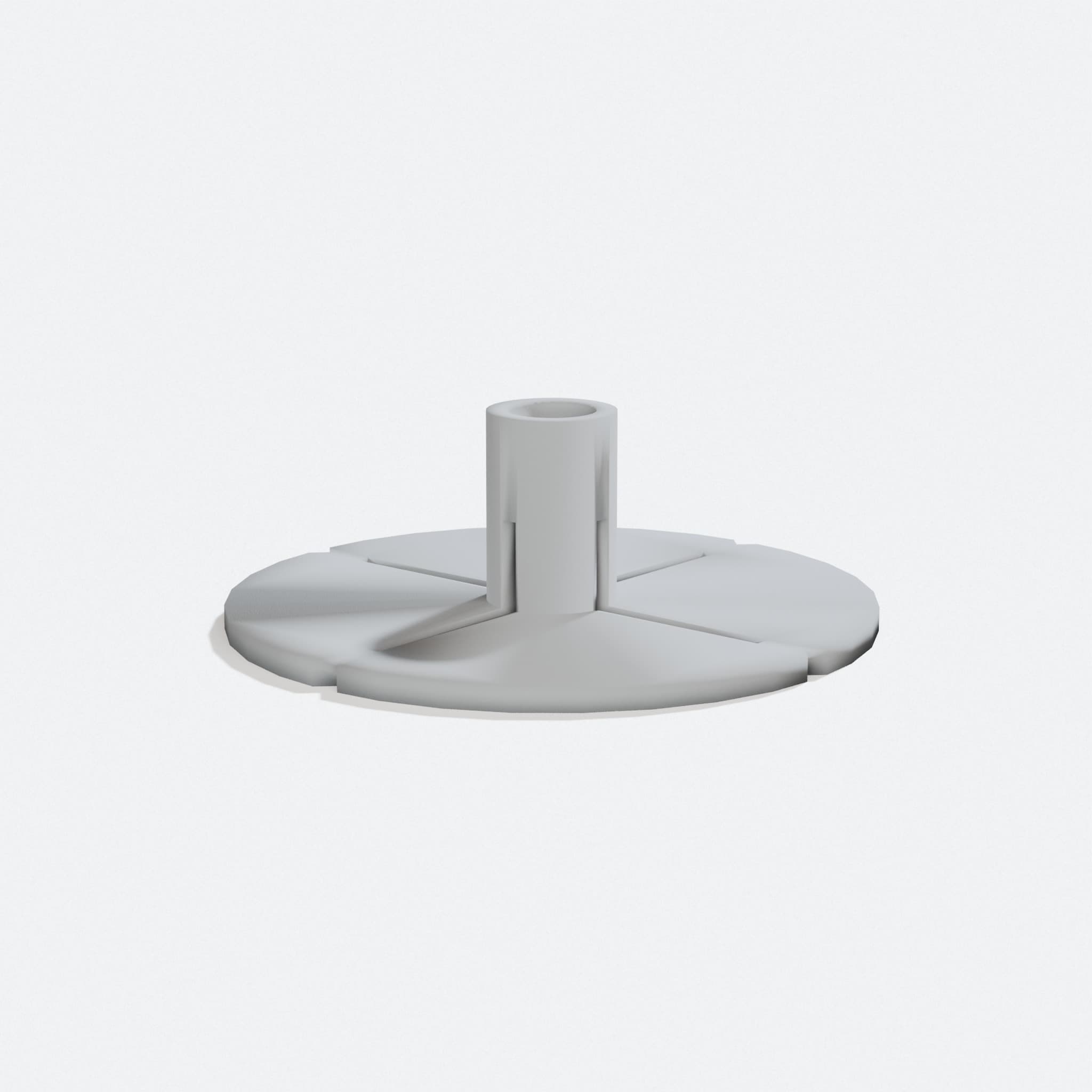

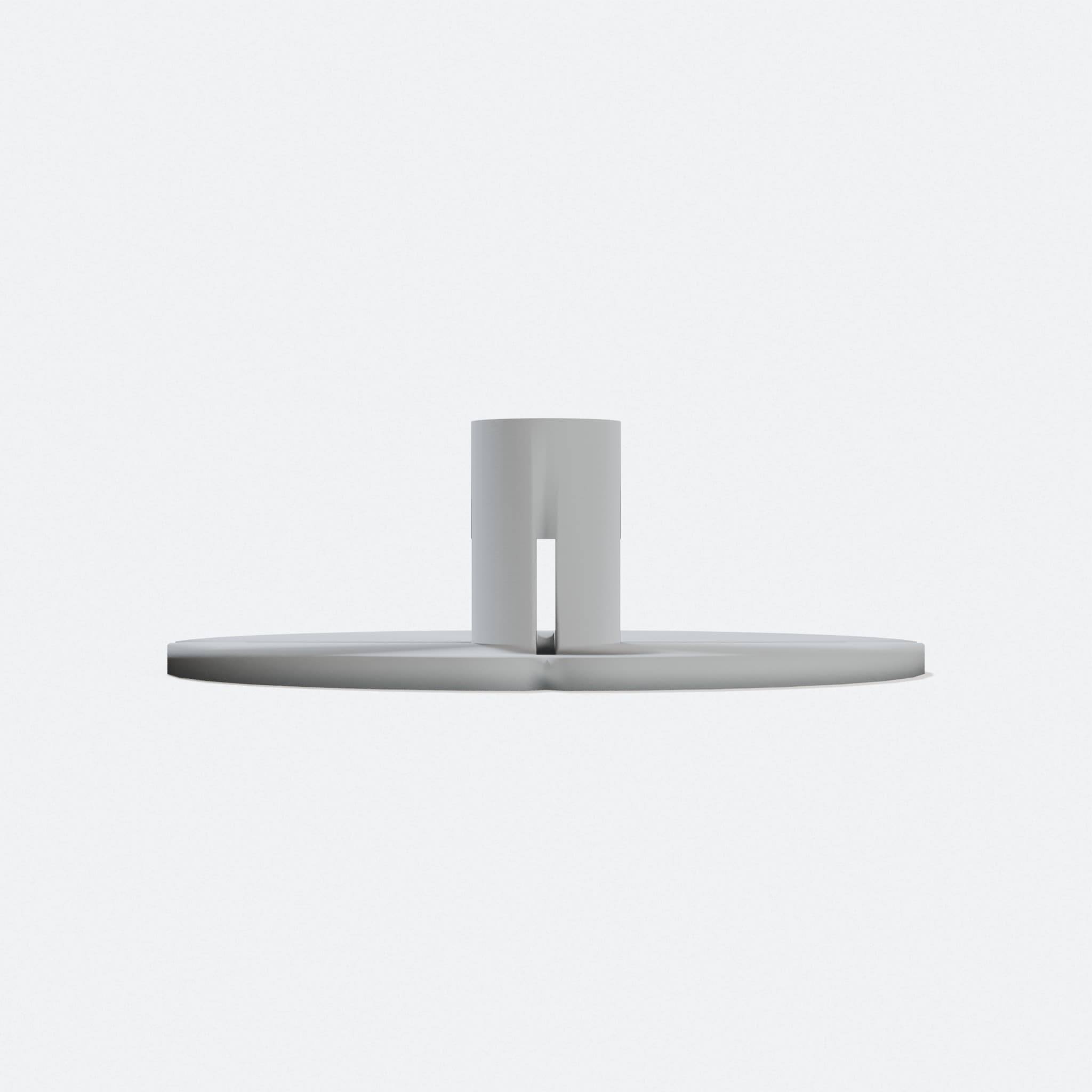

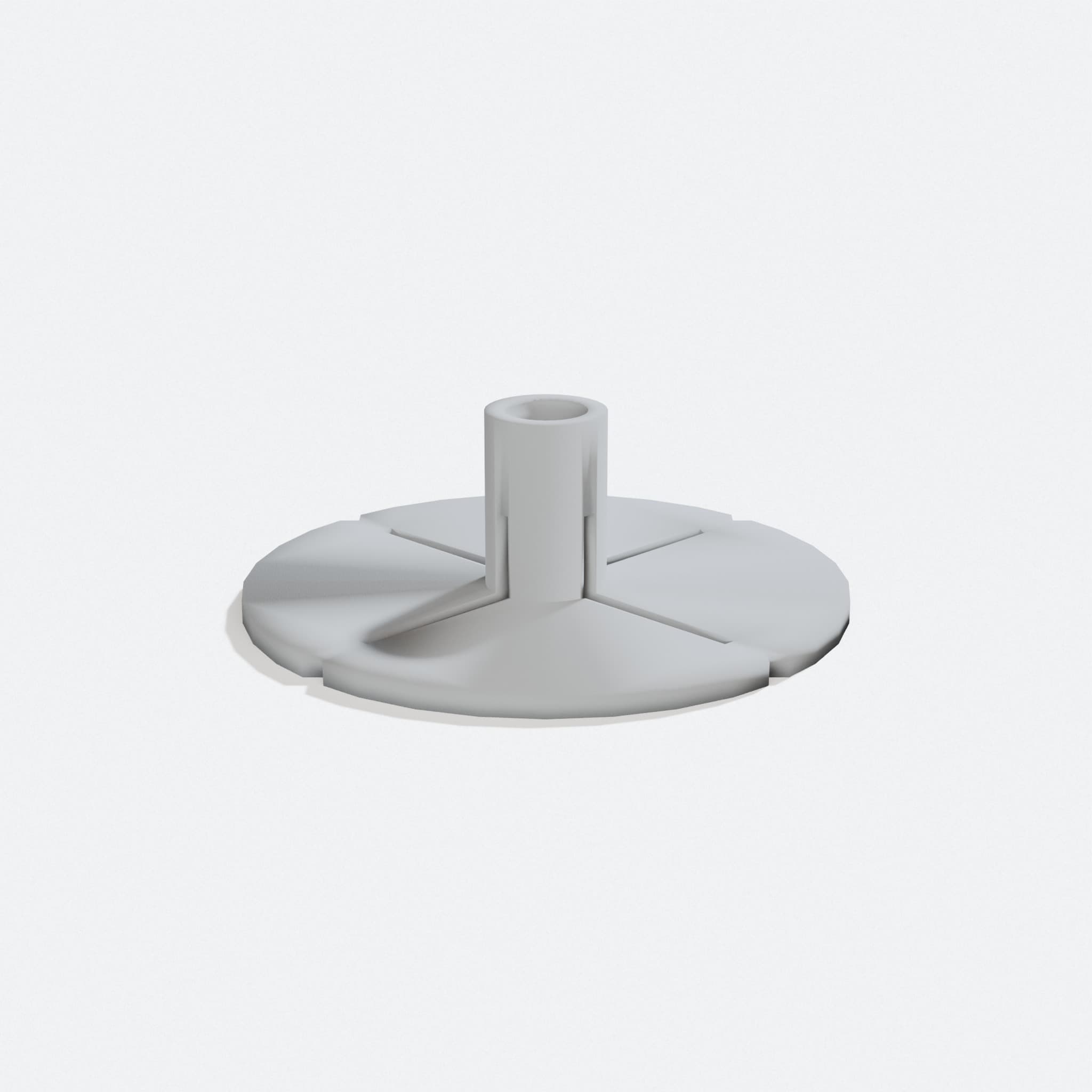

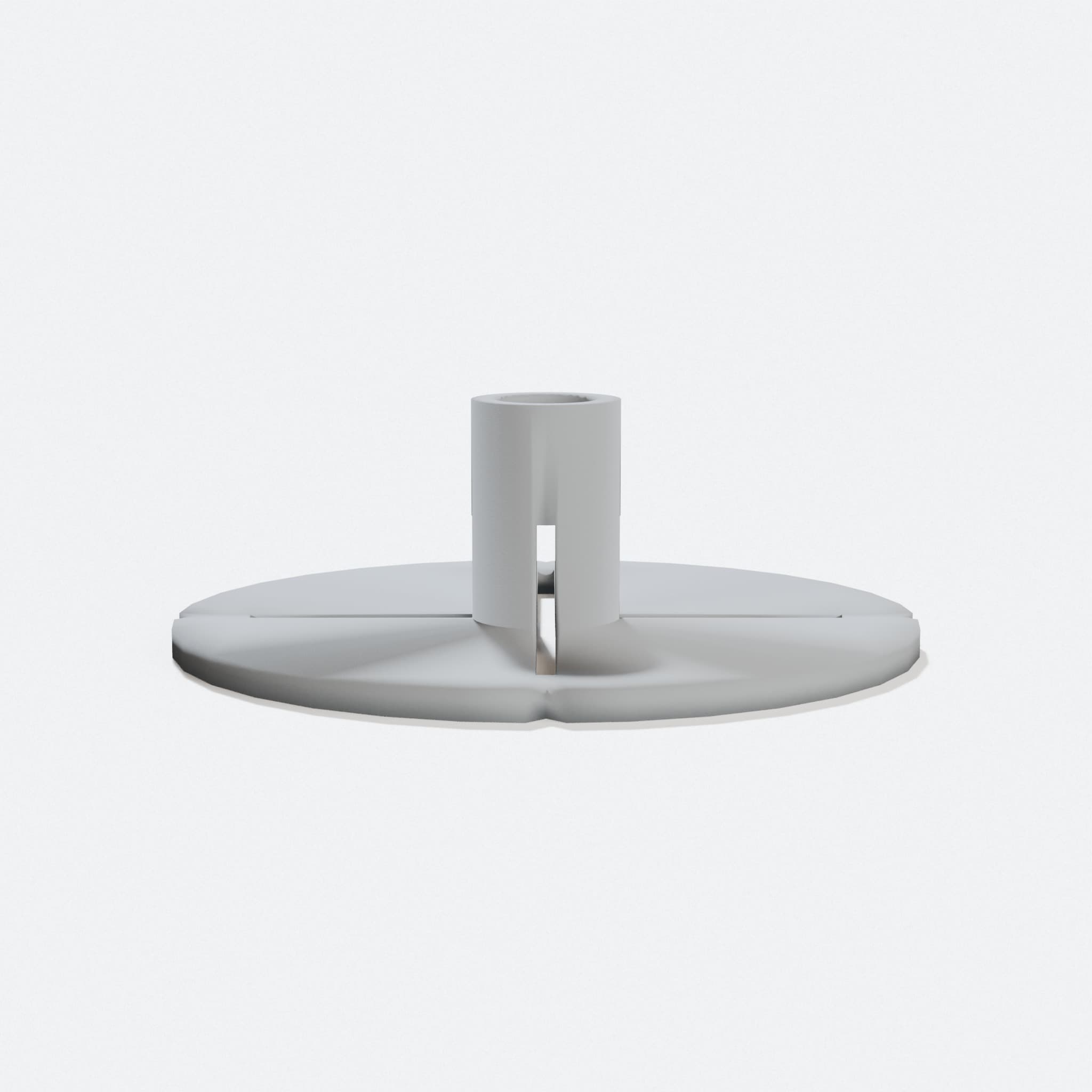

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Customizable jig designed for single drill-diameter precision drilling
- Folds over board edges with winged variants for standard 18 mm boards
- Simple setup: place over drill, position on wood, lower flat without moving
- Cross-shaped opening guides drill placement and clears sawdust
This 3D-printed workshop tool is a simple yet effective drilling jig for creating straight, perpendicular holes in woodworking projects. Designed for single drill-diameter use, it offers customizable specifications to fit your exact needs and board thickness.
The jig works by positioning your drill through its opening, then lowering it flat against your workpiece without shifting the drill point. The integrated cross marking helps you align properly and manage sawdust removal during drilling. Winged variants are included for use with standard 18 mm boards, allowing the jig to fold securely over your work edge.
This is a guide to assist your drilling accuracy, not a guarantee of perfect perpendicularity, but a practical tool for improving hole alignment. Perfect for carpentry, woodworking, and general workshop use. Designed parametrically in OpenSCAD for flexibility.
19k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
