3D Printed Dial Indicator Case for Workshop Tools

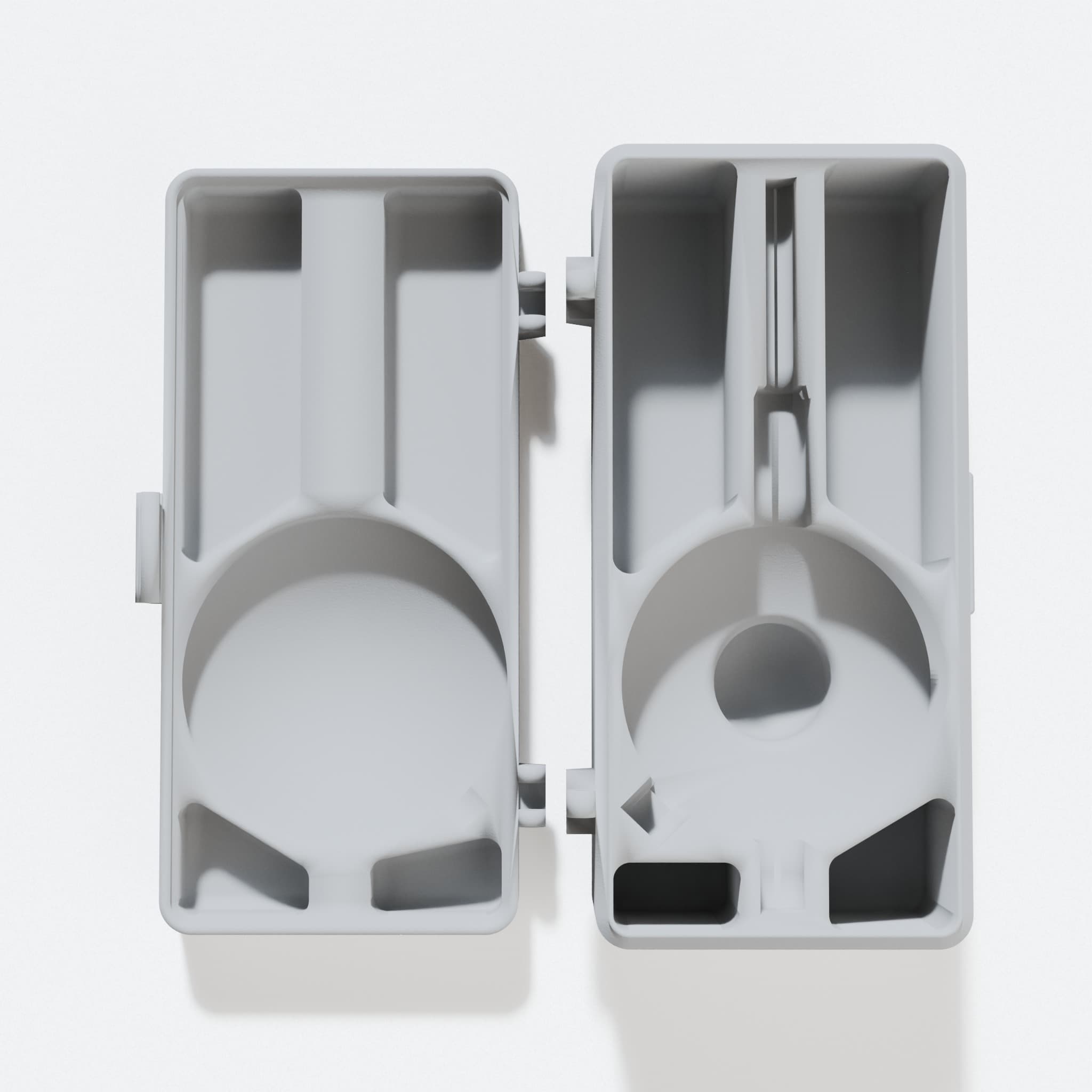

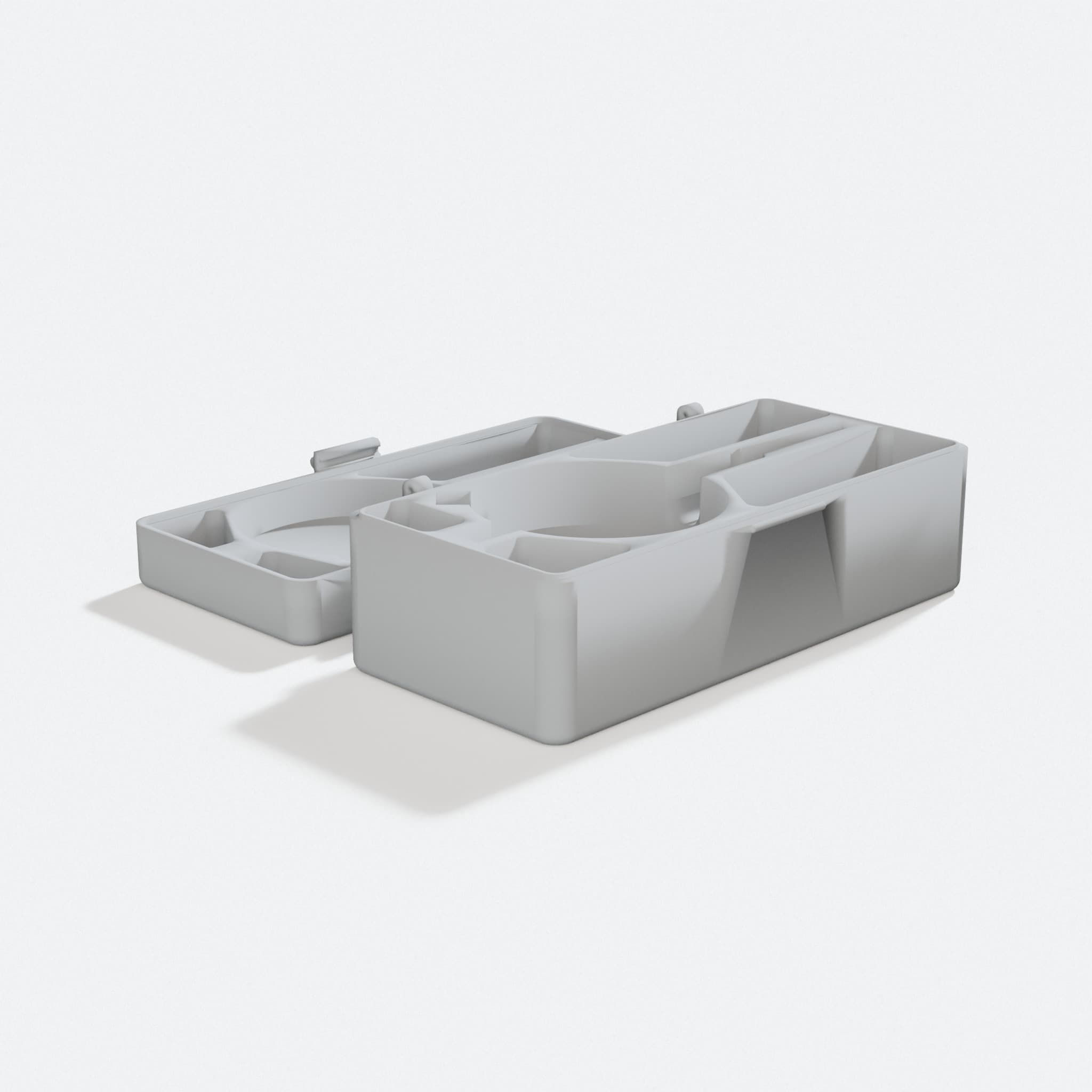

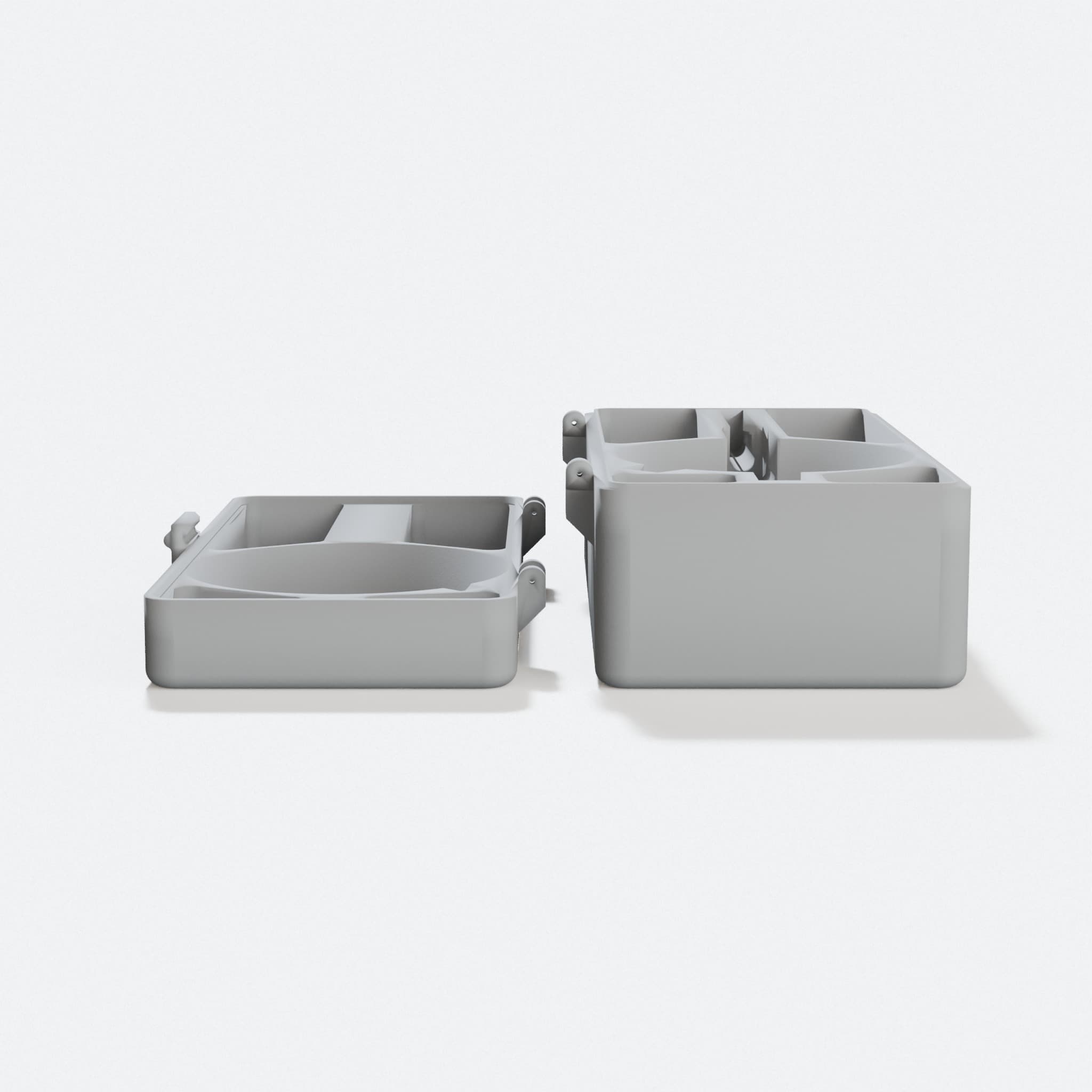

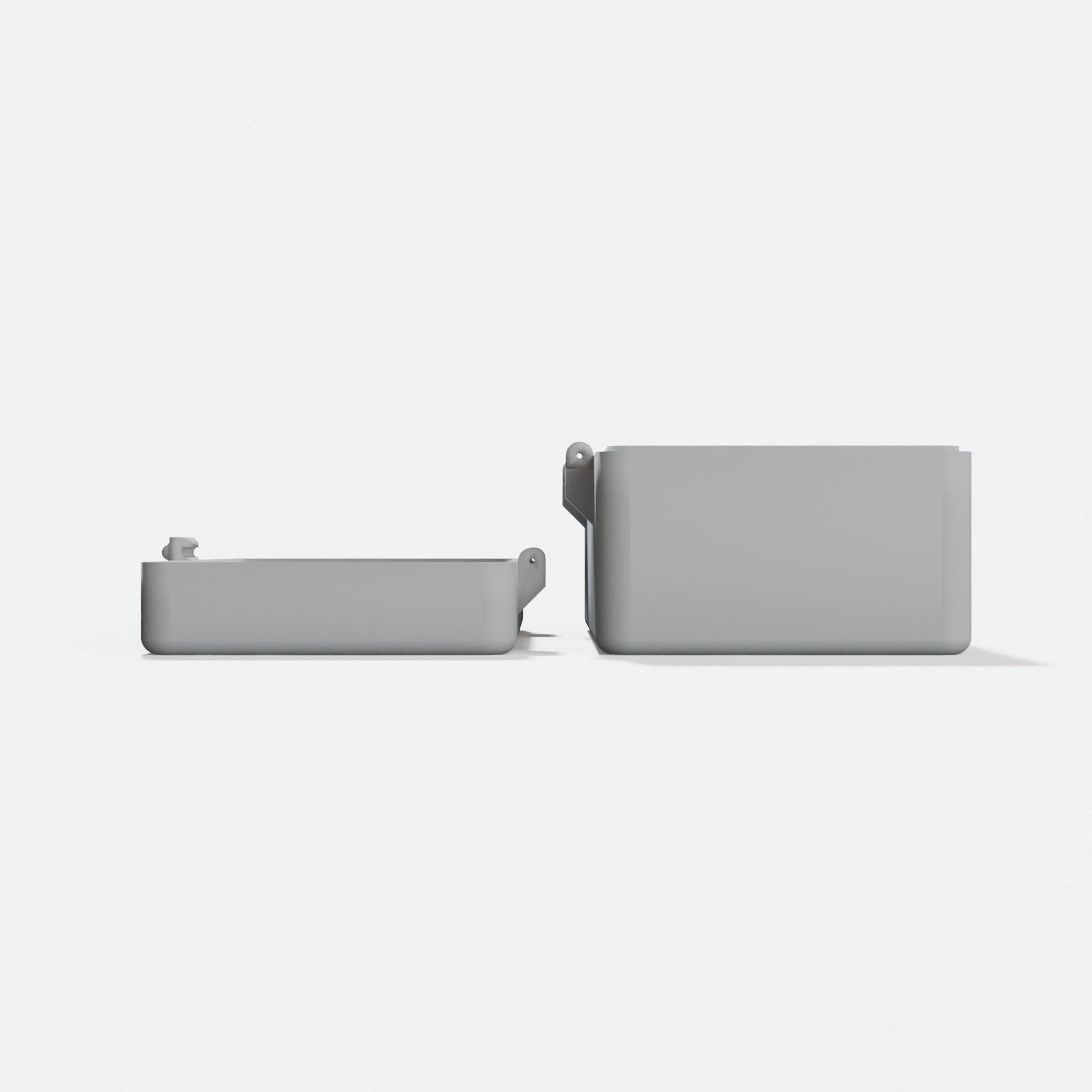

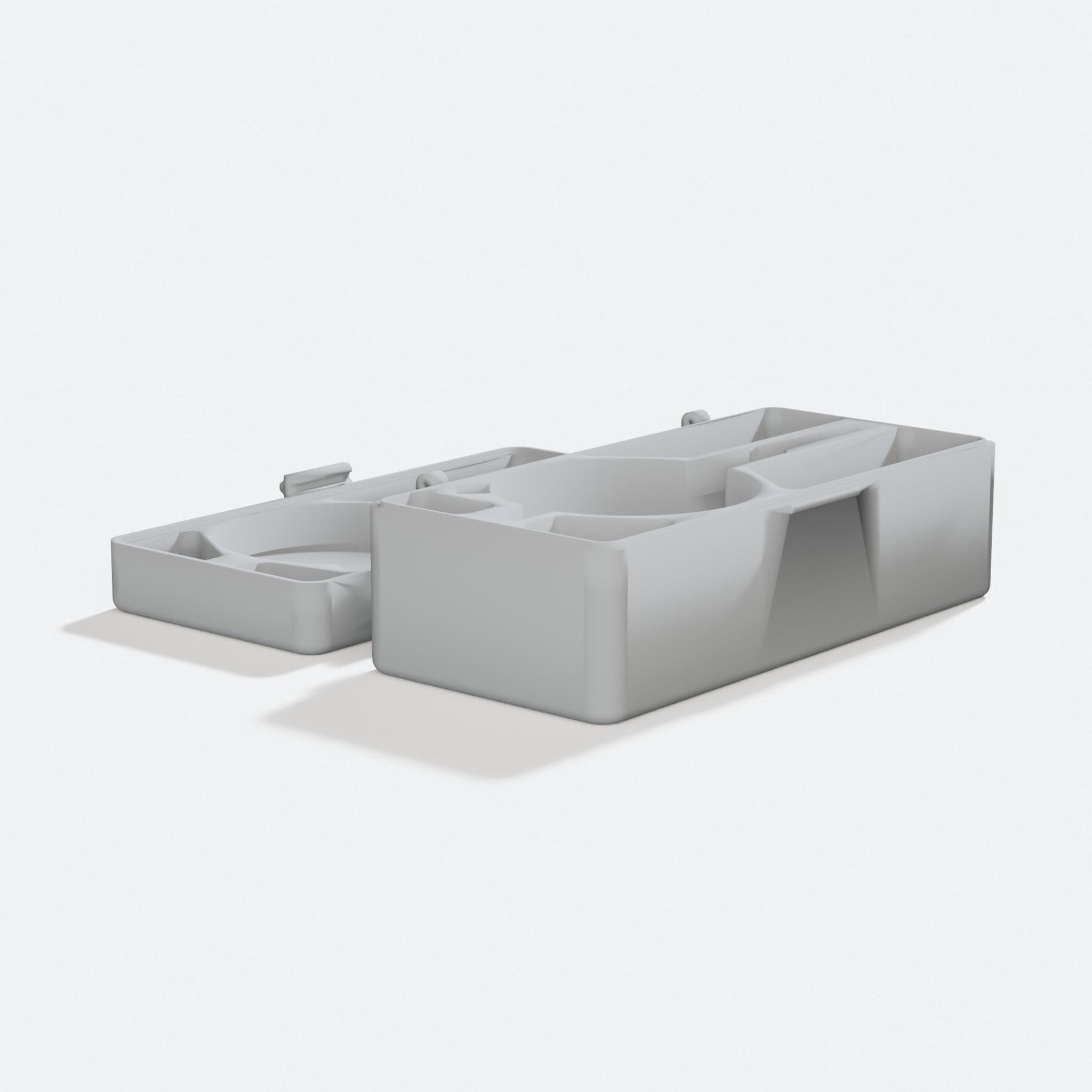

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Protects your dial indicator during storage and transport so it stays accurate and ready to use
- Fits snugly in your toolbox, replacing the flimsy foam brick that comes with most gauges
- Works with generic 0-1 inch indicators and Harbor Freight versions, so you get the right fit
- Custom designed for your specific tool, meaning no wasted space or loose parts
Your dial indicator finally gets a home that keeps it safe. Instead of tossing it loose in a drawer, you slide it into this fitted case and know it will be there, protected and ready when you need it.
This case wraps around your 0-1 inch dial gauge with the 9.5mm shank. It holds the tool steady during storage so nothing shifts around. The case fits both the standard generic version and the Harbor Freight model, so you get the right fit for what you own.
Stop digging through your toolbox for a loose measuring tool. This case keeps everything organized and in one place.
3.8k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
More like this
Precision Measuring Tool Set - 3D Printed Workshop Tools
Design library
Resistor Lead Forming Tool, 3D Printed Workshop Helper
Design library
Center Finder Tool for Wood, Mark Perfect Midpoints Every Time
Design library
Hot Glue Gun Stand for Small Glue Guns, Compatible with Prusa
Design library
Drilling Jig with Integrated Dust Collector
Design library
Support for Dremel 4000, 3D Printed Workshop Tool
Design library
Cross Tweezer for Soldering, Normal Spring Tension
Design library
Bit Organizer for Dremel Rotary Tool Bits and Discs
Design library
Who made this design
Designed by pturvill. We did not draw it.
Shared under Creative Commons, credit required. See the original design
