Stop Bracket Try Square for Woodworking and Layout

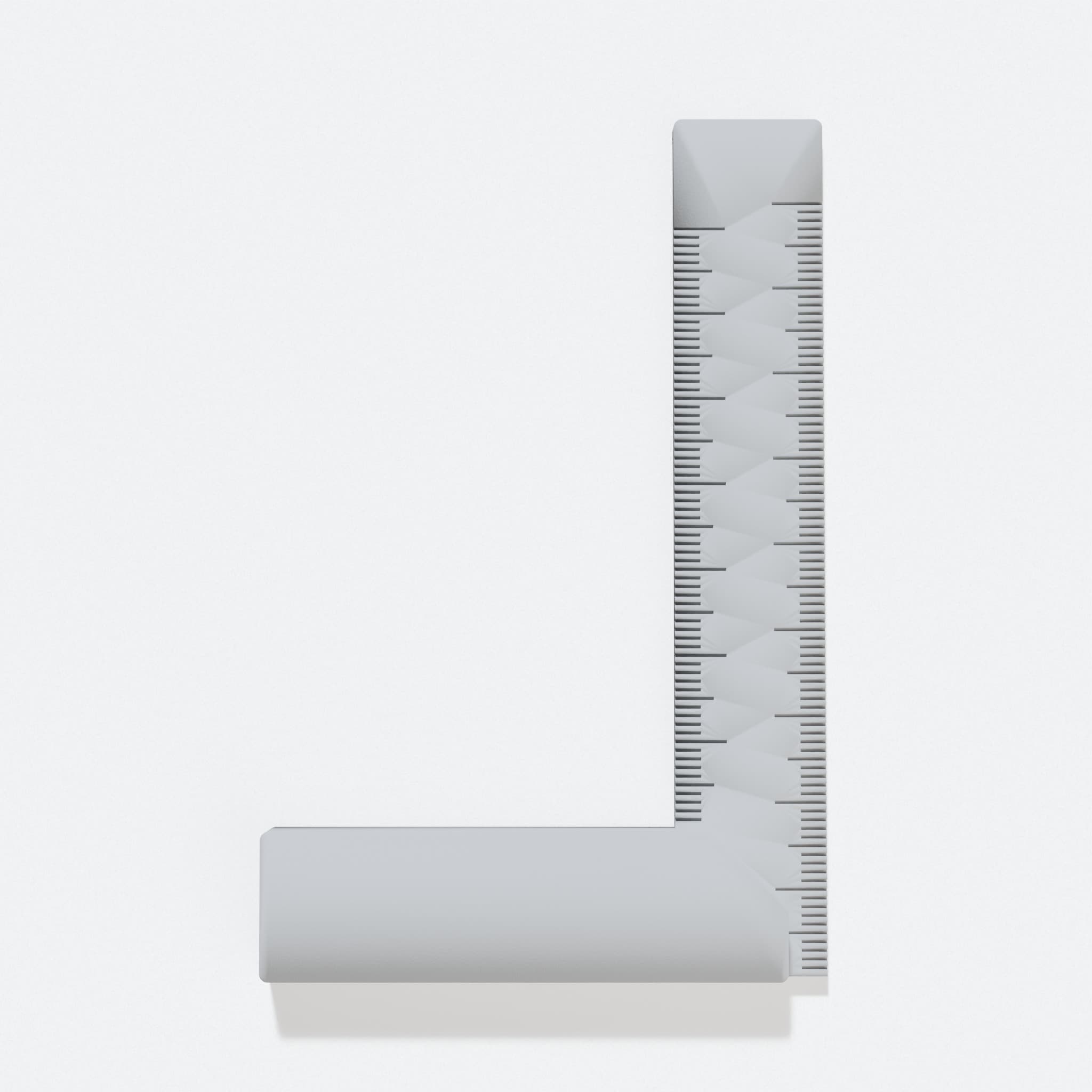

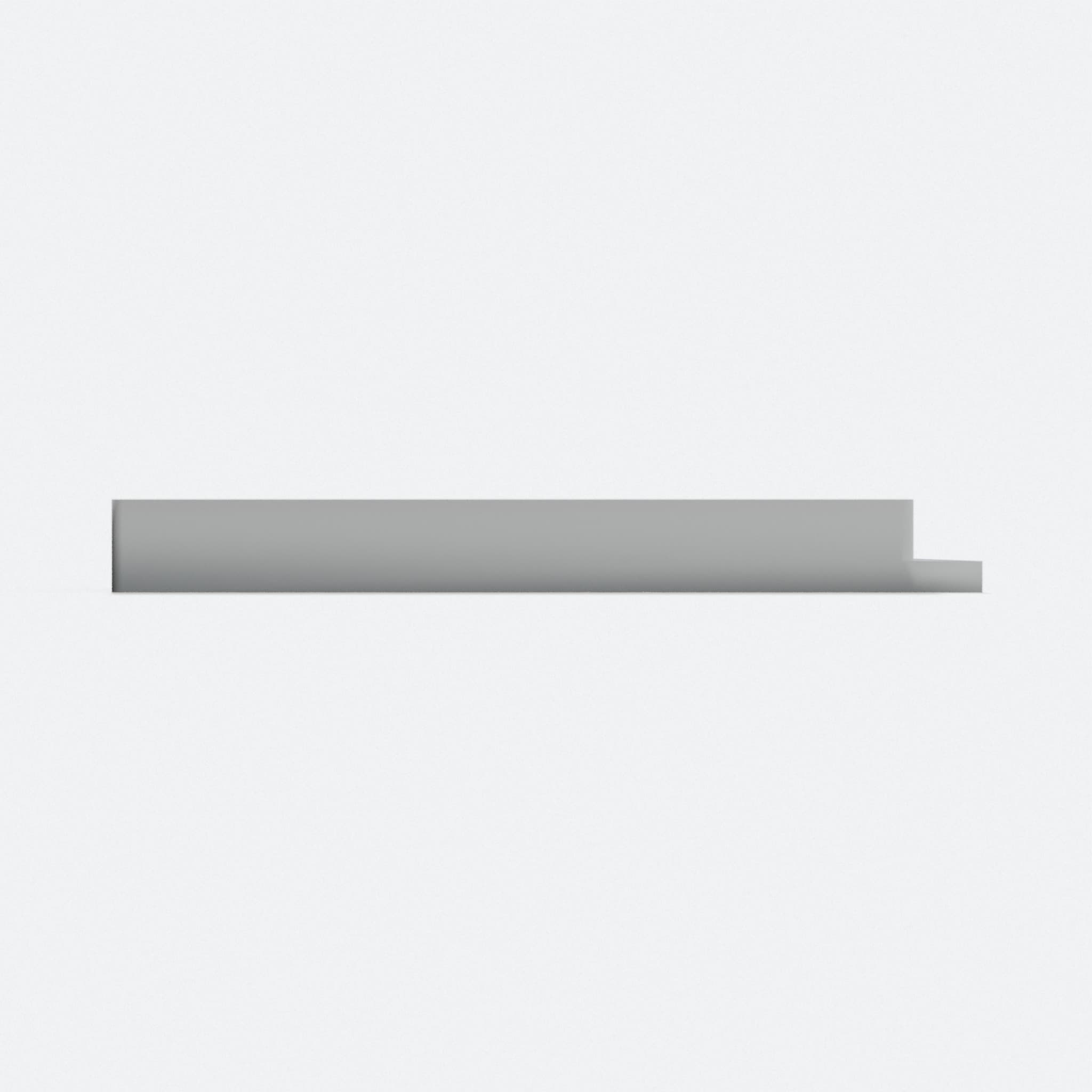

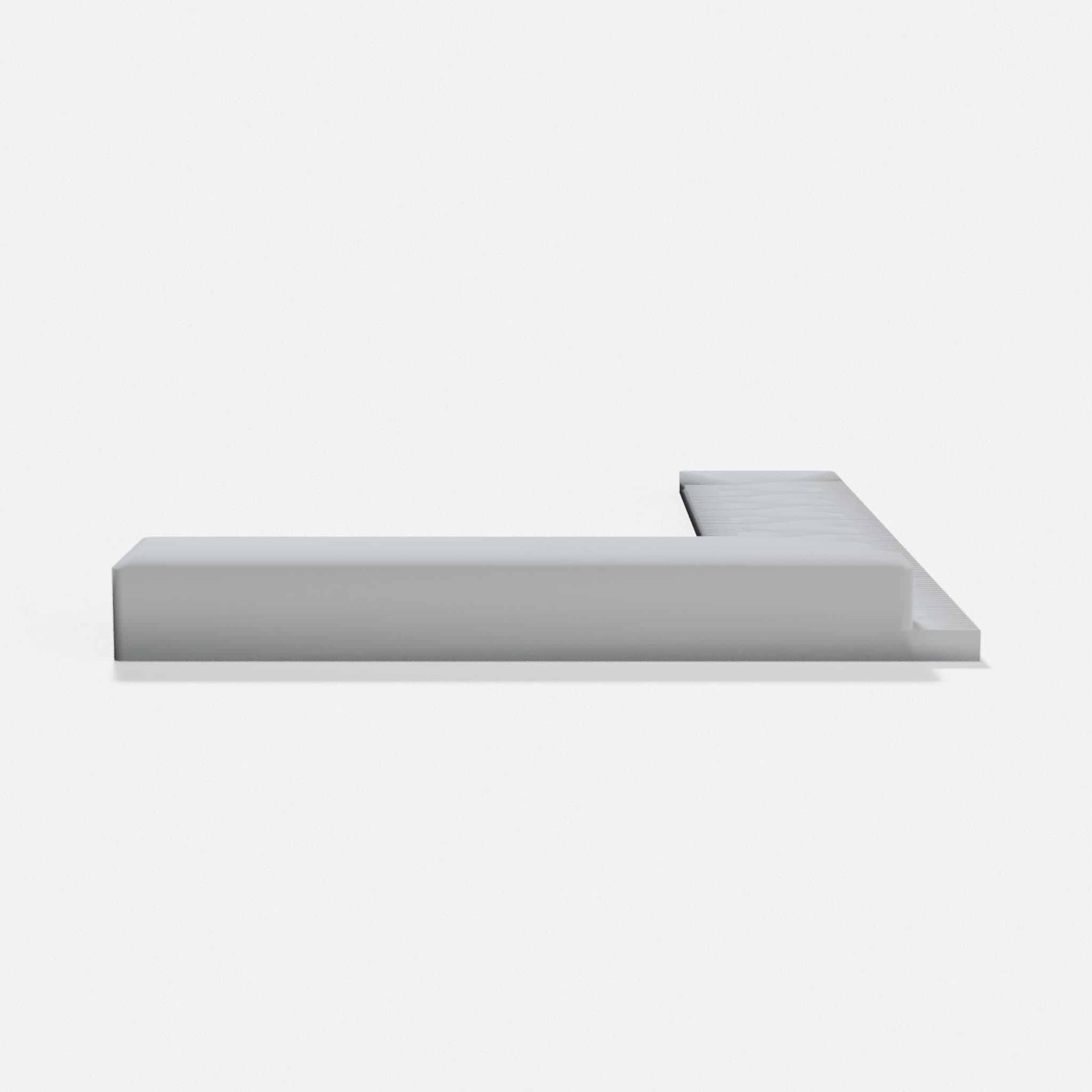

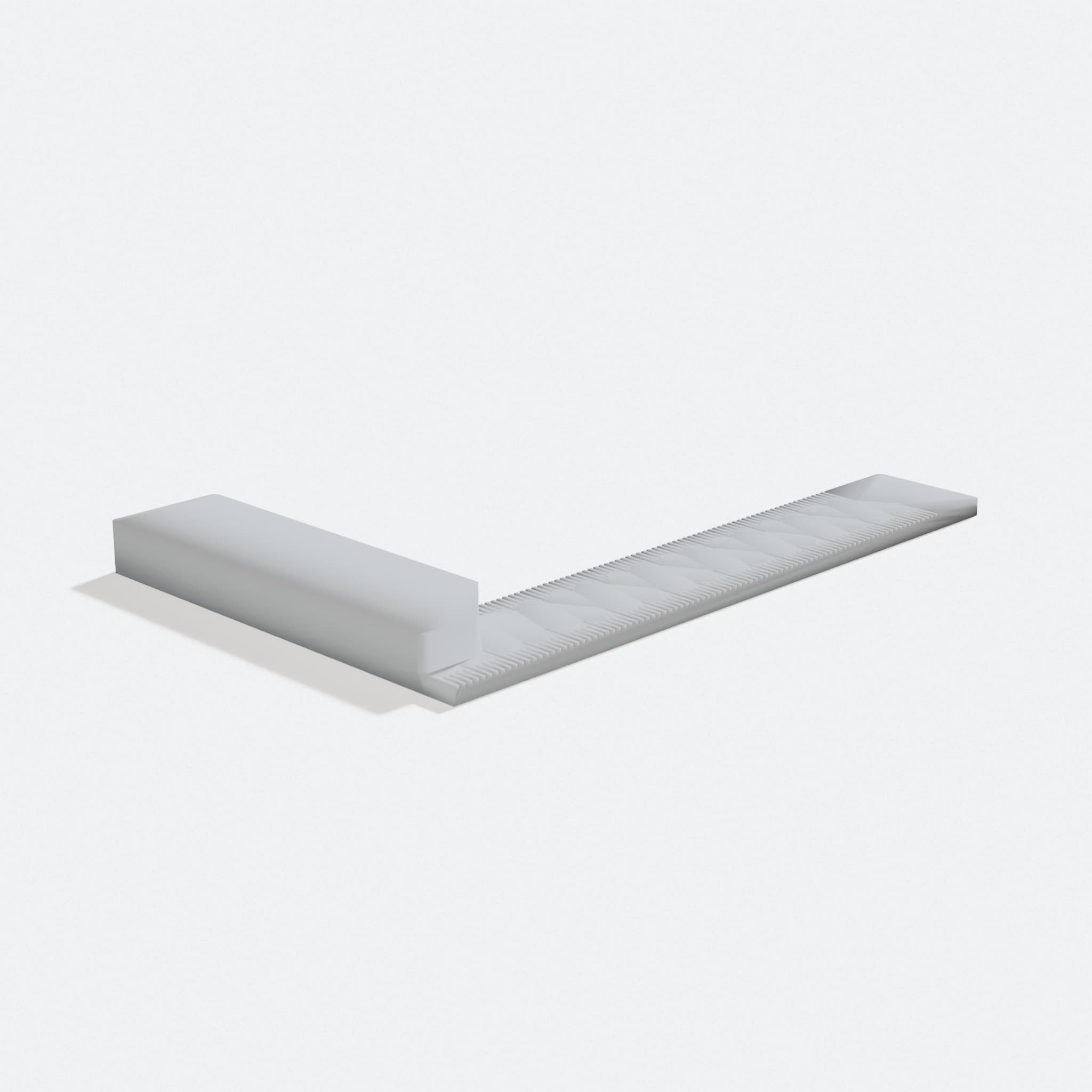

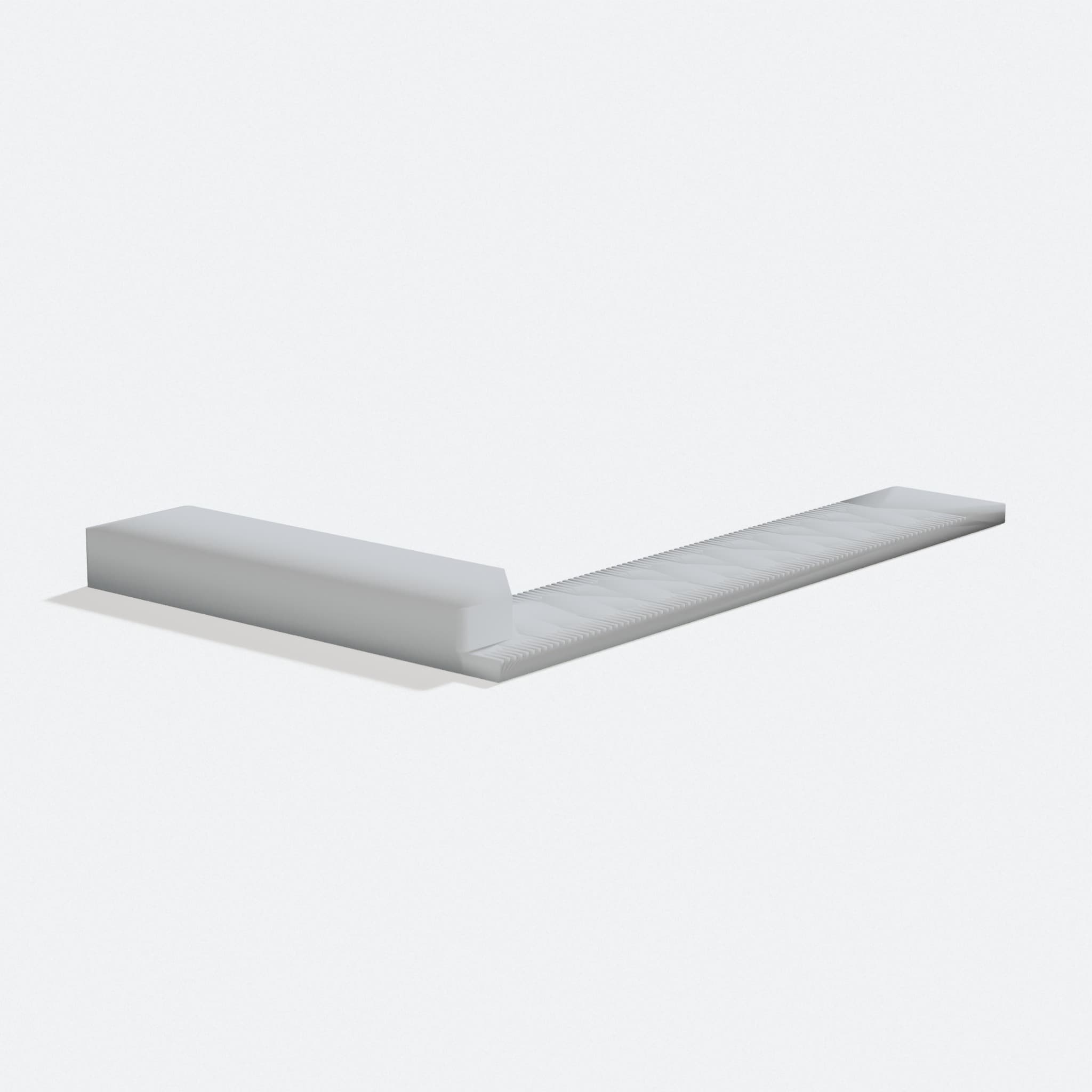

Stop Bracket Try Square for Woodworking and Layout, design preview, turn three quarter

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Right angle edge shaped for marking square lines so you can check corners fast
  • Simple square profile so you can toss it in a pocket or tool bag
  • Flat ruler arm with a straight edge so you can mark straight lines on wood
  • Made to order in the USA after you place your order
  • Handy shape for woodworking and carpentry layout work

Try Square sits on your workbench as a simple layout tool for woodworking and carpentry. Its stop bracket shape gives you a right angle edge and a straight ruler arm, so you can check corners and mark lines on your project.

This square is shaped for woodworking and angle checking. The bracket forms a clean right angle, while the flat arm gives you an edge to mark against. It is small enough to keep in a pocket or a tool bag, ready to grab whenever you need to check a corner or draw a line.

This piece is made to order in the USA after you place your order. It is a display and hand tool style item for your shop or bench, not a precision measuring instrument.

1.6k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by guppyk. We did not draw it.

Shared under Creative Commons, credit required. See the original design
