3D-Printed Box Cutter Blade Slider and Lock

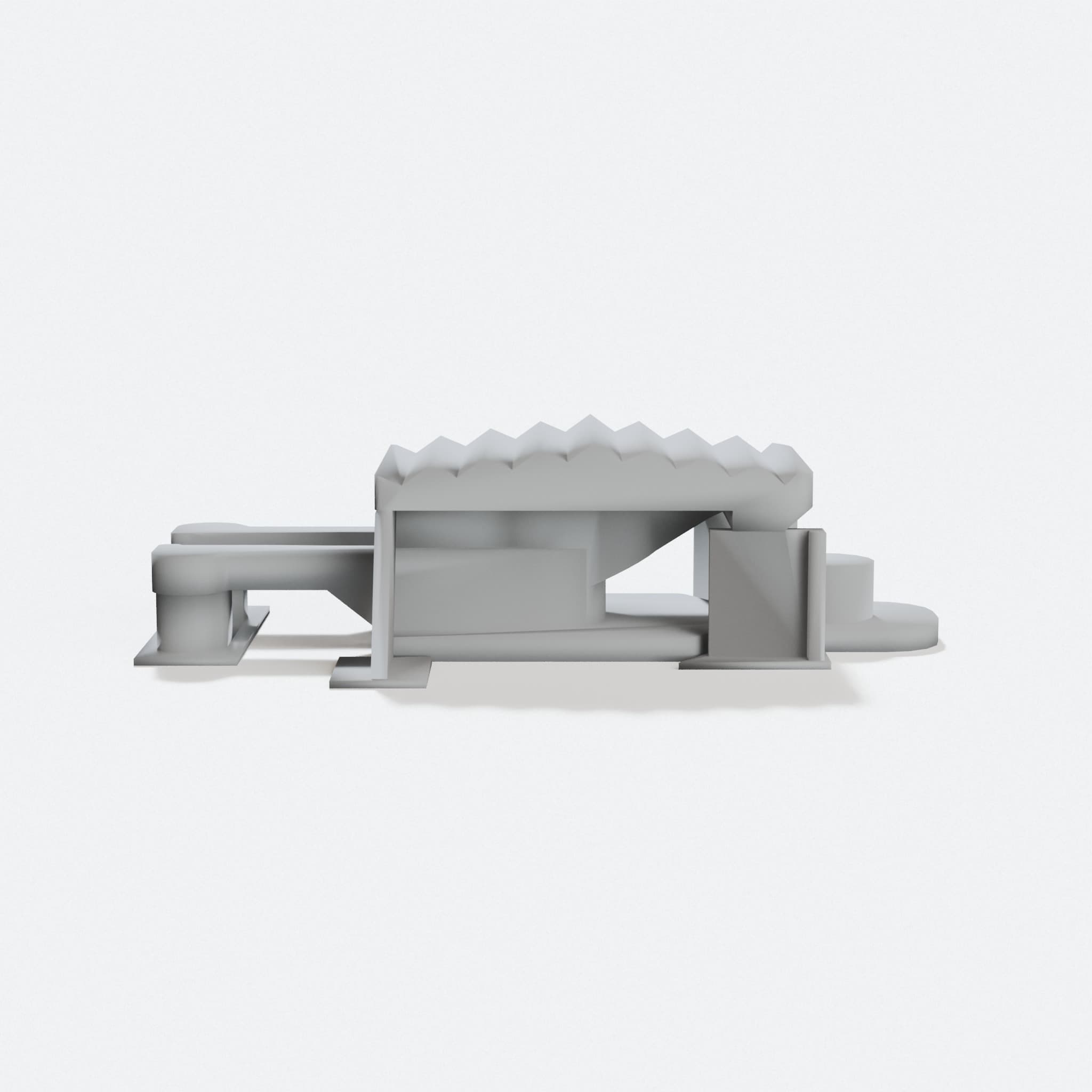

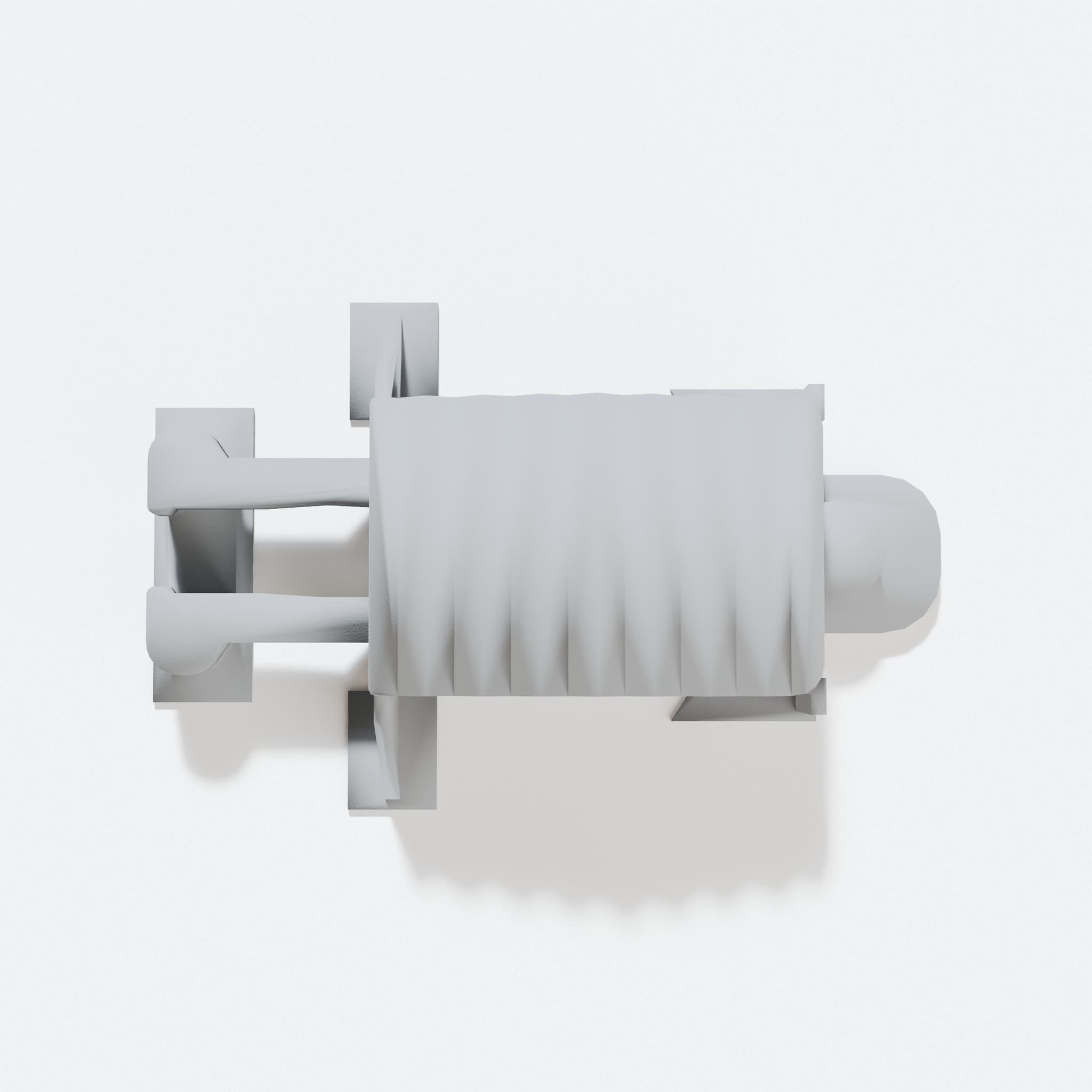

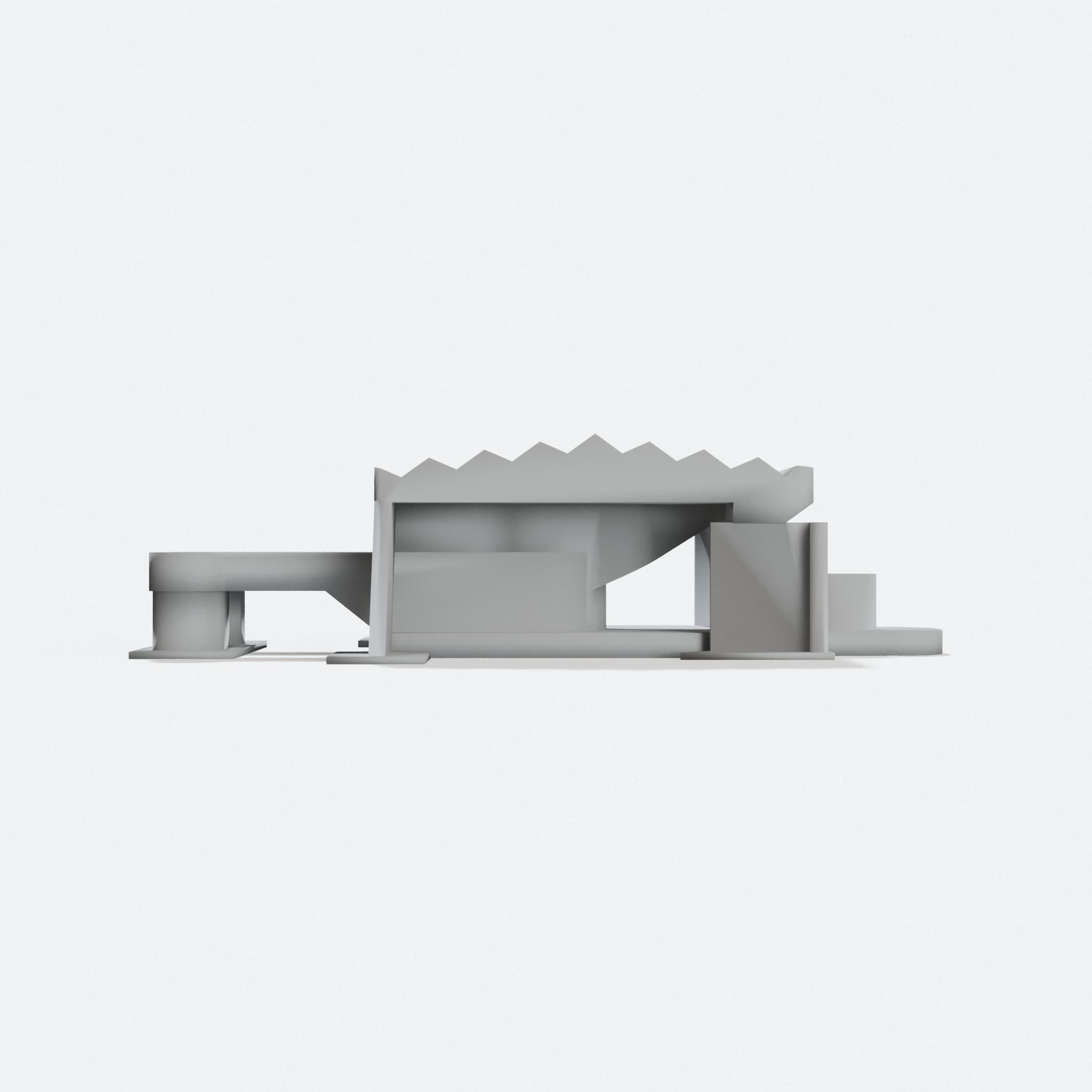

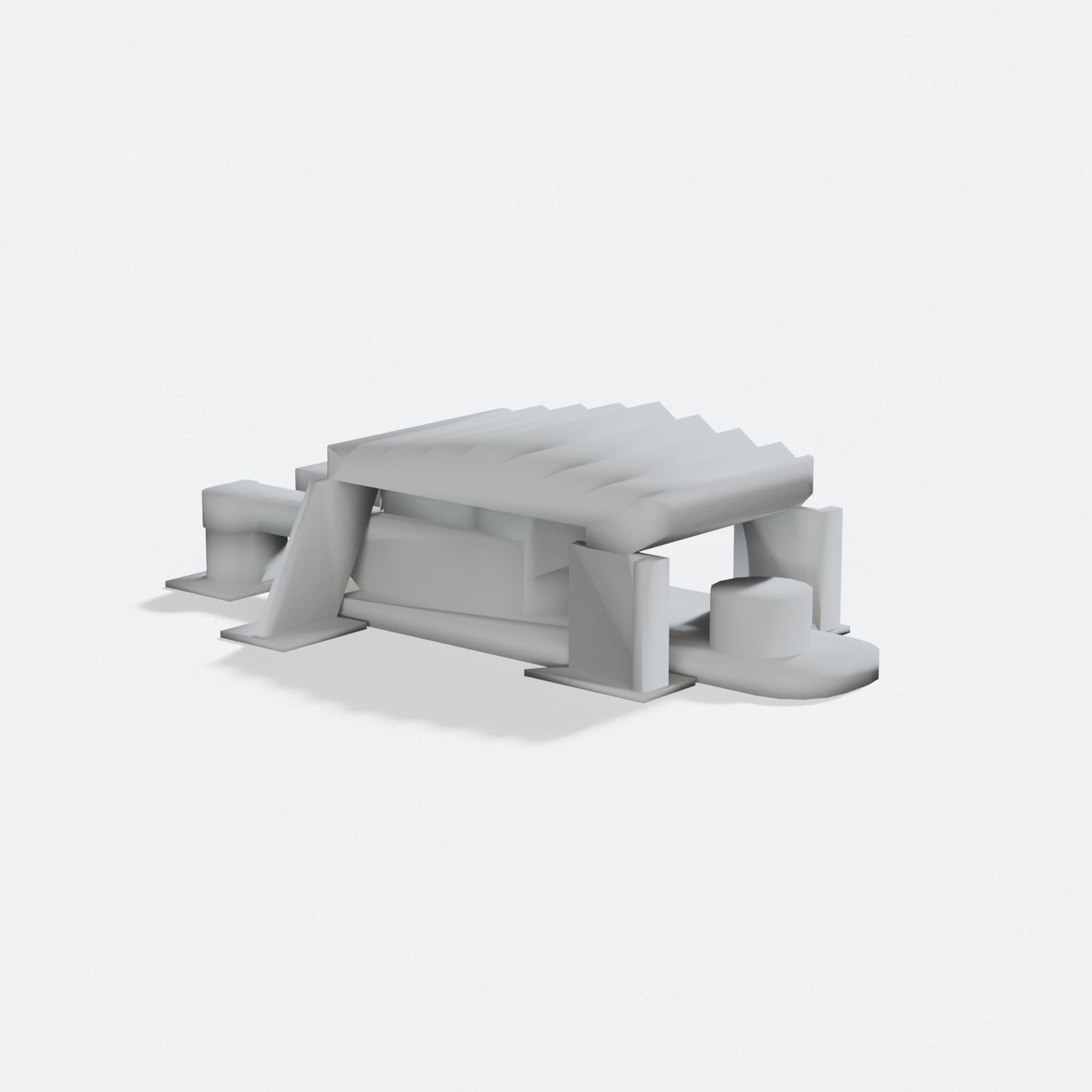

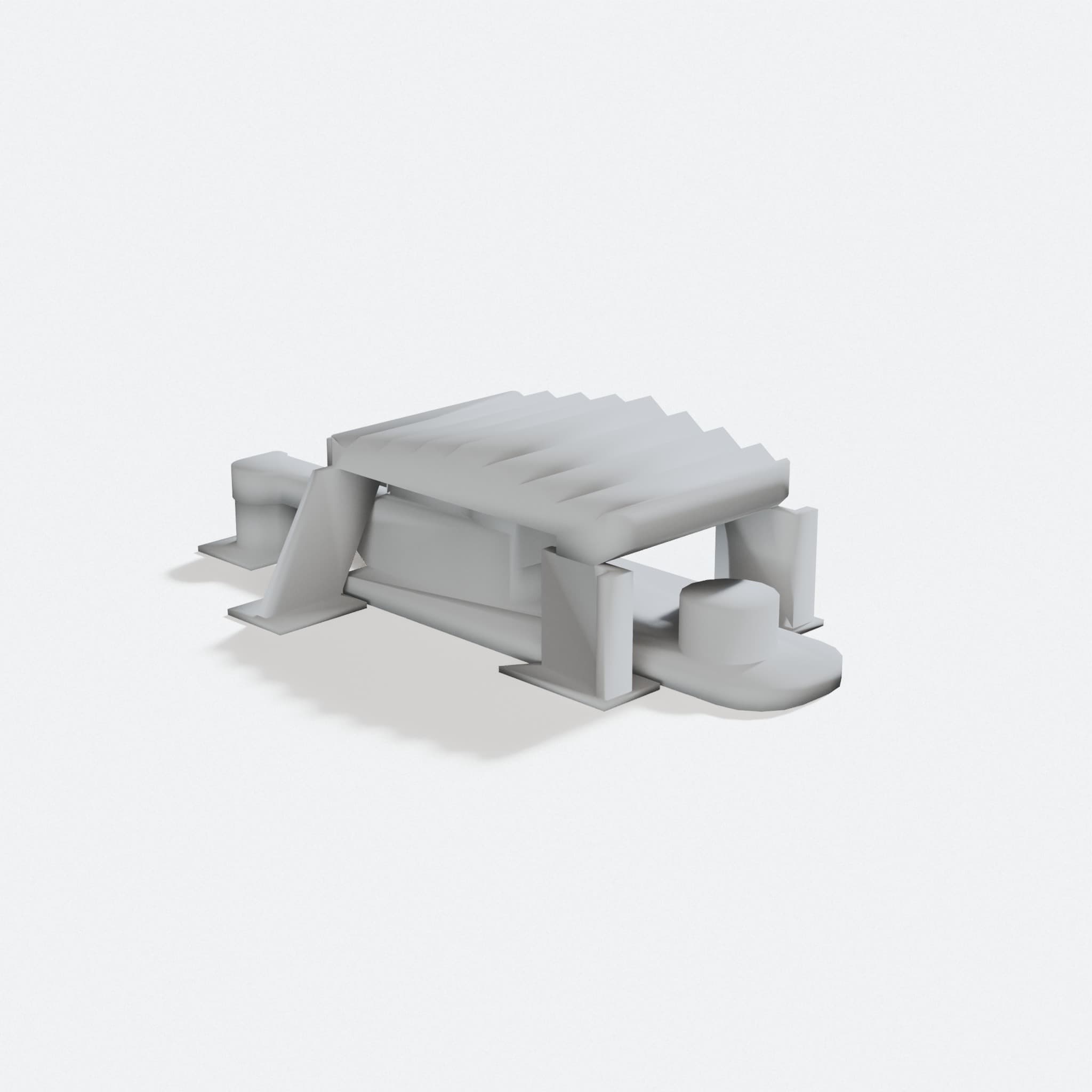

Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does
- Replaces broken sliders so your box cutter works like new again, saving you money on replacement tools
- Prints stronger than the original part, so your cutter stays reliable through hundreds of cuts
- Includes built-in supports that snap off easily, so you spend less time on cleanup
- Works best in ABS or PETG material, giving you the flex and strength cheap plastic can't match
- May need minor sanding to fit your specific cutter, so test and adjust for smooth sliding
Your box cutter works again when you print this slider and locking mechanism. Instead of buying a new tool, you get the exact part you need, custom made for your cutter.
This part is tiny with tricky angles, which makes printing it hard. That's why the files come with supports built in. They break away clean, though you might sand the edges a little to get everything sliding smooth. Use ABS or PETG plastic; they have the springy strength you need. PLA gets too stiff and brittle for this job.

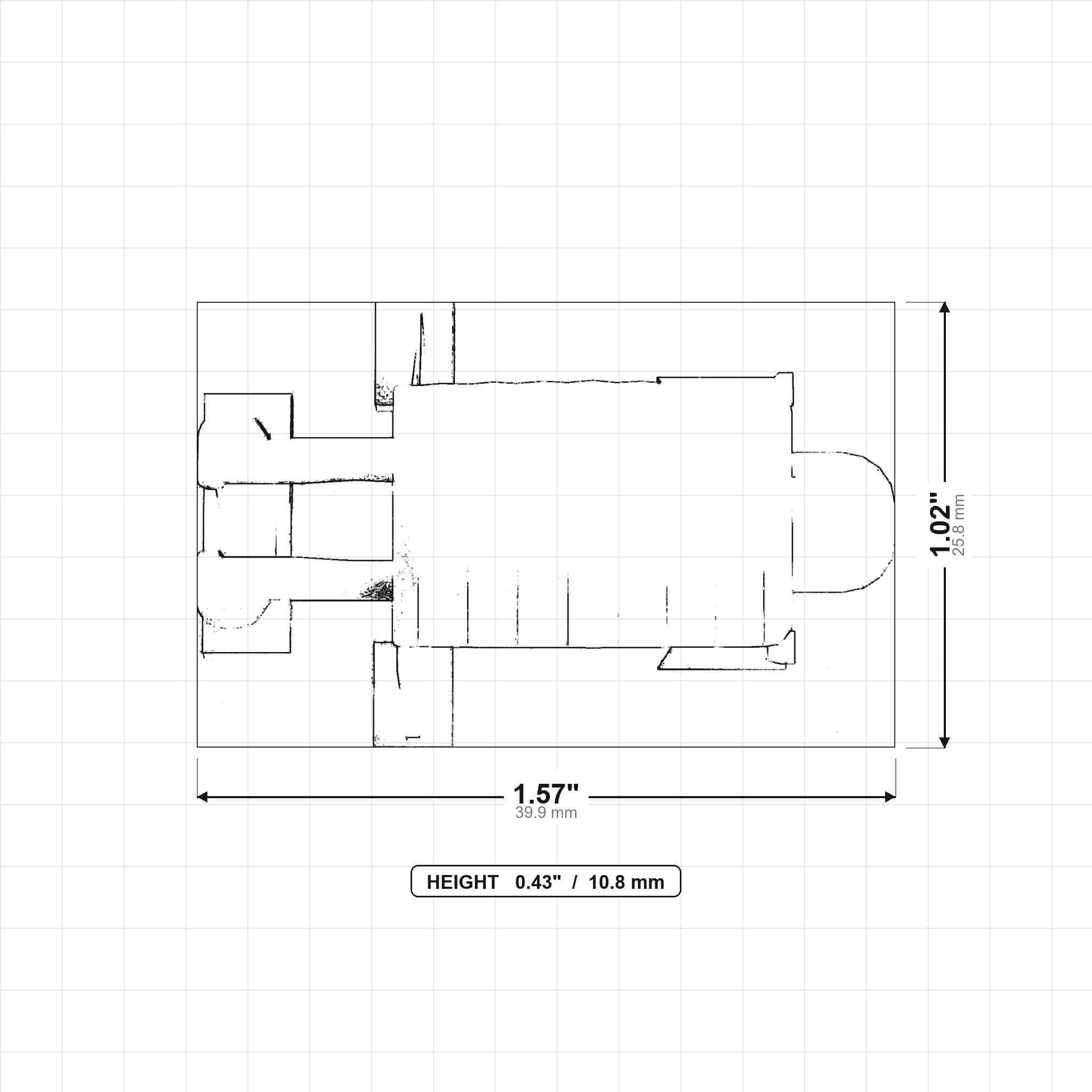

Every cutter brand has slightly different sizes, so you may need to scale the model up or down by a percent or two in width or depth. Print it, fit it to your cutter, and add a tiny bit of silicone grease to make it glide perfectly. The result works better than what came in the box.
1.8k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PETG. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
