2020 Extrusion Profile Replica for Workshop Prototyping
Design preview. Rendered from the file, not a photo.
This model is not currently offered as a verified ready to buy print.
What it does

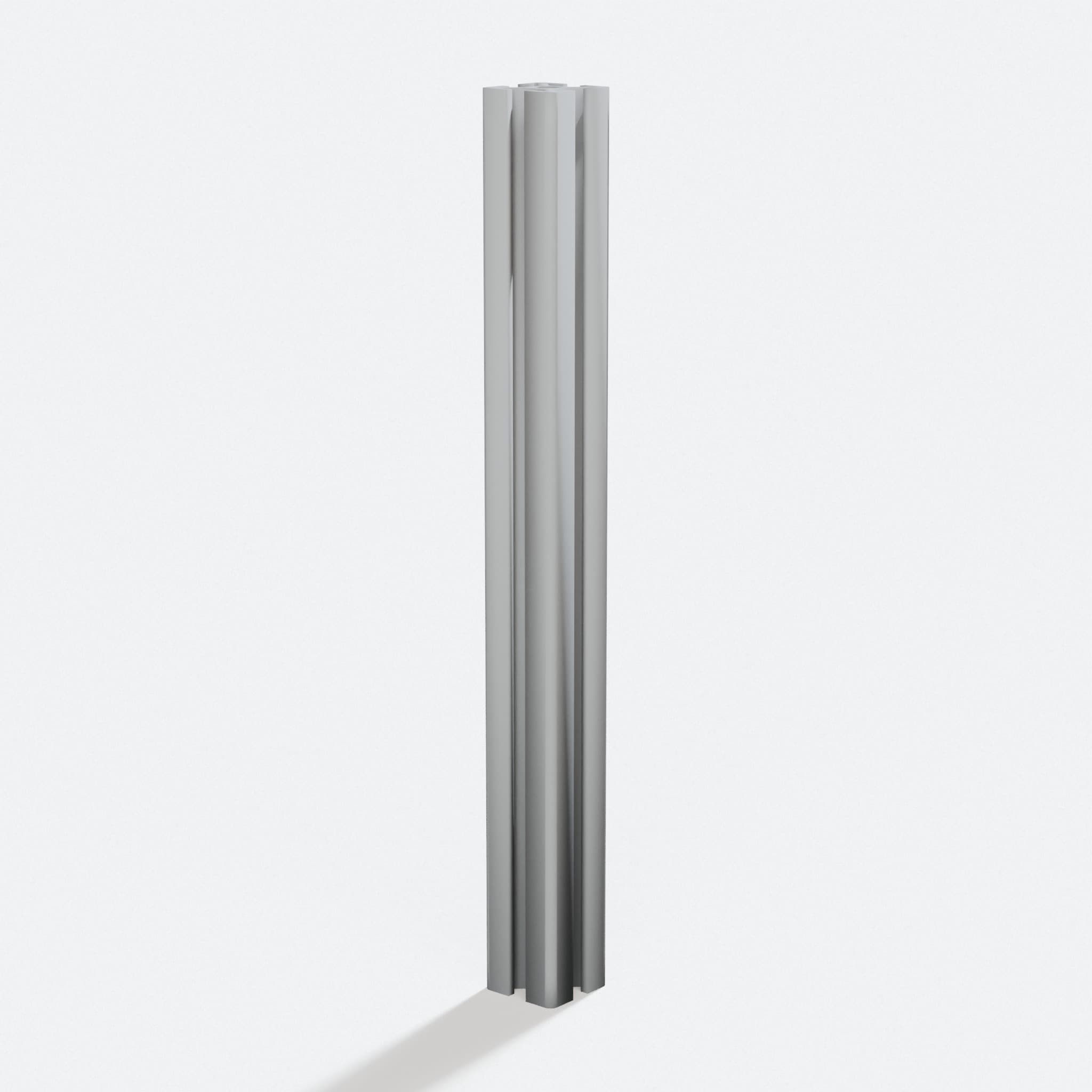

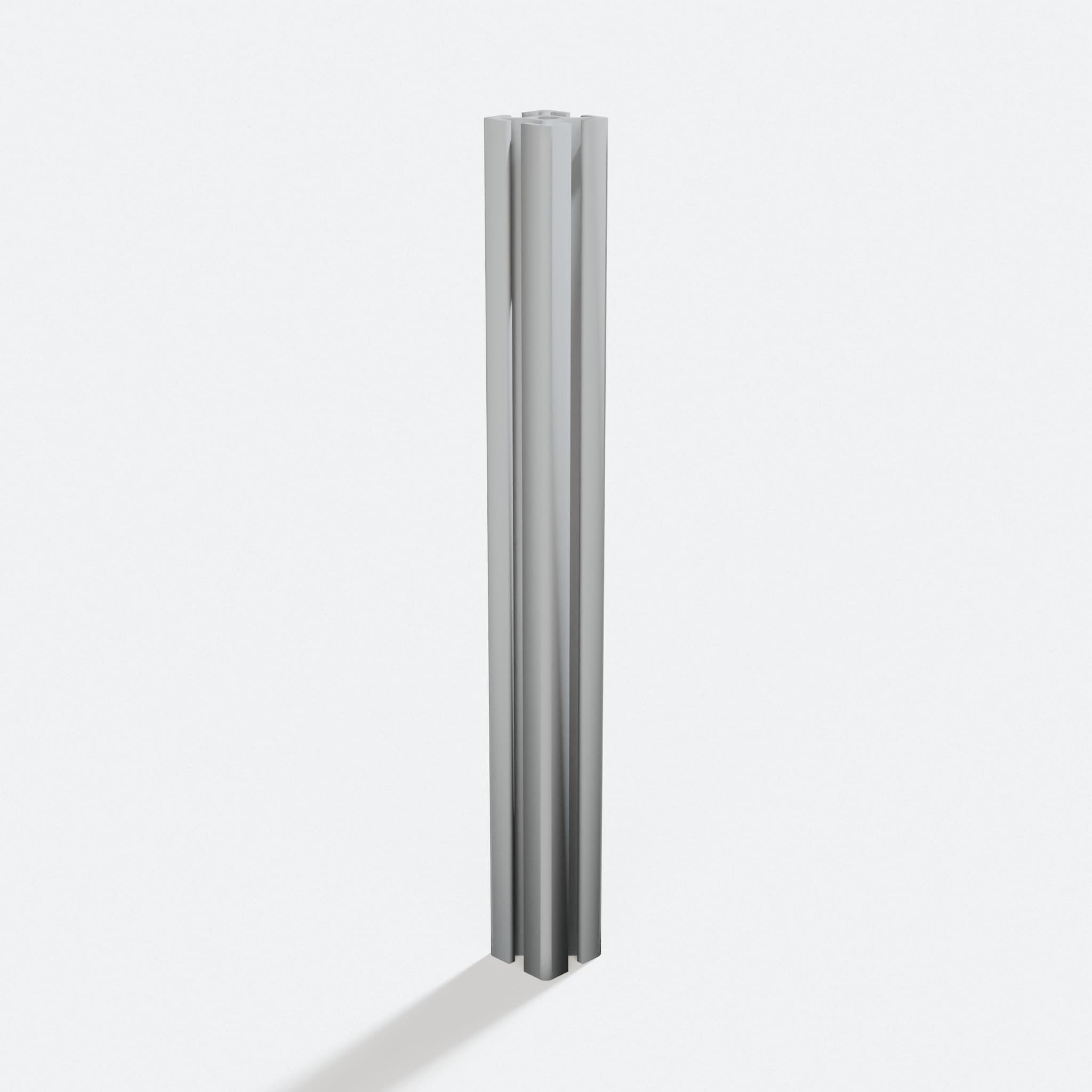

- Shaped like a 2020 V-slot aluminum extrusion so you can mock up assemblies without cutting real stock
- Slot pattern matches the 2020 profile shape so you can test fit against your existing parts
- Lightweight stand-in for metal extrusion so you can plan layouts on your workbench
- Simple straight profile so you can use it as a visual reference during a build

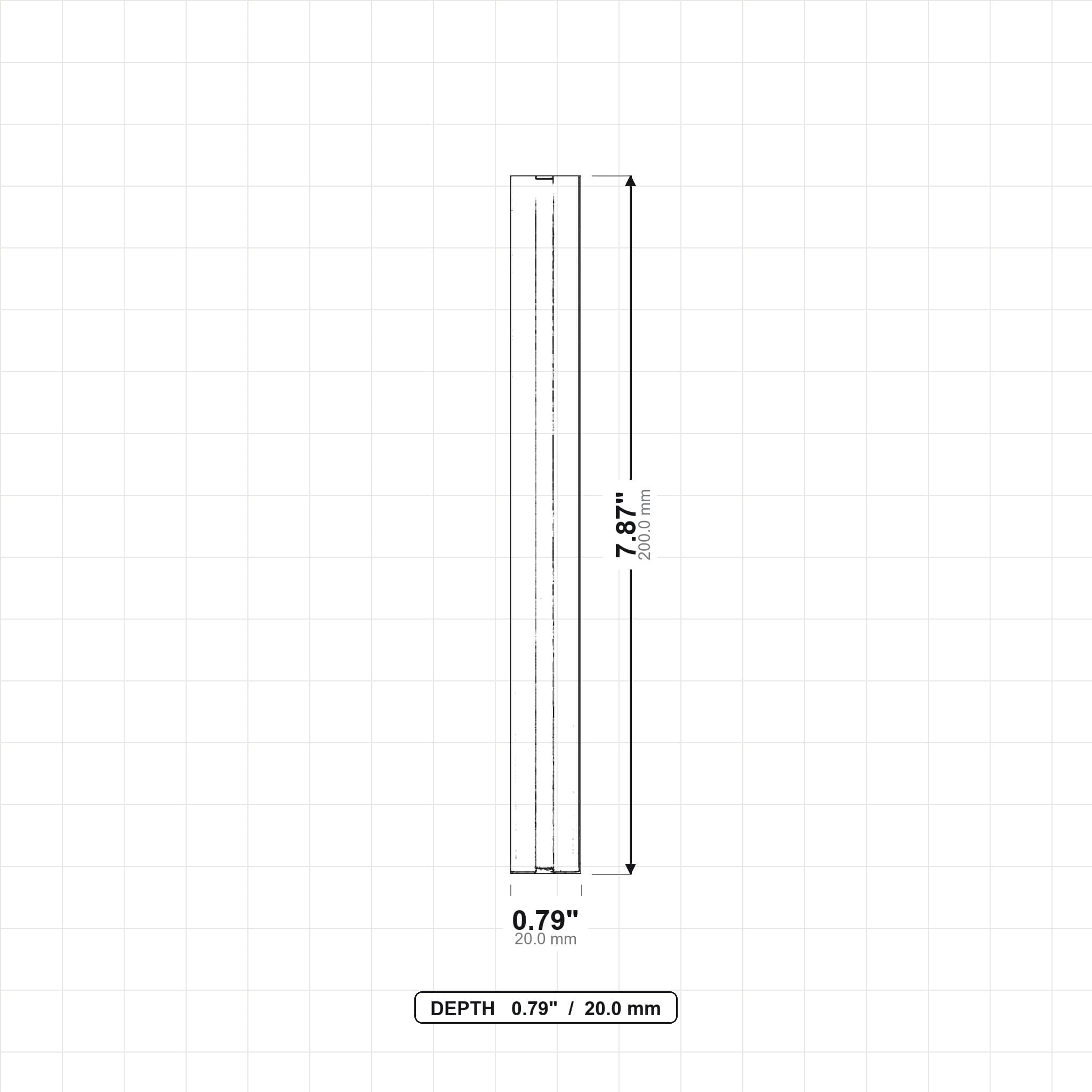

- Sized to the 2020 standard shape so you can compare it against other 2020 components

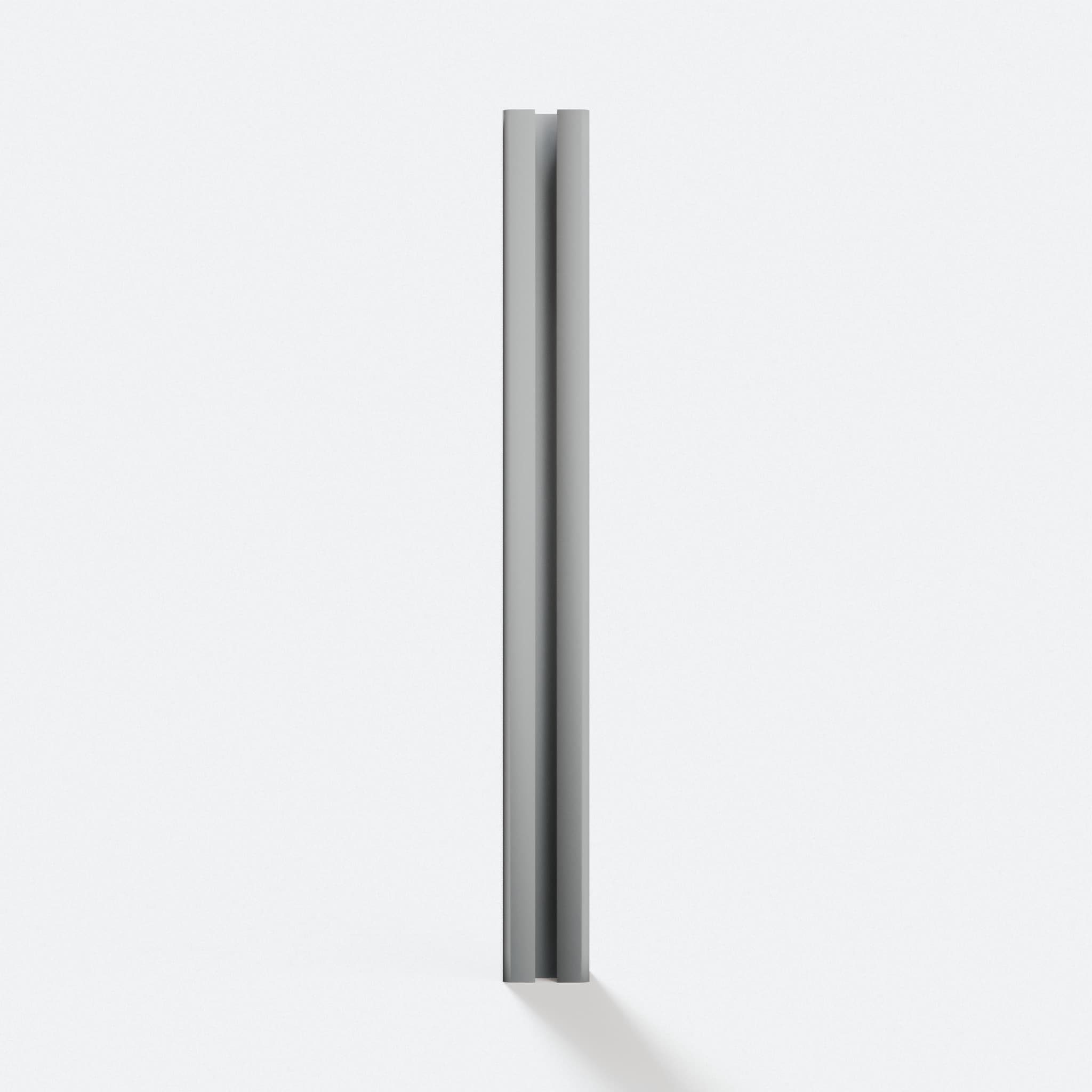

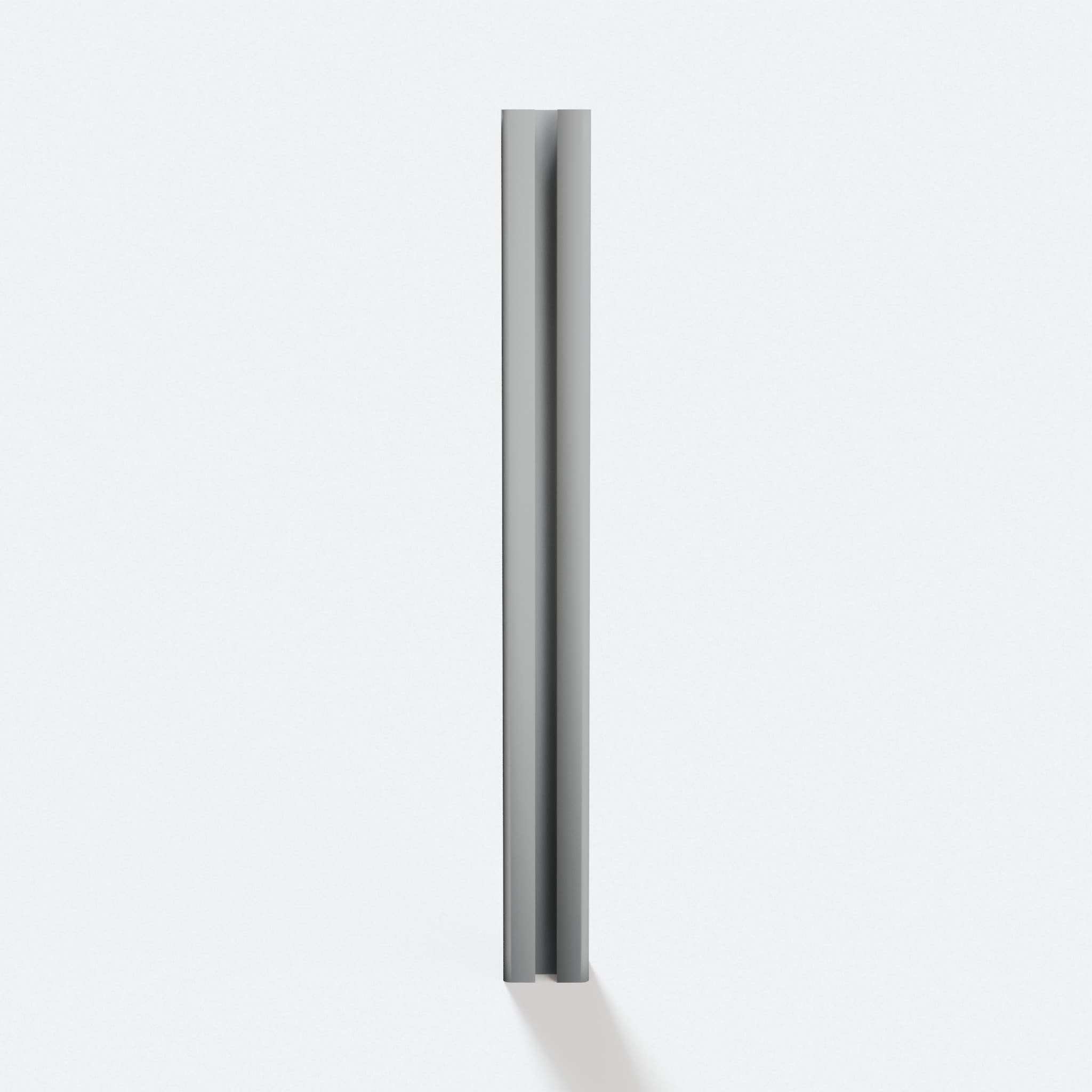

Twin grooves run along each face of this 2020 extrusion profile, matching the familiar shape of aluminum V-slot stock. You get a physical stand-in for the real thing, handy for planning a build before you commit to metal parts.
The profile follows the 2020 standard shape, with the same slot pattern found on the original extrusion design. It works well as a mock-up piece on your workbench, letting you test fit, spacing, and layout for a project that will later use real aluminum extrusion.
This piece is modeled after standard 2020 extrusion, drawn to match its shape and slot pattern. It makes a useful reference for makers, hobbyists, and anyone planning a frame or enclosure build around 2020 profile parts.
11k downloads in the maker community. That is interest in the design on the site it came from, not our sales.
What you get
- This design prints as one piece.
- Nothing else to print or buy for this to work.
What it is made of
Designs like this print well in PLA. Compare the materials.
Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
