10mm LED Soldering Jig for Electronics Work

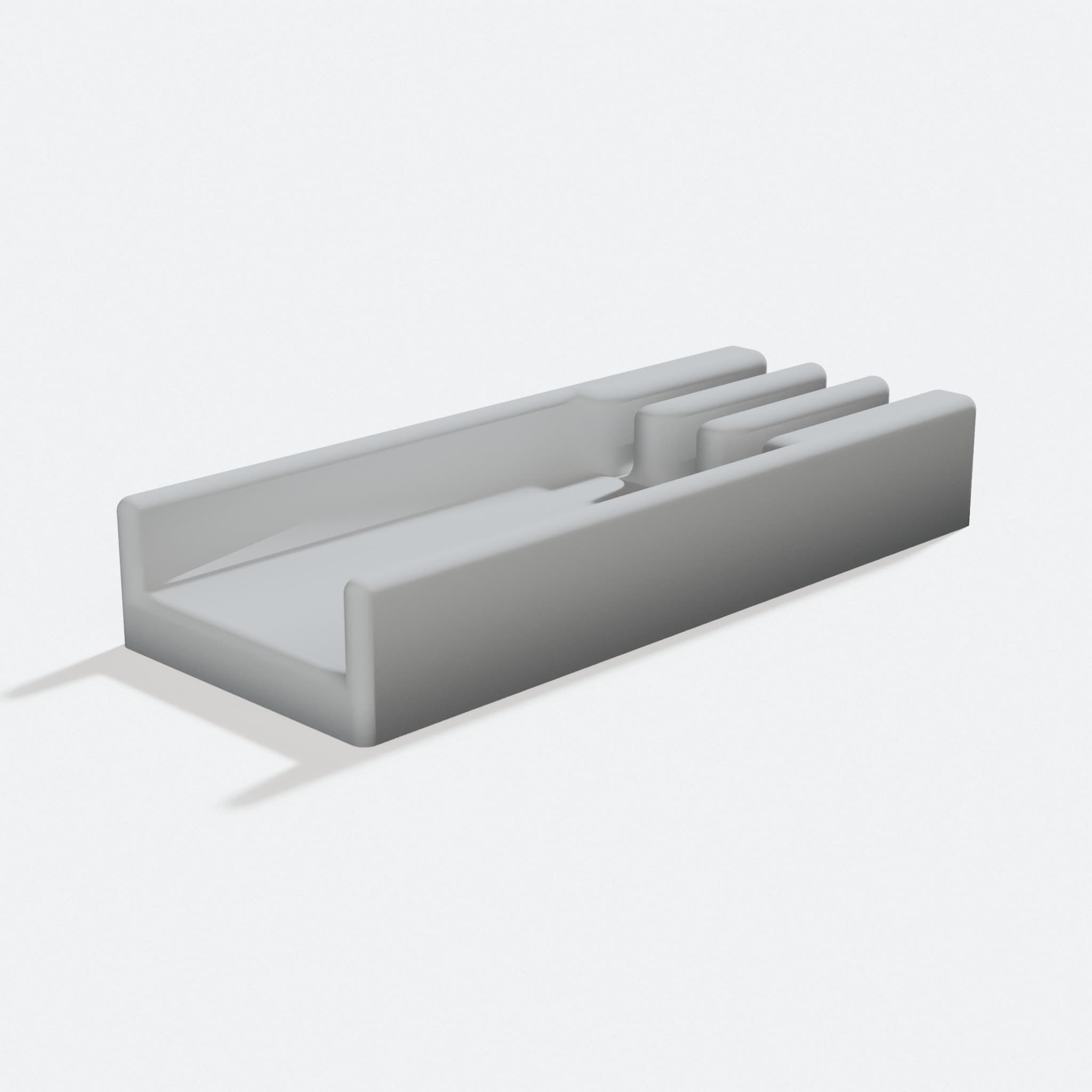

10mm LED Soldering Jig for Electronics Work, design preview, turn three quarter

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Soldering jig for 10 mm LEDs in three pin counts
  • Three pin, four pin, and five pin versions
  • Saves you from needing three hands during soldering
  • Includes a 90 degree three pin angled jig
  • A staple for LED-based electronics projects

You drop the LED into the jig, the pins line up where they should, and the soldering iron handles the rest. This jig holds 10 mm LEDs during soldering so the pins stay where you put them.

The pack includes 3 pin, 4 pin, and 5 pin versions, plus a 90 degree 3 pin angled jig (with a mirrored version too) for awkward angles. The 2024 update adds a shorter channel version of the 90 degree jig.

Use it for LED-based electronics, art projects, and DIY lighting builds.

4.3k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by withanHdammit. We did not draw it.

Shared under Creative Commons, credit required. See the original design
