Customizable Wheel Hub for Robot Motors

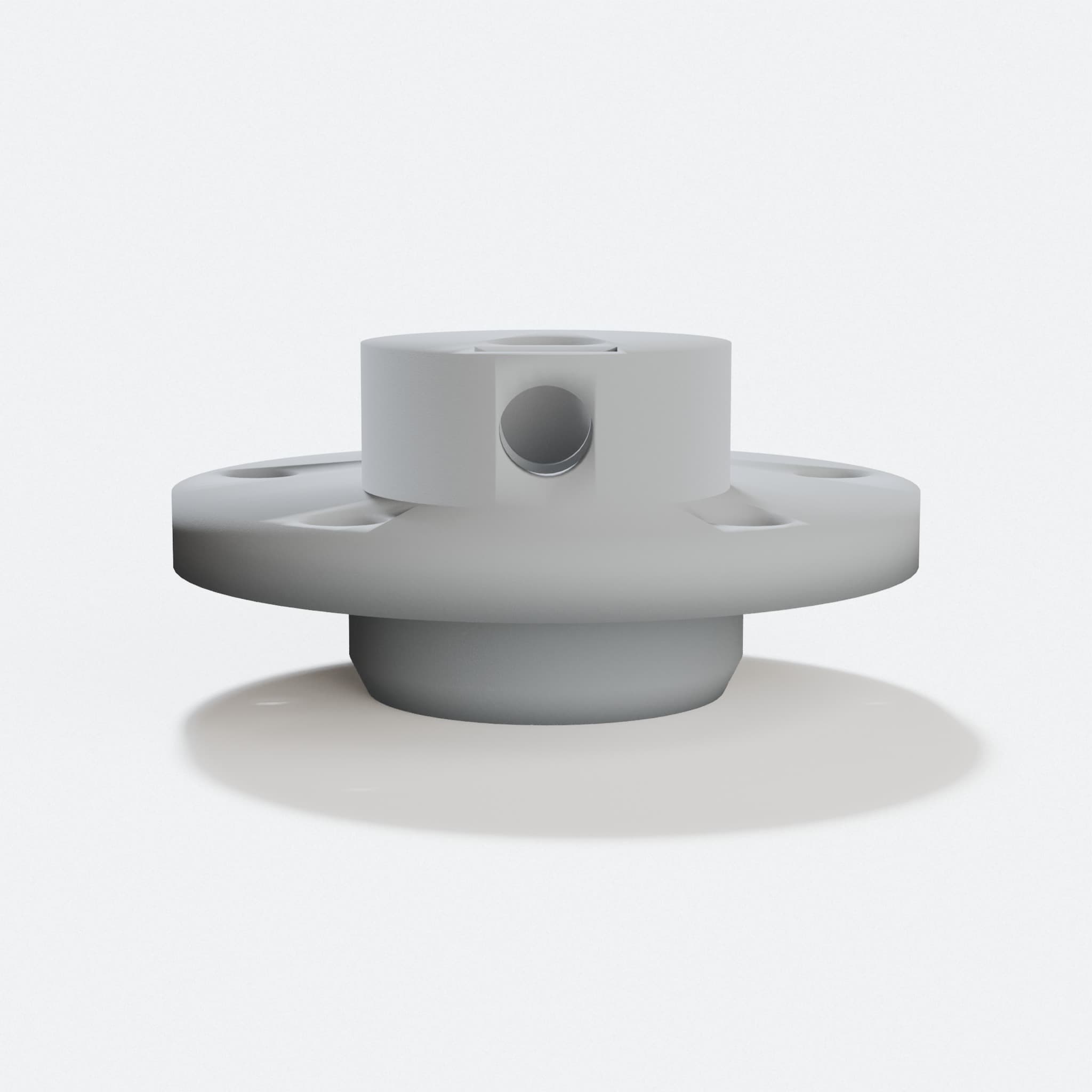

Customizable Wheel Hub for Robot Motors, design preview, hero tilt

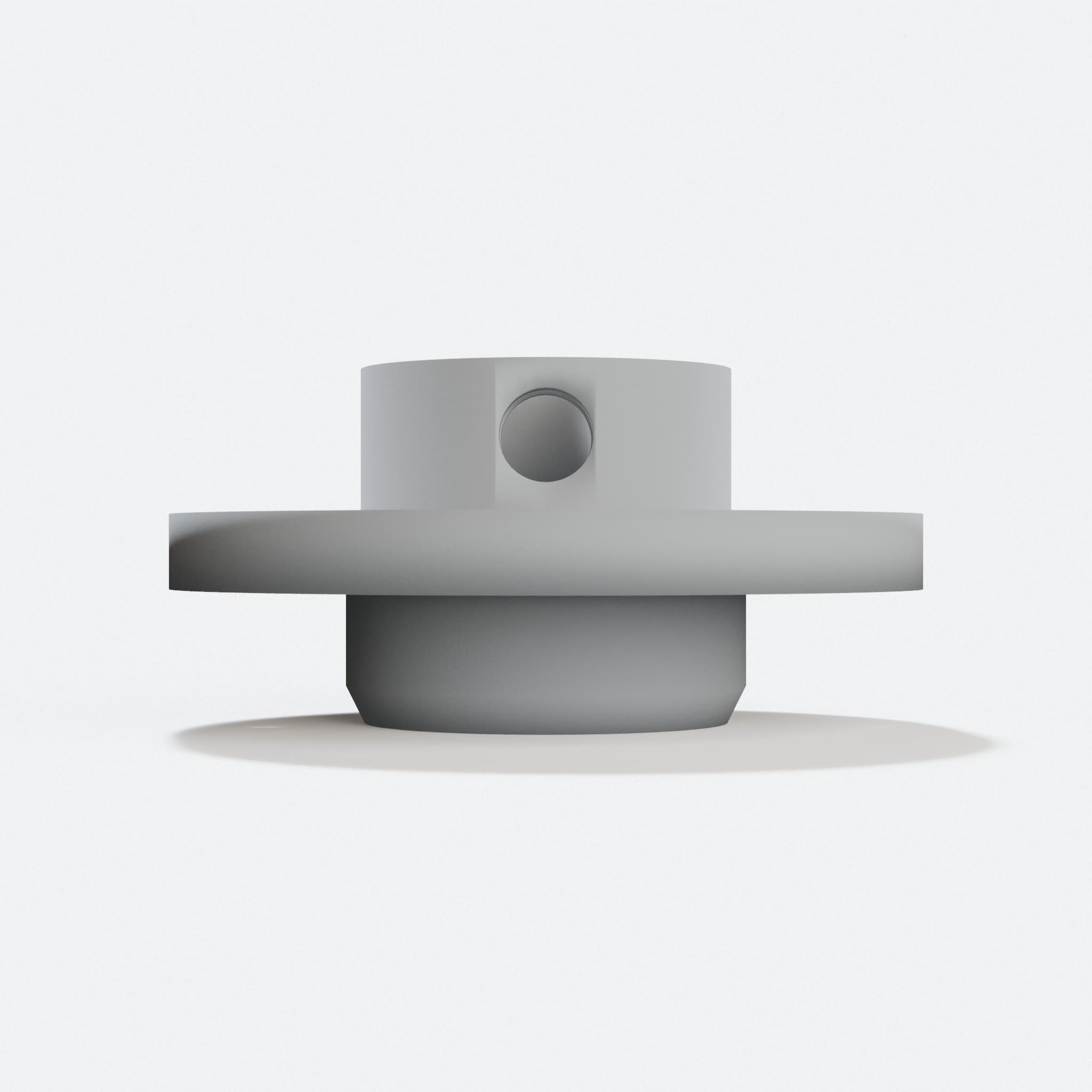

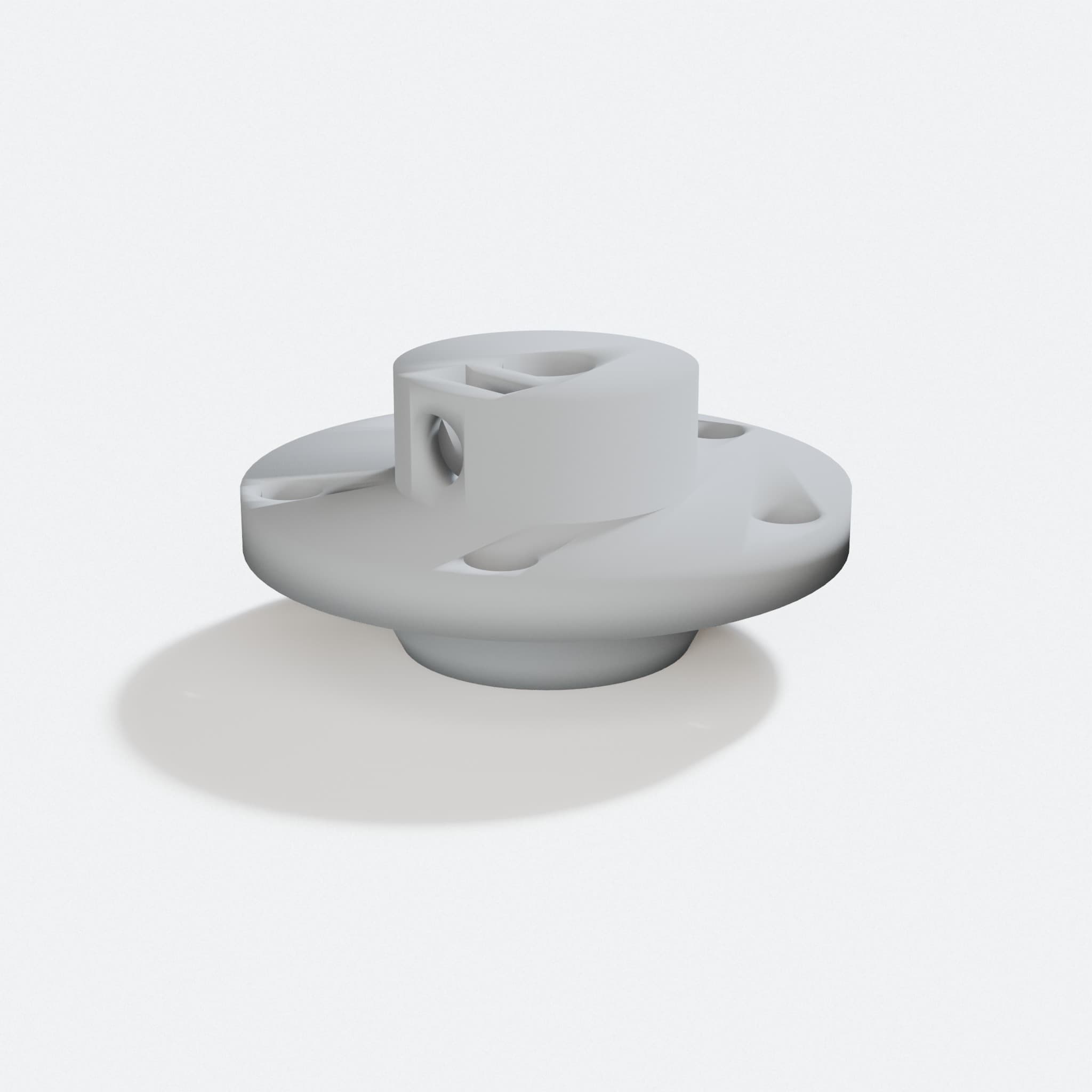

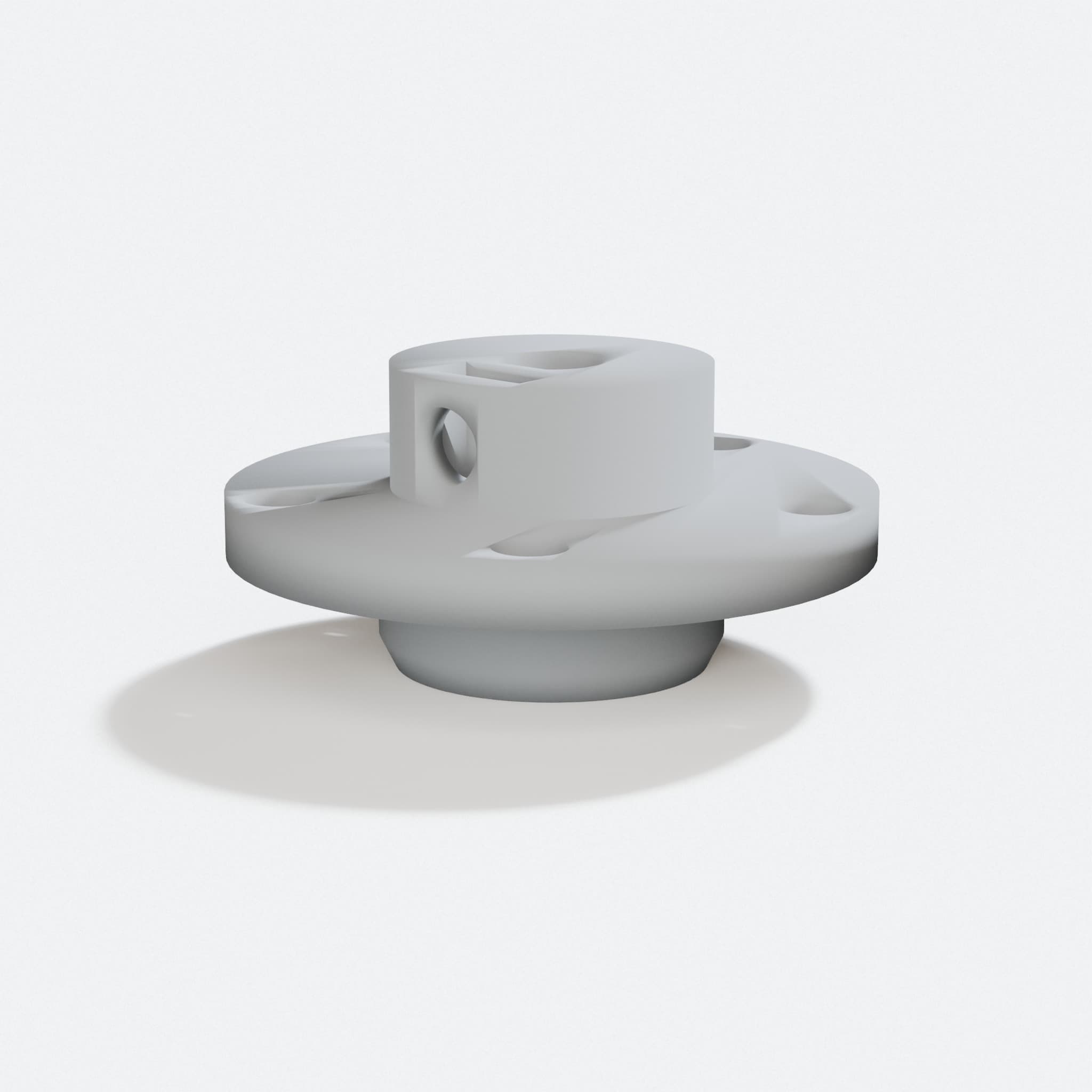

Design preview. Rendered from the file, not a photo.

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

  • Auto-adjusts to your printer's layers so parts fit right the first time
  • Built-in tolerance on fingers and slots means your wheels spin smooth
  • Works with D-shaped or round axles, so you pick what fits your robot
  • Configurable flange radius lets you dial in the exact size you need
  • Prints with proper spacing so assembly takes minutes, not hours

Your robot needs a wheel hub that just works. This customizable part mounts wheels to motors without hassle, because it adapts to how your printer builds layers and includes built-in gaps so pieces slide together smoothly.

The hub auto-adjusts its height to match your printer's standard layer thickness, so tolerances stay tight. Finger slots and mounting holes come pre-sized with allowance, meaning you skip fussing with rough edges. Pick a D-shaped axle or a round one; this design handles both.

Tweak the flange radius in the settings to match your wheel perfectly. Your robot builds faster when the parts fit on the first try.

4.0k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What you get

  • This design prints as one piece.
  • Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.

More like this

Who made this design

Designed by Gear206. We did not draw it.

Shared under BSD. See the original design
