3D Printed Oil Filter Removal Tool, No Mess

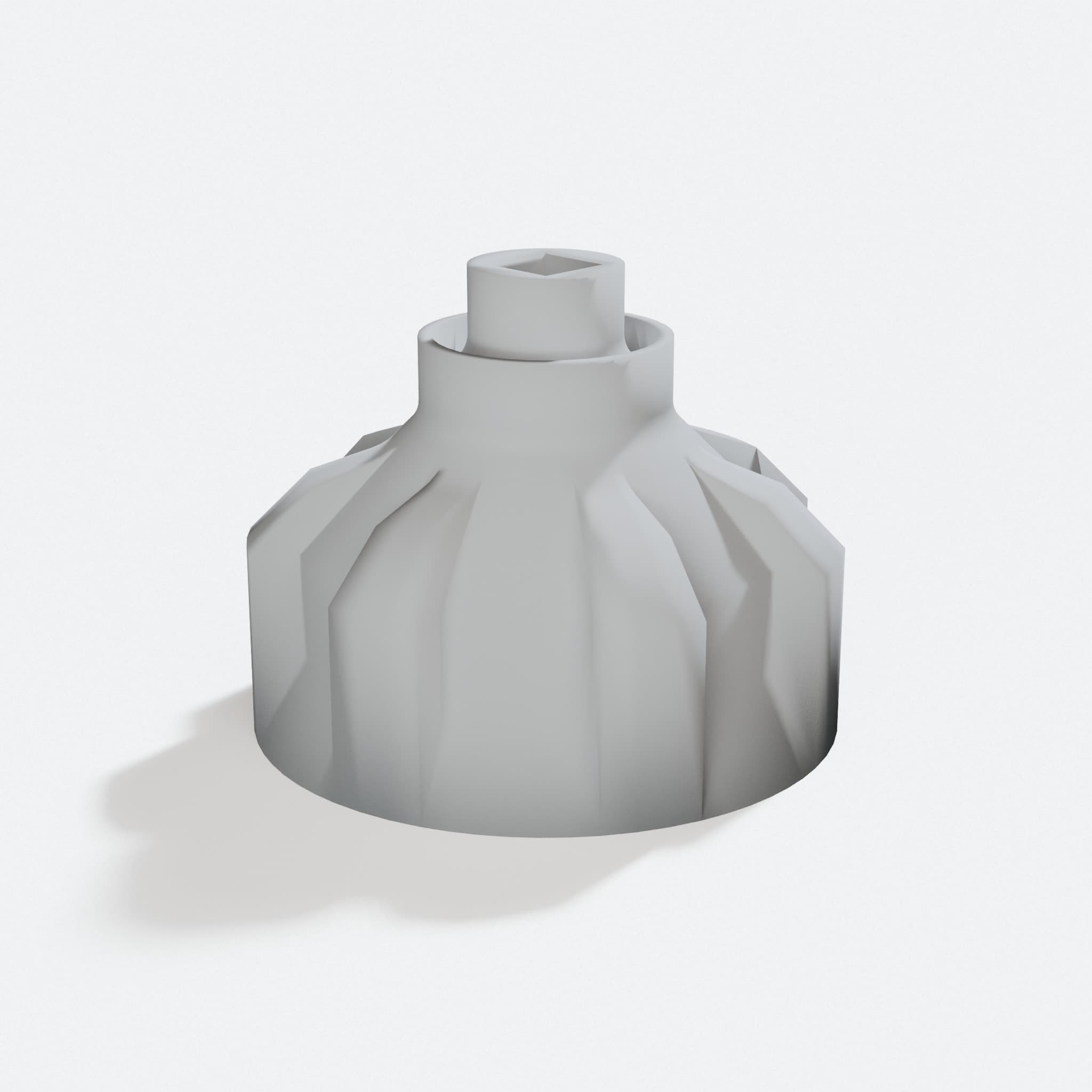

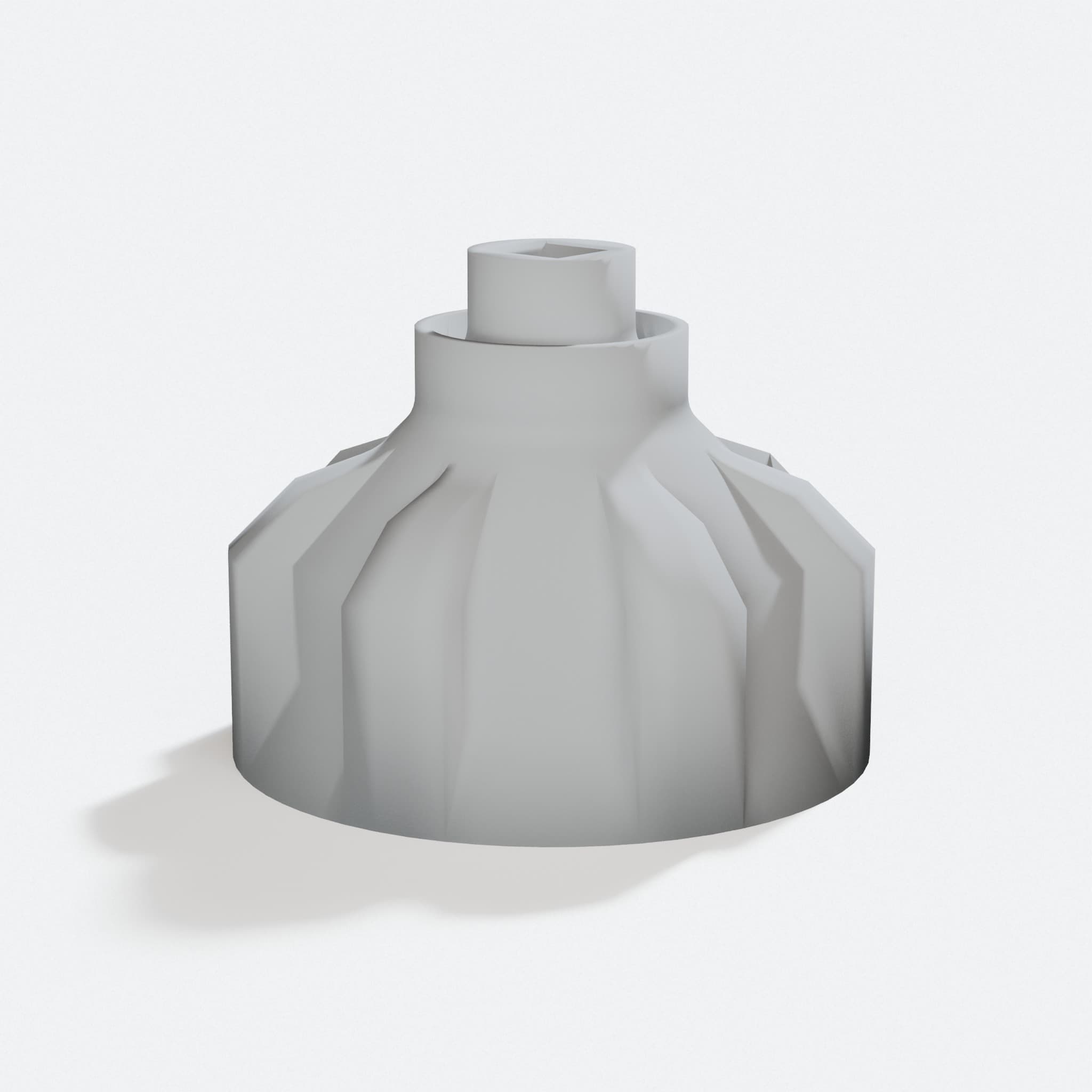

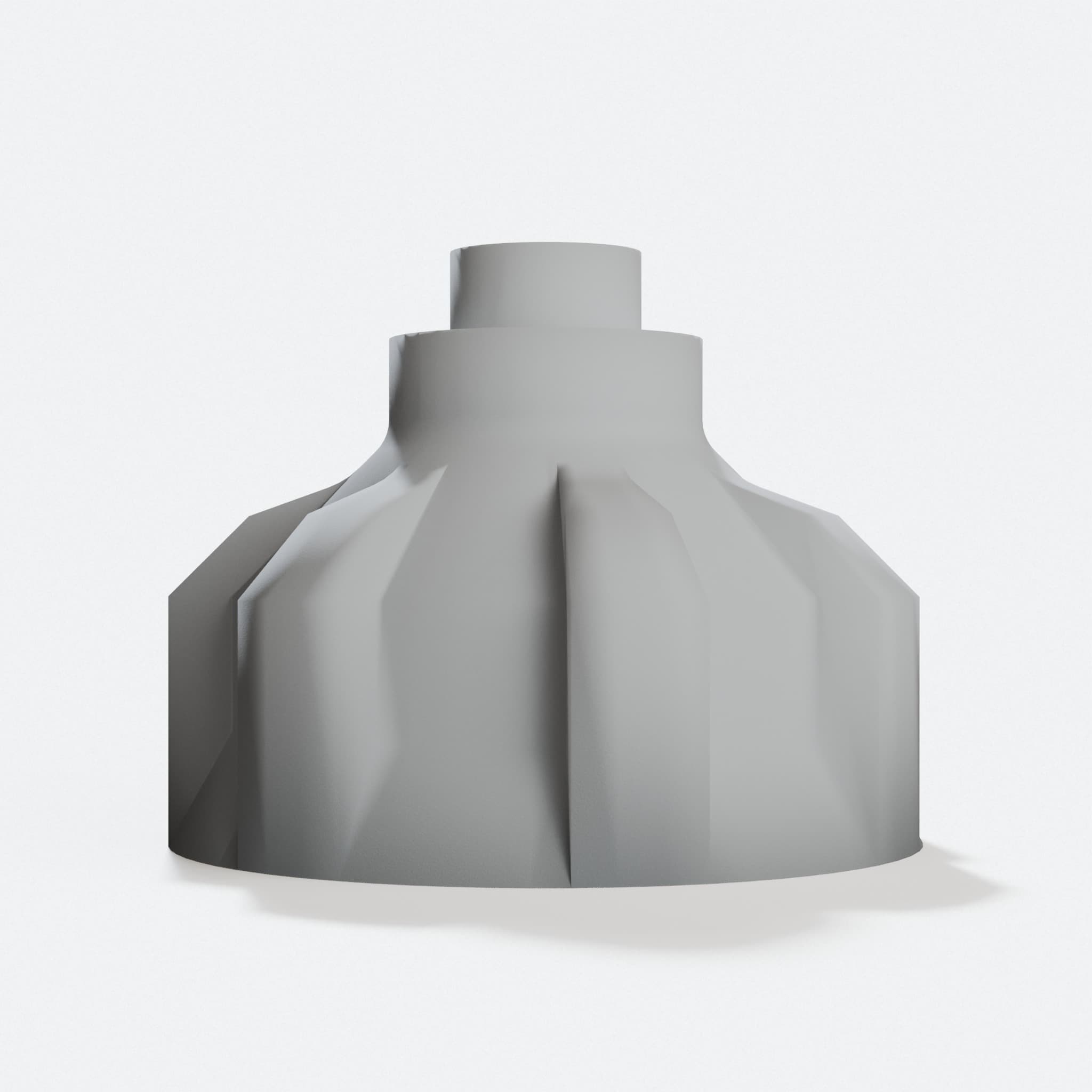

Design preview. Rendered from the file, not a photo.

The maker says it fits: 65.5mm 14-flute oil filters (vertical-mount). See the proof

This model is not currently offered as a verified ready to buy print.

Already have the file?

Upload it and we'll quote your print.

Upload your file

Looking for something like this?

Ask the Solution Counter.

Ask the Solution Counter

What it does

Routes excess oil through channels so you stay clean and grip the filter better while unscrewing it
Funnel hole fits a half-inch ratchet wrench, so you can loosen stuck filters without straining your hands
Works as a general funnel that fits into 1-quart and 1-gallon oil containers, so you can pour old oil back in without spilling
Designed for 65.5mm 14-flute filters on vertical mounts, so your oil drains down instead of all over your engine

Keep your hands clean when you change your oil. This 3D-printed removal tool diverts dripping oil away from your hands and down through built-in channels. You get a better grip on the filter and less mess on your skin and engine.

The tool features flow channels that give you extra purchase when you unscrew the filter. A funnel hole at the bottom fits a half-inch ratchet wrench, so you can tackle filters that are stuck on tight. After you loosen it, remove the wrench so oil can drain freely through the bottom opening.

Your tool works double duty as a general funnel. The end slides into the opening of a 1-quart or 1-gallon oil container to keep it steady while you pour old oil back in. Fits 65.5mm 14-flute oil filters mounted vertically on your engine.

11k downloads in the maker community. That is interest in the design on the site it came from, not our sales.

What it fits

The maker says it fits: 65.5mm 14-flute oil filters (vertical-mount)

That is the maker's word, not a fit we measured. Check the size below against your own.

65.5mm 14-flute oil filters (vertical-mount)From the maker's own listing notes, checked 2026-08-13. See the original post

What you get

This design prints as one piece.
Nothing else to print or buy for this to work.

What it is made of

Designs like this print well in PLA. Compare the materials.

Printed plastic is strong for its size, but it is not metal. We have not load tested this design, so we do not publish a weight rating. Keep it out of a hot car and away from open flame.
