Hub-Centric Ring for Aftermarket Wheels

A real thing, made fresh for you when you order.

15k downloads in the maker community

$18.02

Color: Gray

Printed in the USA when you order.

1.You order it
2.We print it fresh
3.It ships to you

Properly centers aftermarket alloy wheels on your car hub for balanced rotation
Customizable inner and outer diameters—adjust parameters to fit your specific wheel and vehicle
Holds wheels in place during lug nut tightening; friction maintains fitment once secured
Printed on demand in durable PLA; proven performance even on track-driven vehicles

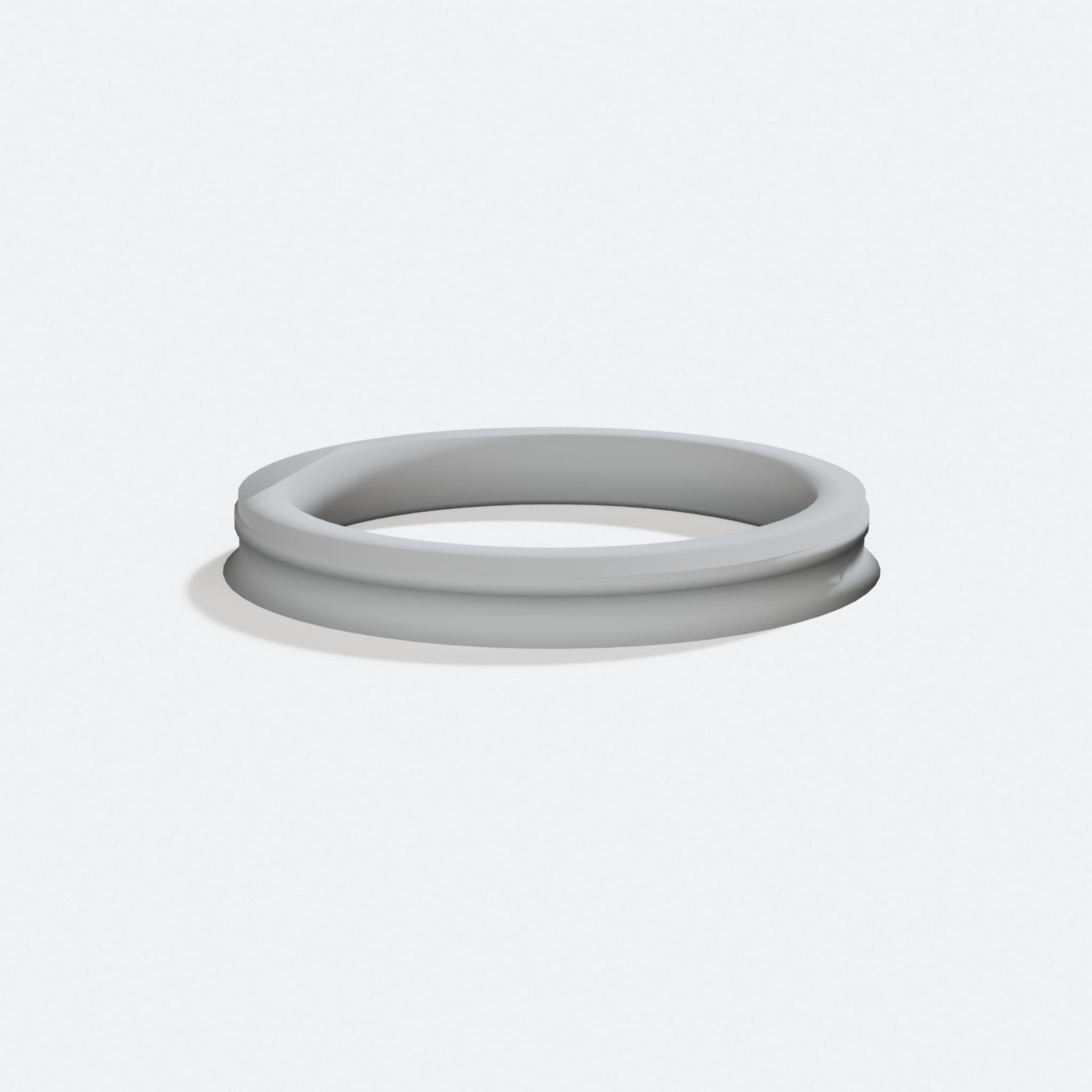

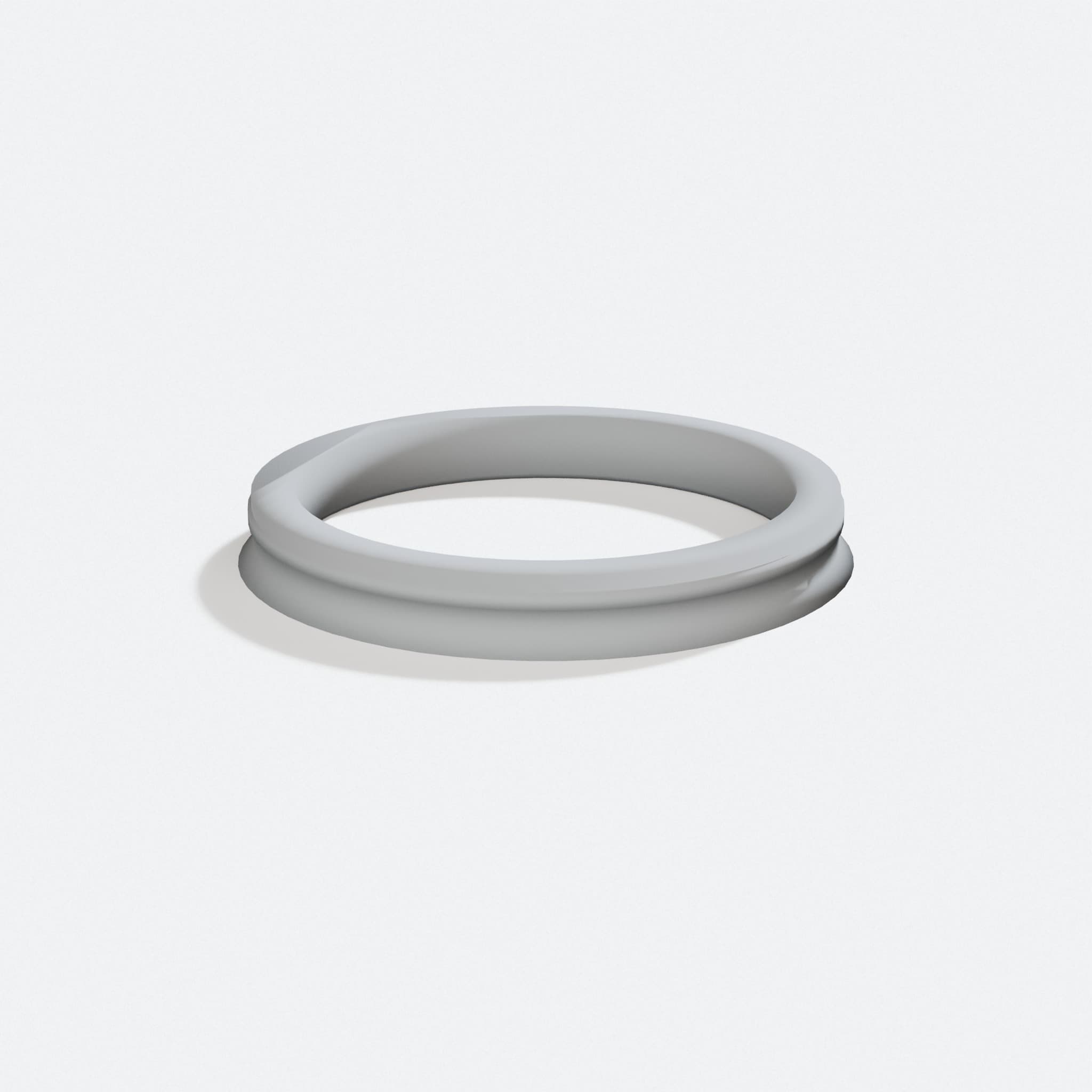

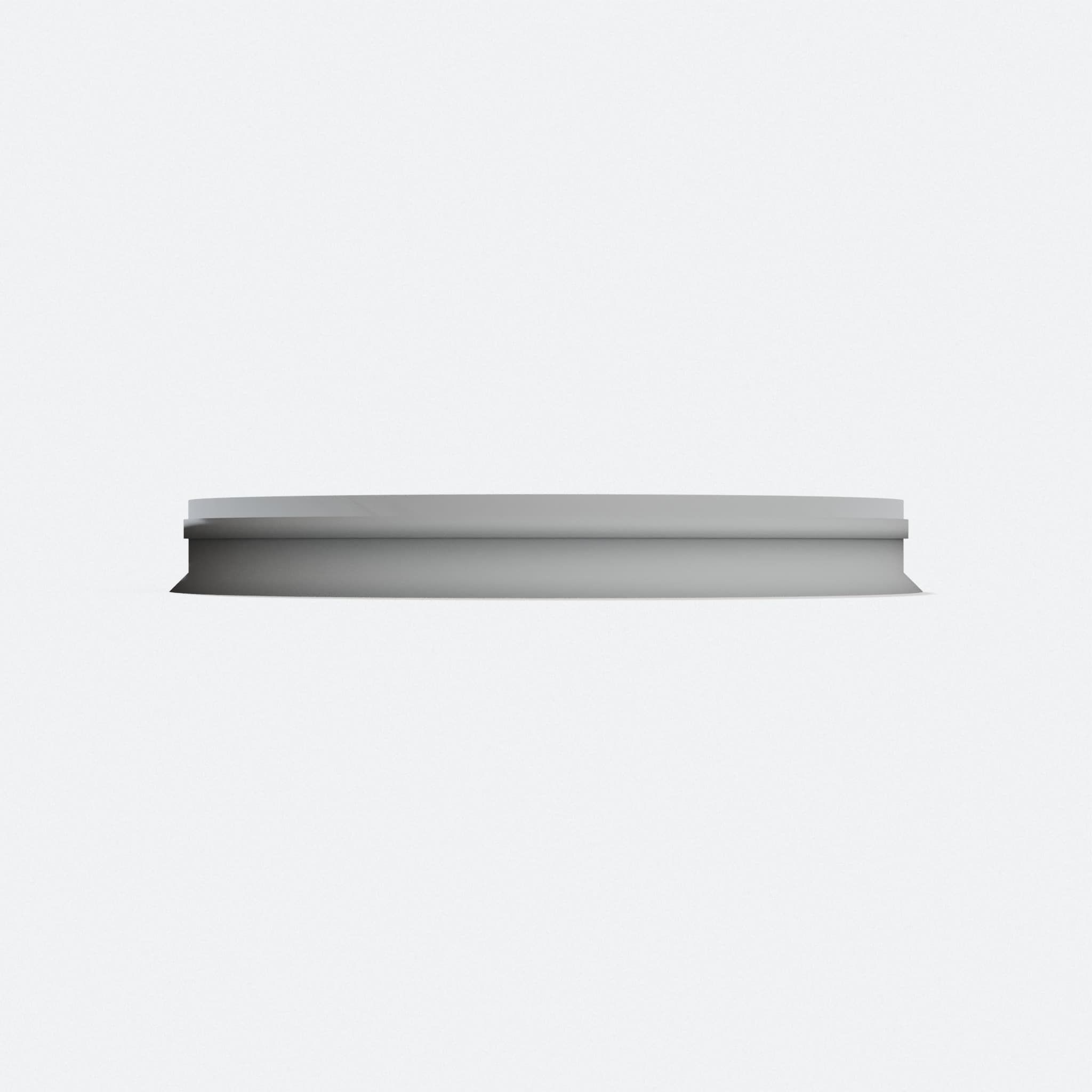

A hub-centric ring for aftermarket alloy wheels that need precise centering on your car's hub. Aftermarket wheels typically have larger center bores to fit multiple vehicle makes with the same stud pattern, which is why a centering spacer is essential for proper wheel balance and safety.

This parametric design lets you customize the inner and outer diameters to match your specific wheel and vehicle hub. Default settings are configured for OZ wheels (75 mm center bore) on Ford hubs (63.4 mm), but you can adjust the OpenSCAD parameters for your exact fitment requirements.

Printed in PLA, this ring keeps your wheel centered while you torque the lug nuts. The material holds up well under normal driving and even race conditions—it softens slightly under brake heat but maintains its centering function. Once your lug nuts are tight, friction locks the wheel in place securely.
