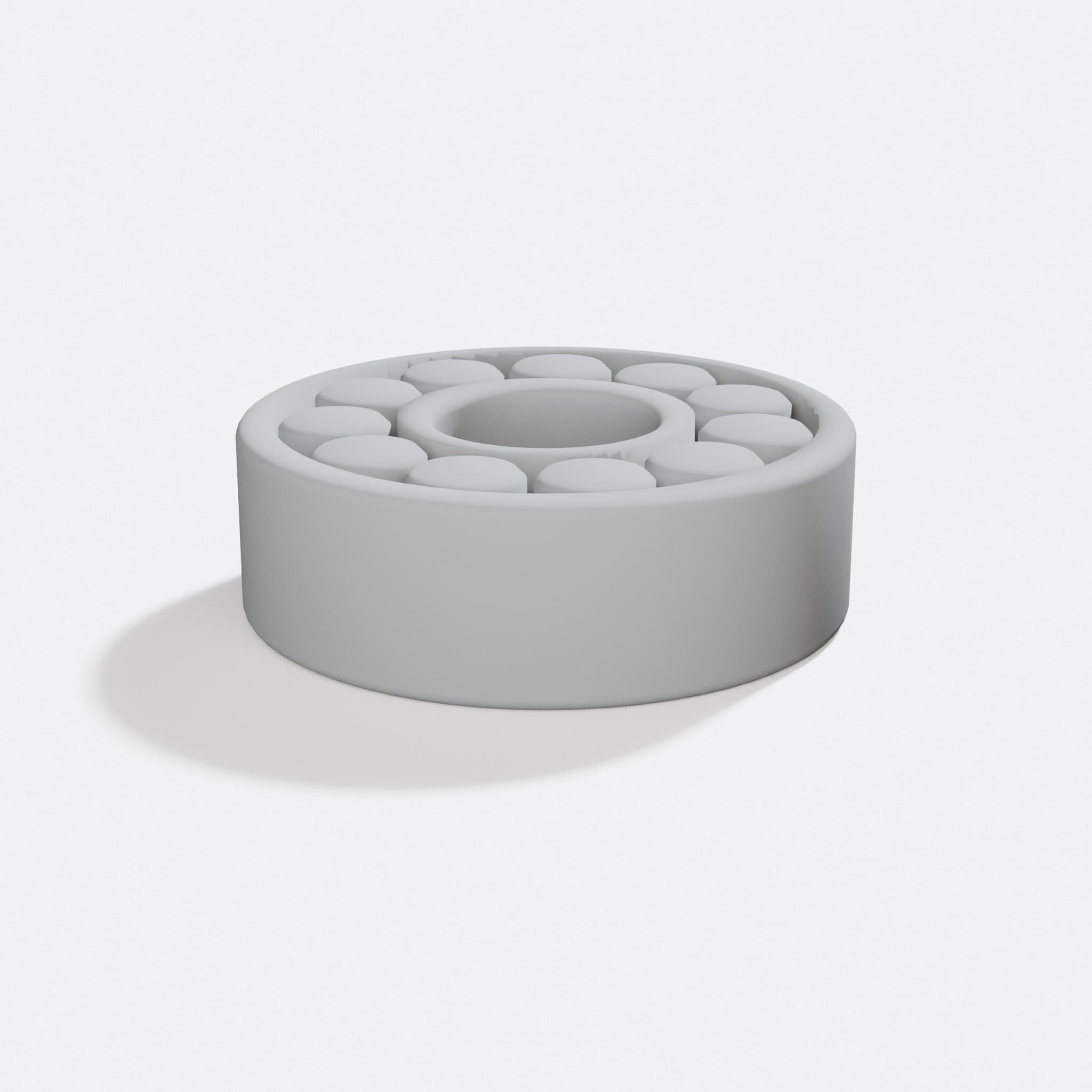

3D Printable Customizable Bearing

Your printer, running the way it should.

18k downloads in the maker community

$15.36

Color: Gray

Printed in the USA when you order.

1.You order it
2.We print it fresh
3.It ships to you

Fully customizable SCAD file lets you adjust ball spacing and ring dimensions
Print as a single piece with adjustable geometry to match your printer's tolerances

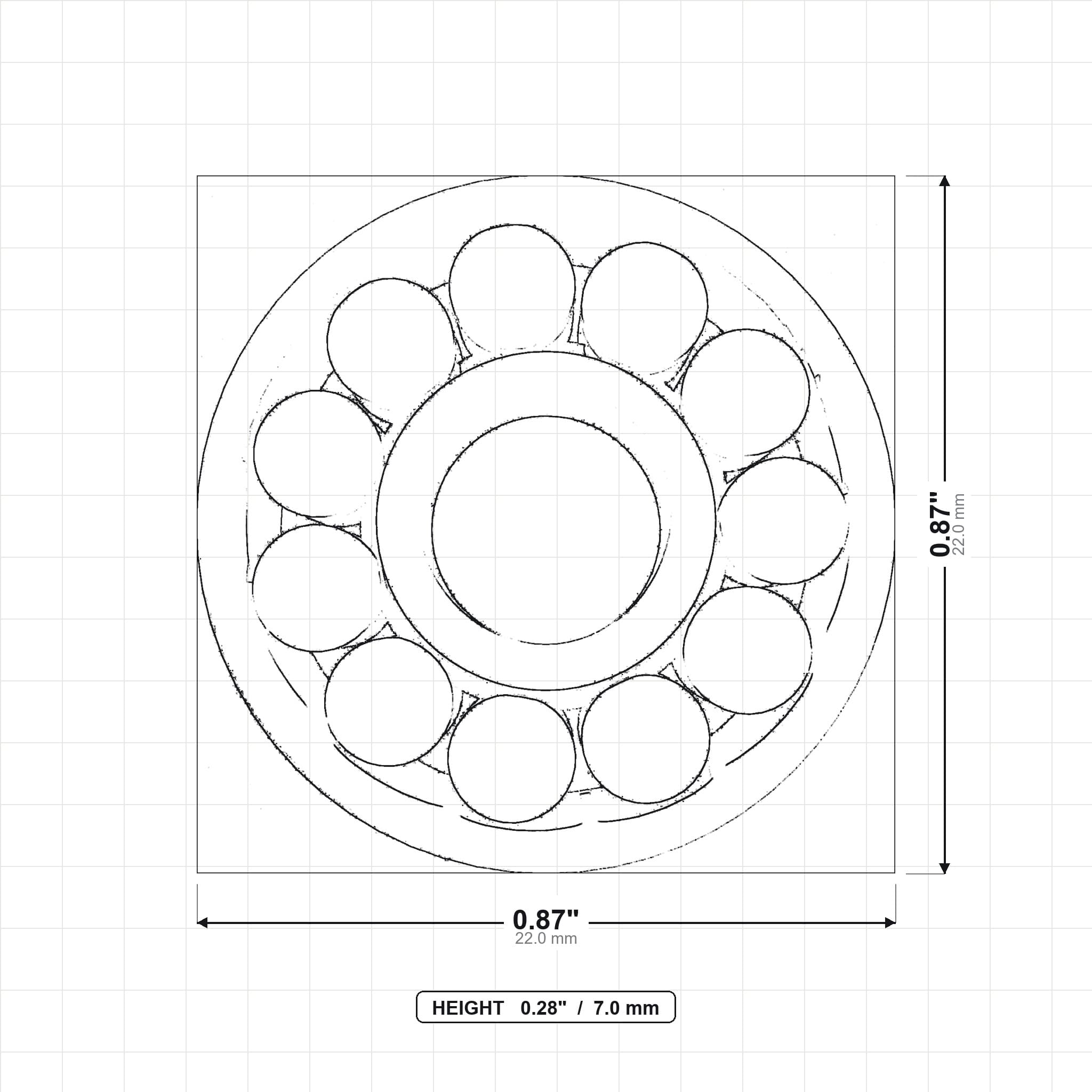

Based on standard 608 bearing dimensions (8mm inner, 22mm outer, 7mm height)
Includes example STL files and guidance on optimal spacing (0.2–0.25mm recommended)
Flexible design supports variable ball sizes—use supports as needed for smaller balls

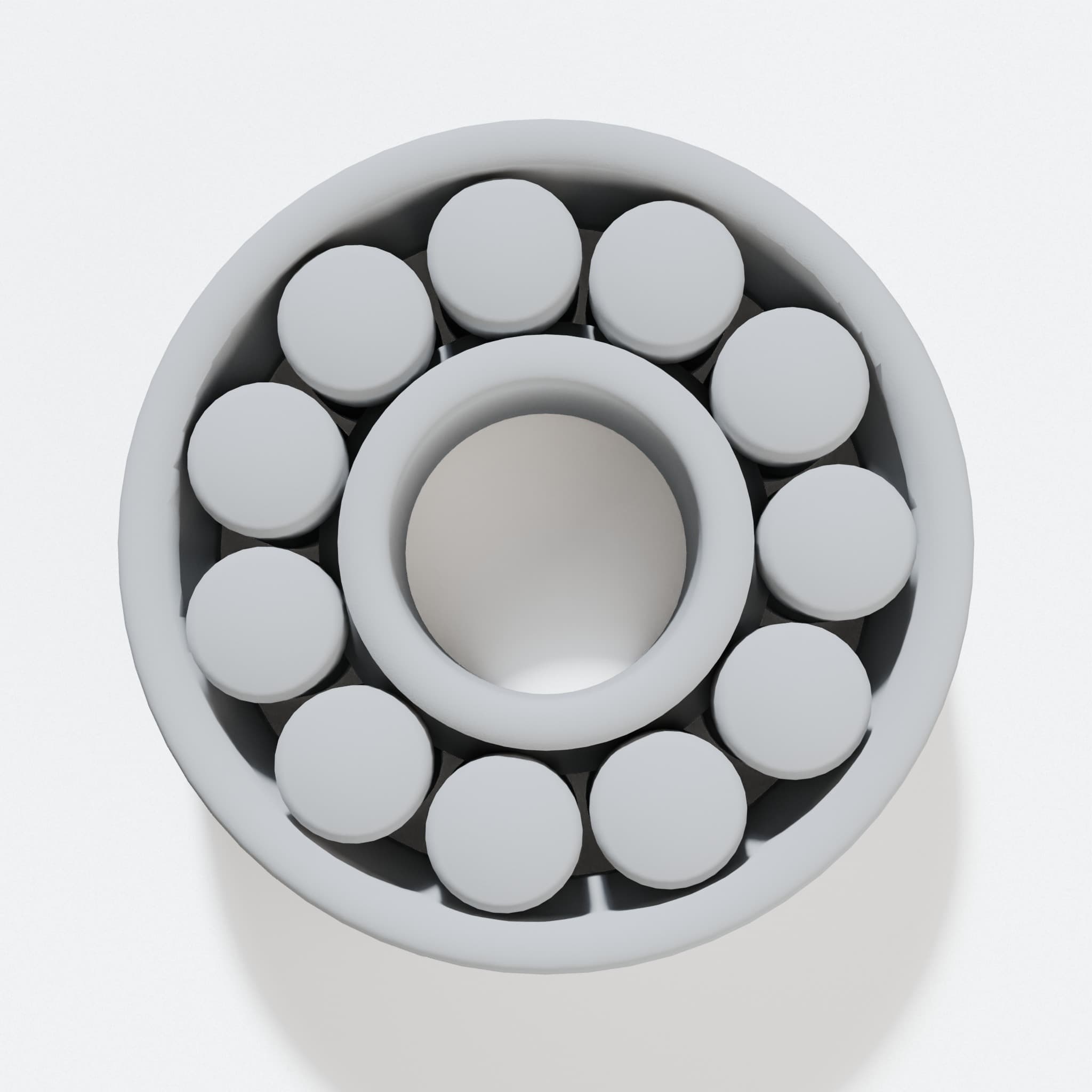

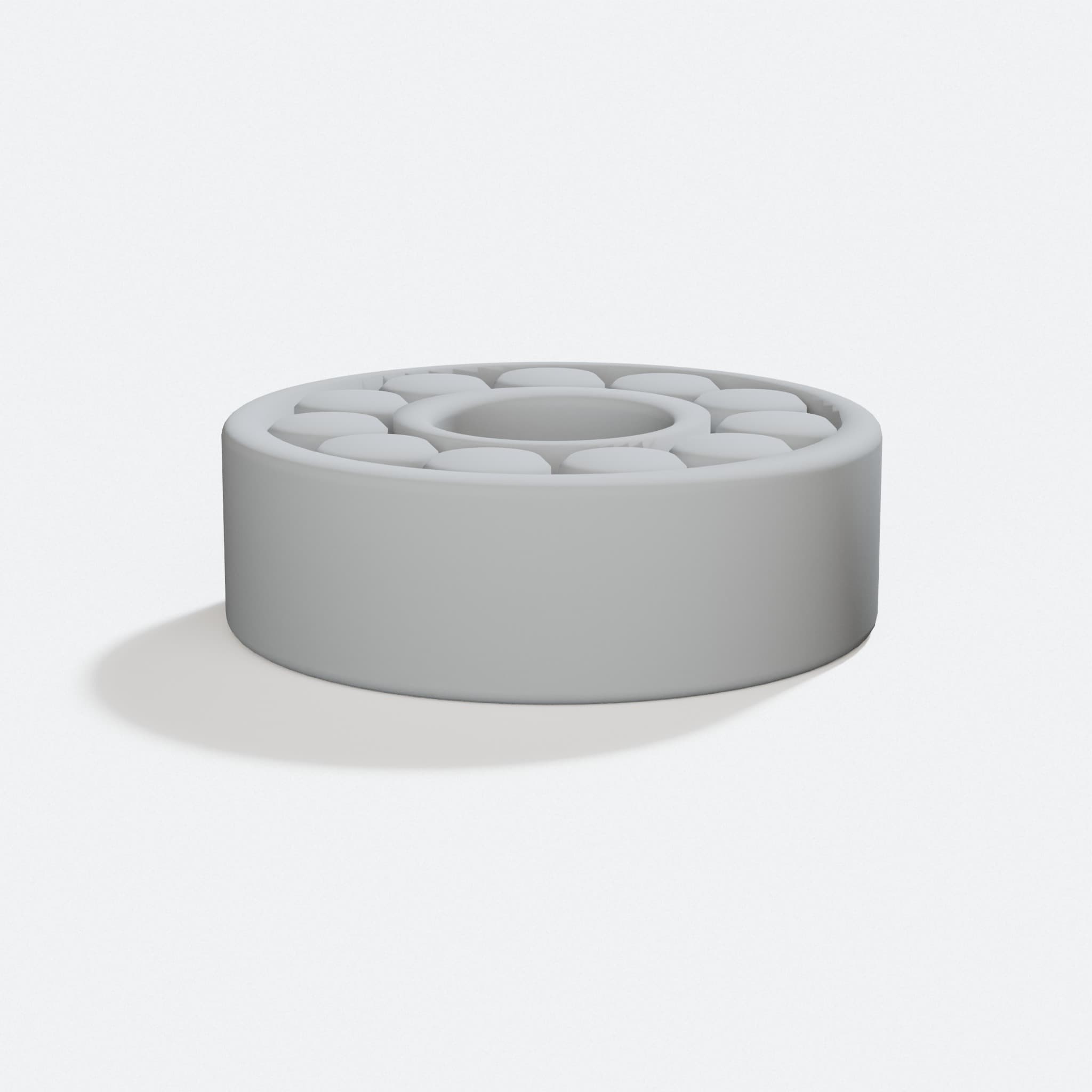

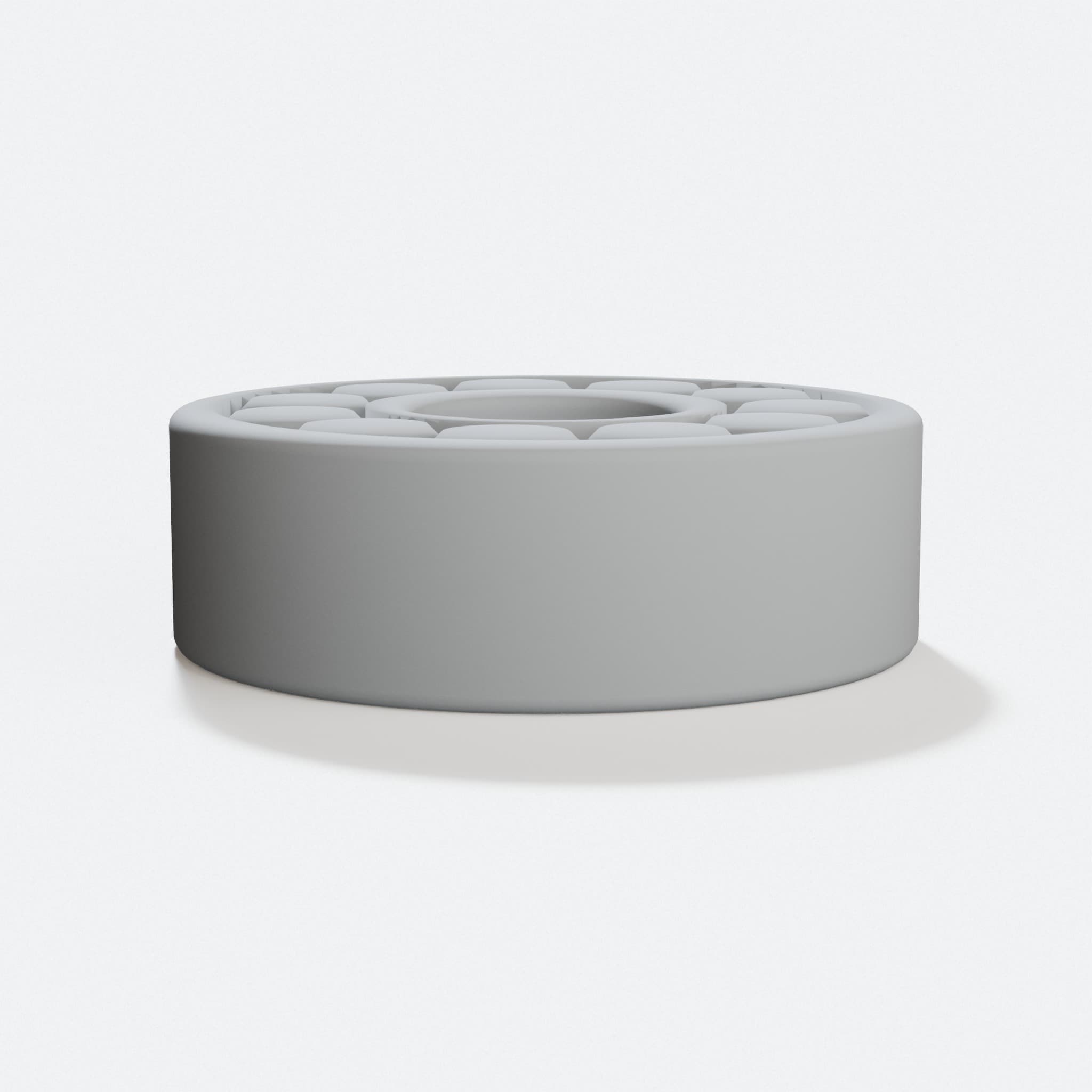

This 3D printable bearing is a customizable SCAD remix that lets you design and print functional bearings tailored to your specific 3D printer. Starting with standard 608 bearing proportions (8mm inner diameter, 22mm outer diameter, 7mm height), you can adjust spacing between the balls and rings, as well as ball height, to achieve optimal fit and performance on your hardware.

The design prints as a single interlocking piece, eliminating assembly steps. Because printer tolerances vary, the included SCAD file gives you full control over critical clearances. A spacing range of 0.2–0.25mm works well for most FDM printers, though testing with a small bearing prototype is recommended before committing to full-size prints.

For bearings with smaller balls than rings, you can reduce ball height space and apply support material during printing to ensure clean ball geometry. Example STL files are provided to show different customization possibilities.
